PK cranes

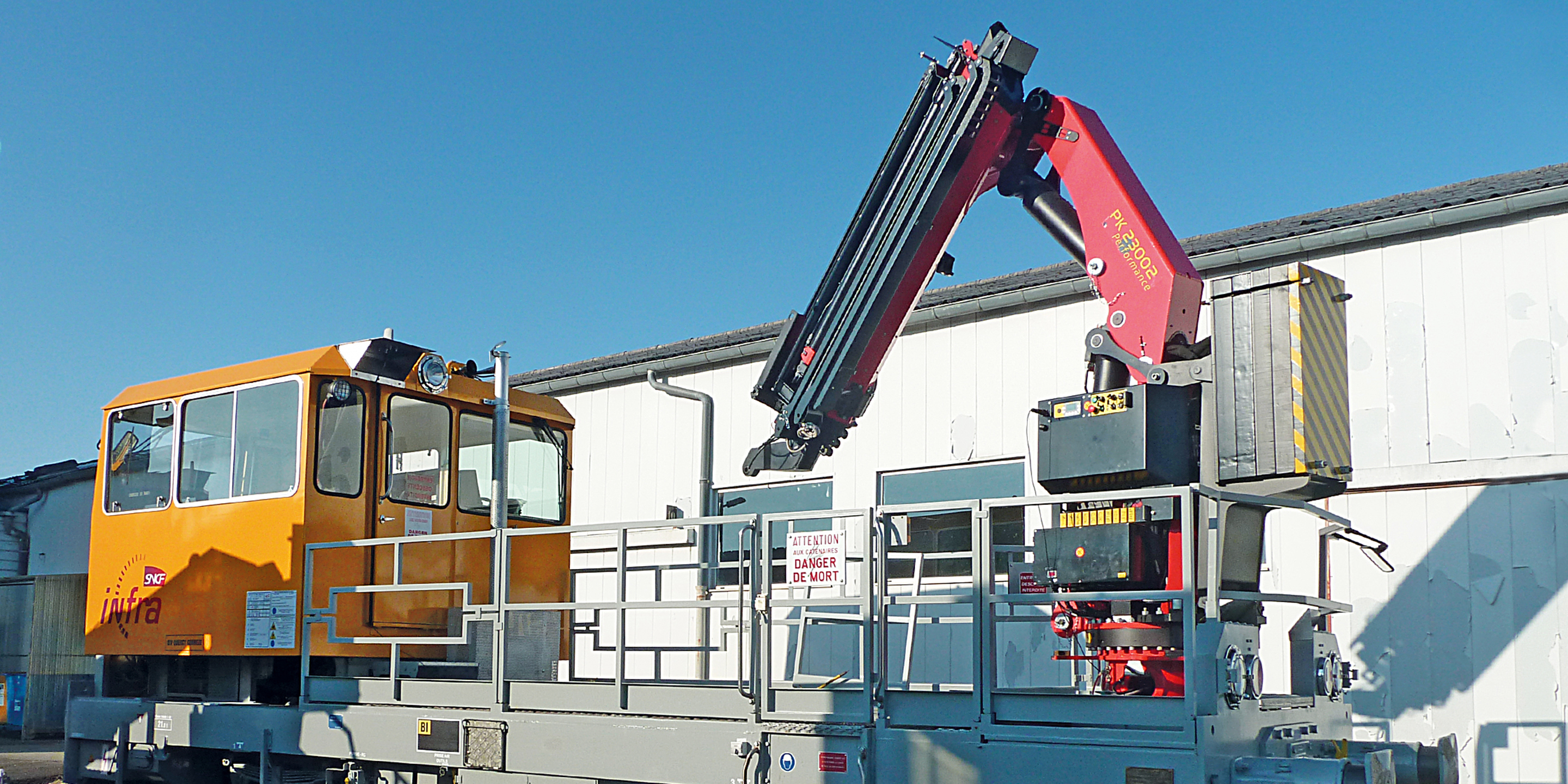

PK 23002

Versatile, dependable, tried and tested

alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
Railway
Key Specs
Max. lifting moment
22.3 mt
Max. hydraulic outreach
21.3 m
Slewing angle
450° / Option ∞

This PK range comprises tried-and-tested solutions renowned for their versatility. They are the obvious choice whenever assignments call for a load hook, hydraulic winch, workman basket, or other attachments. And, like all products in PALFINGER’s Railway Systems segment, the PK 23002 meets stringent safety requirements.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Safety-driven design for high-performance lifting

The Power Link system optimizes lifting force in all arm positions. Its control system is PLd-compliant in accordance with EN 13849 and enables secure data transmission via the CANopen Safety protocol. The design supports combined operation of multiple units mounted on the same vehicle. Lateral and vertical movement limiters in accordance with ensure safe operation. All cranes comply fully with EN 12999 and with EN 280 if equipped with workman baskets.

alt text

Combine our systems for maximum impact

PALFINGER railway units operate most efficiently in combination. Communication between PALFINGER equipment distributes stability throughout the vehicle to optimal effect – providing access to the maximum possible lifting capacity and reach at all times.

alt text

The positive impact of counterweights

A counterweight can significantly increase the vehicle’s stability, thereby improving performance – especially when working without stabilizers, whether stationary or at creep speed. Positioned at the optimal point with a large effective distance, the counterweight is more effective than having a ballast weight mounted on the vehicle.

alt text

Linkage system for near-constant lifting capacity

Newly designed cabin controls enable effortless execution of even the most complex tasks. Operators can manage crane movements seamlessly and control the vehicle drive directly via the foot pedal. Furthermore, operators are well protected while operating a mulching unit or branch saw, safeguarding them against rocks or flying chunks of wood.

alt text

Highlights

Reverse outer boom

The emergency control stand, which can be positioned anywhere on the vehicle, permits emergency operation in the event of a remote control outage or power supply failure. This enables the operator to control the crane from a safe position.
alt text

Technical Specifications

Technical data
Max. lifting moment
218.7 kNm
Max. lifting moment
22.3 mt
Max. hydraulic outreach
21.3 m
Slewing angle
450° / Option ∞

Discover Standard Features

Continuous lifting capacity optimization on inlines

The strengths of PALFINGER railway systems come to the fore when operating on sections of track with significant cant. State-of-the-art sensors integrate inclination data in stability calculations in real time. This allows the crane’s lifting capacity to be continuously controlled at inclinations from 0° to 15°, eliminating the need for general load reductions.

alt text
Lateral and vertical movement limiters

The Railway Premium line’s parametric lateral and vertical movement limiters provide maximum range of motion with the highest level of safety (PLd as defined in EN 13849). The limit curves are calculated based on the specific track and vehicle parameters and corresponding safety measures in accordance with EN 14033. Paltronic relies on state-of-the-art sensors for dynamic, real-time monitoring of the crane’s position to prevent unsafe movements. An optional feature permits storage of up to four different lateral limit curves and three vertical height limit curves.

alt text
Full compliance with PLd

The Paltronic crane control system and its connected sensor system achieve Performance Level d (PLd) as defined in ISO 13849-1 for all relevant safety features.

alt text
Electrical earthing

PALFINGER relies on highly flexible earthing cables to ensure excellent protection against electric shocks. Every component – from the base to the crane tip – is connected with 2×50 mm² earth cables. Transparent insulation allows easy inspection of the cables for breaks or carbonization damage caused by stray currents. Units equipped with a work basket are also equipped with corresponding earth cables.

alt text
