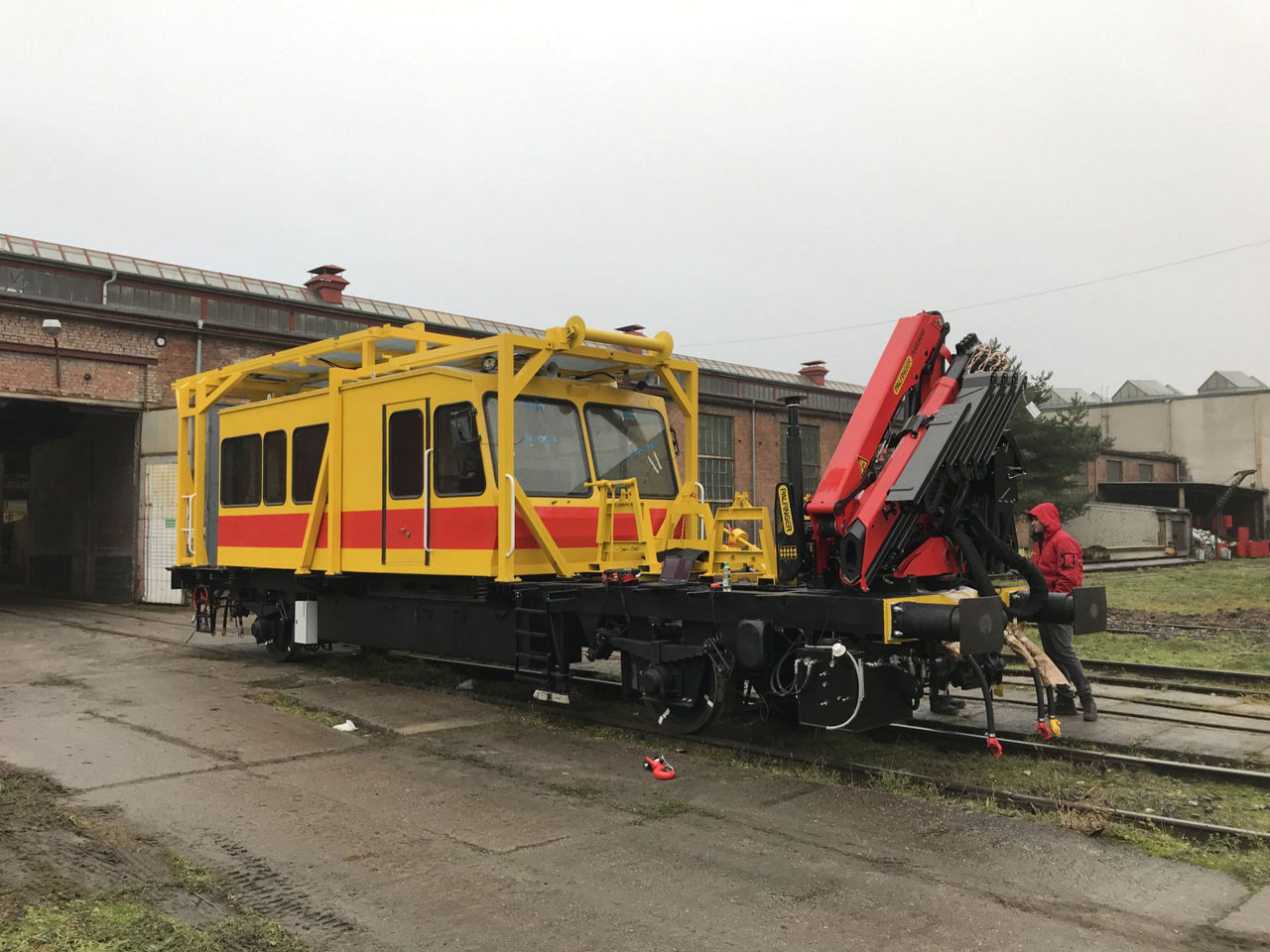

PK 12502 RW Basic Line

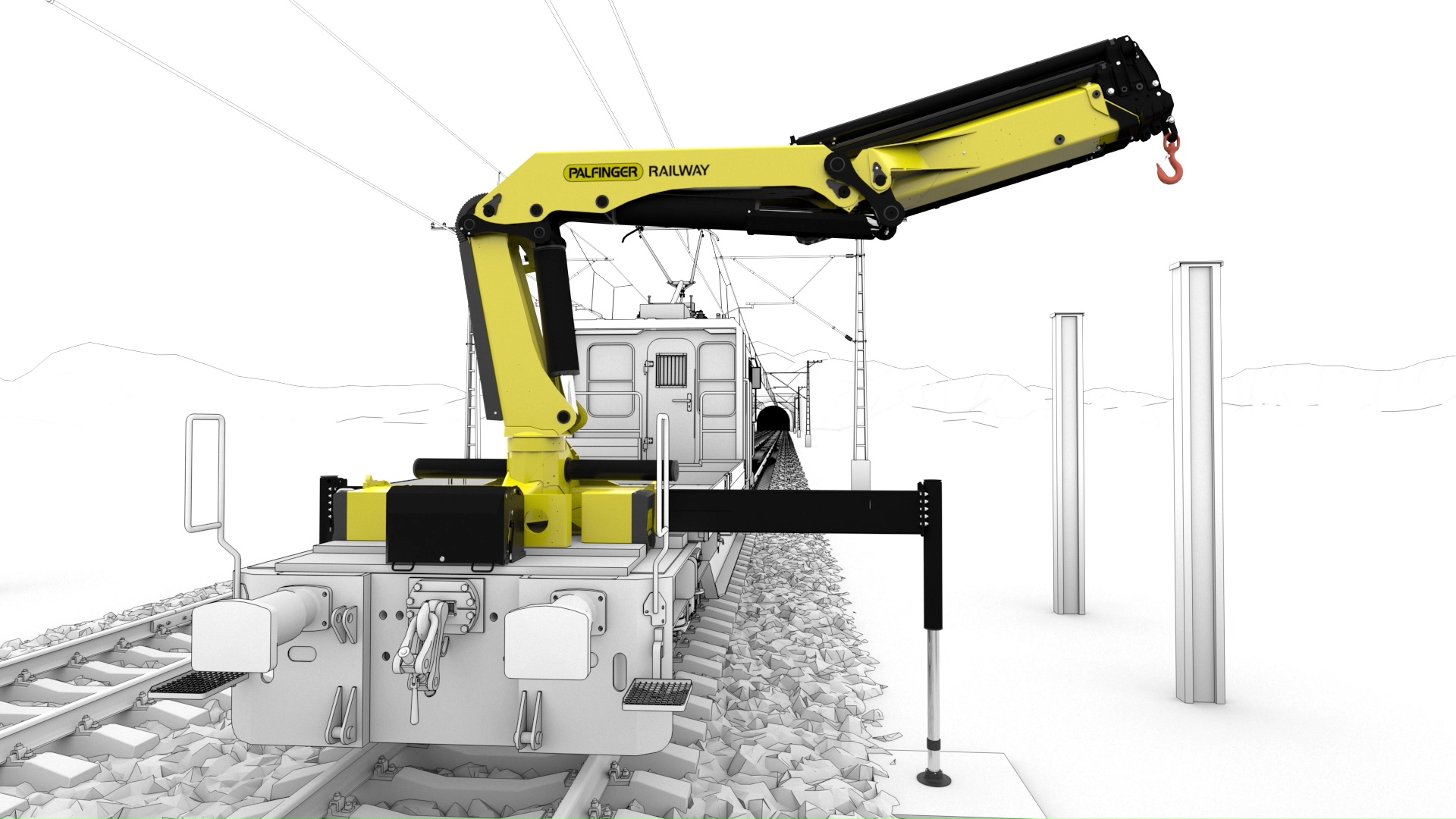

Reverse outer boom

The emergency control stand, which can be positioned anywhere on the vehicle, permits emergency operation in the event of a remote control outage or power supply failure. This enables the operator to control the crane from a safe position.

Linkage system for near-constant lifting capacity

Newly designed cabin controls enable effortless execution of even the most complex tasks. Operators can manage crane movements seamlessly and control the vehicle drive directly via the foot pedal. Furthermore, operators are well protected while operating a mulching unit or branch saw, safeguarding them against rocks or flying chunks of wood.

HPSC RAILWAY stability control systemHPSC RAILWAY stability control system

The intelligent HPSC stability system continuously calculates the crane’s maximum load capacity. It achieves this by monitoring the outrigger positions, slewing angle, vehicle frame deflection, the position of up to two other Palfinger units mounted on the same vehicle, and the crane’s inclination. Accounting for the crane’s inclination typically results in an impressive 80% increase in lifting capacity on straight, non-elevated track sections – and in some cases, even more.

Radio remote control

The emergency control stand, which can be positioned anywhere on the vehicle, permits emergency operation in the event of a remote control outage or power supply failure. This enables the operator to control the crane from a safe position.

Highlights

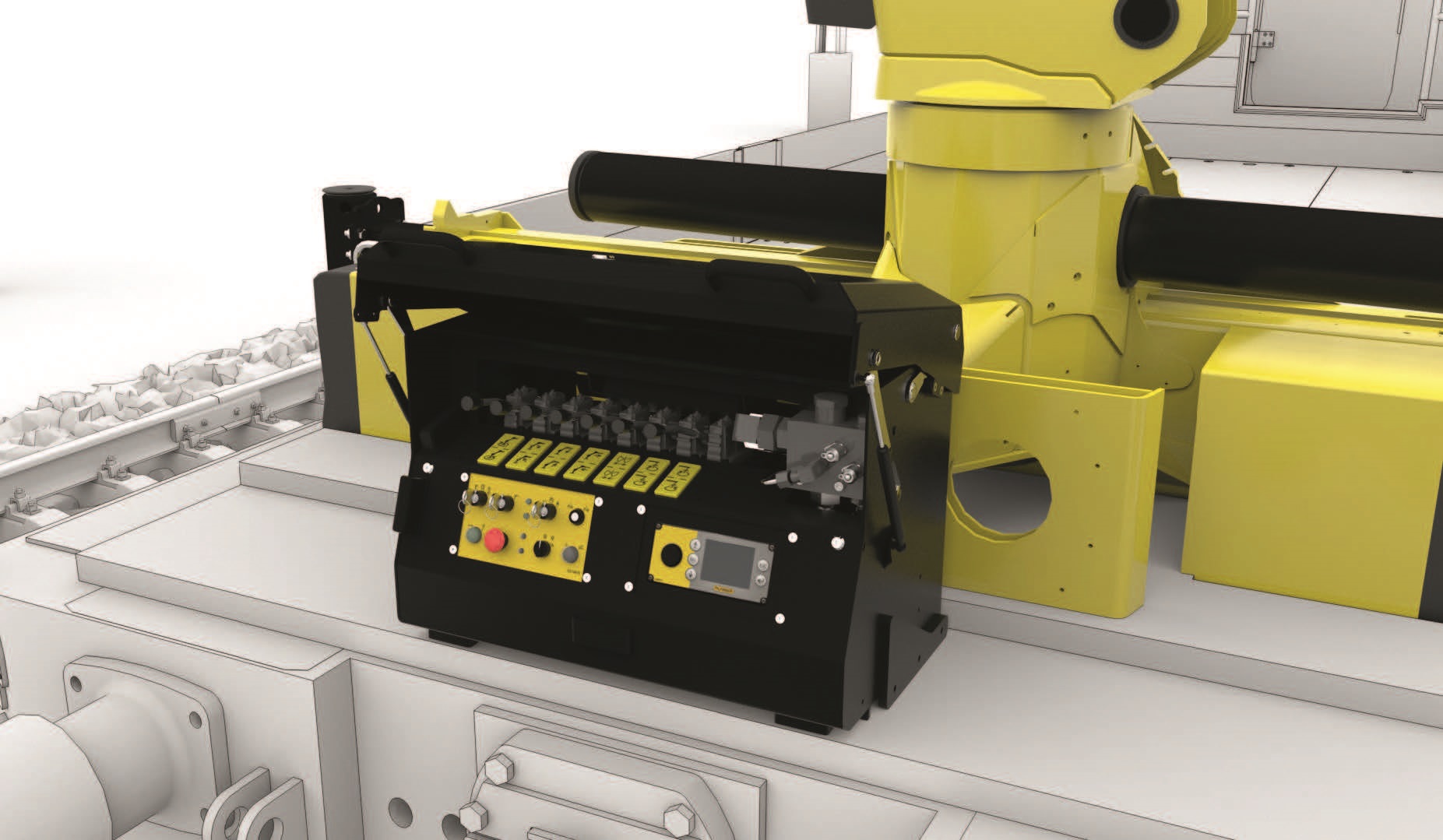

Emergency control stand

The emergency control stand, which can be positioned anywhere on the vehicle, permits emergency operation in the event of a remote control outage or power supply failure. This enables the operator to control the crane from a safe position.

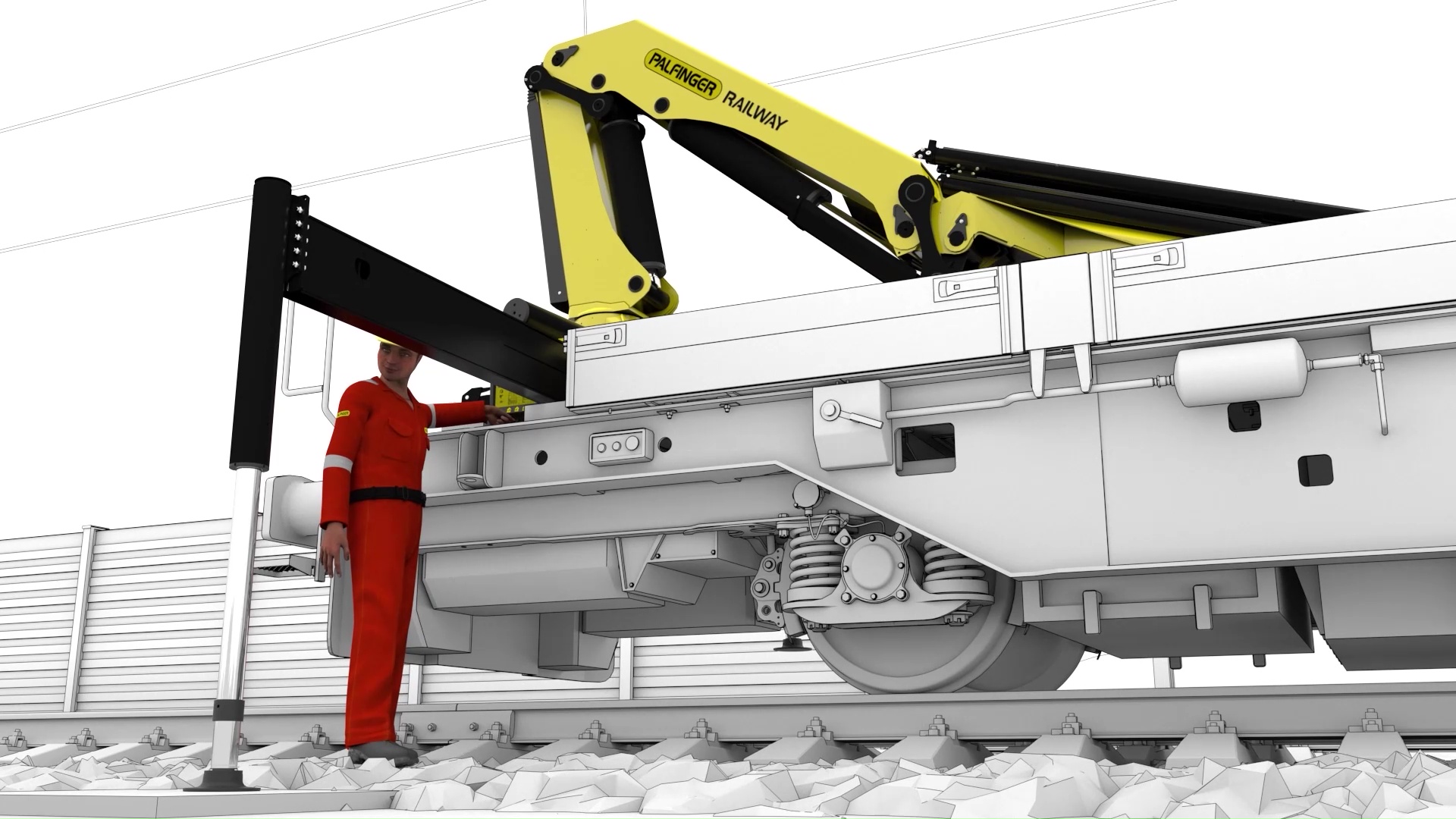

Hydraulic outriggers

Hydraulic outriggers are essential for railway cranes: these fully hydraulic extension and support legs maximize both convenience and safety.

Technical Specifications

Technical data

Max. lifting moment: 11.4 mt
Max. hydraulic outreach: 14.1 m
Slewing angle: 400°

Discover Standard Features

Continuous lifting capacity optimization on inlines

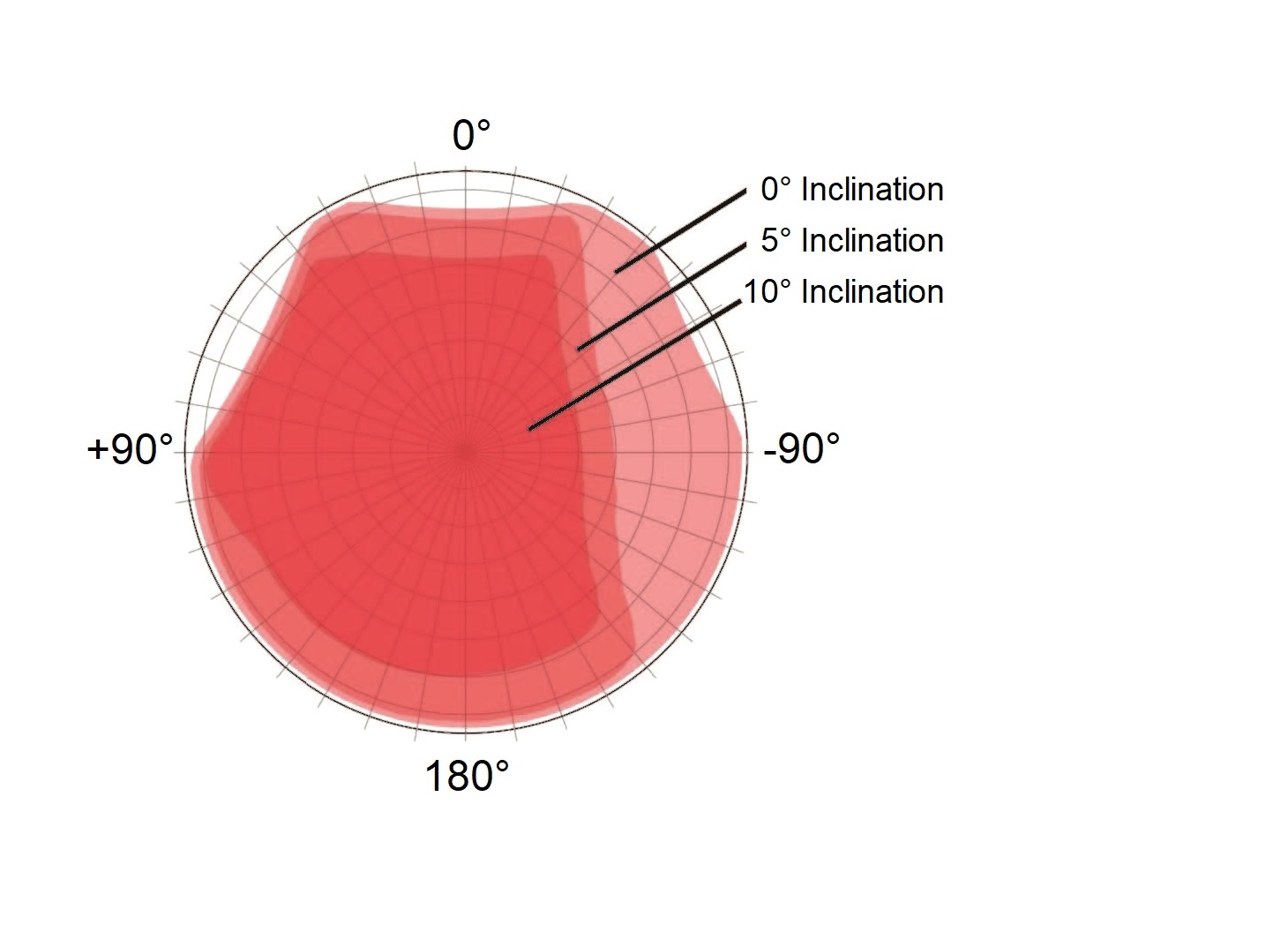

The strengths of PALFINGER railway systems come to the fore when operating on sections of track with significant cant. State-of-the-art sensors integrate inclination data in stability calculations in real time. This allows the crane’s lifting capacity to be continuously controlled at inclinations from 0° to 15°, eliminating the need for general load reductions.

Lateral and vertical movement limiters

The Railway Premium line’s parametric lateral and vertical movement limiters provide maximum range of motion with the highest level of safety (PLd as defined in EN 13849). The limit curves are calculated based on the specific track and vehicle parameters and corresponding safety measures in accordance with EN 14033. Paltronic relies on state-of-the-art sensors for dynamic, real-time monitoring of the crane’s position to prevent unsafe movements. An optional feature permits storage of up to four different lateral limit curves and three vertical height limit curves.

Full compliance with PLd

The Paltronic crane control system and its connected sensor system achieve Performance Level d (PLd) as defined in ISO 13849-1 for all relevant safety features.

Electrical earthing

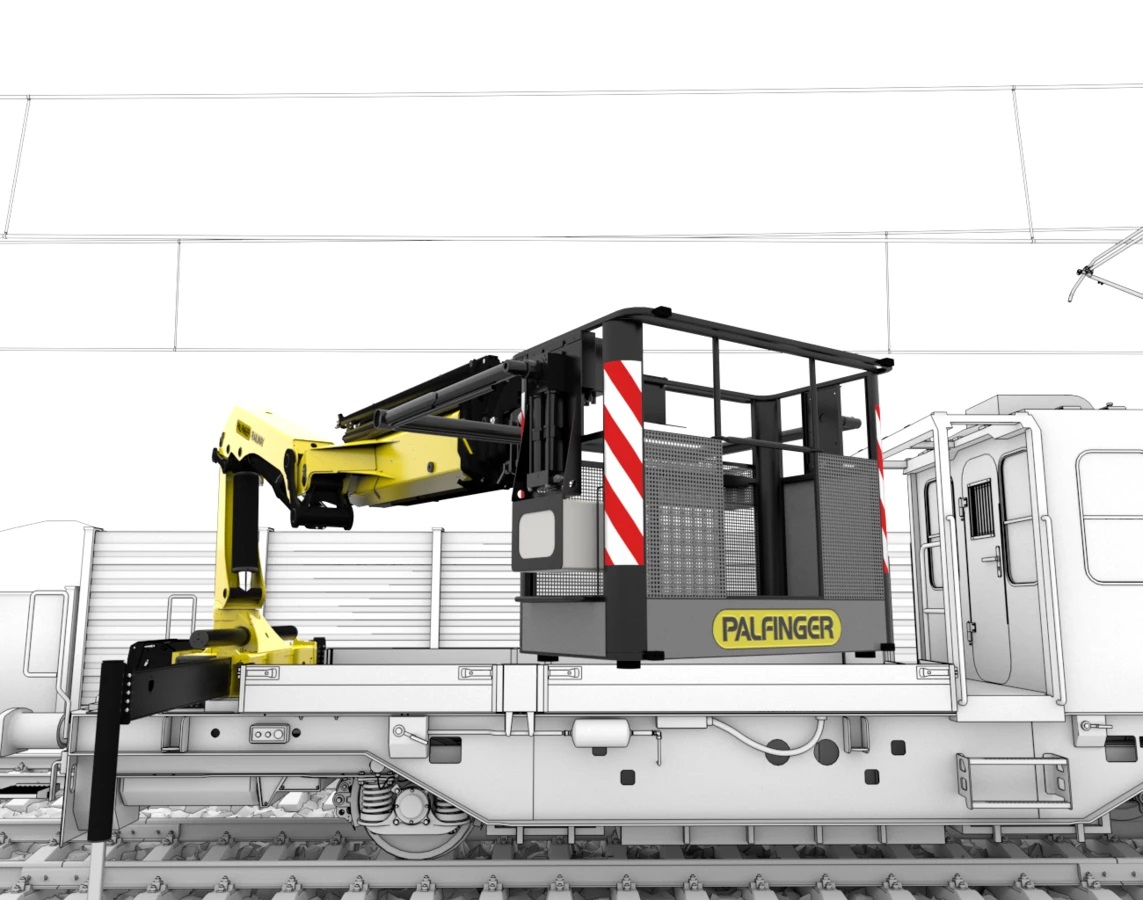

PALFINGER relies on highly flexible earthing cables to ensure excellent protection against electric shocks. Every component – from the base to the crane tip – is connected with 2×50 mm² earth cables. Transparent insulation allows easy inspection of the cables for breaks or carbonization damage caused by stray currents. Units equipped with a work basket are also equipped with corresponding earth cables.
