Access platforms

PA 1002

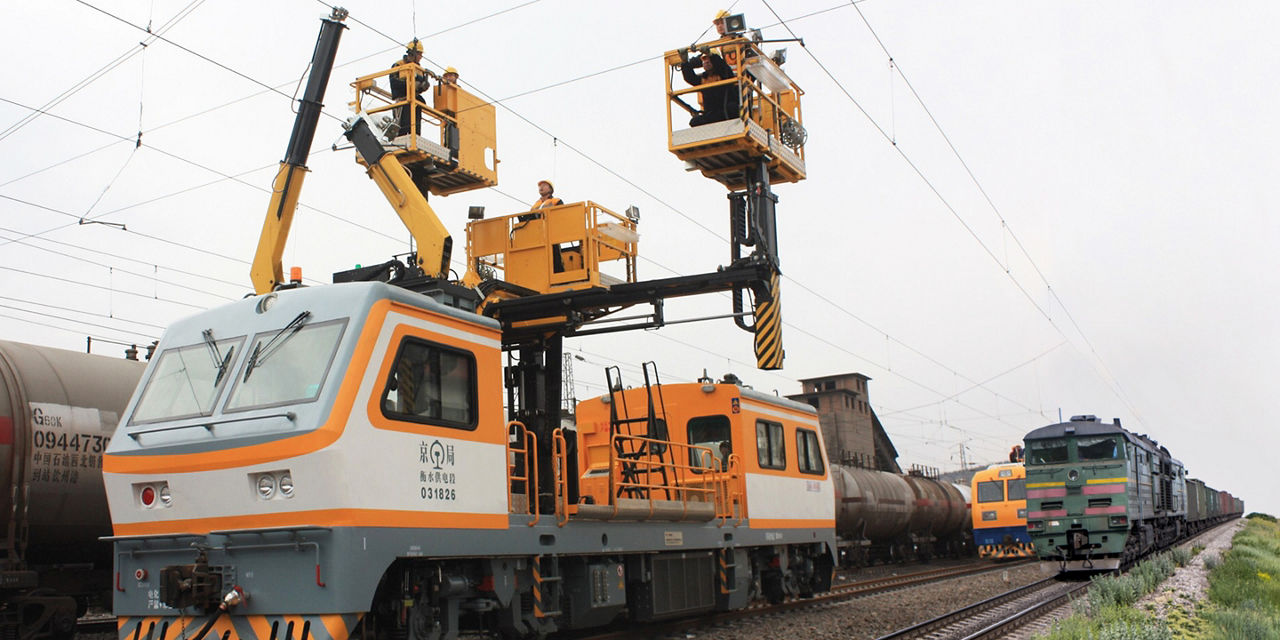

Three-basket platform for overhead line work

alt text
alt text
alt text
Railway
Key Specs
Max. horizontal outreach
+ / - 4.5 m
Max. working height
9.3 m
Max. basket load
1,000 kg

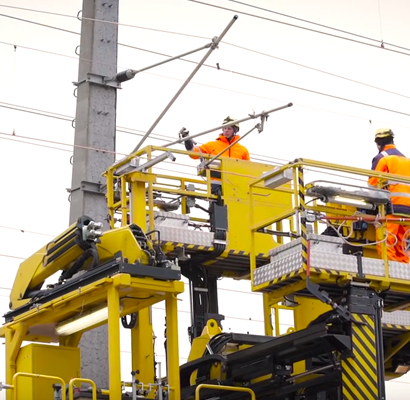

The PA 1002 aerial work platform features three personnel baskets for maximum flexibility when working on complex overhead line systems. The two maneuverable baskets offer impressive height and reach and are equipped with compressed air, 230 V tool sockets, and adaptable work lights for efficient overhead line operations.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Work safely on overhead lines

The PLd-compliant control system in accordance with EN 13849 ensures secure data transmission via the CANopen Safety protocol. The design supports synchronized operation of multiple units on the same vehicle. Lateral and vertical movement limiters certified in accordance with EN 14033 ensure safe operation at all times. All platforms also fully comply with EN 280.

alt text

Combine our systems for maximum impact

PALFINGER railway units operate most efficiently in combination. Communication between PALFINGER equipment distributes stability throughout the vehicle to optimal effect – providing access to the maximum possible lifting capacity and reach at all times.

alt text

Technical Specifications

Technical data
Max. horizontal outreach
+ / - 4.5 m
Max Working Height
9.3 m
Max. basket load
1,000 kg

Discover Standard Features

Continuous lifting capacity optimization on inlines

The strengths of PALFINGER railway systems come to the fore when operating on sections of track with significant cant. State-of-the-art sensors integrate inclination data in stability calculations in real time. This allows the crane’s lifting capacity to be continuously controlled at inclinations from 0° to 15°, eliminating the need for general load reductions.

alt text
Lateral and vertical movement limiters

The Railway Premium line’s parametric lateral and vertical movement limiters provide maximum range of motion with the highest level of safety (PLd as defined in EN 13849). The limit curves are calculated based on the specific track and vehicle parameters and corresponding safety measures in accordance with EN 14033. Paltronic relies on state-of-the-art sensors for dynamic, real-time monitoring of the crane’s position to prevent unsafe movements. An optional feature permits storage of up to four different lateral limit curves and three vertical height limit curves.

alt text
Full compliance with PLd

The Paltronic crane control system and its connected sensor system achieve Performance Level d (PLd) as defined in ISO 13849-1 for all relevant safety features.

alt text
Electrical earthing

PALFINGER relies on highly flexible earthing cables to ensure excellent protection against electric shocks. Every component – from the base to the crane tip – is connected with 2×50 mm² earth cables. Transparent insulation allows easy inspection of the cables for breaks or carbonization damage caused by stray currents. Units equipped with a work basket are also equipped with corresponding earth cables.
