Pneumatic Fenders

Heavy-Duty Design for Marine and Offshore Use

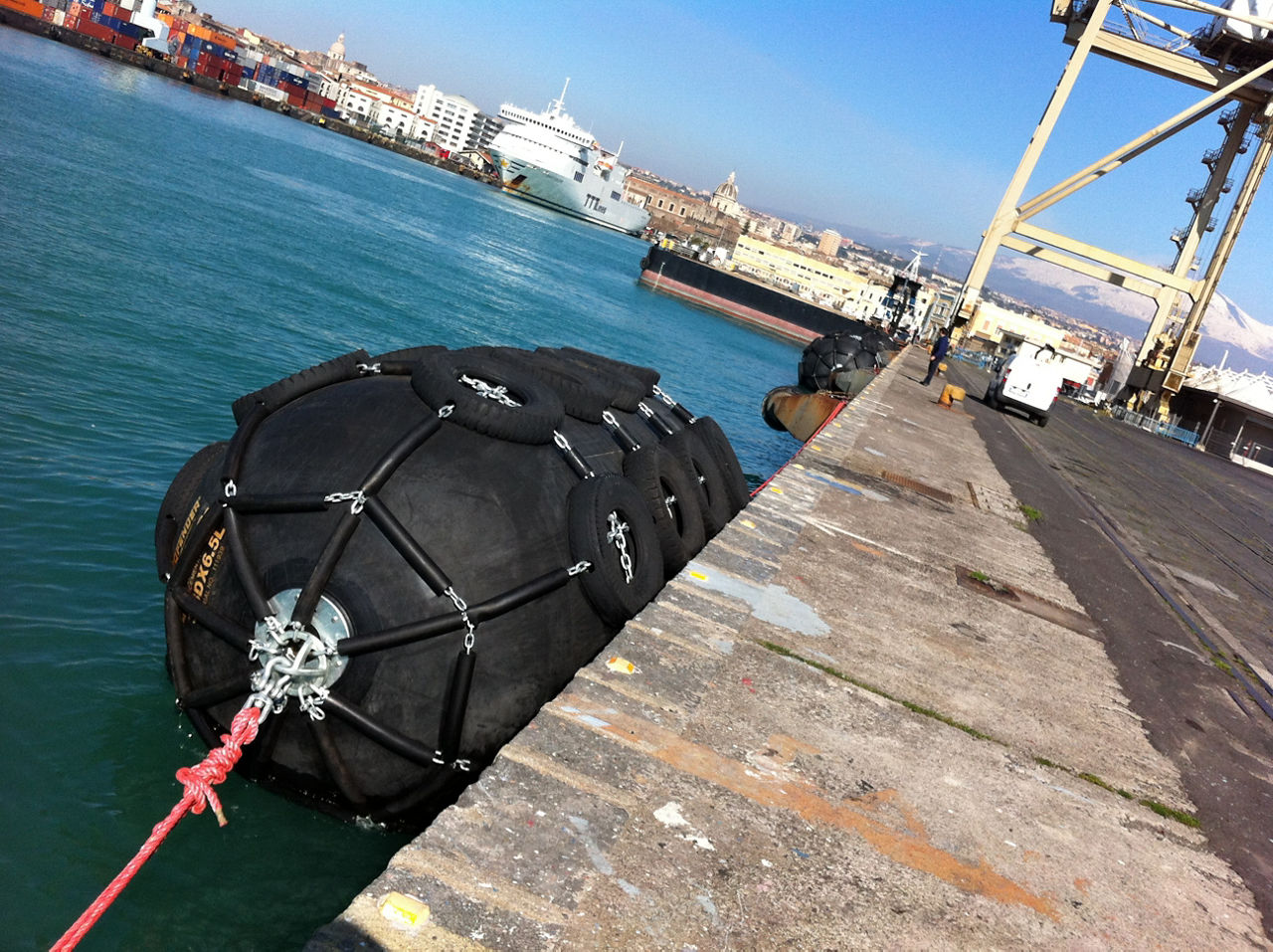

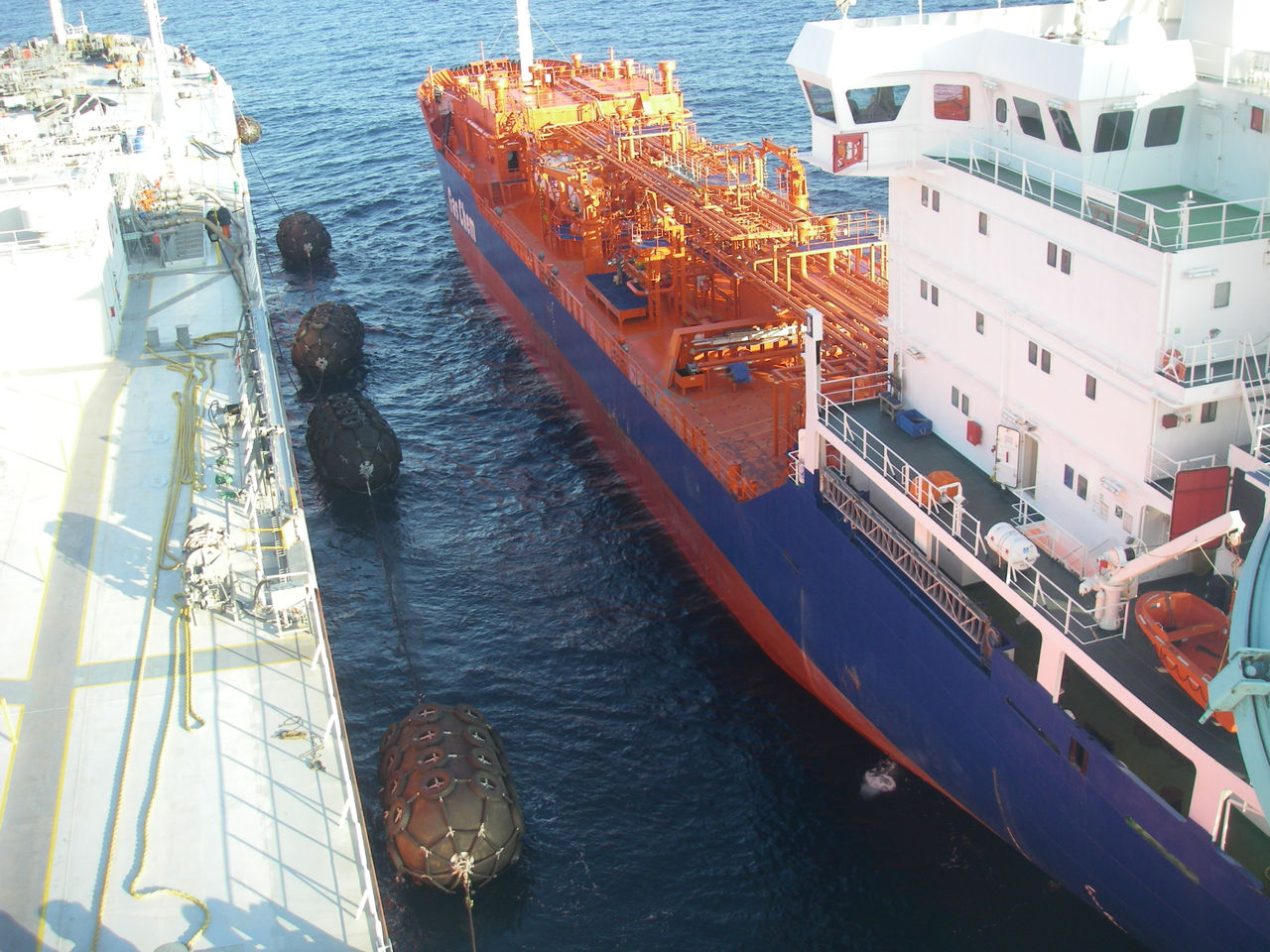

The NPF series from PALFINGER MARINE is built for demanding marine and offshore applications. Its robust construction provides optimal protection for ships and quays during mooring operations – whether ship-to-ship or ship-to-quay.

Certified Quality and Reliability

Manufactured and tested in accordance with ISO 17357:2014-1 – the only standard ensuring high-quality fenders. Each NPF fender can be supplied with an individual class certificate (ABS) confirming full compliance.

Global Availability and Support

Available in both chain & tire net and sling types, our NPF fenders are in stock worldwide (Busan, Singapore, Dubai, Rotterdam, Haugesund) and backed by a comprehensive global service network.

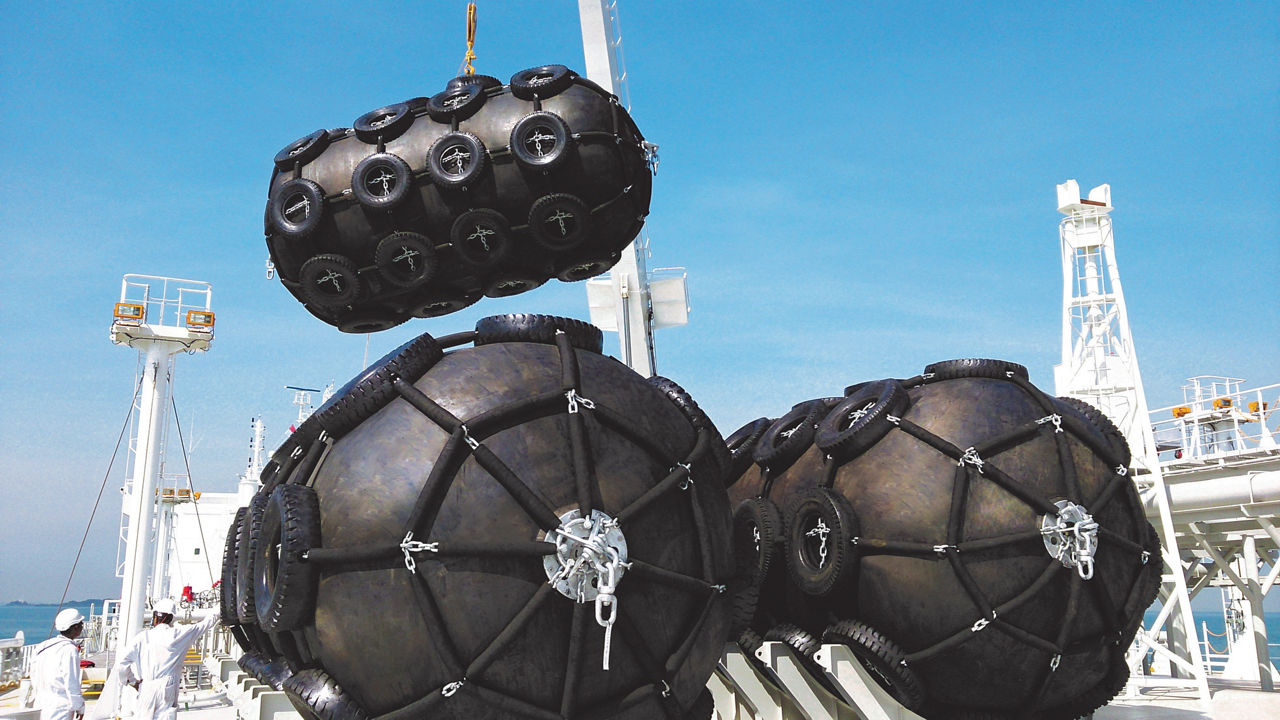

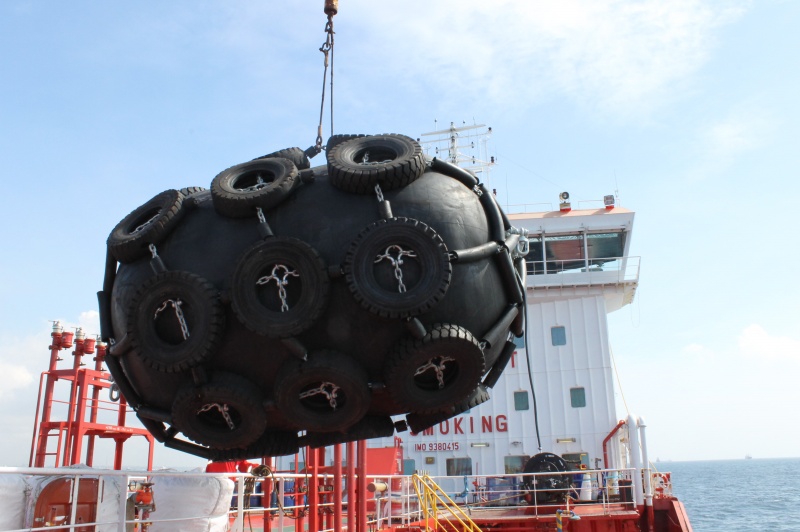

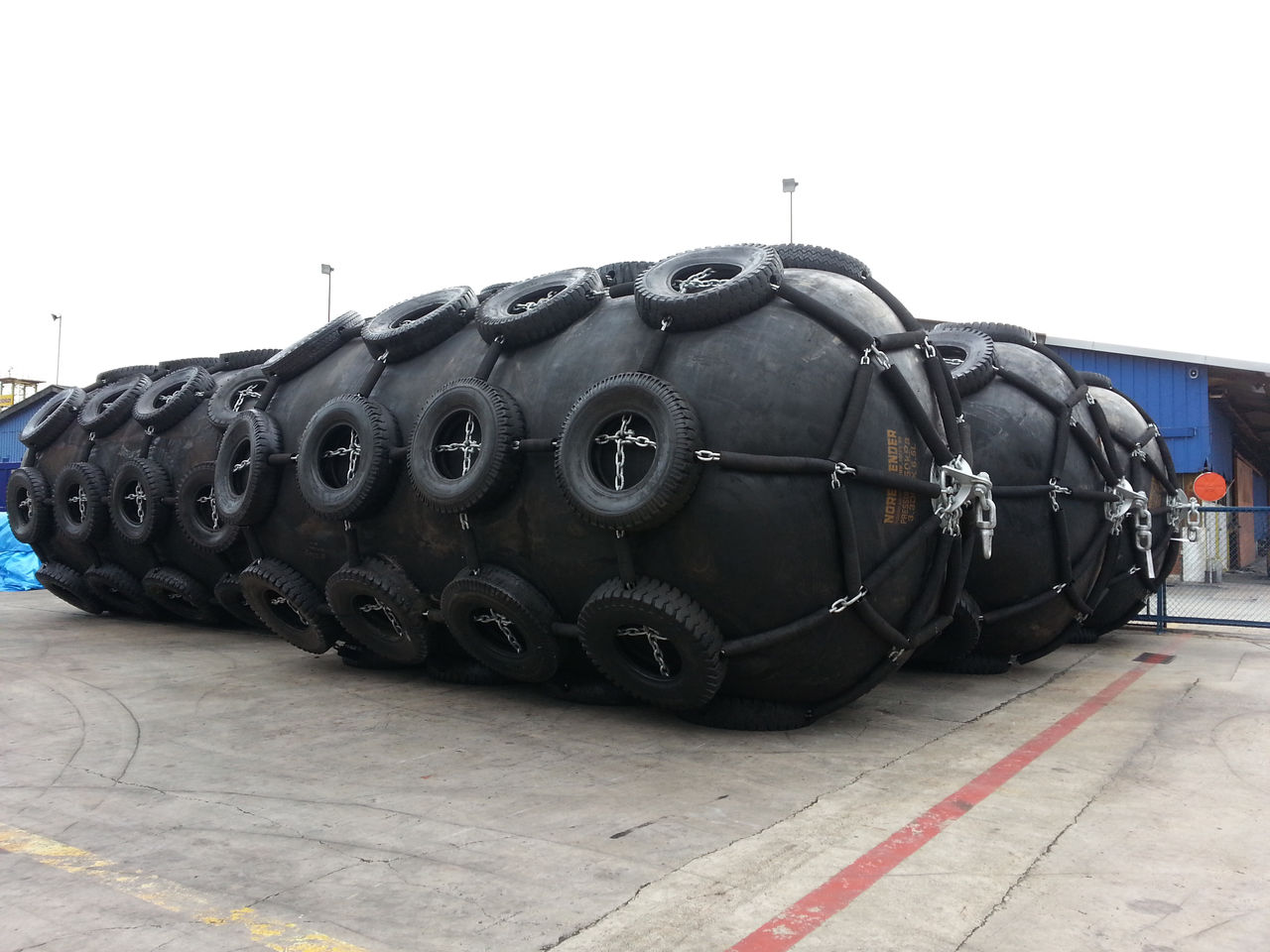

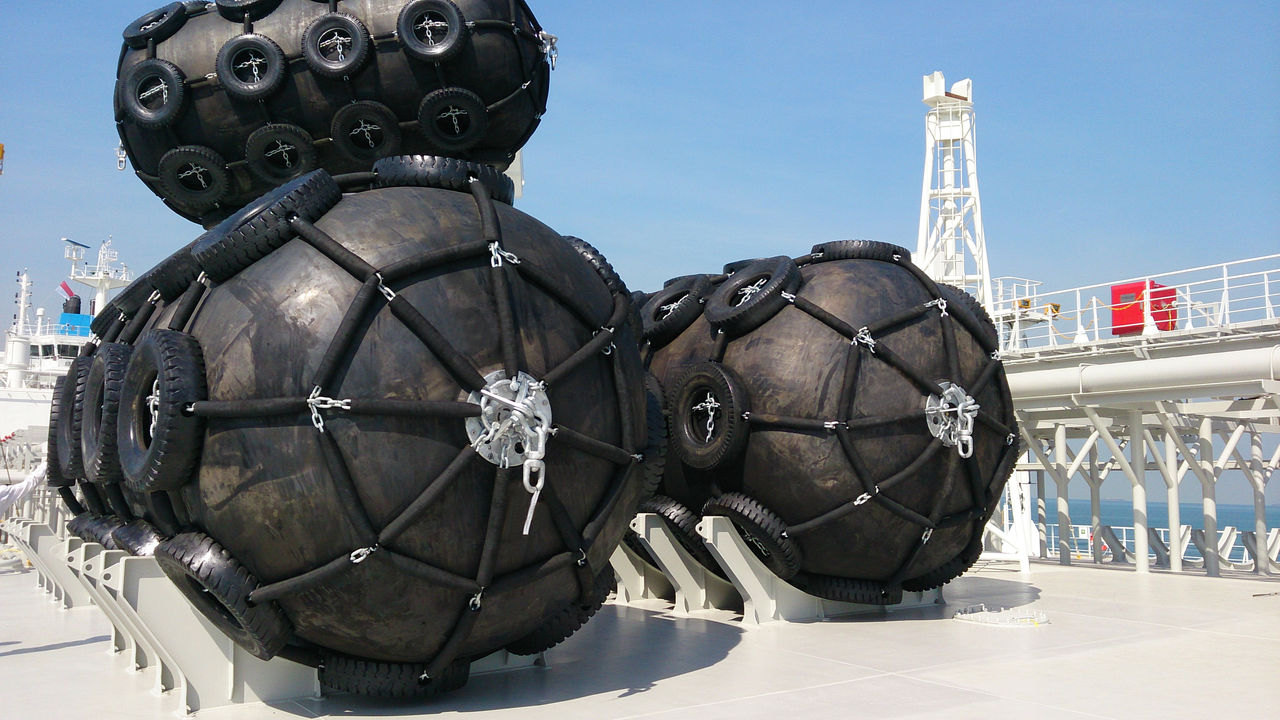

Chain and Tyre Net Type

The fender body is covered with either chain net, wire net or fibre net. The chain net is the most popular type, protecting the rubber body from sharp objects and normal wear and tear. Each end of longitudinal chains is linked together with one or two rings, which is connected with a guy chain.

As standard, the NPF fenders come with truck tires but aircraft tires are available as option. All fenders come with towing lug/ring and shackle/swivel connected to each end.

PALFINGER MARINE also offers custom-made designs, like stainless steel tyre net, rubber pads, extra thick rubber sleeves and heavy duty tyre net.

For customers who outfit their fenders with netting locally, PALFINGER supplies body only fenders.

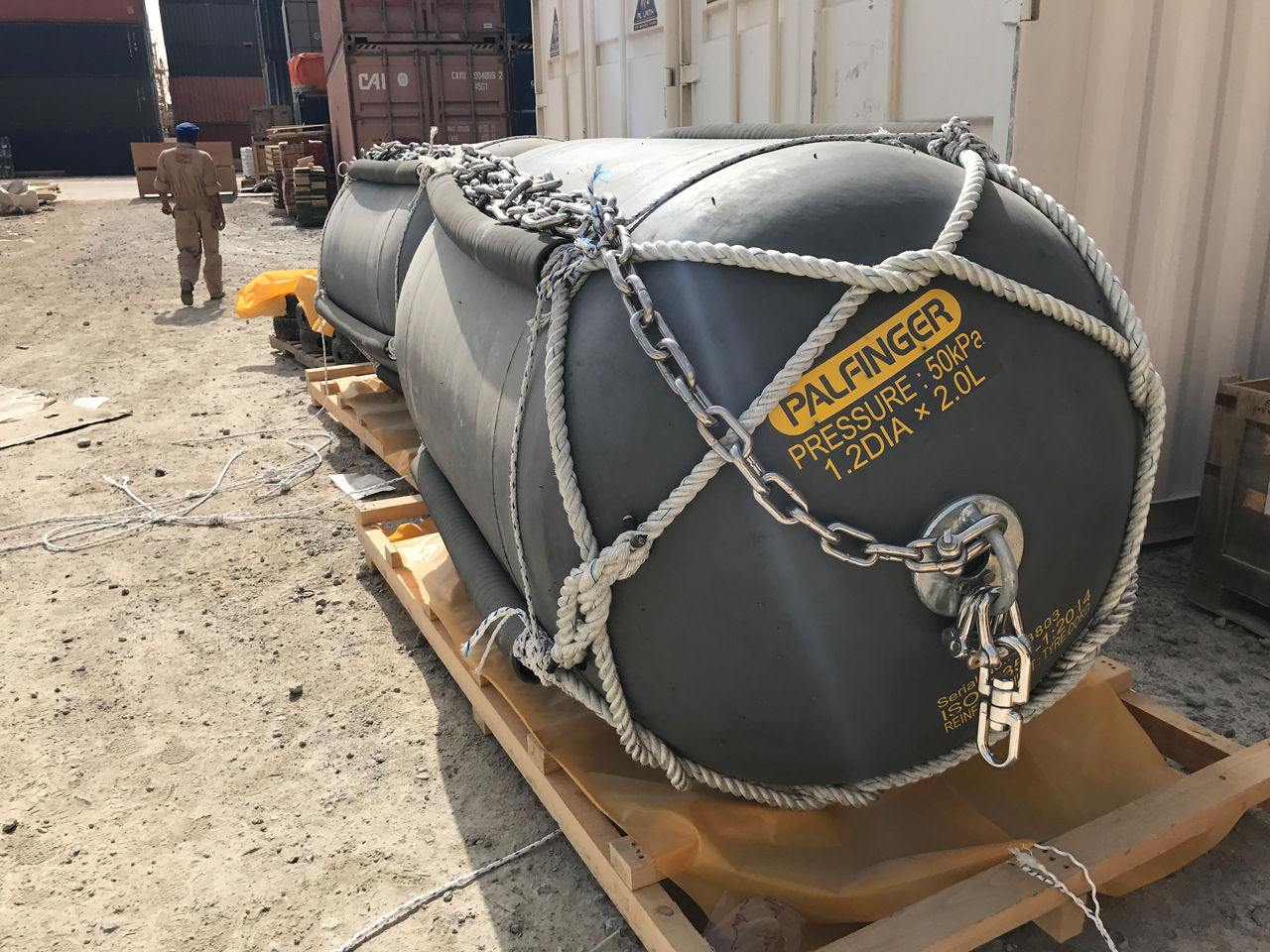

Sling Type

The sling type fender is a body-only version with a reinforced flange area, as the towing lug is directly connected to the outer flange. Each towing lug is equipped with a shackle/swivel set.

Advantages of using a sling type fender:

Lower weight
No risk of scratching the ship’s hull or damaging the coating
Easier to handle

The disadvantage compared to the chain and tire net type is that the average lifetime of the fender is lower, as the fender body is not protected from sharp objects during operation, mobilization/demobilization, or transport.

As an alternative to the standard sling fender, PALFINGER MARINE offers pneumatic rib fenders. The rubber ribs provide light protection for the fender body.

For governmental and submarine projects, PALFINGER MARINE can supply specialized sling type fenders that are positioned vertically with an anchor connection and fitted with a special flange for water injection.

Options

High-protection netting with aircraft tires
Complete STS mooring package - ropes, wires and hardware
Two-year operational spare part package
Class certification (ABS)
Service agreement including safety valve testing and re-certification

Accessories

PALFINGER MARINE’s complete package includes:

Rope
Wire rope
Fender tails
Shackles and thimbles
Swivels

We recommend a 2-year operational spare parts package, ensuring that components most exposed to normal wear and tear can be replaced easily, cost-efficiently, and on time.

In addition, we supply both composite and rubber hoses for STS transfer.

Range

Product Range

Type	Body diameter (mm)	Total diameter (body + CTN)	Length (mm)	Total weight (kg)	Body weight (kg)	CTN weight (kg)	Energy absorption (kNm)	Reaction force (kN)	Test pressure (kPa)	Hull pressure (kPa)	Safety valve pressure
NPF0510S	500	-	100	37	37	-	6	64	200	132
NPF0815S	800	-	1500	83	83	-	20	146	200	129
NPF0815C	800	1120	1500	249	83	166	20	146	200	129
NPF1015S	1000	-	1500	120	120	-	32	182	200	122
NPF1015C	1000	1320	1500	283	102	181	32	182	200	122
NPF1020S	1000	-	2000	146	146	-	45	257	200	132
NPF1020C	1000	1320	2000	321	128	193	45	257	200	132
NPF1220S	1200	-	2000	192	192	-	63	297	200	126
NPF1220C	1200	1520	2000	409	174	235	63	297	200	126
NPF1325S	1300	-	2500	258	258	-	102	427	200	130
NPF1325C	1300	1670	2500	621	253	368	102	427	200	130
NPF1525S	1500	-	2500	290	290	-	123	464	200	126
NPF1525C	1500	1820	2500	665	285	380	123	464	200	126
NPF1530S	1500	-	3000	332	332	-	153	579	200	132
NPF1530C	1500	1820	3000	728	330	398	153	579	200	132
NPF1730S	1700	-	3000	415	415	-	191	639	200	128
NPF1730C	1700	2100	3000	809	405	404	191	639	200	128
NPF2030S	2000	-	3000	534	534	-	264	750	200	133
NPF2030C	2000	2360	3000	1328	524	804	264	750	200	133
NPF2035S	2000	-	3500	594	594		308	875	200	128
NPF2035C	2000	2360	3500	1414	584	830	308	875	200	128
NPF2540S	2500	-	4000	1080	1080	-	663	1381	250	137	175
NPF2540C	2500	2900	4000	2266	1030	1236	663	1381	250	137	175
NPF2555S	2500	-	5500	1325	1325	-	943	2019	250	148	175
NPF2555C	2500	2900	5500	2840	1275	1565	943	2019	250	148	175
NPF3050S	3000	-	5000	1705	1705	-	1079	1903	250	135	175
NPF3050C	3000	3400	5000	3695	1625	1970	1079	1903	250	135	175
NPF3345S	3300	-	4500	1770	1770	-	1175	1884	250	130	175
NPF3345C	3300	3800	4500	3987	1690	2297	1175	1884	250	130	175
NPF3365S	3300	-	6500	2225	2225	-	1814	3015	250	146	175
NPF3365C	3300	3800	6500	5119	2145	2974	1814	3015	250	146	175
NPF4570S	4500	-	7000	3660	3660		3696	4470	250	151	175
NPF4570C	4500	5000	7000	8171	3580	4591	3696	4470	250	151	175
NPF4590S	4500	-	9000	4380	4380	-	4752	5747	250	146	175
NPF4590C	4500	5000	9000	10591	4300	6291	4752	5747	250	146	175

Fender Rental

We offer fender rental services in all standard sizes from strategically located stock points. Our fenders can be delivered together with a service team to assist with mobilization and rigging.
