Heavy

PK 100002 Performance

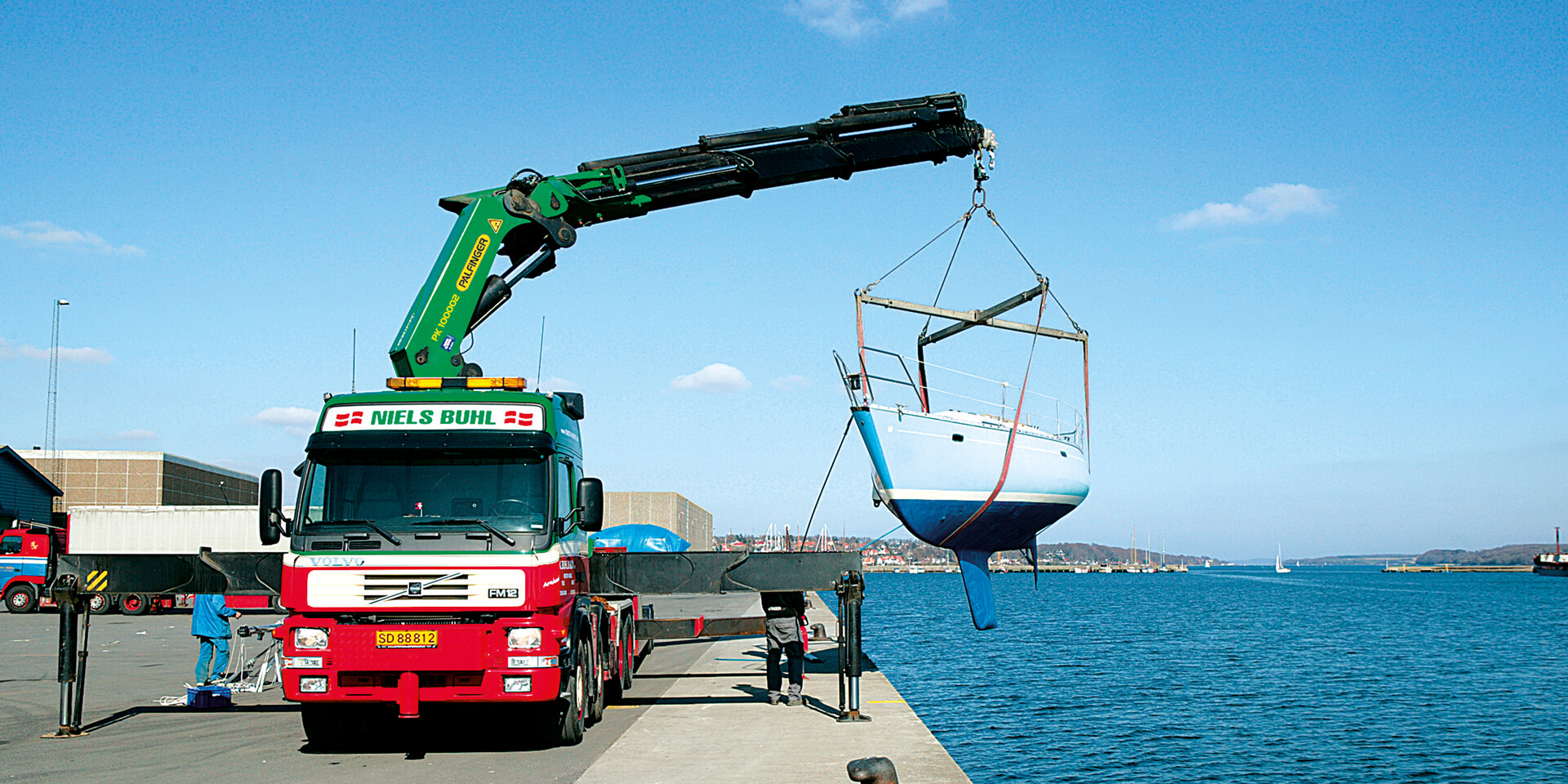

Loader Crane

PK 100002 Performance

With HPSC and Power Link Plus operations are possible even in restricted spaces

  • More lifting power due to E-HPLS
  • Additional applications due to Power Link Plus
  • More efficient and faster due to continuous slewing system
  • Shorter loadcycles due to high speed extention
  • Maximum reliability due to PAL 50

Continuous Slewing System

The PALFINGER Continuous Slewing Mechanism permits an unrestricted radius of action. The crane is rotated or 'slewed' using a gear box and hydraulic motor instead of a rack and pinion system. All endless slewing mechanisms come as standard with a high quality roller ball bearing.

Details

High Power Lifting System

The PALFINGER High Power Lifting System (E-HPLS, A-HPLS or S-HPLS) increases the capacity of the crane by up to 15% while reducing working speed. E-HPLS can be activated manually for the occasional manipulation of very heavy loads. A-HPLS as well as S-HPLS are activated fully automatically. There is continuous activation depending on the power required.

Details

Power Link Plus

The PALFINGER Power Link Plus system is a double linkage system with a linkage on the knuckle boom and a linkage between the main boom and crane column. With the 15 degree reverse linkage system, reaching through low door openings or working inside buildings is no problem.

Details

High Speed Extension

The High Speed Extension is a standard feature on PALFINGER loader cranes. Also referred to as Return Oil Utilization, this feature is a regenerative hydraulic circuit for the extension booms. It speeds up the boom extend and retract functions by up to 30%.
