Single
City
Single Axle
Hooklift
Imperial
Metric
Hook Height
Hook Height
920.75 mm
36 ¼"
Container Length
Container Length
2.7 – 4.3 m
9 – 14 ft
Min GVWR
Min GVWR
6577.1 kg
14,500 lbs.

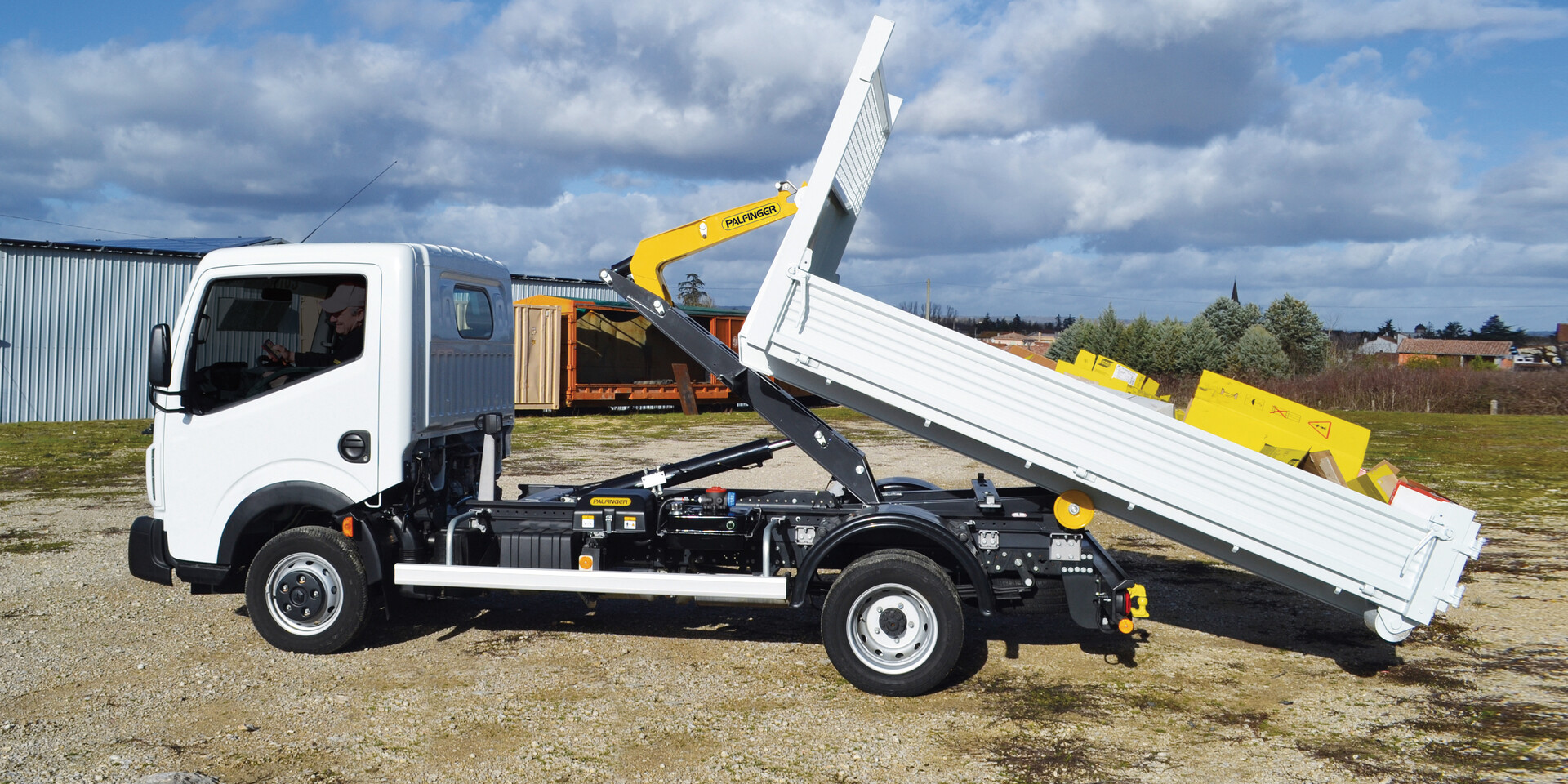

The City features a single main cylinder and an articulating jib.
6,600 lb. capacity hoist
| Lift / DumpCapacity (lb.) | CA Range (in.) | Optimum CA (in.) | Min. GVWR (lb.) | Min RBM (in. lb.) | Hooklift length | Clear Frame Rail (in.) | Body Length Range (ft.) | Optimum Body Lenghts (ft.) | Jib Height (in.) | Jib Action | Max. Dump Angle | Pivot | # of Lift / Dump Cylinders | Operating Pressure (PSI) | Pump Type | Fitting Hoses | Shipping Weight (lb.) | Paint | Construction | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| City | 6600 | 84 inches | 84 | 13000 | N/A | 116 | 121 | 9-11' | 9-11' | 36.25'' | Articulating | 50 degrees | Dual | 1 / 1 | 3300 | Piston - Direct mount | JIC / SAE | 770 | Primer | A514 (T-1) |
| Lift / DumpCapacity (lb.) | CA Range (in.) | Optimum CA (in.) | Min. GVWR (lb.) | Min RBM (in. lb.) | Hooklift length | Clear Frame Rail (in.) | Body Length Range (ft.) | Optimum Body Lenghts (ft.) | Jib Height (in.) | Jib Action | Max. Dump Angle | Pivot | # of Lift / Dump Cylinders | Operating Pressure (PSI) | Pump Type | Fitting Hoses | Shipping Weight (lb.) | Paint | Construction | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| City | 2993 | 84 inches | 84 | 13000 | N/A | 295 | 307 | 2.74-3.35 m | 2.74-3.5 m | 92.07 cm | Articulating | 50 degrees | Dual | 1/1 | 228 | Piston - Direct mount | JIC/SAE | 350 | Primer | A514(T-1) |
