Medium

PK 28.502 TEC 5

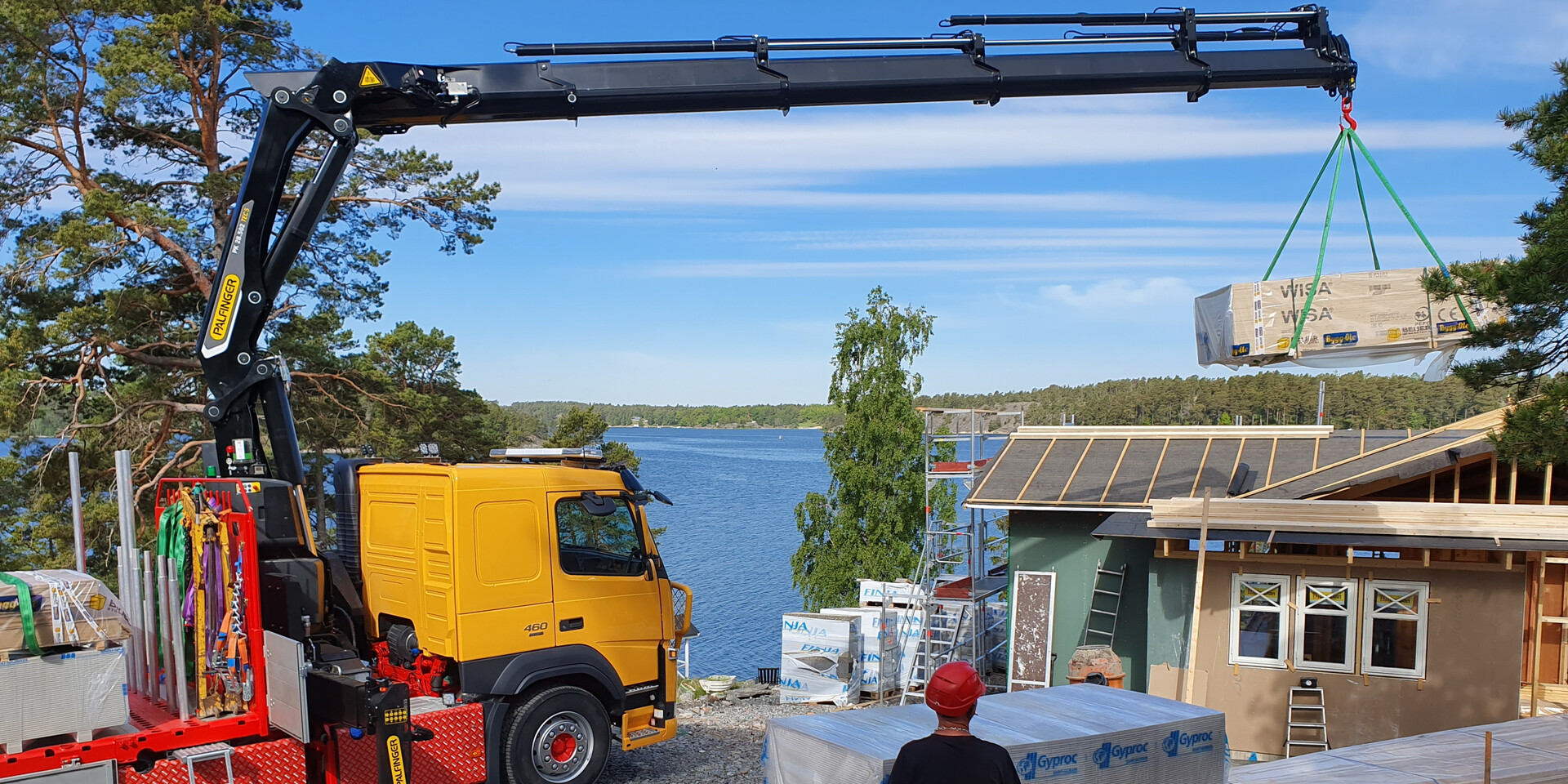

Loader Crane

PK 28.502 TEC 5
  • More efficient and faster due to continuous slewing system
  • High user friendliness due to radio remote control
  • More efficiency with fly-jib due to DPS-P
  • Very stiff and light boom system thanks to P-Profile
  • Increased comfort and safety due to Soft Stop
  • Practical and attractive due to Functional Design

P-Profile

The polygonal or drop-shaped P-Profile is especially rigid and simultaneously light weight design perfection. Thanks to self-lubricating materials, the extension boom system is low in maintenance.

Details

Continuous Slewing System

The PALFINGER Continuous Slewing Mechanism permits an unrestricted radius of action. The crane is rotated or 'slewed' using a gear box and hydraulic motor instead of a rack and pinion system. All endless slewing mechanisms come as standard with a high quality roller ball bearing.

Details

HPSC-Plus LOAD

PALFINGER has further developed the proved stability system HPSC and offers application oriented additional functions in a modular system. One of the modules of this HPSC-Plus concept is HPSC-Plus LOAD. It reacts to the loading condition of the truck and calculates on the basis of the inclination the maximum load limit suitable for the respective situation.

Details

Soft Stop

The Soft Stop function is an electronic limit position damper. It causes gentle braking of all crane movements before the limit position is reached. Hence, jerky movements and load impacts can be avoided. The crane can be operated more gently and precisely.

Details

High Power Lifting System

The PALFINGER High Power Lifting System (E-HPLS, A-HPLS or S-HPLS) increases the capacity of the crane by up to 15% while reducing working speed. E-HPLS can be activated manually for the occasional manipulation of very heavy loads. A-HPLS as well as S-HPLS are activated fully automatically. There is continuous activation depending on the power required.

Details
Downloads

Brochures

1,67 MB Download
