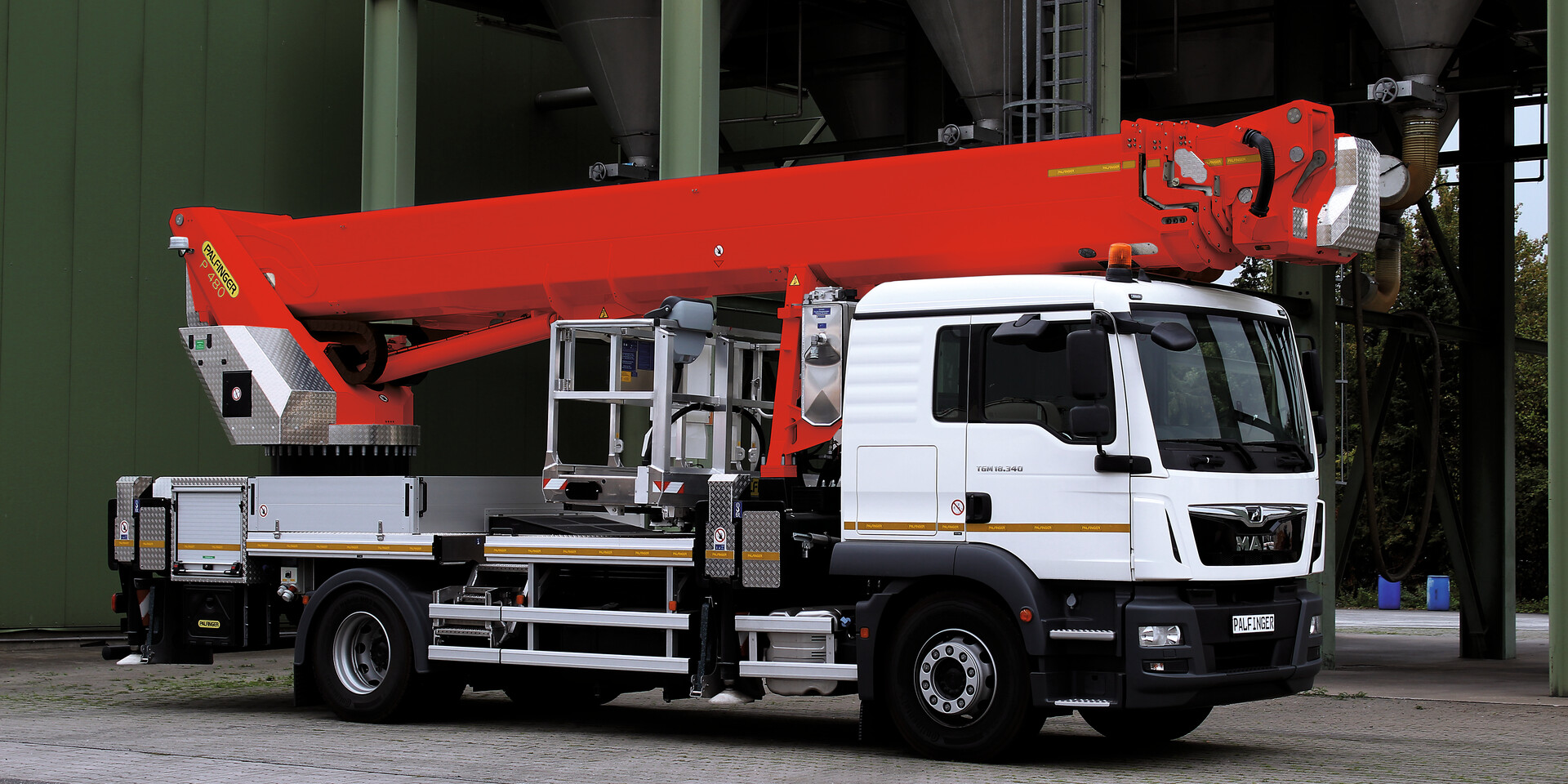

Jumbo Class NX

P 480

Aerial Work Platforms

Imperial Metric

Working Height 157.48 FT

Cage Load 1,322.77 LBS

Side Reach 91.86 ft

Technical Data

HIGH-LEVEL PRECISION

The combination of innovative technology, weight-optimised design and unparalleled flexibility during usage makes the P 480 a real all-rounder.

Greater working range thanks to 240° X-jib
2 x 200° rotation for perfect positioning of the workman basket
Telescopic upper boom up to 17 m
1000 mm stabilising stroke to compensate for highly uneven terrain
Telescopic basket with 600 kg basket load and integrated mount for Powerlift system
Hanging basket enables users to get close to objects

Downloads

Perfection in Action

Images & Videos

Max. height of work	157.48 ft
Max. basket floor height	150.92 ft
Max. horizontal outreach /with basket load	91.86 ft
Slewing range of basket	2 x 200°
max. basket load	1322.77 lbs
Workman basket - breadth / length / height	12.73 x 3.44 x 3.61 ft
Rotation angle of turntable	540°
Height in transport position	12.89 ft
Width in transport position	8.20 ft
Overall length	32.48 ft
Overall weight	38801.36 lbs

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

*above mentioned values are standard values and vary depending on options and chassis

Max. height of work	48 m
Max. basket floor height	46 m
Max. horizontal outreach /with basket load	28 m
Slewing range of basket	2 x 200°
max. basket load	600 kg
Workman basket - breadth / length / height	3.88 x 1.05 x 1.1 m
Rotation angle of turntable	540°
Height in transport position	3.93 m
Width in transport position	2.50 m
Overall length	9.9 m
Overall weight	17600 kg
