Top Class

P 900

P 900

Aerial Work Platforms
Imperial Metric
Working Height 90 M
Cage Load 700 KG
Side Reach 32,3 m

HIGH PERFORMANCE

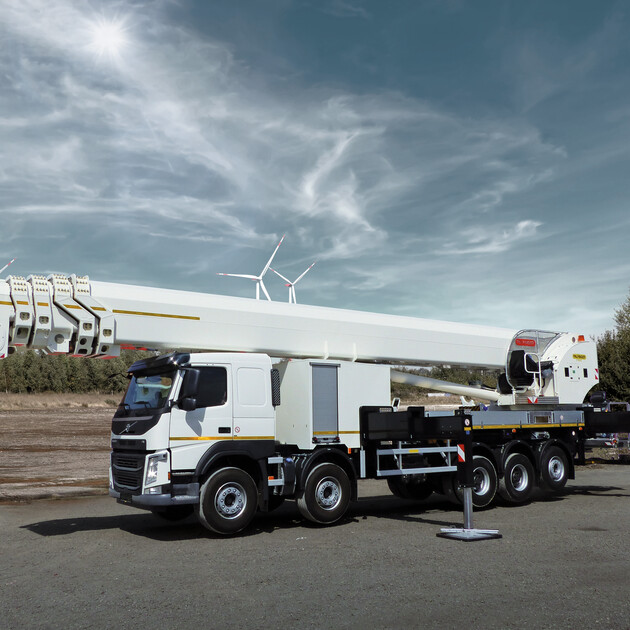

With a working height up to 90 m and an outreach of up to 32.5 m with a cage load of 530 kg, the P 900 offers good values in all performance parameters and the well-known user-friendly operation.

  • The secondary control (including colour display and seat) allows full second operation on the turntable offers the complete operation of all platform movements as well as the optimum view of the boom system
  • GPD-Gravity Powered Drive allows an operation even when the engine is switched of and provides a safe return to the ground at any time
  • An integrated hydraulic tank in the base frame ensures a low centre of gravity during on-road driving
  • Telescopic cage with 530kg cage load and integrated preparation for Powerlift system
  • Wind speed 7 Upgrade allows working at market leading unattained working conditions
  • 180° horizontal cage boom rotation
  • 930 mm stabilising stroke to compensate for highly uneven terrain
  • Upgrated to wind speed 7 (15.5m/s) which allows operations that were not previously permitted due to wind speed restrictions
  • Extra-large storage space and illuminated tool boxes on the loading area provide space for all work equipment
