Aerial Work Platform
Key Specs
Working Height
22.9 m
Basket Load
250 kg
Side Reach
11.6 м

This compact, double-articulated aerial work platform is mounted on a 3.5 t truck. Combining electric multifunction controls and a twin current collector unit, the P 240 A-E ensures precision and flexibility when working in tight spaces. It features rapid stabilization and a 28‑inch control display, for smooth and simple operation.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

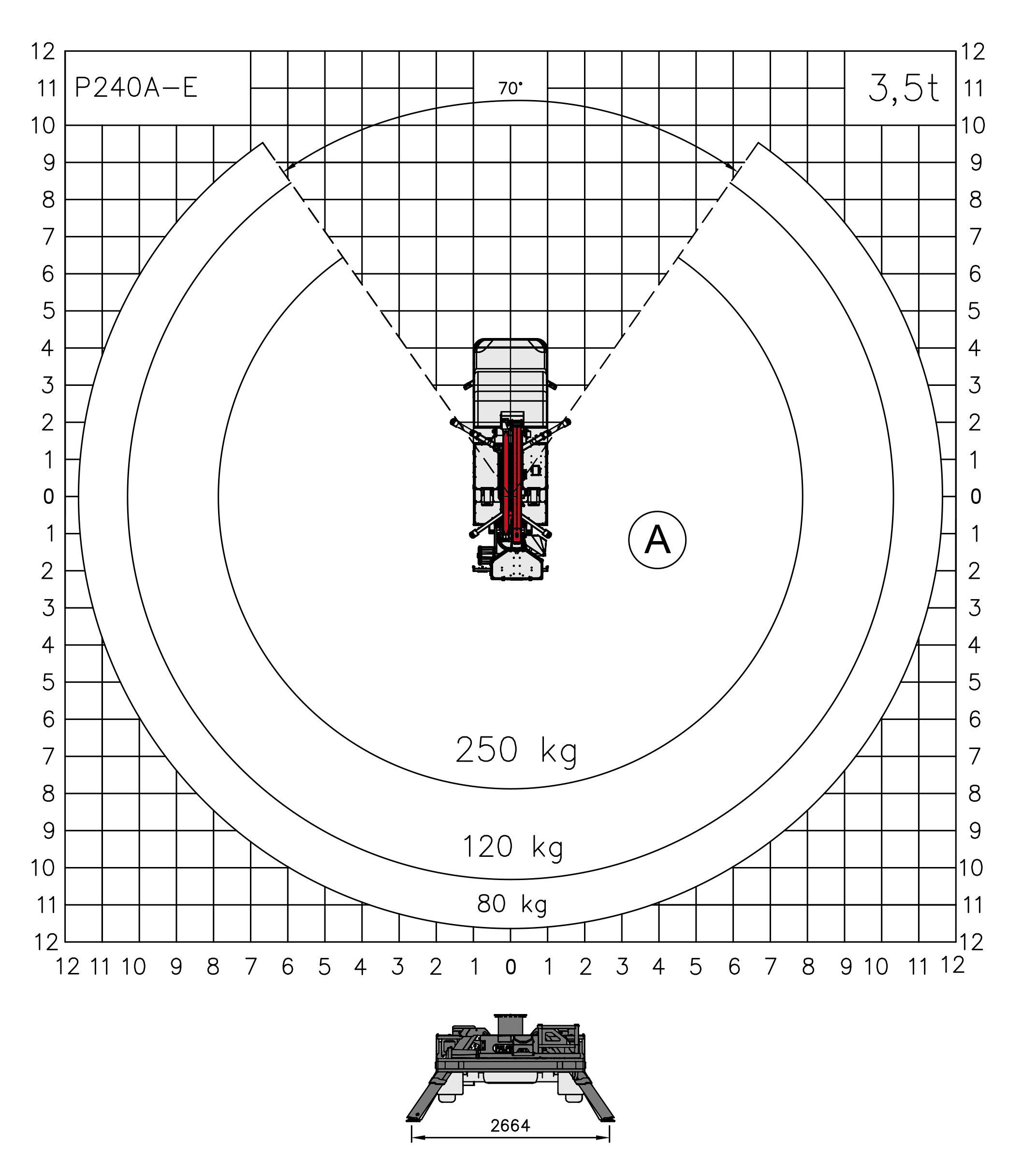

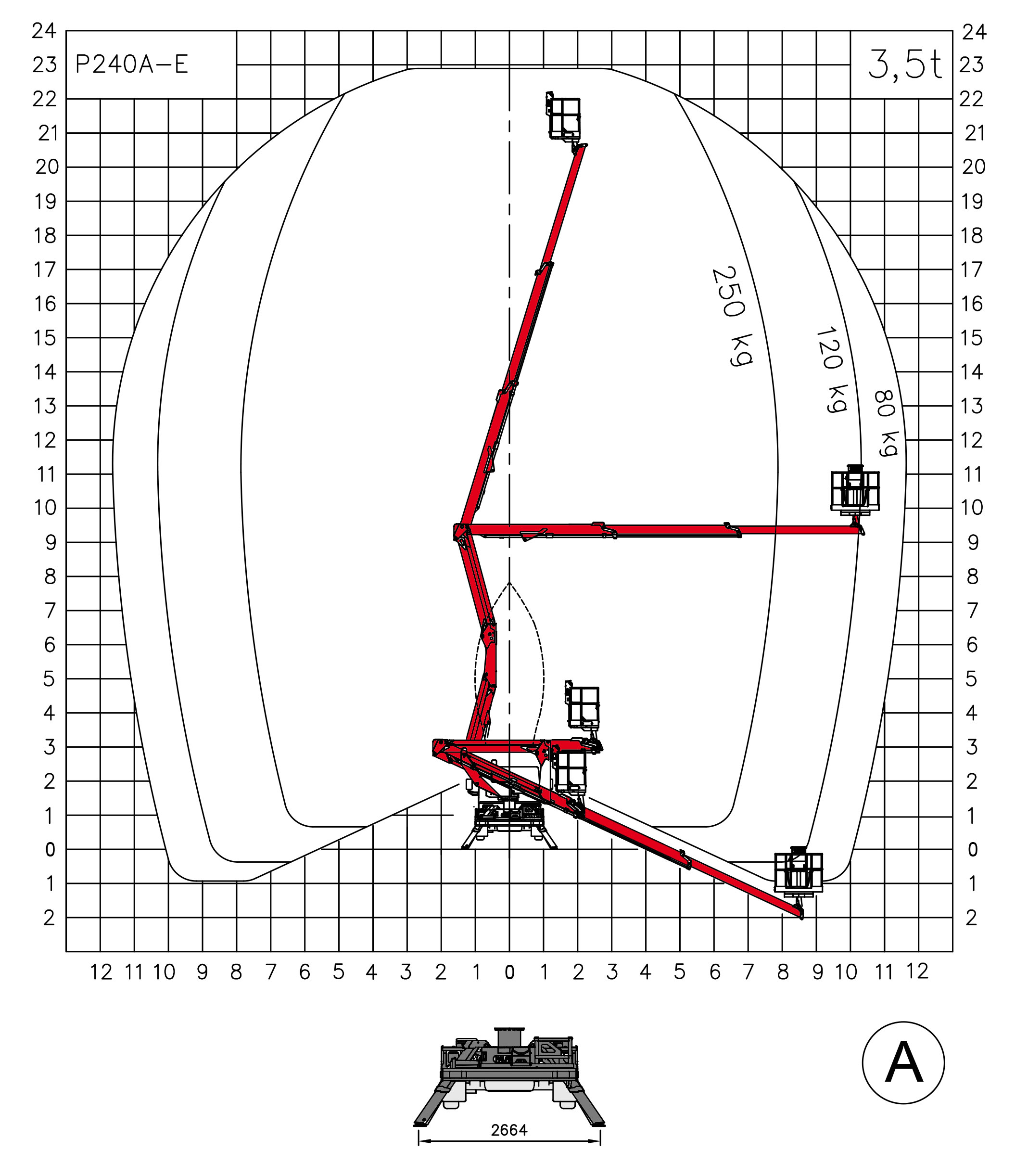

Diagrams

View
alt text

View
alt text

Electric Multifunction Controls

Electric multifunction controls enable smooth, quick, and precise maneuvering. The basket controls feature a 28-inch color display, providing operators with a better overview of the vehicle.

alt text

Stable On Rough Terrain

The pantograph design ensures maximum stability, even on rough, off-road terrain.

The pantograph design ensures maximum stability, even on rough, off-road terrain. The interlocking "X" mechanism provides a steady verticle descent and distributes weight evenly, guaranteeing stability even when working off-road. This also helps to reduce the load and wear on the front axle.
alt text

Highlights

Digital, Connected

PALFINGER'S Connected features enable you to receive real-time data from your devices. Benefit from simple remote diagnostics, optimized fleet management, and more.

Through our Connected features, you have the option of receiving real-time data from your PALFINGER devices. View the current status of your device at any time and use this data to optimize your fleet. If problems arise, you can utilize remote diagnostics to provide support without having to be on site. The standard Connected module keeps you on track with a constant overview of where your machines are, their service dates, and any maintenance due.



• Save time and additional costs with remote diagnostics

• Connect to fleet management systems via the data interface

• Keep a constant overview of all maintenance and service dates for your fleet
alt text

Technical Specifications

alt text
Technical data
Max. height of work
22.9 m
Max. horizontal outreach /with basket load
11.6 м
Max. basket load
250 kg
Workman basket - breadth / length / height
1,4 х 0,84 х 1,1
Angle of main boom
-25° - +73°
Rotation angle of turntable
290°

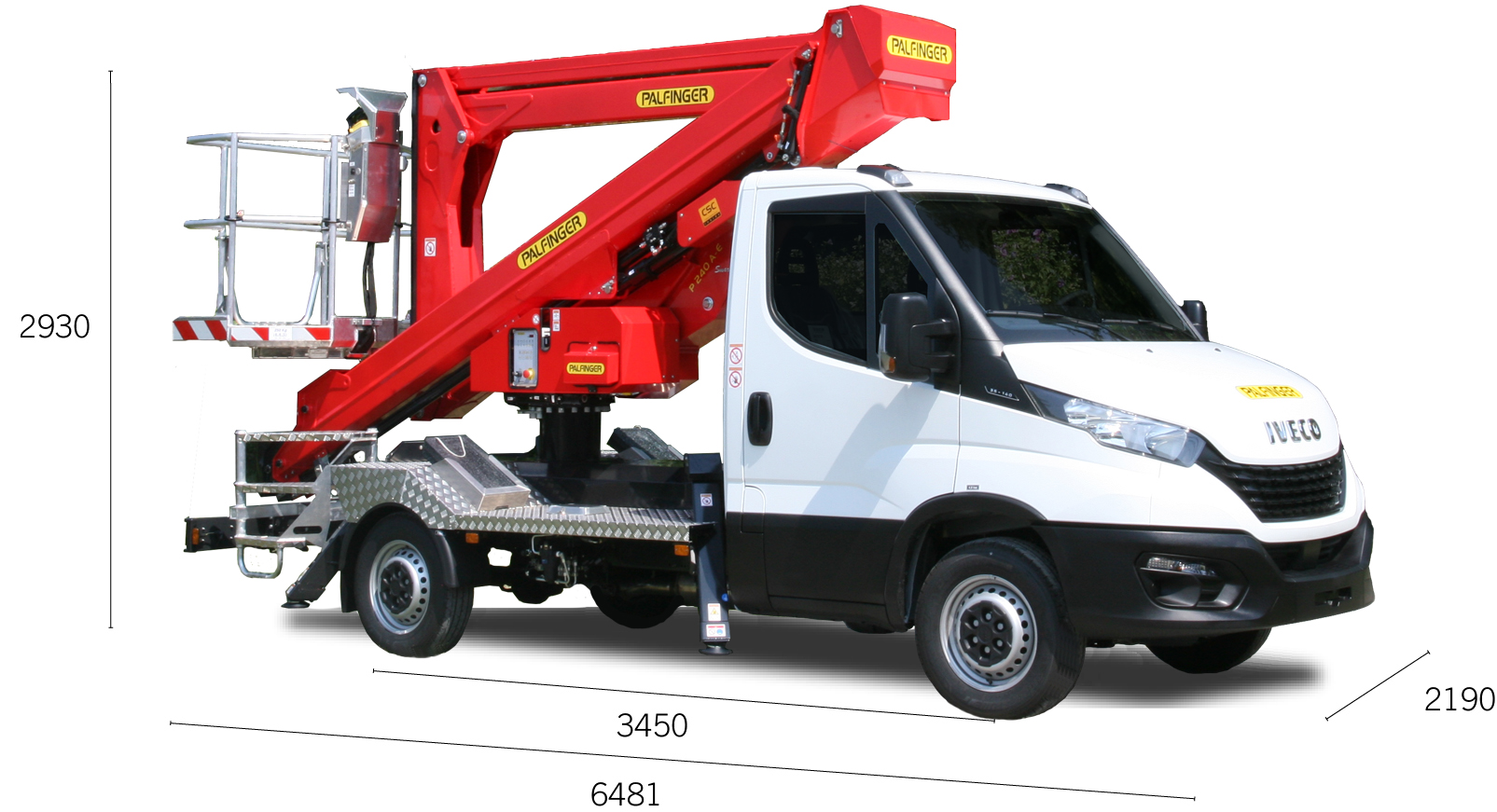

Height in transport position
2.93 m
Width in transport position
2.19 m
Overall length
6.4 m

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Chassis

Available standard chassis:

Iveco Daily 35S14

Further chassis on request

Discover Standard Features

One Button Folding

Fold the aerial work platform quickly and easily with the PALFINGER Home function.

Perfect Protection

The KTL coating provides optimal, long-lasting surface protection. This surface treatment process offers excellent corrosion protection for the whole life of a platform, maintaining performance and helping to retain value.
