PK 7.501K SLD 5

Loader Crane

PK 7.501K SLD 5

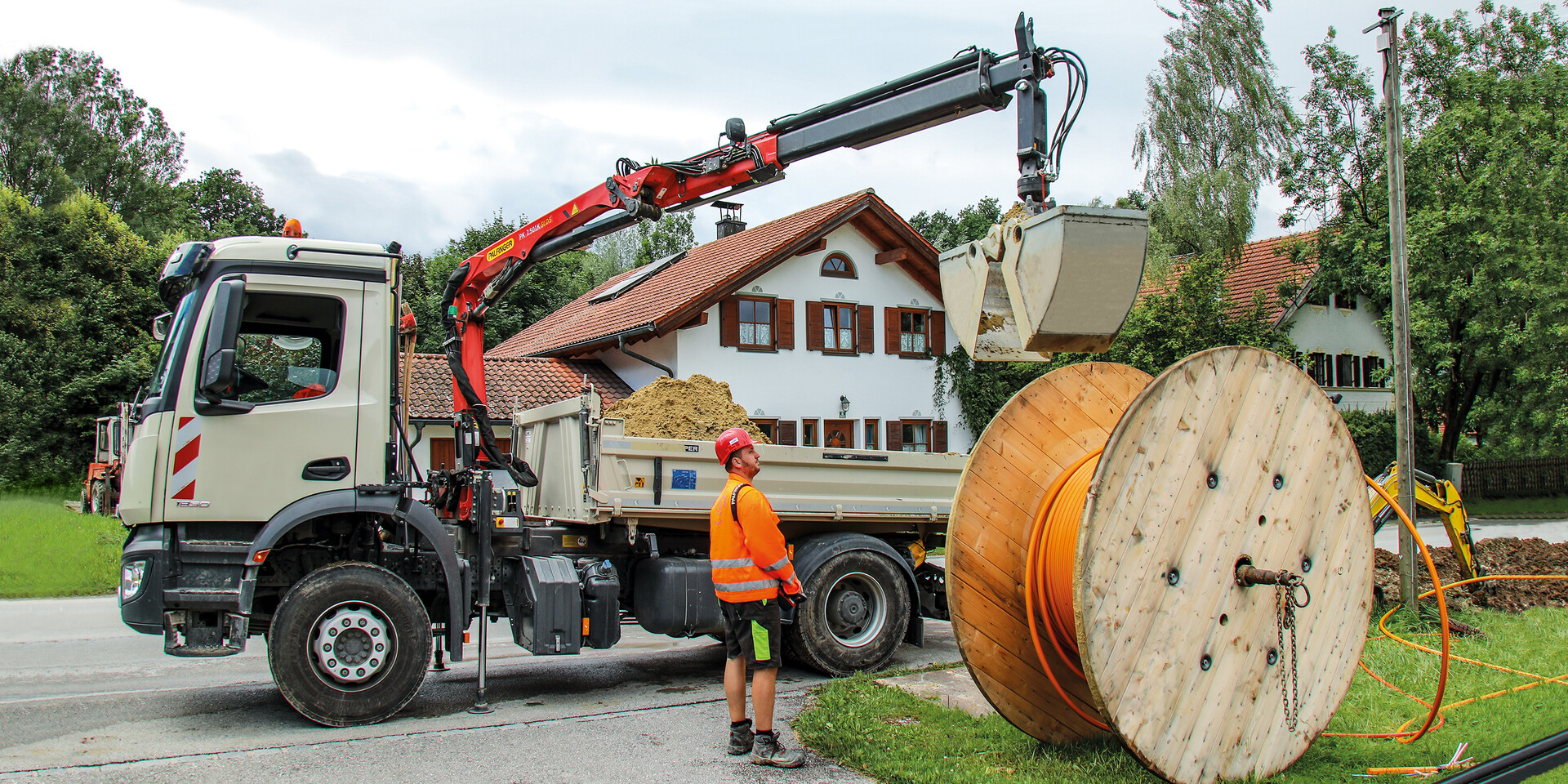

POWERFUL PARTNER FOR MUNICIPAL JOBS

  • High operator friendliness thanks to radio remote control
  • Maximum utilisation of the working range due to HPSC
  • More lifting power due to A-HPLS
  • Higher payloads due to intelligent lightweight design

High Power Lifting System

The PALFINGER High Power Lifting System (E-HPLS, A-HPLS or S-HPLS) increases the capacity of the crane by up to 15% while reducing working speed. E-HPLS can be activated manually for the occasional manipulation of very heavy loads. A-HPLS as well as S-HPLS are activated fully automatically. There is continuous activation depending on the power required.

Details

Paltronic

With the PALTRONIC, PALFINGER offers the latest control electronics for the series production crane. Different systems are available depending on the series and the range of functions. The most important safety and comfort functions include such as overload protection and different variations of the stability control system HPSC and High Power Lifting System HPLS.

Details

High Speed Extension

The High Speed Extension is a standard feature on PALFINGER loader cranes. Also referred to as Return Oil Utilization, this feature is a regenerative hydraulic circuit for the extension booms. It speeds up the boom extend and retract functions by up to 30%.

Single Link

The knuckle joint significantly improves the crane’s motion geometry.

Downloads

Brochures

PK 7.001K SLD 3 | PK 7.501K SLD 5

1,66 MB Download
