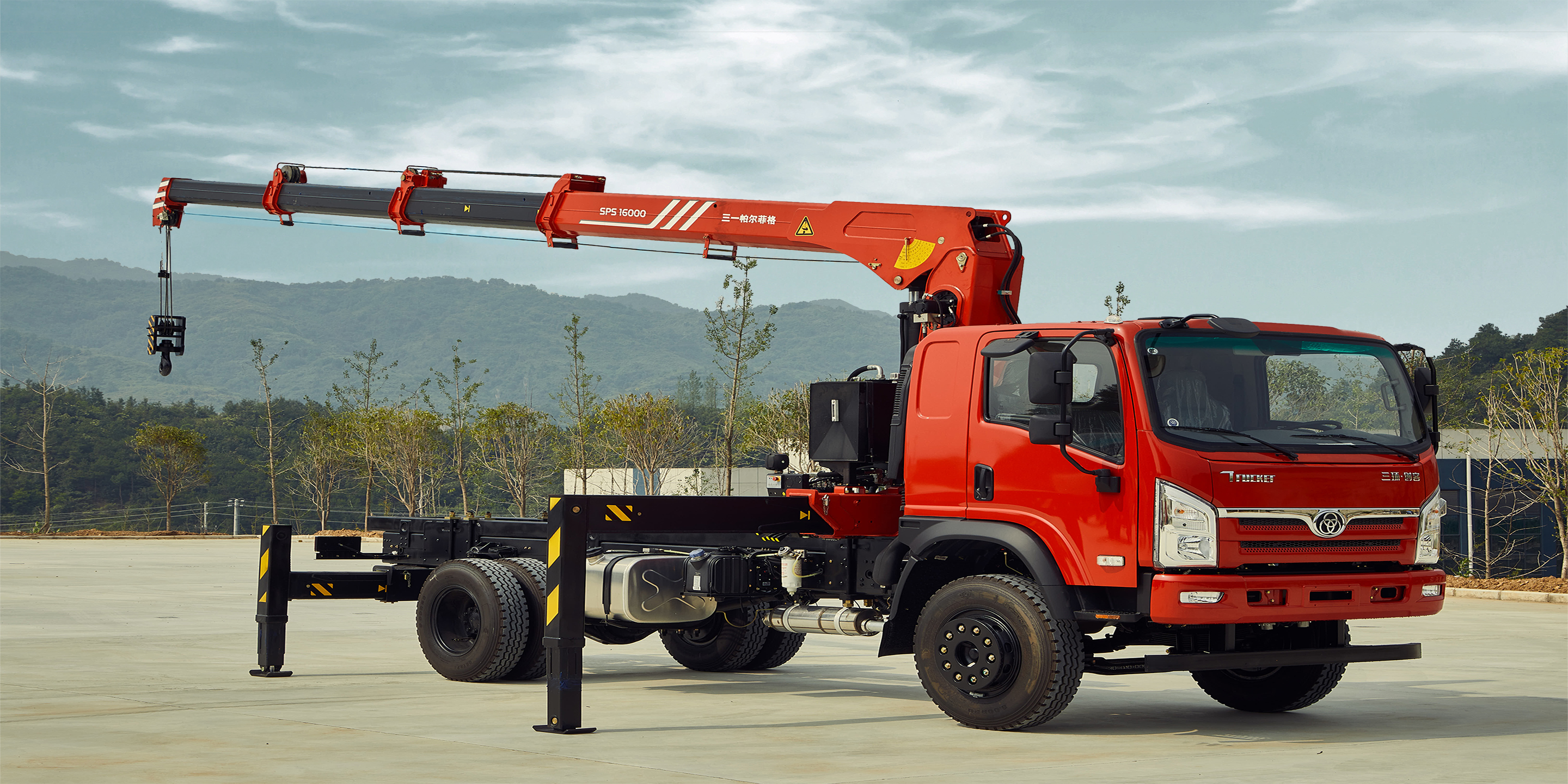

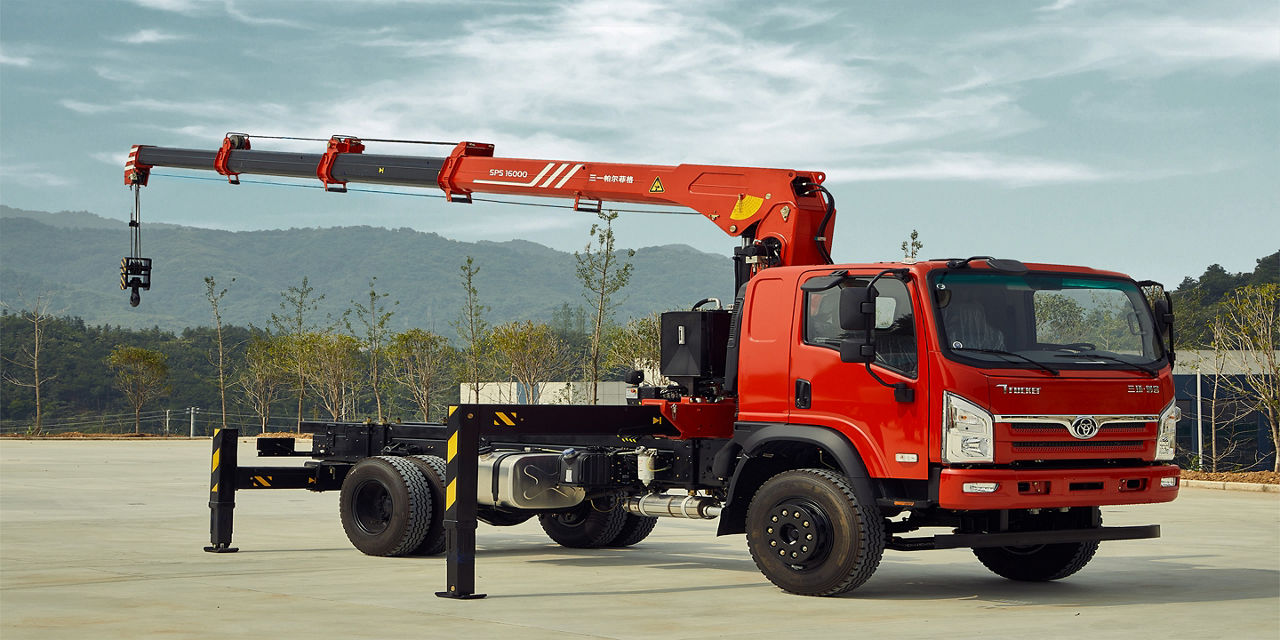

Stiff Boom Crane

SPS 16000

SPS 16000

alt text
Stiff Boom Crane SANY
Key Specs
Max. Lifting Moment
16 mt
Max. Lifting Capacity
7,000 kg
Max. Outreach
12.3m

Manufactured to European quality standards for reliable, safe performance. Its high-tensile steel boom delivers maximum lifting height and reach, while the wide outrigger span provides secure stability across all mounting situations.

Multiple control methods to meet all the customer's demand.

Hook-In and Over-winding /overload system deliver the maximum safety system. Engineered for reliable performance in numerous industrial applications: Firefighting, Oil field,Transport & Logistics, Electricity

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Octagonal Boom Profile

Octagonal boom profile delivers high strength and rigidity through its optimized cross-section, ensuring stable, reliable lifting performance.

High Tensile Steel: HG785, SC960

Able to withstand higher forces
alt text

Proportional Hydraulic System

Proportional hydraulic system provides smooth, stable control for precise, confident operation in all lifting tasks.

Operator can use multiple functions simultaneously, enabling faster, more efficient crane operation.
alt text

High Pressure Filter

High-pressure filter protects the hydraulic system, ensuring proper functionality and extending the crane’s service life.

alt text

High density paint system

Imported integrated base and topcoat deliver bright, durable color with strong corrosion and weather resistance. The finish holds its gloss for three years and resists fading for up to five years.

High density paint system

Integrated primer and topcoat deliver superior durability, color retention, and long-lasting surface protection.

Long-term UV resistance preserves surface quality and color stability over extended outdoor use.

Clean, professional appearance
alt text

Highlights

Ergonomic Design

Design follows ergonomic principles to ensure comfortable, safe crane operation.

Easy-to-remove components reduce service time and simplify repairs.
alt text

High-Performance Design & Quality System

Simulation analysis checks the crane’s structure under many stress conditions, improving safety and reliability while keeping overall weight low
alt text

Technical Specifications

Technical data
Basic DataSPS 16000ASPS 16000B
Rated Lifting Moment16 mt16 mt
Rated Lifting Capacity7000 kg (2.5 m)7000 kg (2.5m)
Max. outreach9.5 m12.3 m
Max. lines of the hook44
Slewing angleContinuousContinuous
Boom raising angle0 ~ 75°0 ~ 75 °
Max. lifting height (the measurement from the ground after the outriggers fully extended)11.8 m14.6 m
Length of the boom system (retracted)4.5 m4.7 m
Length of the boom system (fully extended)9.7 m12.5 m
Boom sections34
Outrigger span (fully extended)5300 (mm)5300 (mm)
Recommended flow rate45 - 65 L/min45 - 65 L/min
Operating pressure26 Mpa26 Mpa
Recommended oil tank capacity100 L100 L
Crane moment (dynamic)243.1 kNm
24.8 mt		262.1 kNm
26.7 mt
Torsional moment (dynamic)16.8 kNm
1.7 mt		16.8 kNm
1.7 mt
Crane Weight2450 kg (Floor Control)2650 kg (Floor Control)
