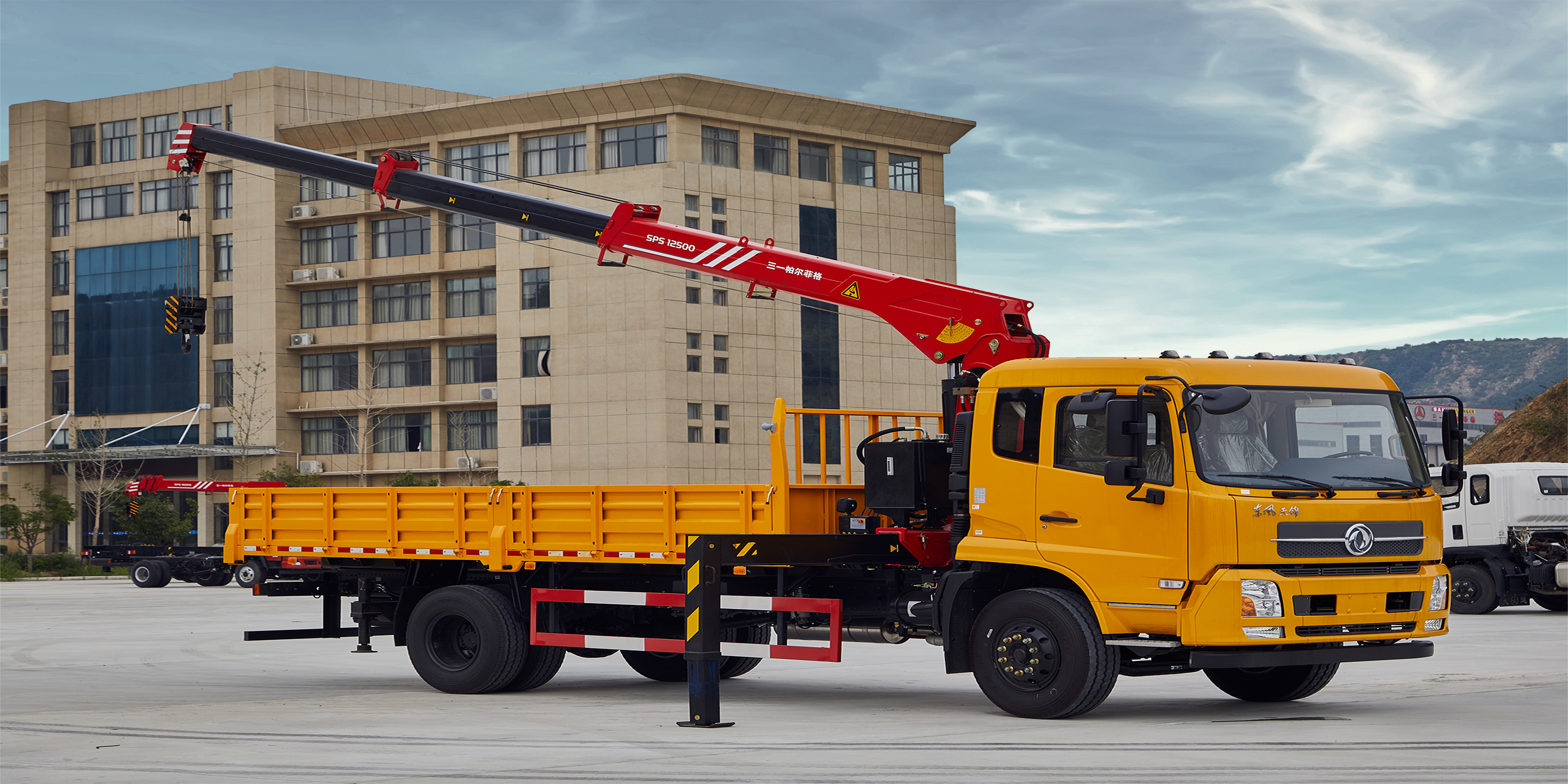

Stiff Boom Crane

SPS 12500

SPS 12500

alt text
Stiff Boom Crane SANY
Key Specs
Max. Lifting Moment
12.5 mt
Max. Lifting Capacity
5,000 kg
Max. Outreach
11.6m

Manufactured to European quality standards for reliable, safe performance. Its high-tensile steel boom delivers maximum lifting height and reach, while the wide outrigger span provides secure stability across all mounting situations. Optimized for operation in a variety of industries and application areas: Landscaping, Electricity, Transport & Logistics

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

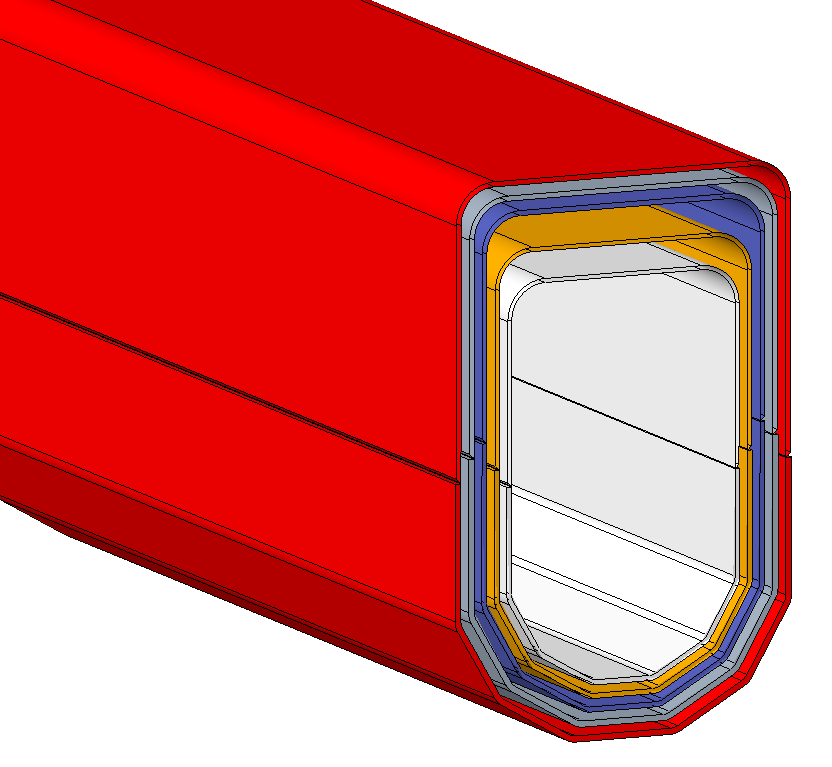

Octagonal Boom Profile

Octagonal boom profile delivers high strength and rigidity through its optimized cross-section, ensuring stable, reliable lifting performance.

High Tensile Steel: HG785, SC960

Able to withstand higher forces
alt text

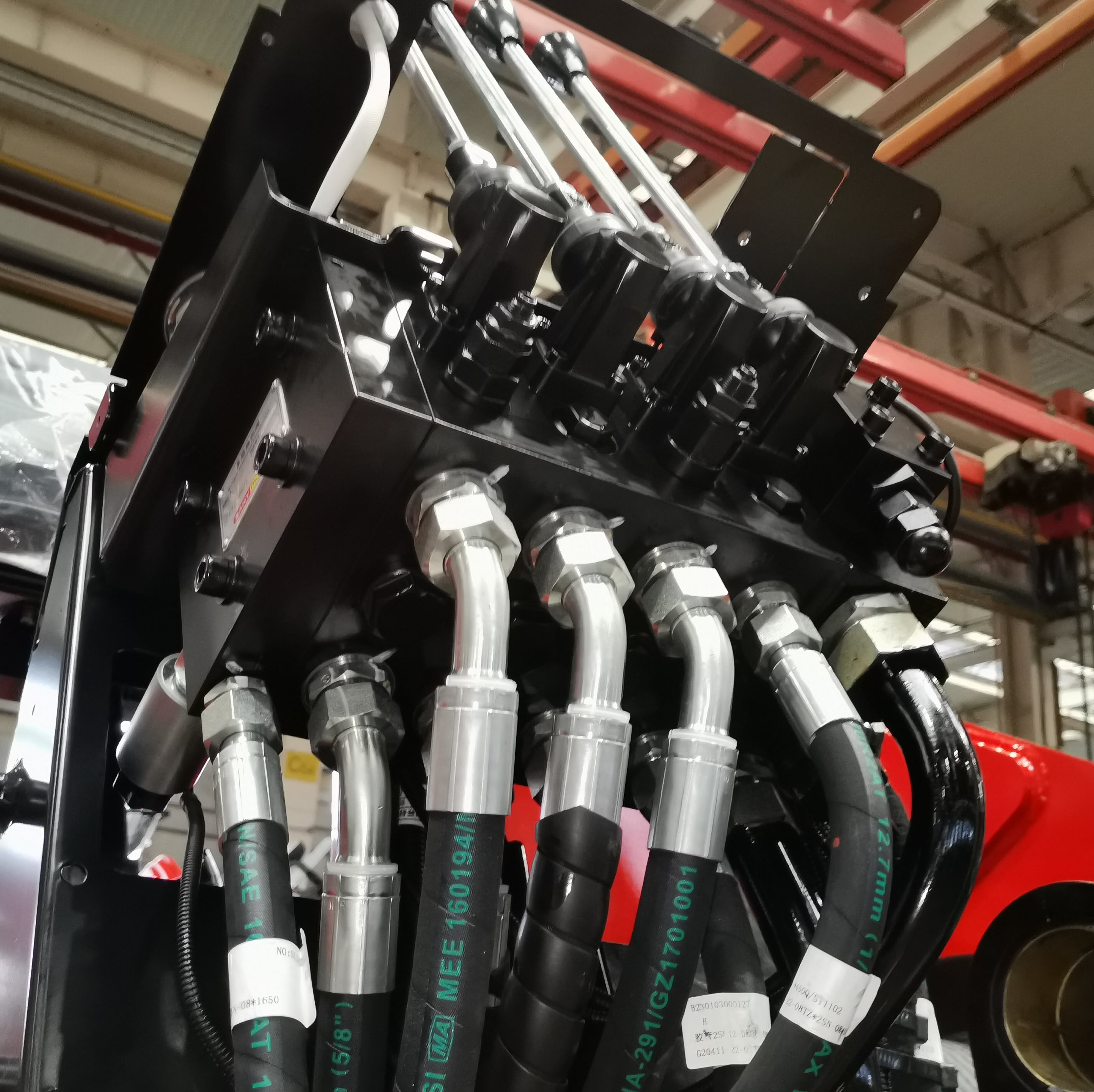

Proportional Hydraulic System

Proportional hydraulic system provides smooth, stable control for precise, confident operation in all lifting tasks.

Operator can use multiple functions simultaneously, enabling faster, more efficient crane operation.
alt text

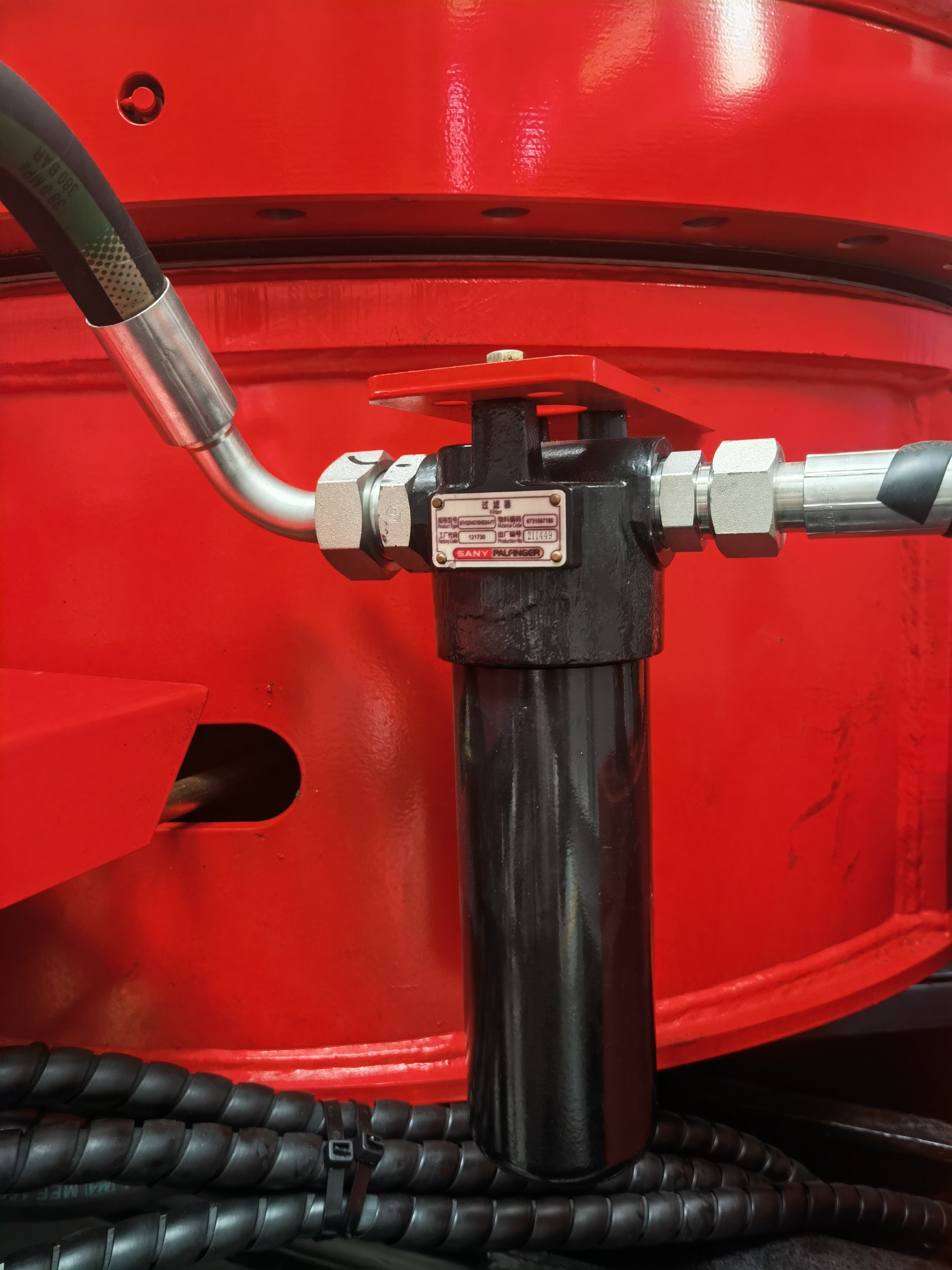

High Pressure Filter

High-pressure filter protects the hydraulic system, ensuring proper functionality and extending the crane’s service life.

alt text

High density paint system

Imported integrated base and topcoat deliver bright, durable color with strong corrosion and weather resistance. The finish holds its gloss for three years and resists fading for up to five years.

High density paint system

Integrated primer and topcoat deliver superior durability, color retention, and long-lasting surface protection.

Long-term UV resistance preserves surface quality and color stability over extended outdoor use.

Clean, professional appearance
alt text

Technical Specifications

Technical data
Basic DataSPS 12500ASPS 12500B
Rated Lifting Moment12.5 mt12.5 mt
Rated Lifting Capacity5000 kg (2.5m)5000 kg (2.2m)
Max. outreach9.0 m11.6 m
Max. lines of the hook44
Slewing angleContinuousContinuous
Boom raising angle0 ~ 75°0 ~ 75 °
Max. lifting height (the measurement from the ground after the outriggers fully extended)11.1 m13.6 m
Length of the boom system (retracted)4.3 m4.3 m
Length of the boom system (fully extended)9.3 m11.9 m
Boom sections34
Outrigger span (fully extended)5100 (mm)5100 (mm)
Recommended flow rate35 - 50 L/min35 - 50 L/min
Operating pressure25 Mpa25 Mpa
Recommended oil tank capacity100 L100 L
Crane moment (dynamic)176.4 kNm
18.0 mt		168.6 kNm
17.2 mt
Torsional moment (dynamic)13.1 kNm
1.3 mt		13.1 kNm
1.3 mt
Crane Weight2260 kg (Floor Control)2370 kg (Floor Control)
