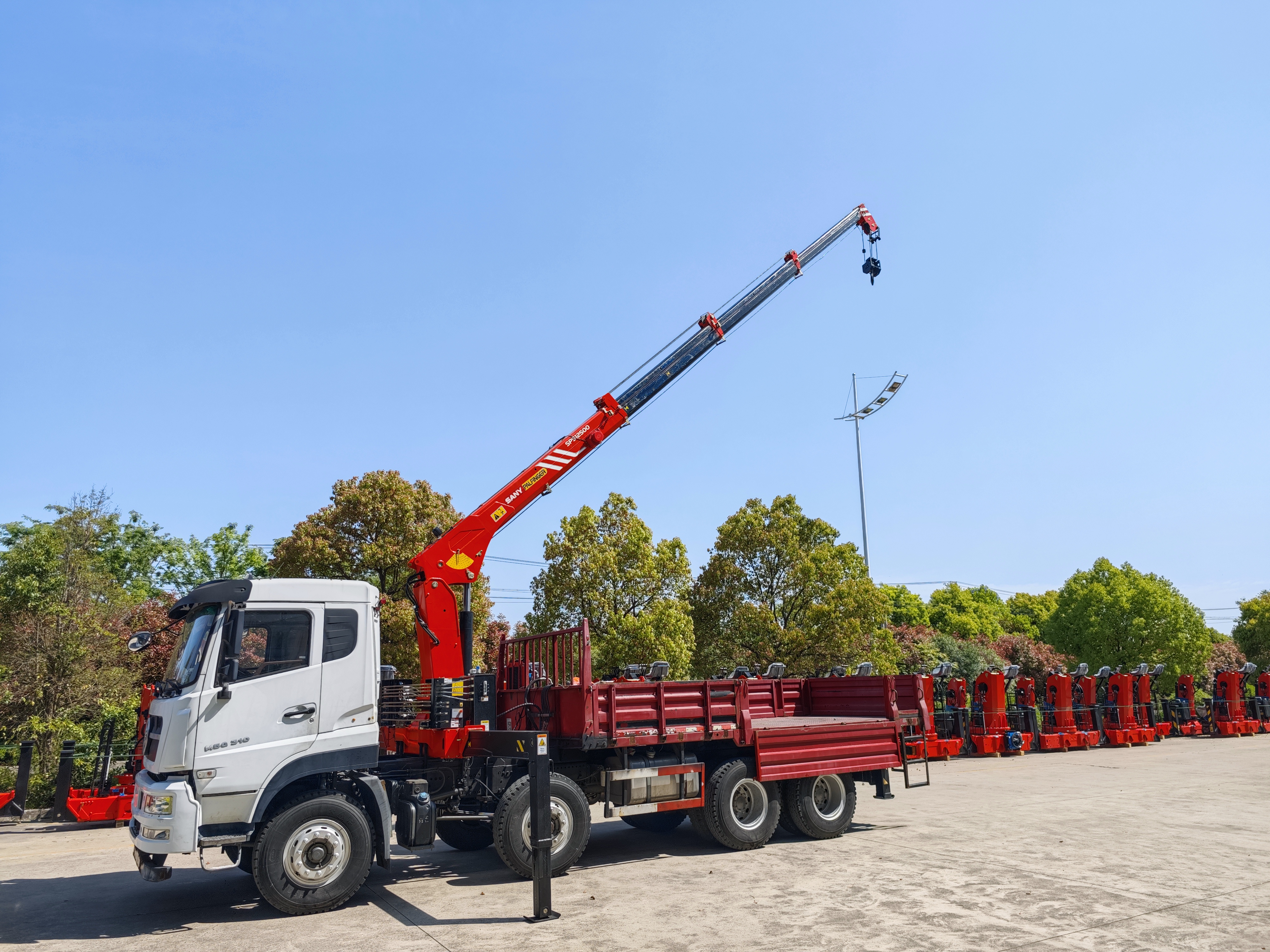

Stiff Boom Crane

SPS 12500 PRO

alt text
Stiff Boom Crane SANY
Key Specs
Max. Lifting Moment
12.5 mt
Max. Lifting Capacity
5,000 kg
Max. Outreach
11.6m

Built to European quality standards for reliable, safe performance. Direct vertical RPM control lets operators adjust engine speed from the crane controls for smoother handling and lower fuel use. An integrated main valve supports simultaneous functions, boosting efficiency and overall productivity. 90 degree Auto-Hook in system ensure the hook always in a locked state and increase the storage height of the cargo box. Built to support multiple applications across different industries: Landscaping, Electricity, Transport & Logistics

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Octagonal Boom Profile

Octagonal boom profile delivers high strength and rigidity through its optimized cross-section, ensuring stable, reliable lifting performance.

High Tensile Steel: HG785, SC960

Able to withstand higher forces
alt text

High Pressure Filter

High-pressure filter protects the hydraulic system, ensuring proper functionality and extending the crane’s service life.

alt text

Highlights

Automatic Hook Retraction

Force-limitation function when hooked in increases safety in the transport position.



Hook-in angle up to 90°
alt text

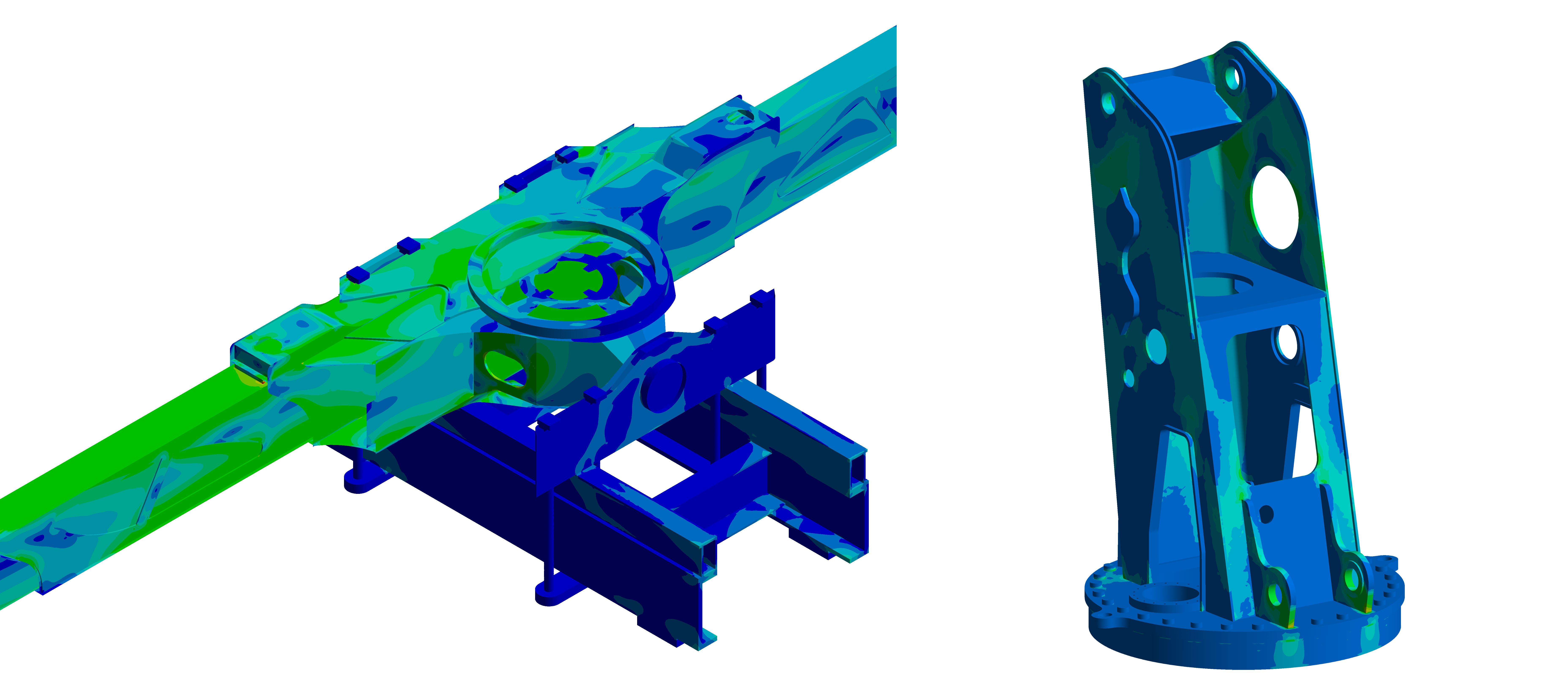

High-Performance Design & Quality System

Simulation analysis checks the crane’s structure under many stress conditions, improving safety and reliability while keeping overall weight low
alt text

Technical Specifications

Technical data
Basic DataSPS 12500A (PRO)SPS 12500B (PRO)
Rated Lifting Moment12.5 mt12.5 mt
Rated Lifting Capacity5,000 kg (2.5m)5,000 kg (2.2m)
Number of Booms34
Length of the boom system (fully extended)9.3 m11.9 m
Max Lifting Height11.4 m14.3 m
Hydraulic Outreach9.0 m11.6 m
Stabilizer Spread5,100 mm5,100 mm
Slewing angleContinuousContinuous
Control SystemFloorFloor
Deadweight of the Crane2300 kg2310 kg
