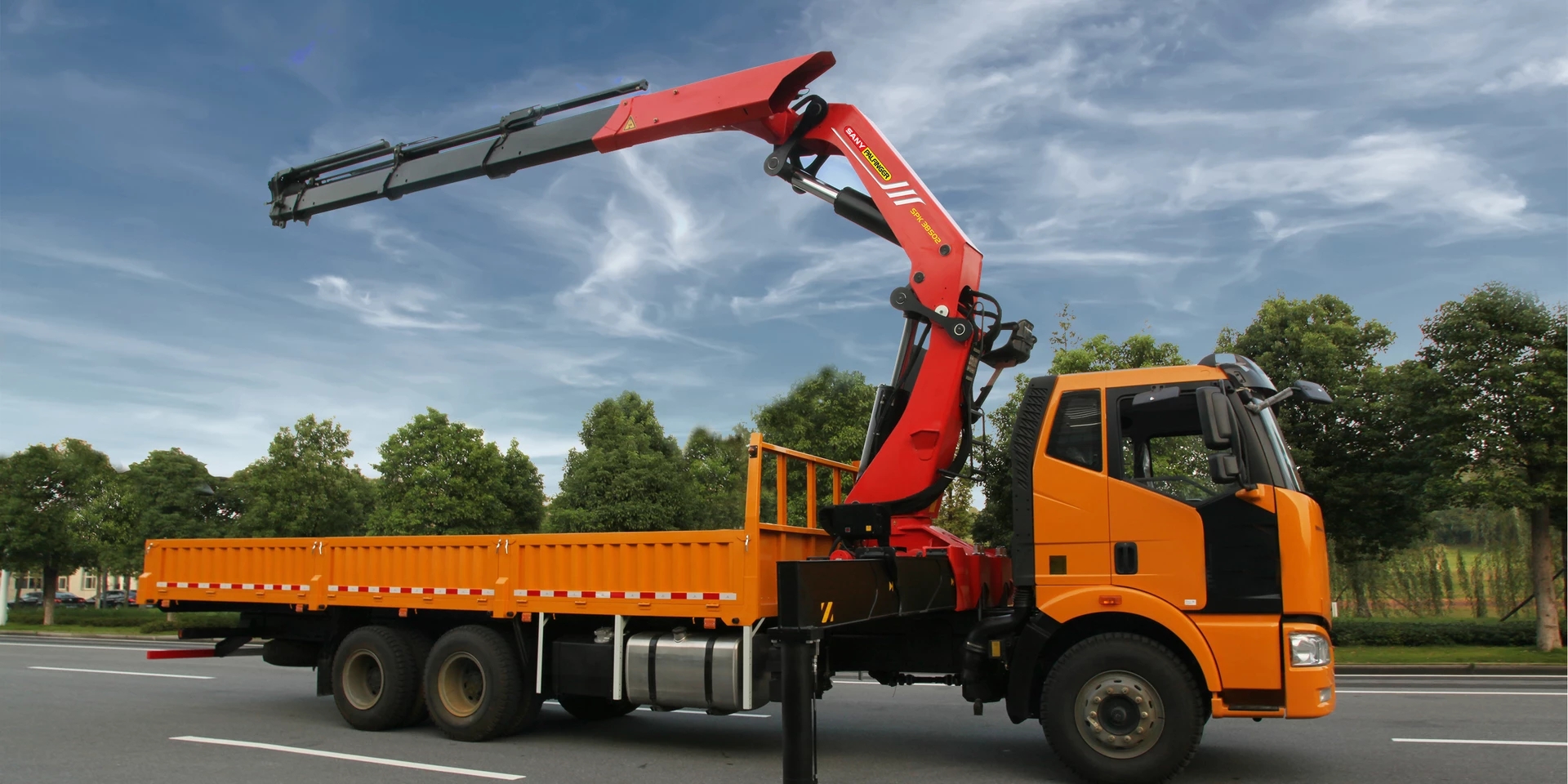

Knuckle Boom Crane

SPK 38502

alt text
Loader Crane SANY
Key Specs
Max. Lifting Moment
38.2 mt
Max. Lifting Capacity
13,000 kg
Max. Outreach
10.0 m (B) / 12.1 m (C) / 14.5 m (D) / 16.8 m (E)

The extra-long outrigger span provides stable lifting performance, while the link mechanism improves work efficiency and enhances lifting capability. Built to support multiple applications across different industries: Construction, Infrastructure, Governmental，Electricity

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Ergonomic Crane Control

The operating system is designed for easy, comfortable use, helping customers work efficiently. The entire control assembly is also simple to disassemble, making maintenance significantly easier.

Eronomically arranged operating levers for all crane functions

Functional design for better comfort during crane operation

Straightforward service and maintenance
alt text

High density paint system

Imported integrated base and topcoat deliver bright, durable color with strong corrosion and weather resistance. The finish holds its gloss for three years and resists fading for up to five years.

High density paint system

Integrated primer and topcoat deliver superior durability, color retention, and long-lasting surface protection.

Long-term UV resistance preserves surface quality and color stability over extended outdoor use.

Clean, professional appearance
alt text

High Speed Extension

High Speed Extension, also known as Return Oil Utilization, is standard on PALFINGER loader cranes. This regenerative hydraulic circuit accelerates boom extension and retraction by up to 30%, improving overall working efficiency.

alt text

Radio Remote Control

PALFINGER radio remote controls offer a choice of linear or cross levers, providing high operating comfort. When used with PALTRONIC, an LCD graphic display or 4.1-inch TFT color display keeps the operator informed about all key operating conditions.

alt text

Highlights

Vehicle stability

Equipped with long-span outriggers and optional 180° automatic rotating vertical outriggers, the crane offers higher stability and improved chassis adaptability.
alt text

Hose Equipment for Attachments

Additional hydraulic functions support a wide range of attachments, with simple installation and protected hose routing. This enables diverse applications across different industries.
alt text

Technical Specifications

Technical data
Max. lifting moment
38.2 mt
Max. lifting capacity
13,000 kg
Max. hydrauic outreach
10.0 m (B) / 12.1 m (C) / 14.5 m (D) / 16.8 m (E)
Slewing angle
400°
Slewing torque
5 mt
Stabilizer spread (std.)
6600 mm (R3X)
Fitting space required (std.)
1,210 mm
Width folded
2,500 mm
Max. operating pressure
300 bar
Pump capacity
55 - 80 l/min
Dead weight (std.)
4,205 kg
