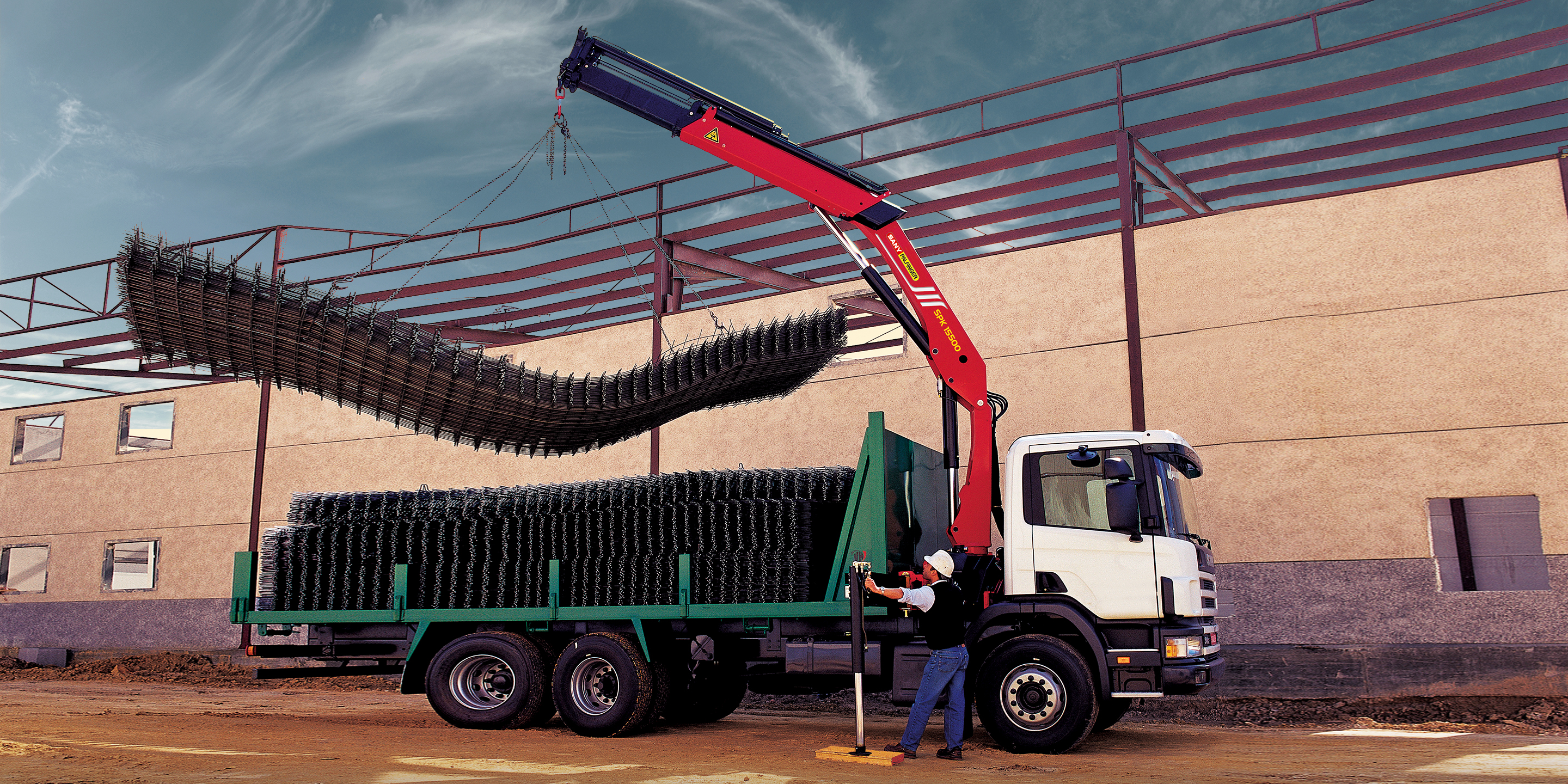

Knuckle Boom Crane

SPK 15500

SPK 15500

alt text
Loader Crane SANY
Key Specs
Max. Lifting Moment
14.6 mt
Max. Lifting Capacity
6,200 kg
Max. Outreach
6.2 m (Std.) / 8.1 m (A) / 10.3 m (B) / 12.4 m (C)

The folding boom structure provides a wide operating range, while the external telescopic cylinder saves space and simplifies maintenance. The crane is easy to equip with additional tools, making it suitable for a wide variety of tasks. Optional hydraulic outriggers, overload protection, and auxiliary tools further expand capability and safety. Developed for flexible use across different applications and market sectors: Firefighting, Oil field, Transport & Logistics, Infrastructure, Governmental, Metrology and Calibration

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Lightweight design

The crane follows a lightweight design concept using high-strength steel plates, making it lighter while delivering stronger lifting performance and lower energy consumption.

The boom cylinder body is made from a single bent and welded plate with only one weld seam, ensuring consistent quality and structural integrity.
alt text

Ergonomic Crane Control

The operating system is designed for easy, comfortable use, helping customers work efficiently. The entire control assembly is also simple to disassemble, making maintenance significantly easier.

Eronomically arranged operating levers for all crane functions

Functional design for better comfort during crane operation

Straightforward service and maintenance
alt text

High density paint system

Imported integrated base and topcoat deliver bright, durable color with strong corrosion and weather resistance. The finish holds its gloss for three years and resists fading for up to five years.

High density paint system

Integrated primer and topcoat deliver superior durability, color retention, and long-lasting surface protection.

Long-term UV resistance preserves surface quality and color stability over extended outdoor use.

Clean, professional appearance
alt text

High Speed Extension

High Speed Extension, also known as Return Oil Utilization, is standard on PALFINGER loader cranes. This regenerative hydraulic circuit accelerates boom extension and retraction by up to 30%, improving overall working efficiency.

alt text

Highlights

Radio Remote Control

PALFINGER radio remote controls offer a choice of linear or cross levers, providing high operating comfort. When used with PALTRONIC, an LCD graphic display or 4.1-inch TFT color display keeps the operator informed about all key operating conditions.
alt text

Hose Equipment for Attachments

Additional hydraulic functions support a wide range of attachments, with simple installation and protected hose routing. This enables diverse applications across different industries.
alt text

Technical Specifications

Technical data
Max. lifting moment
14.6 mt
Max. lifting capacity
6,200 kg
Max. hydrauic outreach
6.2 m (Std.) / 8.1 m (A) / 10.3 m (B) / 12.4 m (C)
Slewing angle
420°
Slewing torque
1.8 mt
Stabilizer spread (std.)
5600 mm (R2 / R2X)
Fitting space required (std.)
810 mm
Width folded
2,500 mm
Max. operating pressure
300 bar
Pump capacity
40 - 60 l/min
Dead weight (std.)
1,689 kg
