Light

PK 5.501 SLD 5

alt text

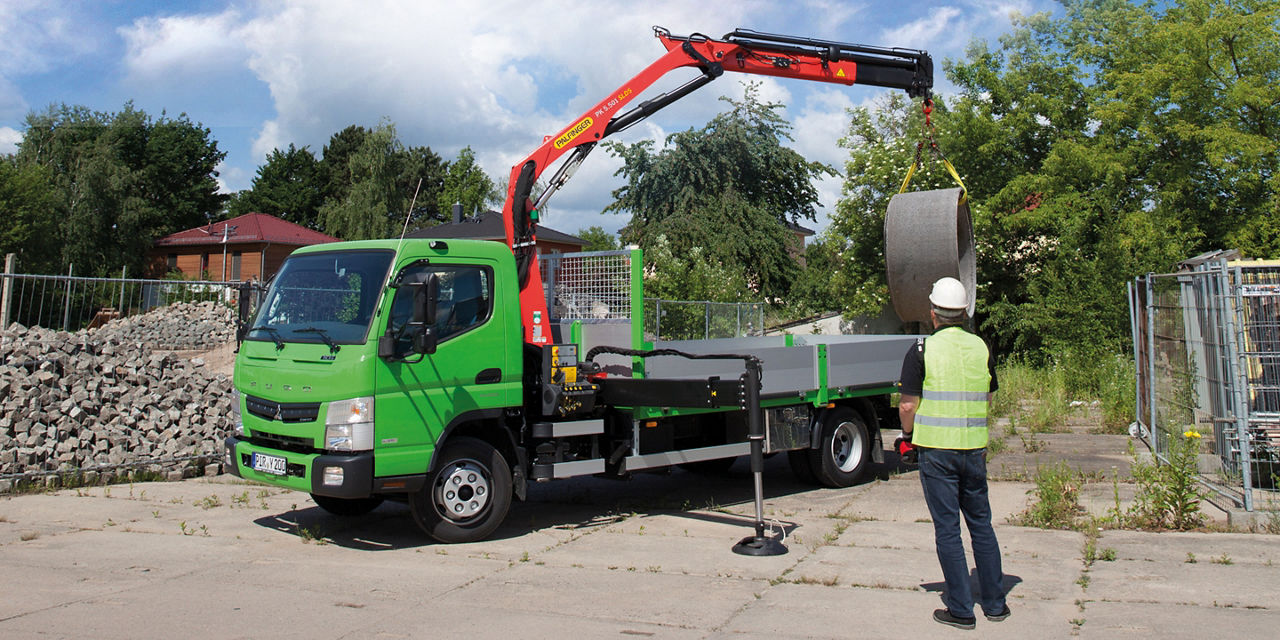

Loader Crane
Key Specs
Max. lifting moment
5.1 mt
Max. lifting capacity
3,300 kg
Max. hydraulic outreach
11.1 m

The SLD range combines trusted technology with durable design to deliver robust, value-driven performance. The PK 5.501 SLD 5 features improved geometry with a higher payload for cost-effective daily lifting. The A-HPLS automatically boosts lifting power on demand, ideal for securely lifting heavy pallets on tight construction sites.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Diagrams

PK 5.501 SLD ()

View
alt text

PK 5.501 SLD A

View
alt text

PK 5.501 SLD B

View
alt text

PK 5.501 SLD C

View
alt text

Reliable companions for daily lifting operations

Our SLD range is the trusted choice for customers seeking robust, enduring performance. Engineering to provide consistent strength and utterly dependable operation, these cranes require minimal maintenance – even when faced with challenging tasks in tough working conditions.

alt text

Technical Specifications

alt text
Technical data
Max. lifting moment
5.1 mt
Max. lifting capacity
3,300 kg
Max. hydraulic outreach
11.1 m
Max. manual outreach
12.7 m
Slewing angle
400°
Slewing torque
0.6 mt
Stabilizer spread (std)
2.9 m
Fitting space required (std)
0.66 m
Width folded
2.1 m
Max. operating pressure
360 bar
Pump capacity
20 - 30 l/min
Dead weight (std)
750 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Lifting capacities

Crane Height (mm)

Crane Weight (kg)

Crane Width (mm)

Installation Width (mm)

Lifting moment (mt)

Outreach (m)

Pressure (MPa)

Pump capacity (l/min)

Slewing angle (°)

Slewing torque (mt)
Std 1,830 mm 725 kg 2,100 mm 660 mm 5.1 mt 5.3 m 36 Mpa 20-30 400 0.6
A 1,830 mm 795 kg 2,100 mm 660 mm 4.9 mt 7.2 m 36 Mpa 20-30 400 0.6
B 1,845 mm 860 kg 2,100 mm 660 mm 4.8 mt 9.2 m 36 Mpa 20-30 400 0.6
BV-1
BV-2
C 1,885 mm 920 kg 2,115 mm 660 mm 4.6 mt 11.1 m 36 Mpa 20-30 400 0.6
CV-1
alt text

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Discover Standard Features

HPLS – On-demand extra power

High Power Lifting System (HPLS) increases lifting capacity by up to 15% when required by automatically boosting hydraulic pressure. Lifting speed is reduced at the same time to maintain control and precision. This allows heavier loads to be handled safely, improves lift-to-weight performance, and reduces stress on the crane structure—helping extend service life and protect long-term value.

alt text
Load Sensing Valves – Precise Control

Load sensing control valves allow multiple crane functions to be operated smoothly at the same time without interfering with each other. Precise oil flow control improves accuracy during delicate lifting tasks while reducing energy loss. Faster cycle times, smoother movements, and high efficiency increase productivity and provide consistent, reliable crane operation in demanding applications.

alt text
PALTRONIC – Smart Crane Control

PALTRONIC control electronics continuously monitor crane load, position, and stability in real time. Sensors send data to the system, which automatically activates safety, assistance, and performance functions when needed. This results in smoother movements, overload protection, improved stability, and easier operation—allowing the operator to focus fully on safe, precise load handling.

alt text
Radio Remote Control – Full Control

Radio remote control system operates the crane safely and efficiently from a distance. Operator commands are transmitted wirelessly delivering precise hydraulic movements. This enables clear visibility of the load, one-person operation, and allows work outside danger zones. Adjustable controls, speed settings, and built-in safety shutoffs improve comfort, accuracy, and overall job site safety.

alt text

Optional Features

alt text

HPSC – Smart Stability, More Reach

High Performance Stability Control (HPSC) continuously calculates crane stability based on the real position of the stabilizers. The system automatically adjusts the permitted working range for each setup situation, maximizing the lifting capacity even when space is limited. This improves safety, increases usable reach, and gives the operator clear, reliable guidance during crane operation.
