Small

PK 2900

alt text
alt text
Loader Crane
Key Specs
Max. lifting moment
2.5 mt
Max. lifting capacity
990 kg
Max. hydraulic outreach
6.4 m

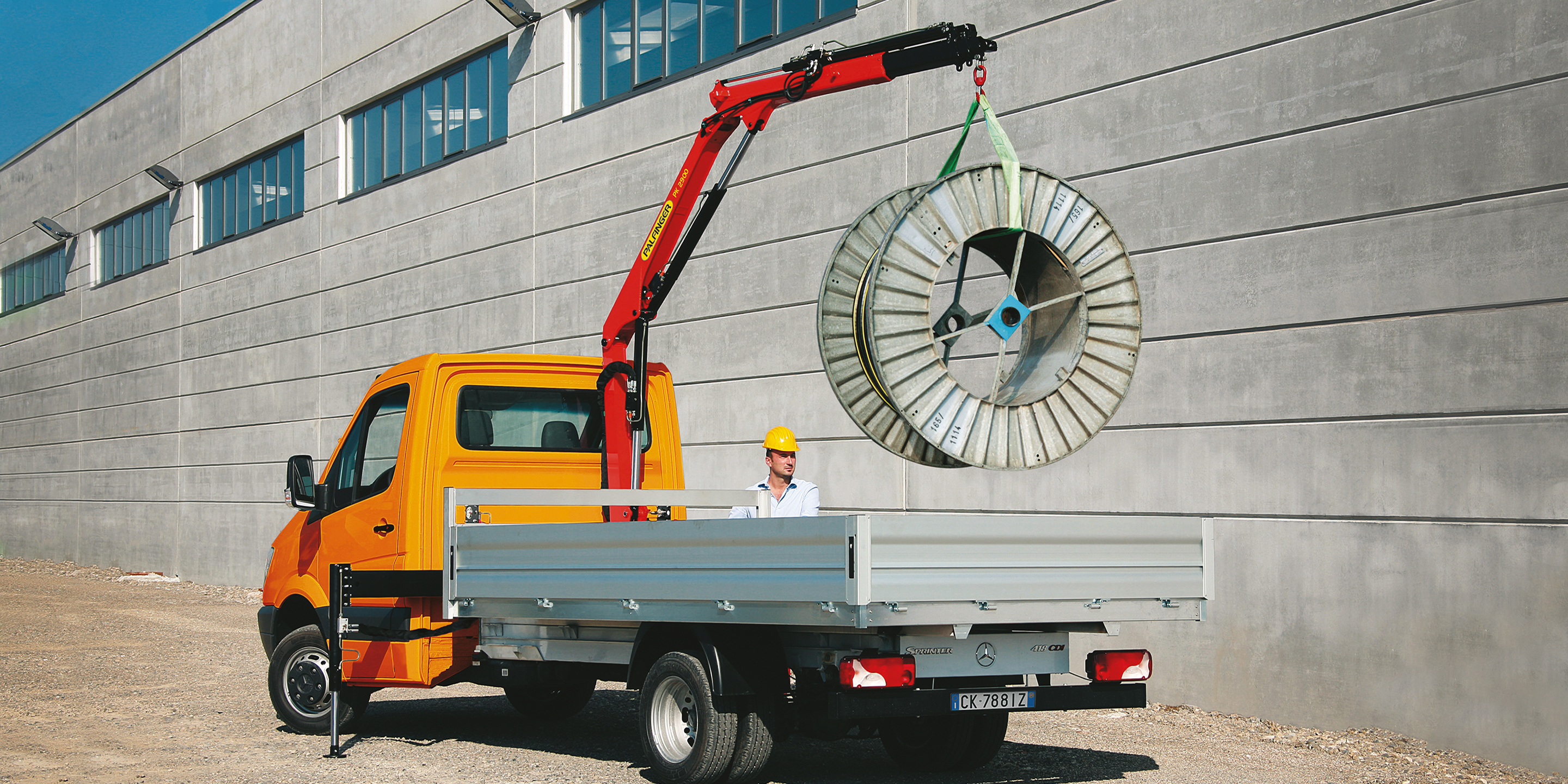

Our High Performance range is built for maximum power, endurance, and control. The agile PK 2900 is designed for light commercial vehicles, combining dependable strength with a low dead weight. This improves payload capacity, vehicle performance, and overall efficiency, making it an ideal choice for inner-city deliveries.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

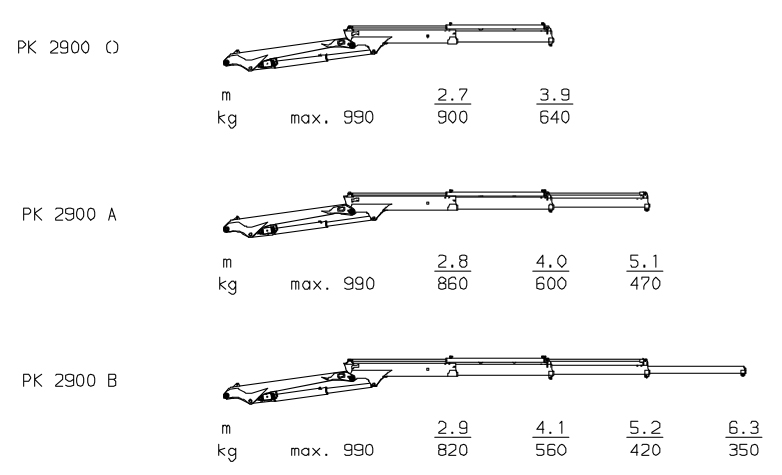

Diagrams

PK 2900 ()

View
alt text

PK 2900 A

View
alt text

PK 2900 B

View
alt text

Superior performance in every situation

Our High Performance cranes feature a compact, agile design that belies their exceptional lifting power. Combining strength, flexibility and advanced stability systems, these models are the go-to choice for demanding tasks on sites where space is at a premium and precision is key.

alt text

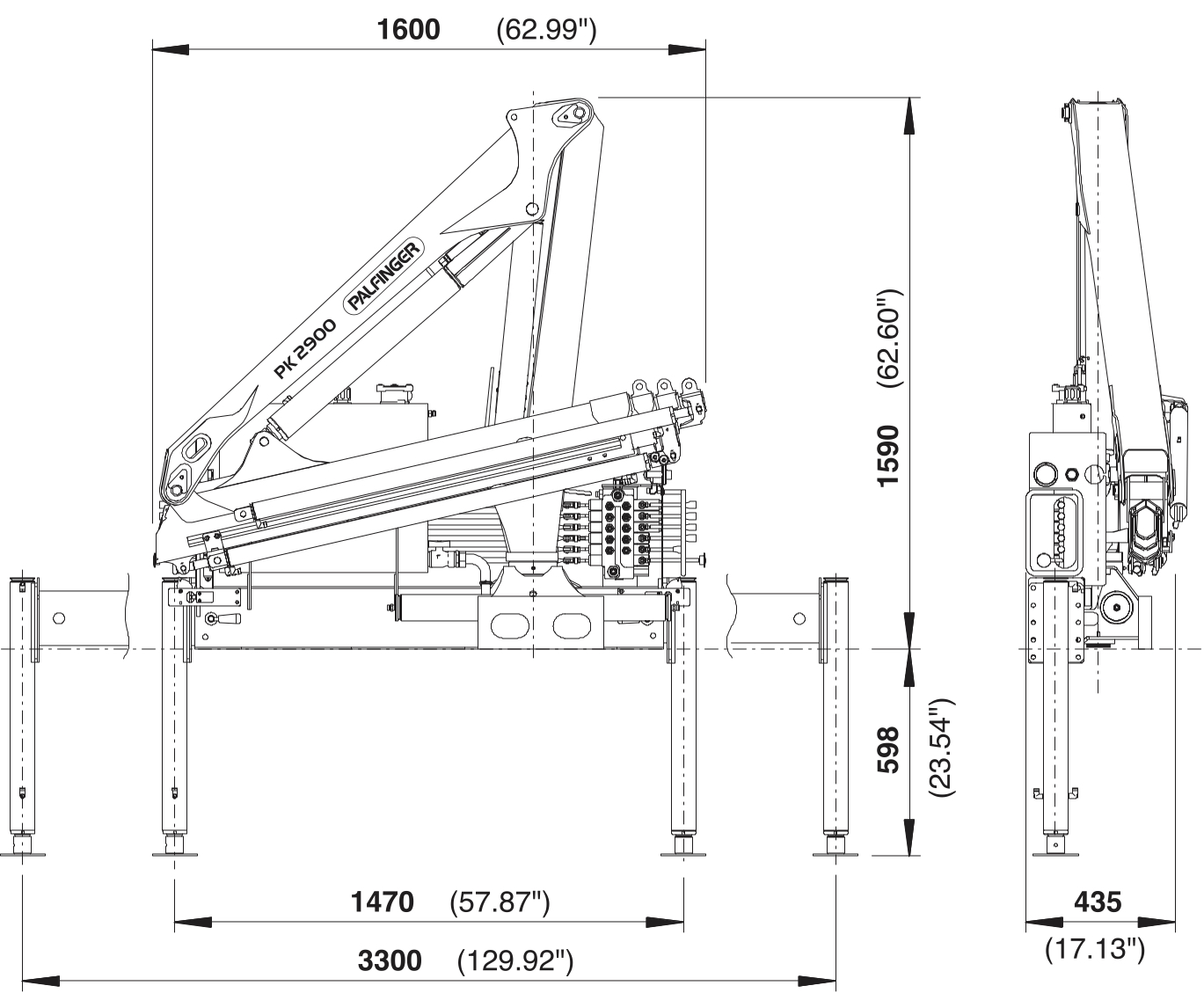

Technical Specifications

alt text
Technical data
Max. lifting moment
2.5 mt
Max. lifting capacity
990 kg
Max. hydraulic outreach
6.4 m
Slewing angle
370°
Slewing torque
0.3 mt
Stabilizer spread (std)
3.3 m
Fitting space required (std)
0.45 m
Width folded
0.77 m
Max. operating pressure
250 bar
Pump capacity
10 l/min
Dead weight (std)
374 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Lifting capacities

Crane Height (mm)

Crane Weight (kg)

Crane Width (mm)

Installation Width (mm)

Lifting moment (mt)

Outreach (m)

Pressure (MPa)

Pump capacity (l/min)

Slewing angle (°)

Slewing torque (mt)
Std 1,590 mm 374 kg 1,600 mm 435 mm 2.5 mt 4 m 25 Mpa 10 370 0.3
A 1,590 mm 406 kg 1,600 mm 435 mm 2.4 mt 5.2 m 25 Mpa 10 370 0.3
B 1,590 mm 434 kg 1,600 mm 470 mm 2.3 mt 6.4 m 25 Mpa 10 370 0.3
alt text

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Discover Standard Features

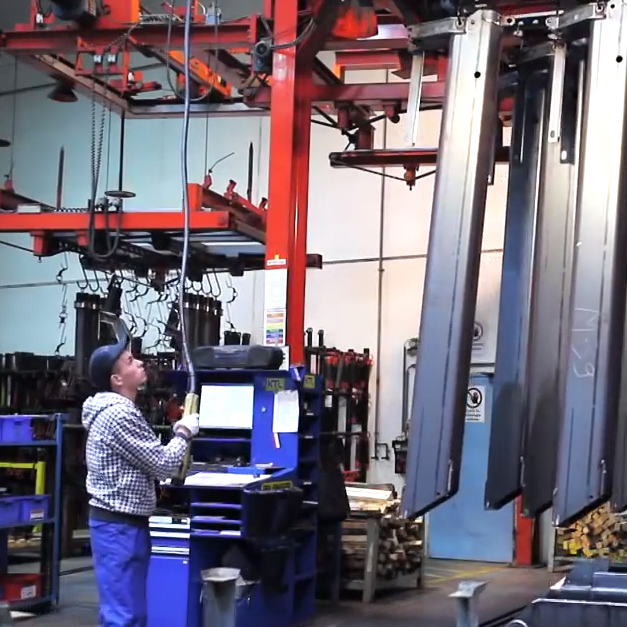

Long-Lasting Coating for Maximum Protection

Advanced coating technology protects components against corrosion, wear, and harsh weather conditions. Multi-stage surface treatment and durable, eco-friendly coatings create a tough, elastic finish with high impact and UV resistance. This extends service life, maintains a high-quality appearance, and preserves resale value while reducing environmental impact and long-term maintenance effort.
