Medium
PK 18502 SH
Loader Crane
Key Specs
- Max. lifting moment
- 17.6 mt
- Max. lifting capacity
- 6,200 kg
- Max. hydraulic outreach
- 17 m
Our SH High Performance range is built for maximum power, endurance, and control. The energy-efficient PK 18502 SH features a smart design that optimizes handling and movement accuracy in varied commercial applications. Equipped with Power Link Plus, this versatile crane maneuvers loads securely through doors and below overhangs.

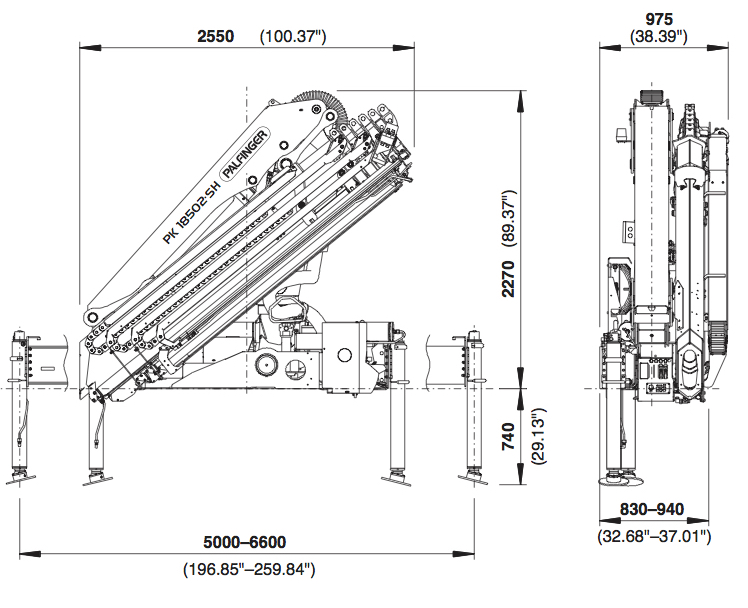

Diagrams
Technical Specifications
Technical data
- Max. lifting moment
- 17.6 mt
- Max. lifting capacity
- 6,200 kg
- Max. hydraulic outreach
- 17 m
- Max. manual outreach
- 19 m
- Max. outreach (with fly jib)
- 25.1 m
- Slewing angle
- 420°
- Slewing torque
- 2 mt
- Stabilizer spread (std)
- 5.0 m
- Fitting space required (std)
- 0.83 m
- Width folded
- 2.51 m
- Max. operating pressure
- 365 bar
- Pump capacity
- 60 - 80 l/min
- Dead weight (std)
- 1,890 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

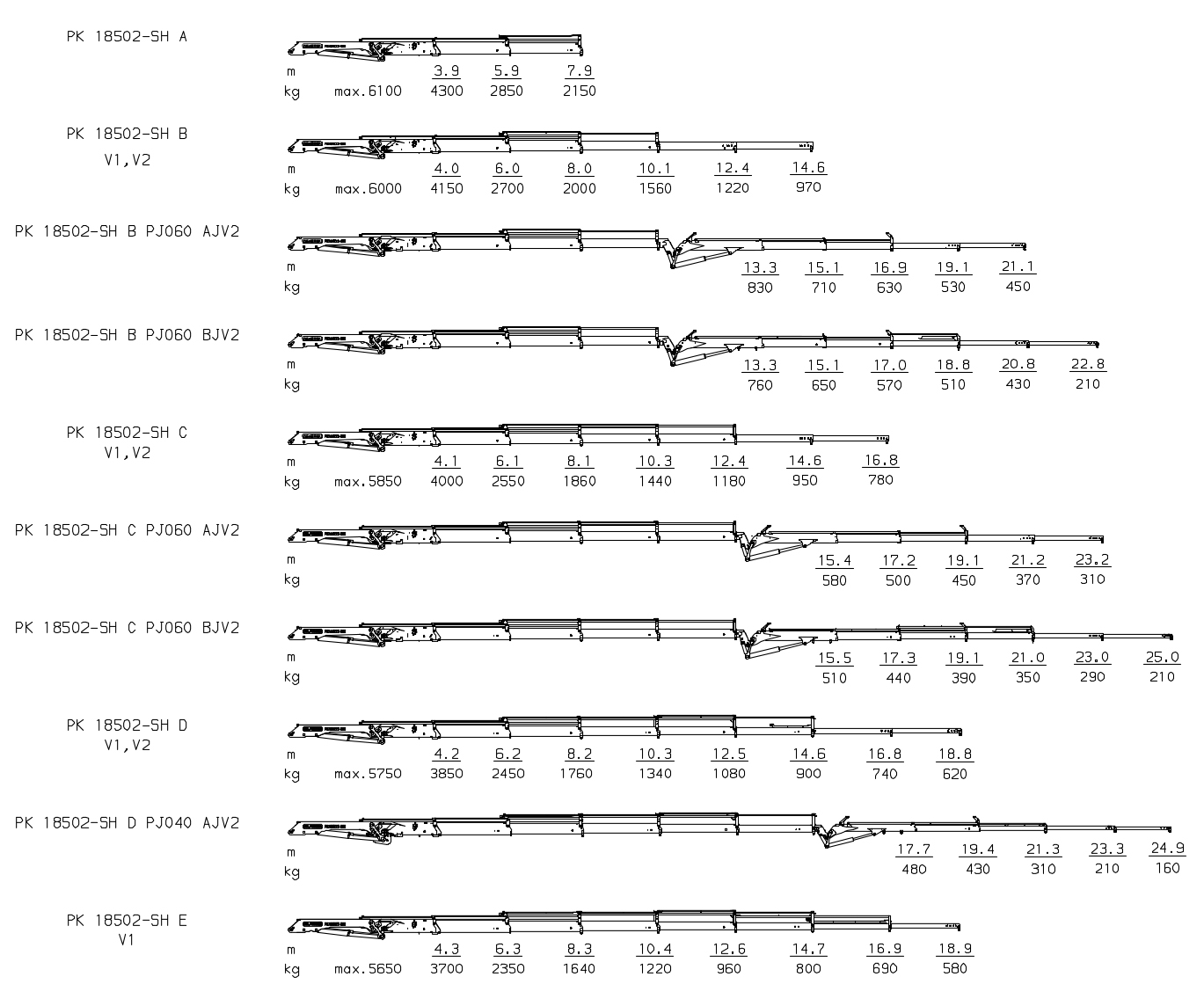

Lifting capacities
|
Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Installation Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| A | 2,270 mm | 1,890 kg | 2,510 mm | 830 mm | 17 mt | 8.1 m | 36.5 Mpa | 60-80 | 420 | 2.0 |
| B | 2,270 mm | 2,030 kg | 2,510 mm | 830 mm | 16.7 mt | 10.3 m | 36.5 Mpa | 60-80 | 420 | 2.0 |
| B PJ060 A | 2,459 kg | 2,550 mm | 10.6 mt | 17.1 m | 36.5 Mpa | 60-80 | 420 | 2 | ||
| B PJ060 B | 2,523 kg | 2,550 mm | 8.9 mt | 19 m | 36.5 Mpa | 60-80 | 420 | 2 | ||
| C | 2,270 mm | 2,150 kg | 2,510 mm | 900 mm | 16.3 mt | 12.6 m | 36.5 Mpa | 60-80 | 420 | 2.0 |
| C PJ060 A | 2,570 kg | 2,550 mm | 7 mt | 19.2 m | 36.5 Mpa | 60-80 | 420 | 2 | ||
| C PJ060 B | 2,634 kg | 2,550 mm | 5.7 mt | 21.1 m | 36.5 Mpa | 60-80 | 420 | 2 | ||
| D | 2,270 mm | 2,260 kg | 2,510 mm | 940 mm | 16 mt | 14.8 m | 36.5 Mpa | 60-80 | 420 | 2.0 |
| D PJ040 A | 2,558 kg | 2,550 mm | 3.4 mt | 21.5 m | 36.5 Mpa | 60-80 | 420 | 2 | ||
| E | 2,270 mm | 2,370 kg | 2,550 mm | 940 mm | 15.7 mt | 17 m | 36.5 Mpa | 60-80 | 420 | 2.0 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
PALTRONIC – Smart Crane Control
PALTRONIC control electronics continuously monitor crane load, position, and stability in real time. Sensors send data to the system, which automatically activates safety, assistance, and performance functions when needed. This results in smoother movements, overload protection, improved stability, and easier operation—allowing the operator to focus fully on safe, precise load handling.
POWER LINK PLUS – Maximum Flexibility
Power Link Plus reverse linkage system allowis the knuckle boom to tilt upward by up to 15° beyond horizontal. This increased flexibility supports safe and efficient lifting in confined spaces and around obstacles. At the same time, the crane folds compactly on the truck within legal height limits, delivering smooth movements, high precision, and reliable performance in demanding applications.
Radio Remote Control – Full Control
Radio remote control system operates the crane safely and efficiently from a distance. Operator commands are transmitted wirelessly delivering precise hydraulic movements. This enables clear visibility of the load, one-person operation, and allows work outside danger zones. Adjustable controls, speed settings, and built-in safety shutoffs improve comfort, accuracy, and overall job site safety.
Long-Lasting Coating for Maximum Protection
Advanced coating technology protects components against corrosion, wear, and harsh weather conditions. Multi-stage surface treatment and durable, eco-friendly coatings create a tough, elastic finish with high impact and UV resistance. This extends service life, maintains a high-quality appearance, and preserves resale value while reducing environmental impact and long-term maintenance effort.
HPLS – On-demand extra power
High Power Lifting System (HPLS) increases lifting capacity by up to 15% when required by automatically boosting hydraulic pressure. Lifting speed is reduced at the same time to maintain control and precision. This allows heavier loads to be handled safely, improves lift-to-weight performance, and reduces stress on the crane structure—helping extend service life and protect long-term value.
Low-Maintenance Extension System
Low-maintenance extension system eliminates the need for regular greasing by using self-lubricating synthetic sliding elements and corrosion-resistant coating. This keeps the boom clean, reduces service effort, and prevents lubricant contamination of loads or work areas. Smoother extension movements, lower maintenance costs, and longer service life improve overall efficiency and resale value.
High Speed Extension – Faster Cycles
High Speed Extension increases boom extension and retraction speed by up to 30% by reusing return oil within the hydraulic system. Faster movements reduce load cycle times and improve overall productivity. The crane completes more work in less time without compromising control or precision.
Optional Features
Soft Stop – Smooth, Controlled Motion
Soft Stop gently slows crane movements before mechanical end positions are reached. This prevents sudden stops, reduces load swing, and protects the crane structure, load, and vehicle. Smoother motion improves precision, increases operator confidence, and allows faster, more accurate work while reducing wear and stress on key components during daily operation.
AOS – Steady Loads, Safer Lifting
Active Oscillation Suppression (AOS) reduces boom vibrations and load swing during and after crane movements. Active oscillation countering brings the boom to a fast and controlled stop. This improves precision, protects the load and surroundings, and allows faster operation with greater confidence. Reduced stress on the crane structure also extends service life and improves long-term value.
Folding Assistant
Folding Assist guides the crane automatically to the correct slewing position for folding. This eliminates manual searching for the right position, reduces setup time, and prevents damage caused by incorrect folding. The result is faster stowage, less operator effort, and safer crane handling after each job.
HPSC – Smart Stability, More Reach
High Performance Stability Control (HPSC) continuously calculates crane stability based on the real position of the stabilizers. The system automatically adjusts the permitted working range for each setup situation, maximizing the lifting capacity even when space is limited. This improves safety, increases usable reach, and gives the operator clear, reliable guidance during crane operation.
