PK 18.001L SLD 3

alt text
Loader Crane
Key Specs
Max. lifting moment
17.7 mt
Max. lifting capacity
5,000 kg
Max. hydraulic outreach
13.5 m

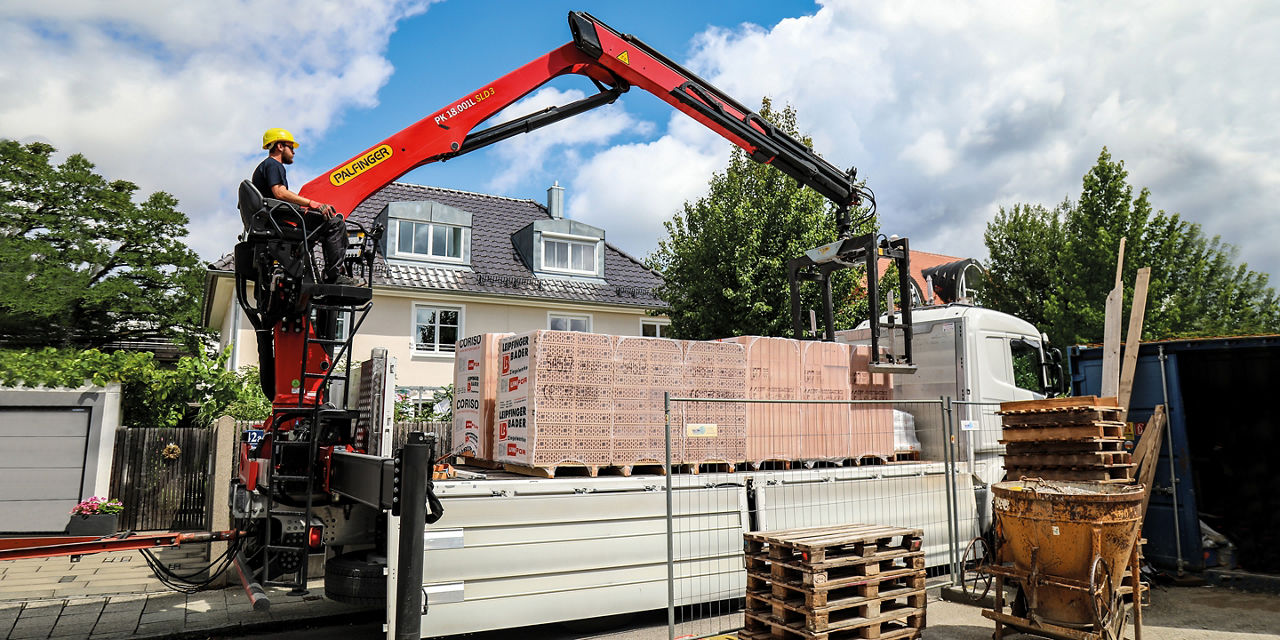

The SLD range combines trusted technology with durable design to deliver robust, value-driven performance. The compact yet powerful PK 18.001L SLD 3 is designed to handle construction materials, combining optimized loading height and smooth operation. The Single Link system optimizes maneuverability and control.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Diagrams

PK 18.001L SLD ()

View
alt text

PK 18.001L SLD A

View
alt text

PK 18.001L SLD B

View
alt text

Swift and secure handling of construction materials

Our L cranes are built for swift and secure handling of construction materials to support efficient site operations. Combining a low dead weight with high lifting capacity and advanced ergonomic deatures, these loader cranes maximize productivity on fast-paced work sites. What’s more, the clear view from the operator’s high seat supports safe lifting.

alt text

Technical Specifications

alt text
Technical data
Max. lifting moment
17.7 mt
Max. lifting capacity
5,000 kg
Max. hydraulic outreach
13.5 m
Slewing angle
440°
Slewing torque
2.3 mt
Stabilizer spread (std)
5.6 m
Width folded
2.55 m
Max. operating pressure
300 bar
Recommended pump capacity <br> Top seat RSQ240
50 - 70 l/min
Recommended pump capacity <br> Top seat RSQ240 LS
65 - 90 l/min
Dead weight (std)
2,270 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Lifting capacities

Crane Height (mm)

Crane Weight (kg)

Crane Width (mm)

Lifting moment (mt)

Outreach (m)

Pressure (MPa)

Pump capacity (l/min)

Slewing angle (°)

Slewing torque (mt)
() 2,495 mm 2,270 kg 2,550 mm 17.7 mt 8.4 m 30 Mpa 50-90 440 2.3
A 2,495 mm 2,470 kg 2,550 mm 16.9 mt 11 m 30 Mpa 50-90 440 2.3
B 2,495 mm 2,660 kg 2,550 mm 16.2 mt 13.5 m 30 Mpa 50-90 440 2.3

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Discover Standard Features

Long-Lasting Coating for Maximum Protection

Advanced coating technology protects components against corrosion, wear, and harsh weather conditions. Multi-stage surface treatment and durable, eco-friendly coatings create a tough, elastic finish with high impact and UV resistance. This extends service life, maintains a high-quality appearance, and preserves resale value while reducing environmental impact and long-term maintenance effort.

alt text
Low-Maintenance Extension System

Low-maintenance extension system eliminates the need for regular greasing by using self-lubricating synthetic sliding elements and corrosion-resistant coating. This keeps the boom clean, reduces service effort, and prevents lubricant contamination of loads or work areas. Smoother extension movements, lower maintenance costs, and longer service life improve overall efficiency and resale value.

alt text
PALTRONIC – Smart Crane Control

PALTRONIC control electronics continuously monitor crane load, position, and stability in real time. Sensors send data to the system, which automatically activates safety, assistance, and performance functions when needed. This results in smoother movements, overload protection, improved stability, and easier operation—allowing the operator to focus fully on safe, precise load handling.

alt text
