Medium

PK 13.501 SLD 3 NON-CE

alt text
Loader Crane
Key Specs
Max. lifting moment
13.1 mt
Max. lifting capacity
6,200 kg
Max. hydraulic outreach
14.8 m

The SLD range combines trusted technology with durable design to deliver robust, value-driven performance. The PK 13.501 SLD 3 NON-CE offers refined control for steady, precise performance. The HPSC system maximizes lifting capacity in different stabilizer situations, ideal for coping with the variable conditions on construction sites.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Reliable companions for daily lifting operations

Our SLD range is the trusted choice for customers seeking robust, enduring performance. Engineering to provide consistent strength and utterly dependable operation, these cranes require minimal maintenance – even when faced with challenging tasks in tough working conditions.

alt text

Technical Specifications

alt text
Technical data
Max. lifting moment
13.1 mt
Max. lifting capacity
6,200 kg
Max. hydraulic outreach
14.8 m
Max. manual outreach
19 m
Slewing angle
420°
Slewing torque with 1 gear
1.6 mt
Stabilizer spread (std)
5.0 m
Fitting space required (std)
0.74 m
Width folded
2.5 m
Max. operating pressure
330 bar
Pump capacity
35 - 50 l/min
Dead weight (std)
1,510 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

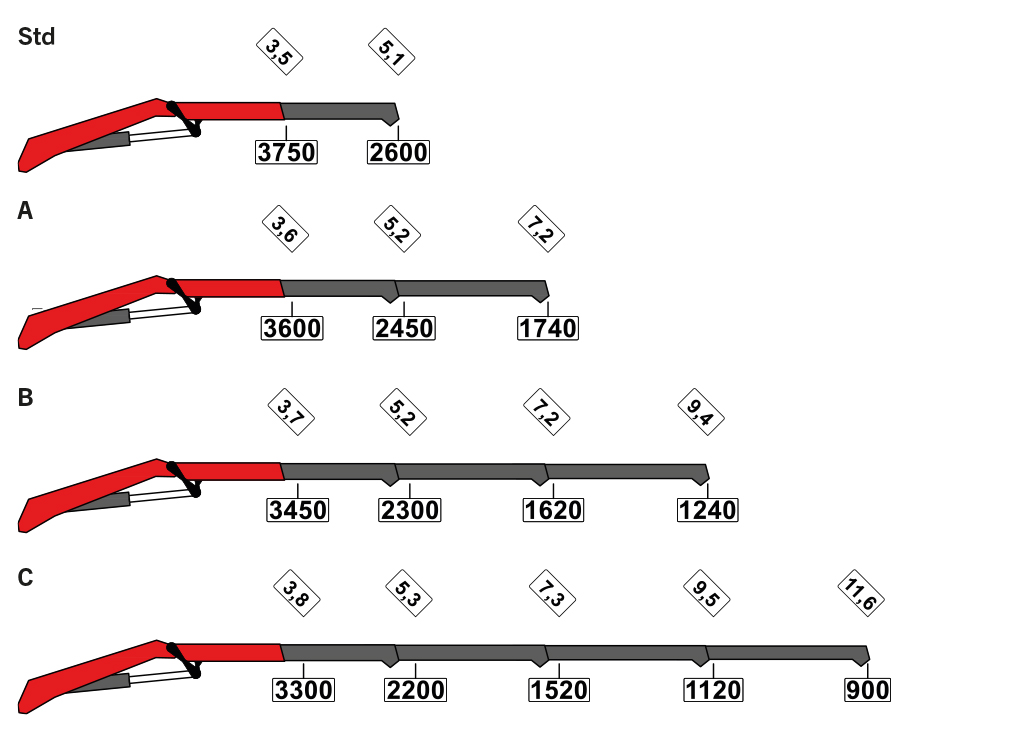

Lifting capacities

Crane Height (mm)

Crane Weight (kg)

Crane Width (mm)

Installation Width (mm)

Lifting moment (mt)

Outreach (m)

Pressure (MPa)

Pump capacity (l/min)

Slewing angle (°)

Slewing torque (mt)
Std 2,215 mm 1,510 kg 2,550 mm 740 mm 13.1 mt 6.1 m 33 Mpa 35-50 420 1.6
A 2,215 mm 1,660 kg 2,550 mm 740 mm 12.7 mt 8.2 m 33 Mpa 35-50 420 1.6
B 2,215 mm 1,780 kg 2,550 mm 740 mm 12.3 mt 10.4 m 33 Mpa 35-50 420 1.6
C 2,215 mm 1,880 mm 2,550 mm 740 mm 12 mt 12.6 m 33 Mpa 35-50 420 1.6
D 2,215 mm 1,980 kg 2,500 mm 2,550 mm 11.7 mt 14.8 m 33 Mpa 35-50 420 1.6
alt text

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Optional Features

alt text

Radio Remote Control – Full Control

Radio remote control system operates the crane safely and efficiently from a distance. Operator commands are transmitted wirelessly delivering precise hydraulic movements. This enables clear visibility of the load, one-person operation, and allows work outside danger zones. Adjustable controls, speed settings, and built-in safety shutoffs improve comfort, accuracy, and overall job site safety.
