7 - 17 t GVW

T15A-T20 A

for 16 - 20 t GVW trucks/for 22 - 26 t GVW trucks/for 22 - 26 t GVW trucks/for 32 - 40 t GVW trucks

alt text

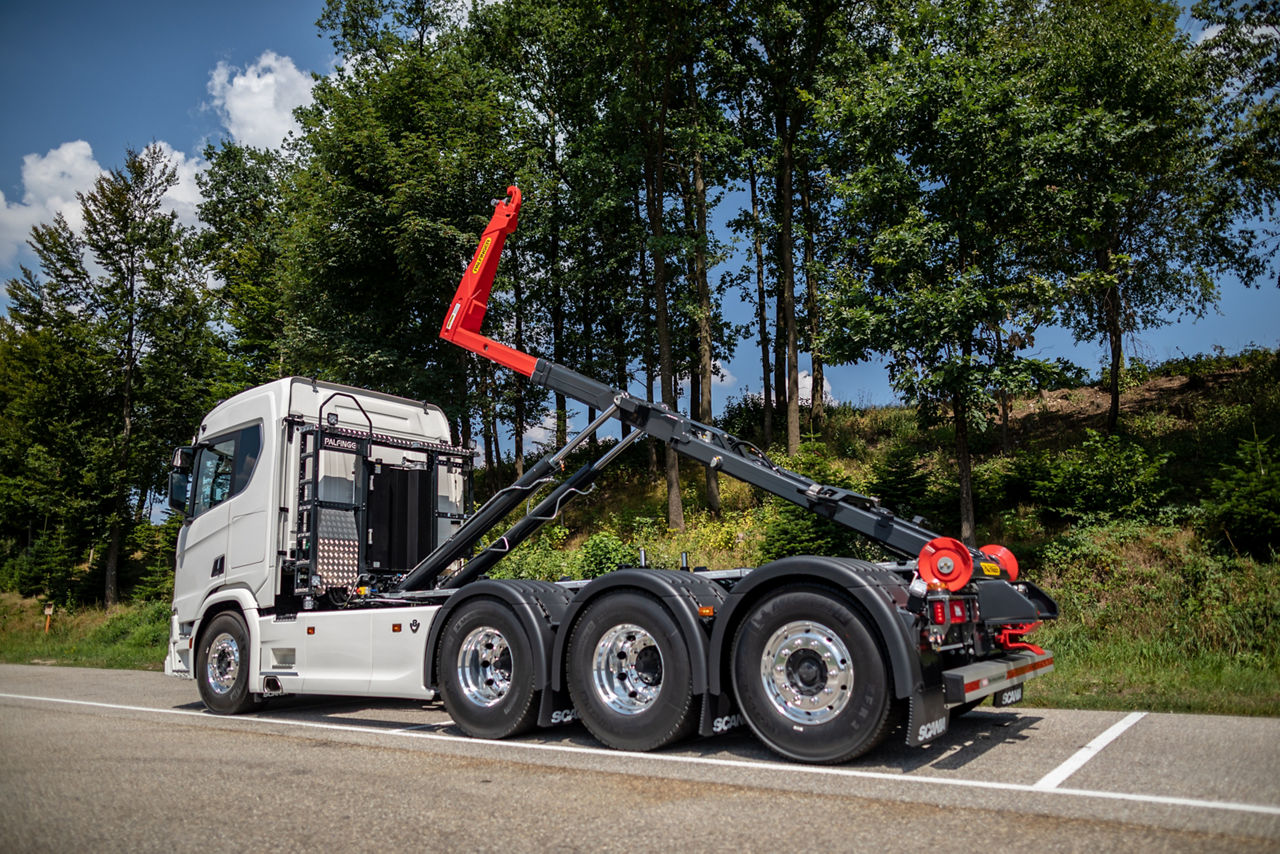

Hooklift
Key Specs
Max. loading capacity
15 t/20 t/22 t/26 t
Unit length
4580 - 5430/5025 - 5475/5025 - 5475/5735 - 6485 mm
Container length
3000 - 6250/3000 - 6500/3000 - 6500/4500 - 7500 mm

The T 15A/T 20A/T 22A/T 26A hooklift delivers unmatched versatility for trucks with a sliding system and optional articulation that fit various container lengths, ensuring smooth handling and secure positioning. Designed for safety and flexibility, it offers multiple configuration options and reliable performance in demanding applications.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Versatility for a reliable partner

Unlock ultimate flexibility with our sliding arm system, designed to handle boxes of varying lengths effortlessly. This smart solution maximizes usage potential across all markets while ensuring smooth, intuitive operation. Easy to use, highly versatile, and built to adapt—your perfect partner for efficient, reliable performance.

Work smarter with telescopic arm and articulated jib
alt text

Engineered for Maximum Performance

Engineered for maximum performance, this hooklift delivers strength and precision day after day. Its advanced design combines reliable technology with consistent operating stability, ensuring smooth, uninterrupted workflow in demanding environments.

alt text

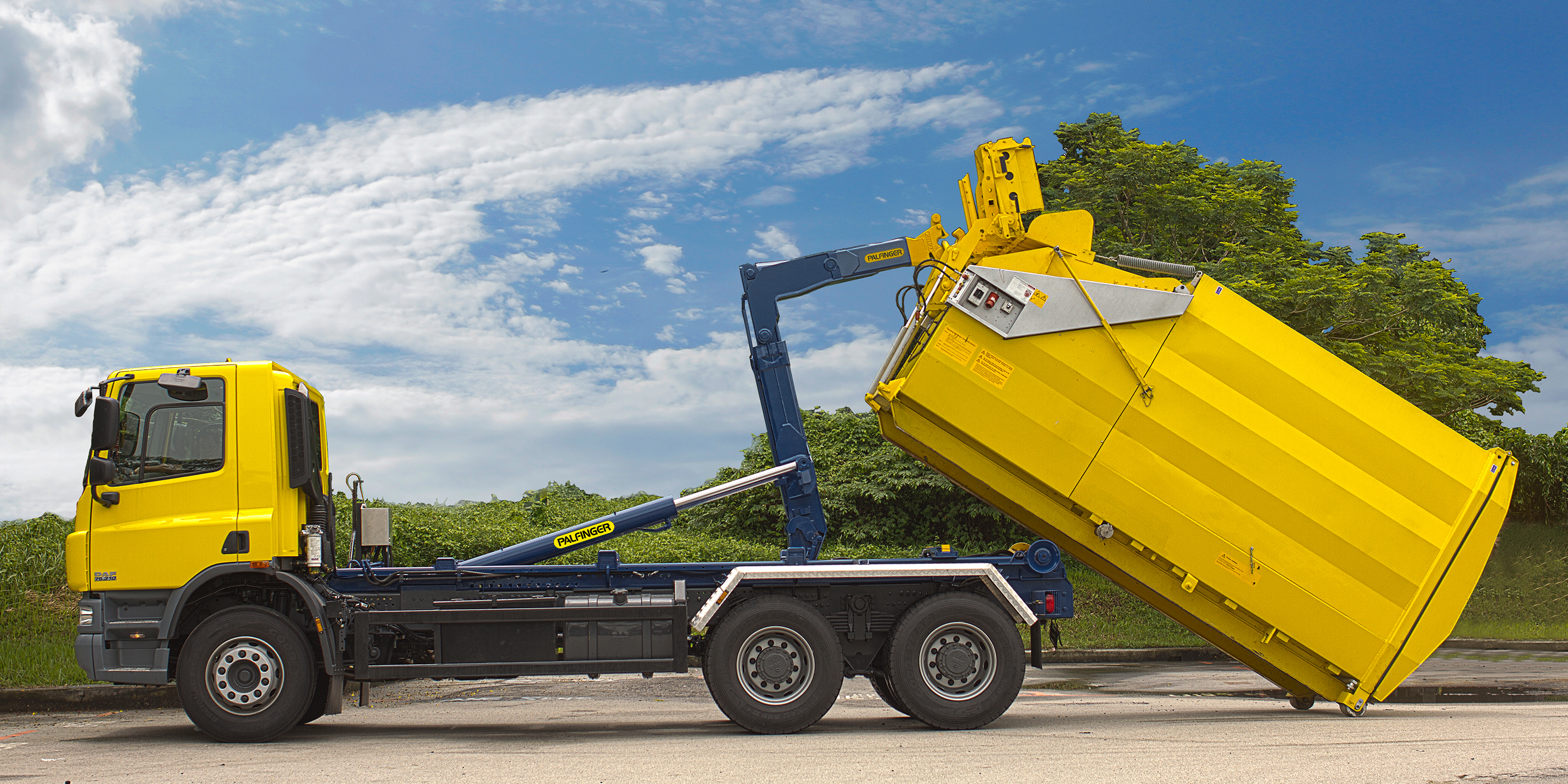

Articulated movement

The articulated arm of the "A" version reduces the loading angle and thus the risk of spillage.  It also optimizes the positioning of short or long containers on the truck, ensuring good weight distribution and load stability.


Articulated jib for even more flexibility

Thanks to its articulation, the hookloader offers maximum versatility and safety. It significantly reduces the risk of load spillage during loading and unloading by maintaining a low loading angle. Equipments and loads are safely loading on the truck.


This smart design also ensures smooth operation in tight spaces, requiring minimal ground clearance to position containers. Additionally, the articulated arm optimizes the handling of both short and long containers, while providing flexibility for transferring containers onto trailers.

alt text

Equipment & Accessories

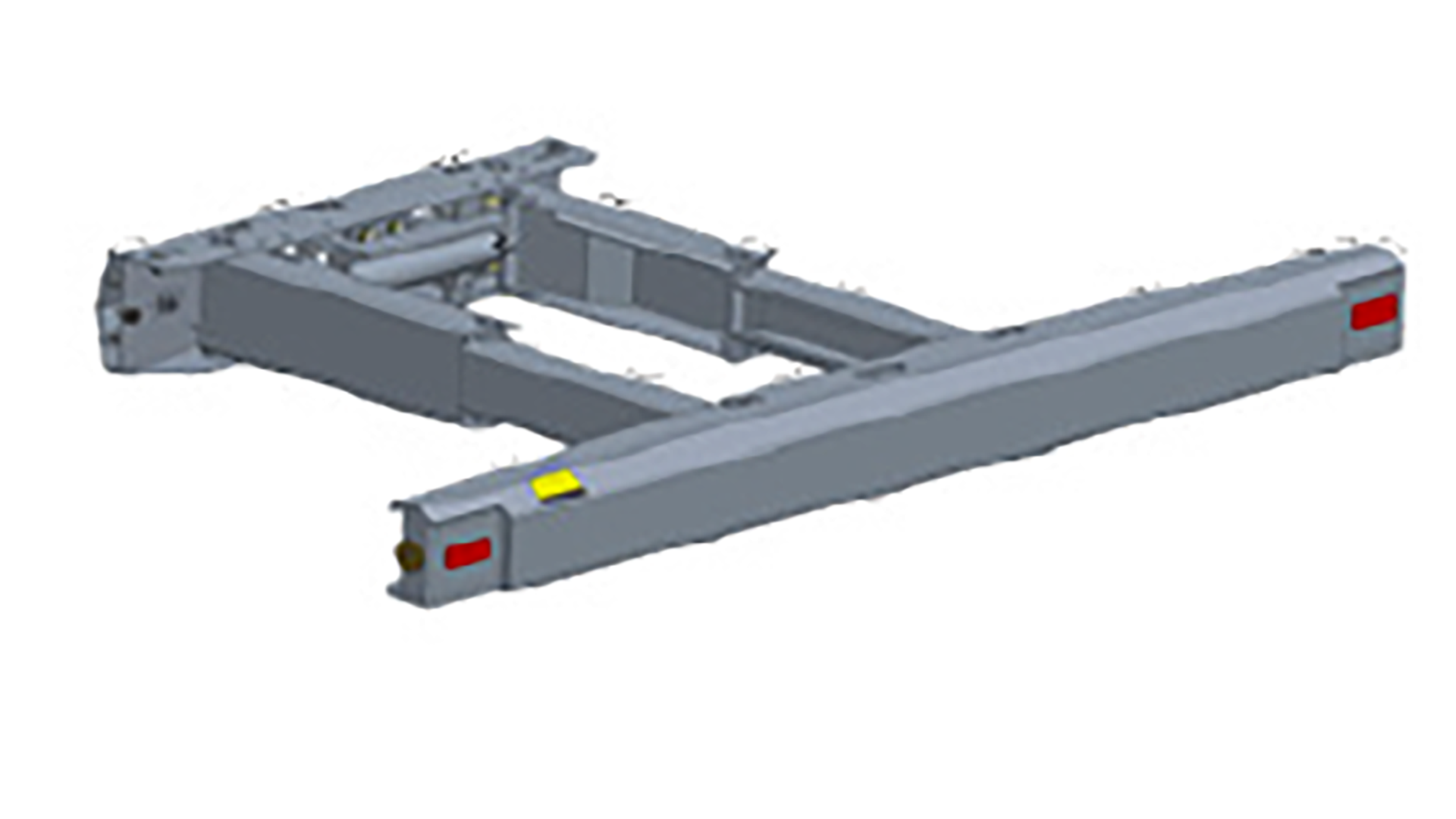

Under-Ride Protection

The PALFINGER rear under-ride protection, compliant with R58-03, is engineered for easy installation and is fully compatible with N3 trucks.
alt text

Routing

Pre-fitted pipes on the rear left of the equipment provide ready-to-use hydraulic lines for additional functions. These lines allow new hydraulic features to be connected directly to the couplings, making installation faster and easier.
alt text

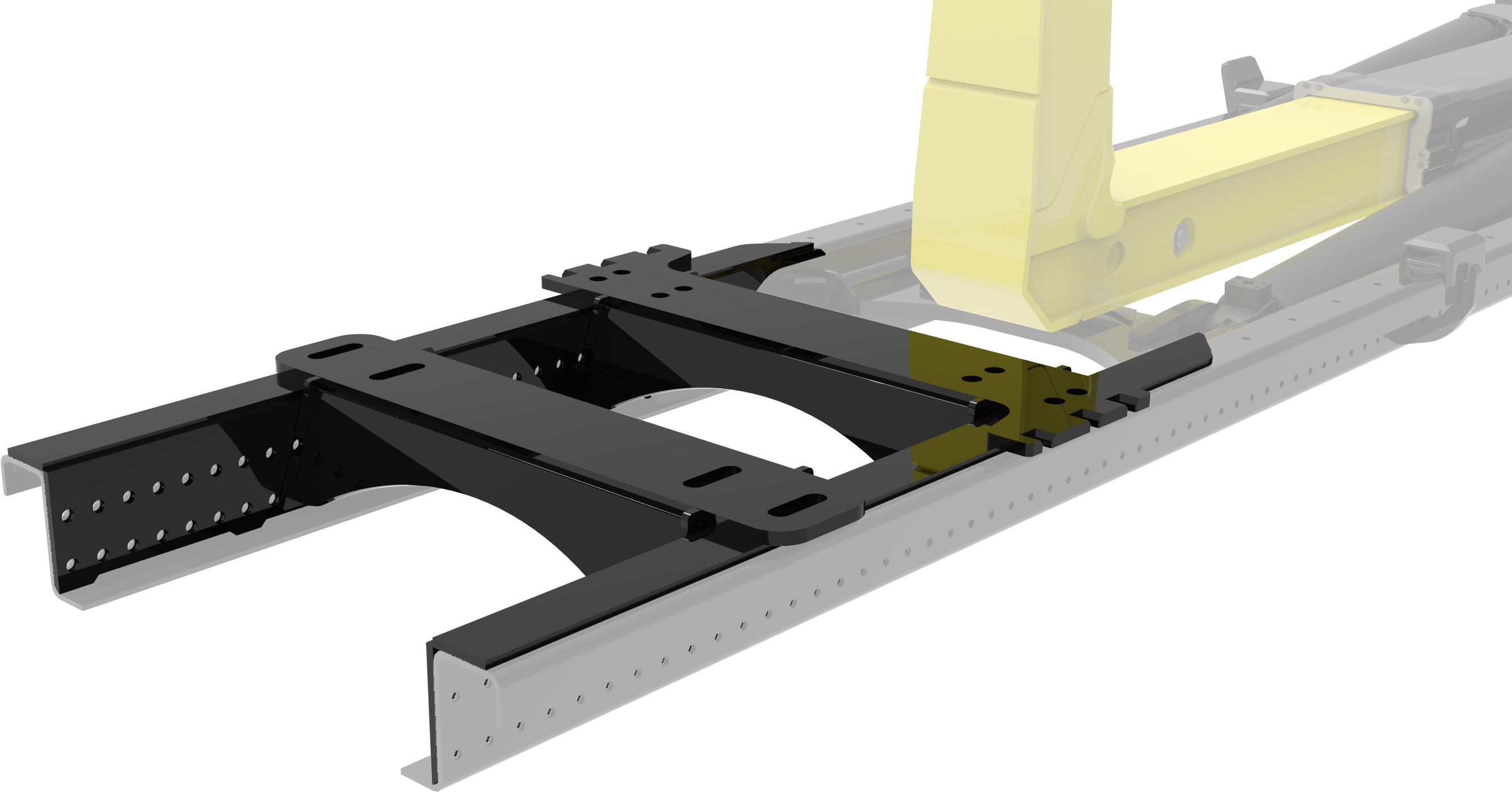

Crane Interface

The reinforced subframe makes it easy to install a crane while providing strong, reliable support for heavy lifting. Because no welding is needed on the hookloader, installation is simpler, and the overall setup is safer and more efficient for material handling.
alt text

Technical Specifications

Technical data

Axle

Optional Features

alt text

Silent mode

Flashing lights replace the traditional buzzer to reduce noise without compromising safety. Perfect for night urban environments and e-truck applications.


alt text

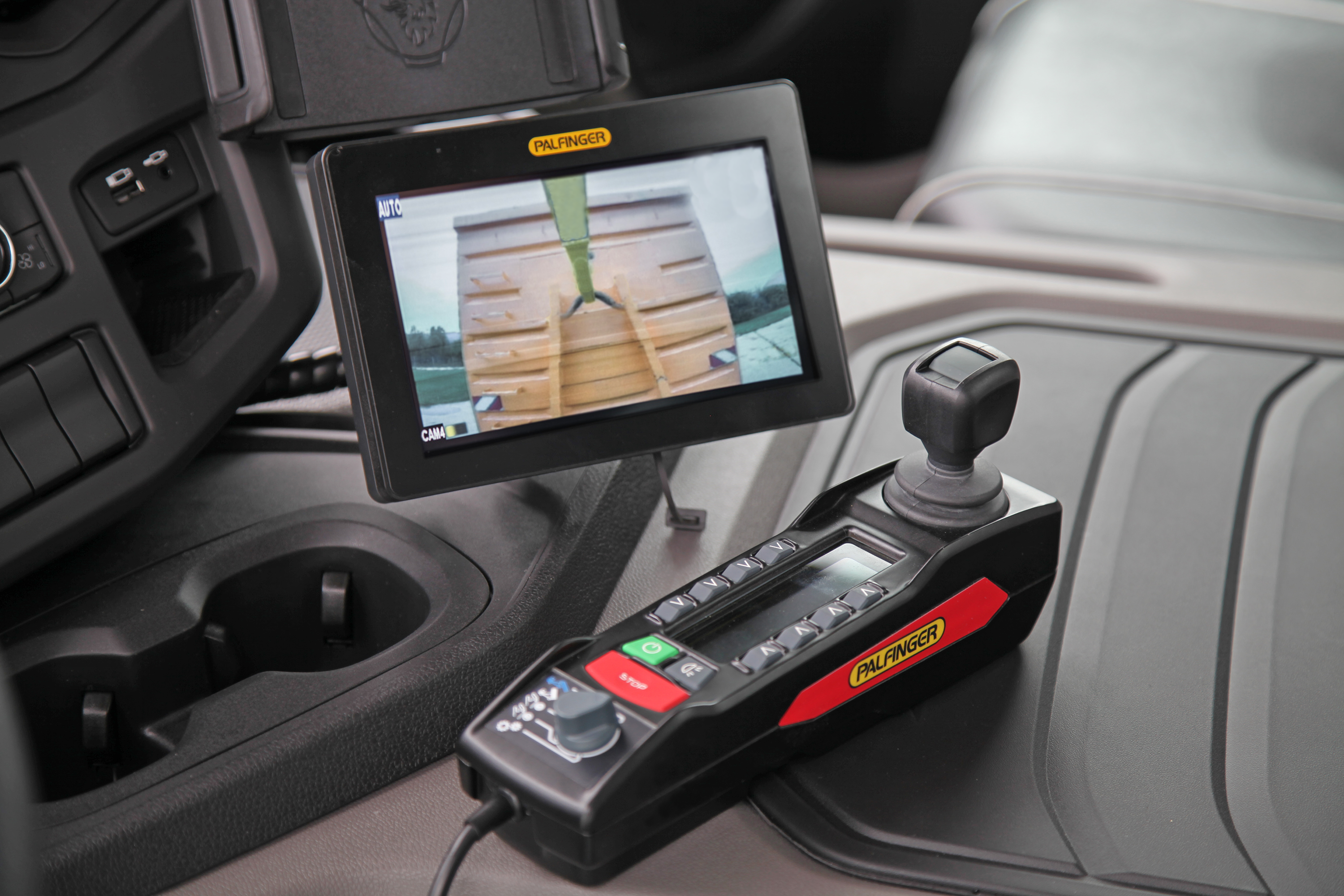

System monitoring

Enhanced operational safety with an in-cab screen and three cameras that monitor the system and its surroundings, including a view-tracking function.


alt text

Bi-speed

To support precise handling when approaching the container hook, the operator can switch to slow speed when greater accuracy is required and return to normal speed when conditions allow. This increases operator confidence and reduces the risk of impact-related damage.


alt text

Soft Stop

Soft stop ensures the container is smoothly set onto the truck deck after loading or tipping, preventing hard impacts and helping reduce noise exposure for operators and the surrounding area.


alt text

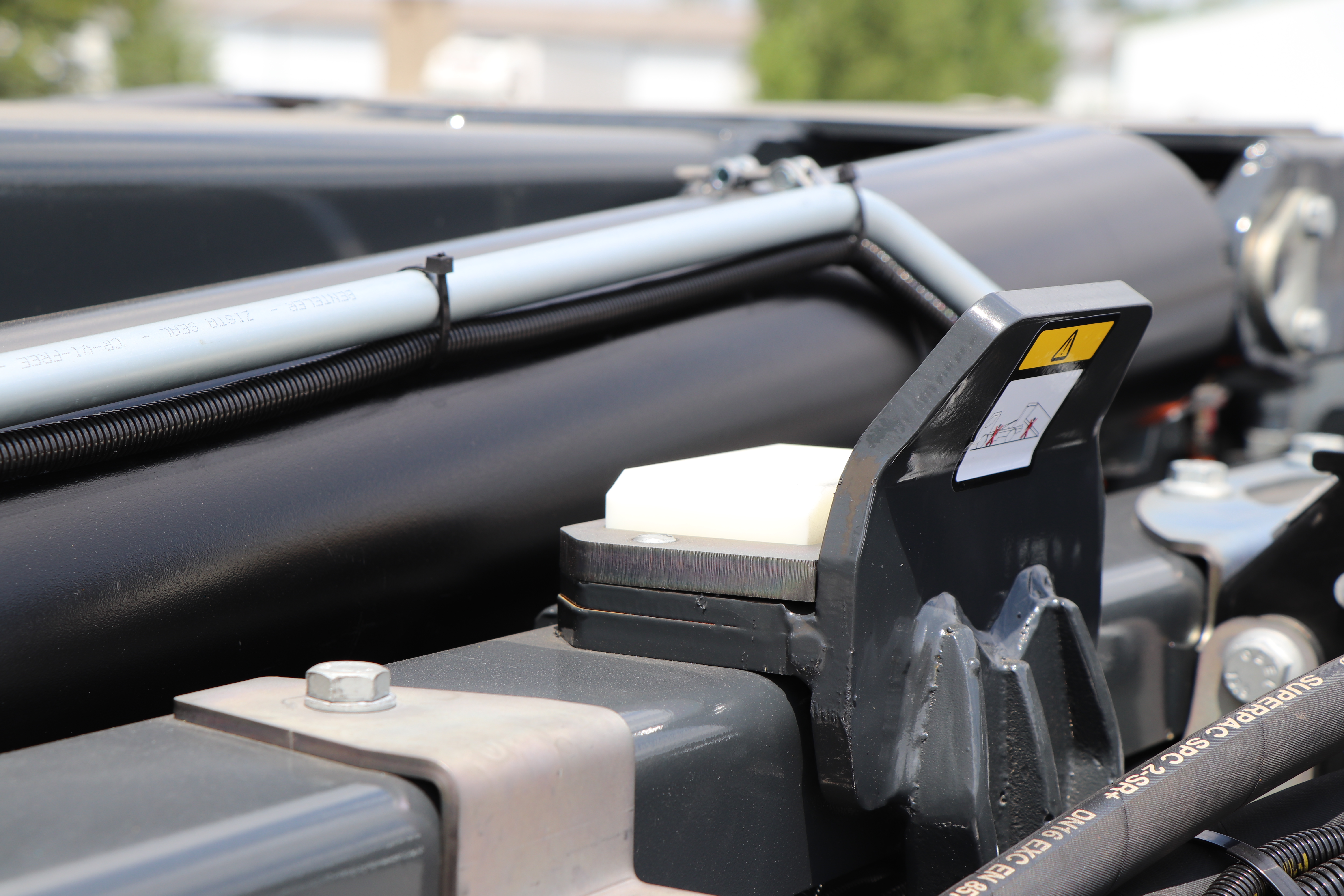

Soft sliding

The bolted anti-friction container rest in reinforced polyamide enables smooth, quiet loading, improving the working environment for the operator and the surrounding area. The bolted design also allows quick, easy replacement when required.
