P 200 TXE-E Smart Plus

alt text
alt text
alt text
Aerial Work Platform
Key Specs
Working Height
20 m
Basket Load
250 kg
Side Reach
11.7

This high‑performance telescopic aerial work platform is mounted on a 3.5 t truck. The P 200 TXE-E Smart Plus features precise multifunction electric controls and easily adapts to uneven ground via the vertical stabilization function. Three stabilization modes ensure maximum lateral outreach with a minimal footprint.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

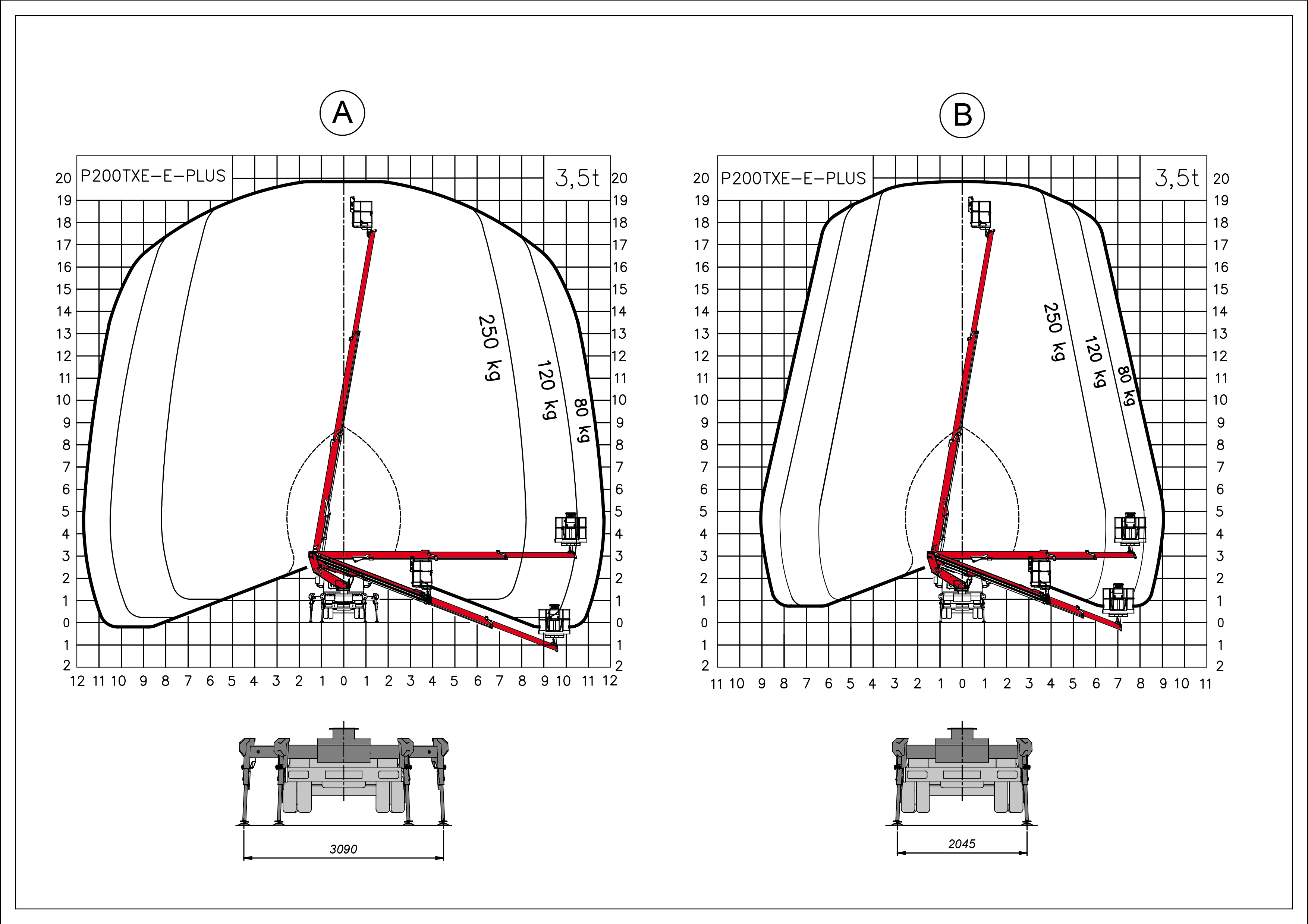

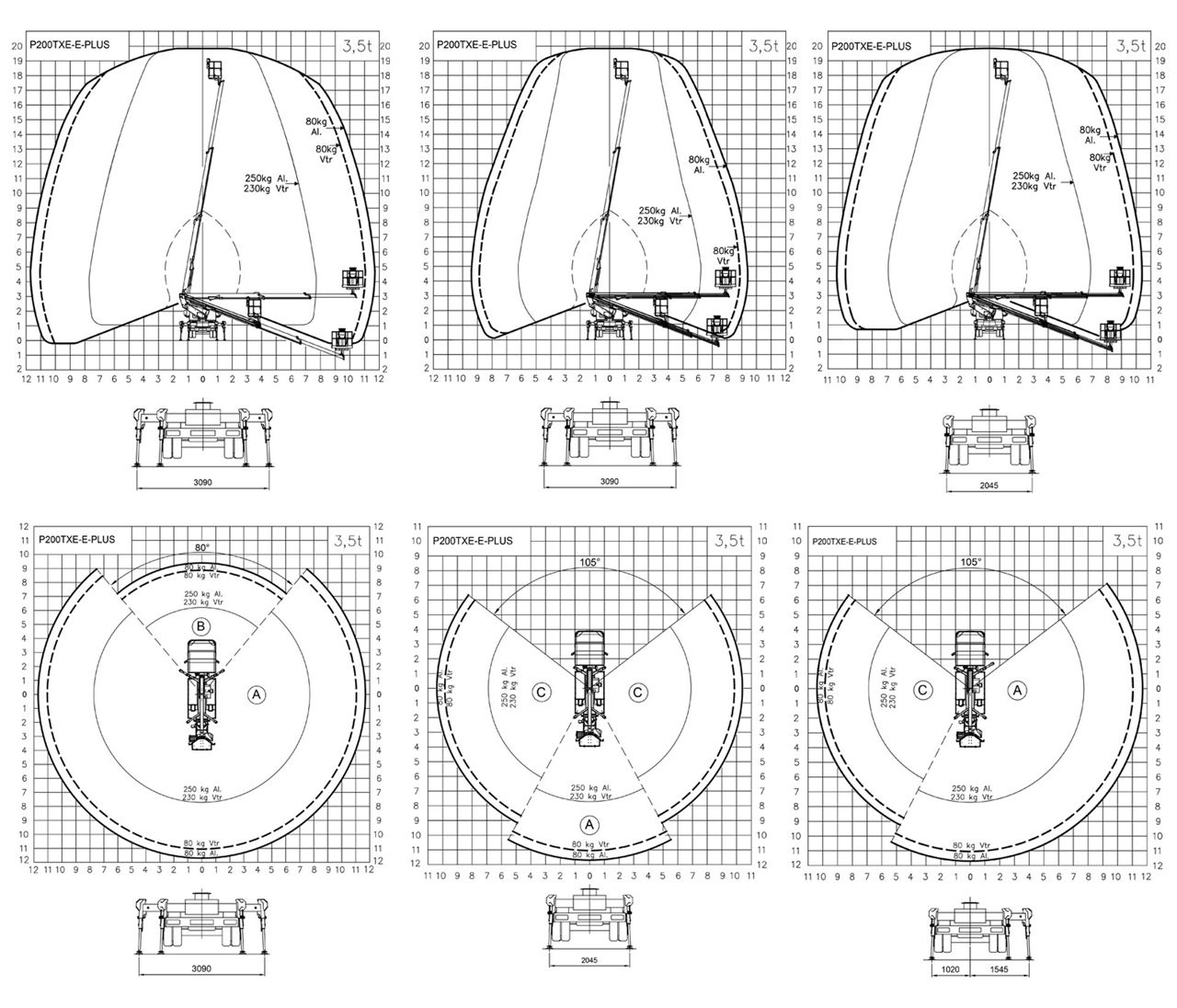

Diagrams

View
alt text

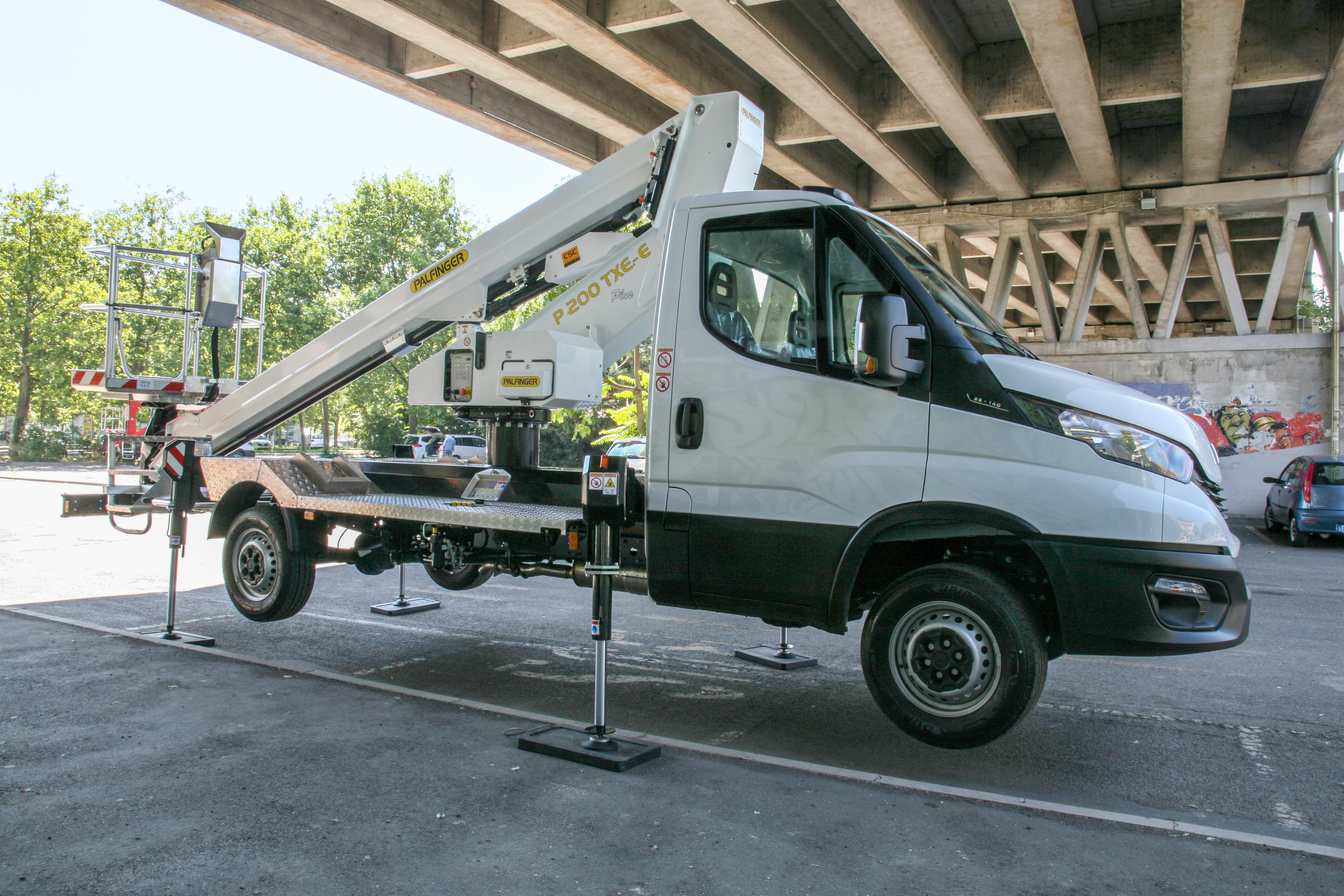

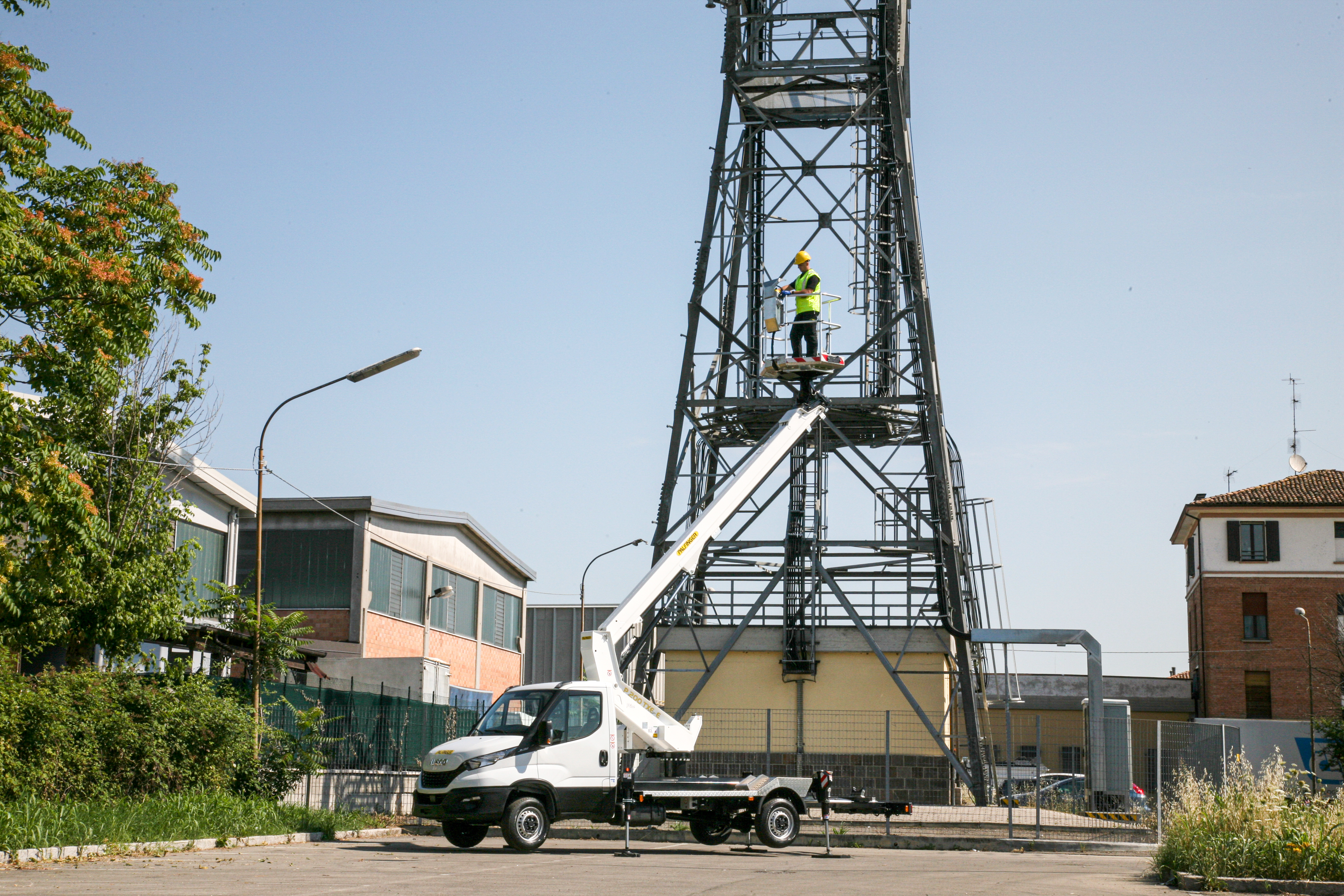

Adapts perfectly to any worksite

The P 200 TXE-E Smart Plus adapts perfectly to any worksite thanks to a choice of three stabilization modes: keep it compact, within the vehicle's limits, for work in tight spaces; utilize extended front crossmembers for maximum elevated performance; or choose partial stabilization for maximum reach with minimal footprint.

alt text

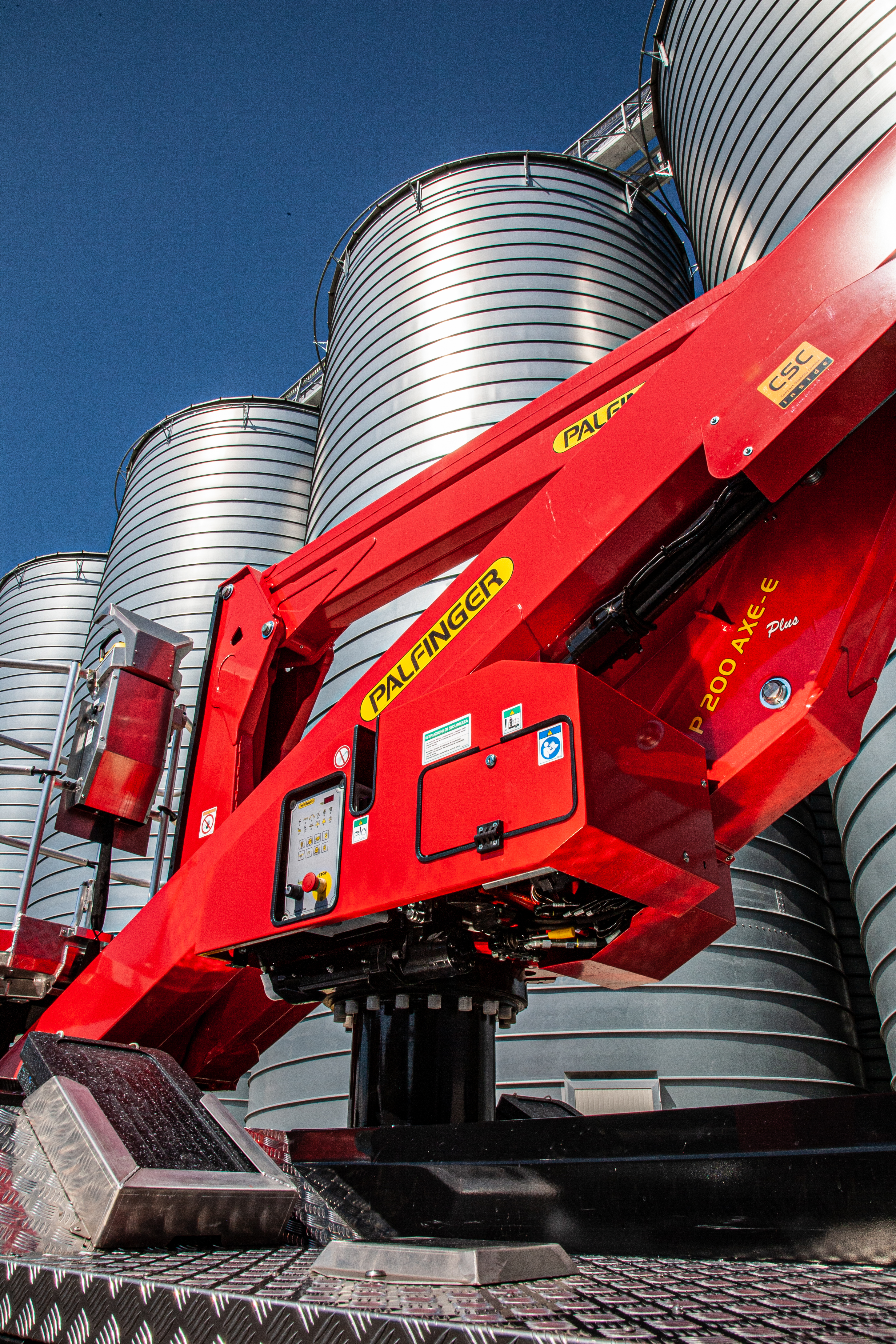

Multifunction controls

Electric multifunction controls enable smooth, quick, and precise maneuvering.

alt text

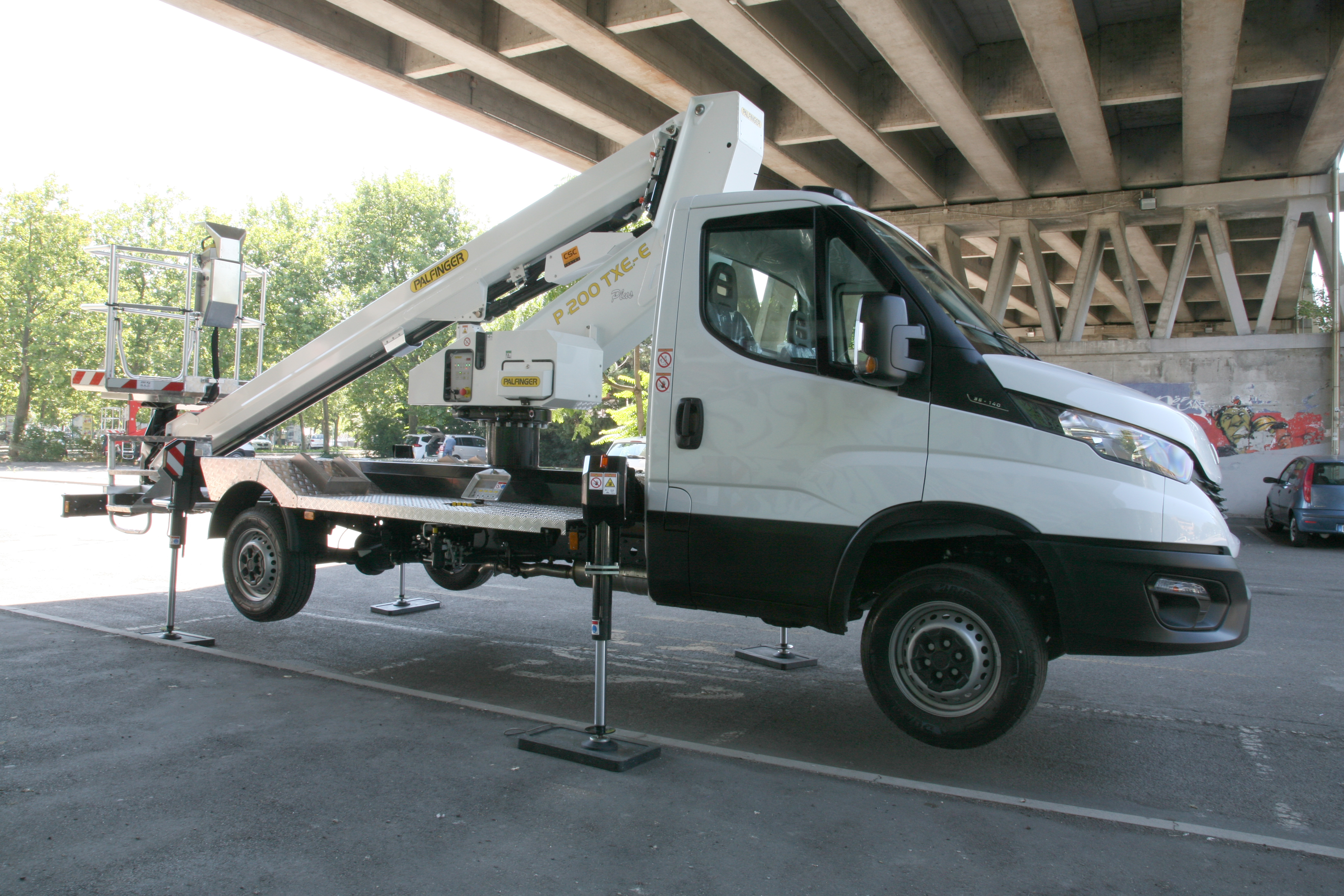

Convenient Stabilizer System

Achieve stability fast with just the touch of a button thanks to PALFINGER's automatic support leveling feature.

Stabilize your vehicle quickly and easily with PALFINGER's automatic support leveling feature. The control elements mounted on both sides of the vehicle's rear create a safer working environment by providing maximum field of view into the support area.

Extend each side's support arms individually or all together using the control elements. Once the PALFINGER Safety Plates are in position, lower the supports to the ground with the touch of a button. When all supports are positioned, the automatic leveling system adjusts as needed so that the vehicle is balanced, horizontal, and ready for work.
alt text

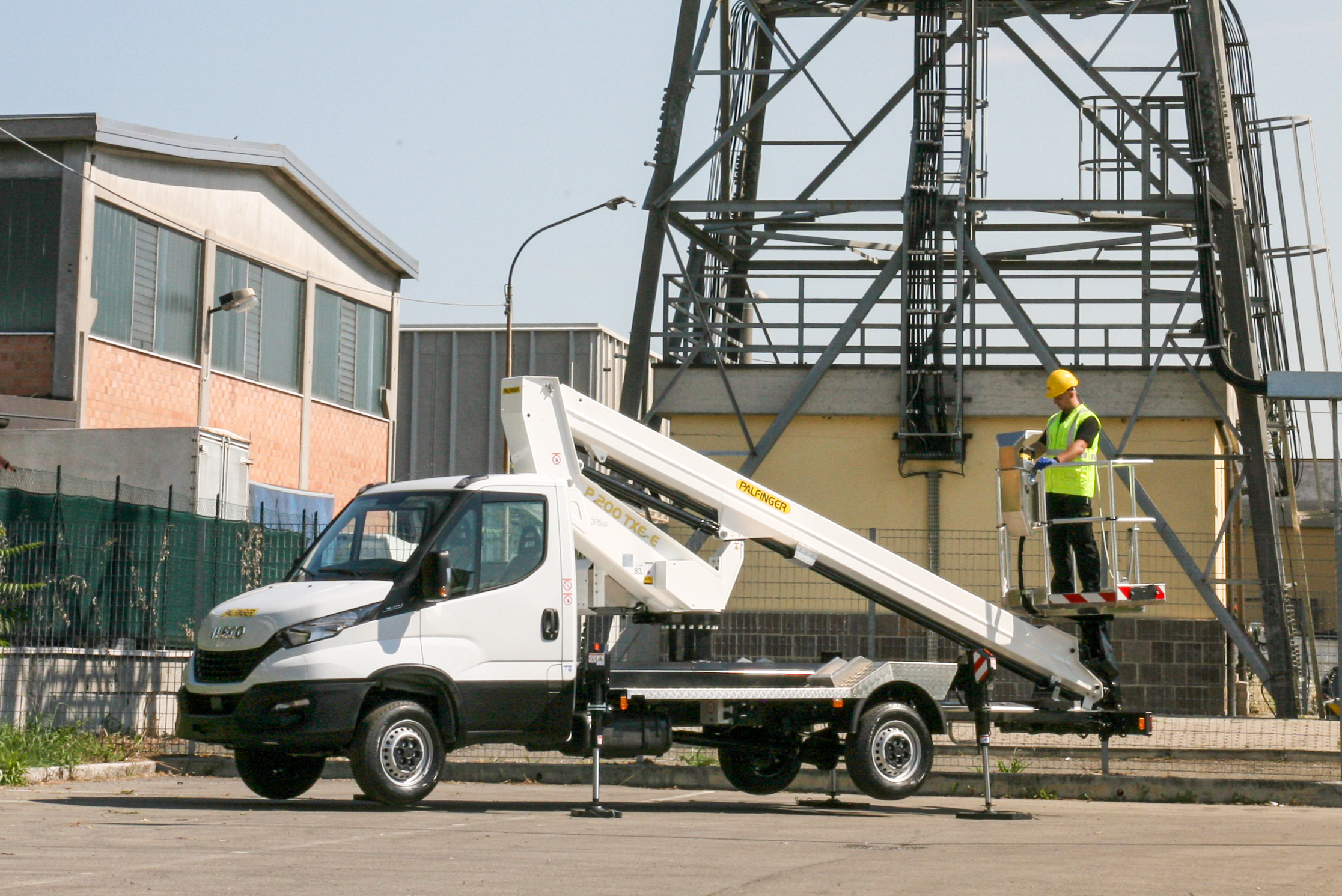

Leveling Made Simple

Save time and ensure peak performance on work platforms with automatic leveling.

Stabilize your vehicle quickly and easily with PALFINGER's automatic support leveling feature. The control elements mounted on both sides of the vehicle's rear create a safer working environment by providing maximum field of view into the support area.

Operators extend both outrigger arms to their required position, as appropriate, before activating automatic stabilization. This process runs until the frame's inclination reaches the value defined on the inclinometer and both axes are no longer in contact with the ground. Once these criteria are fulfilled, the process stops automatically, and it is safe to start work.
alt text

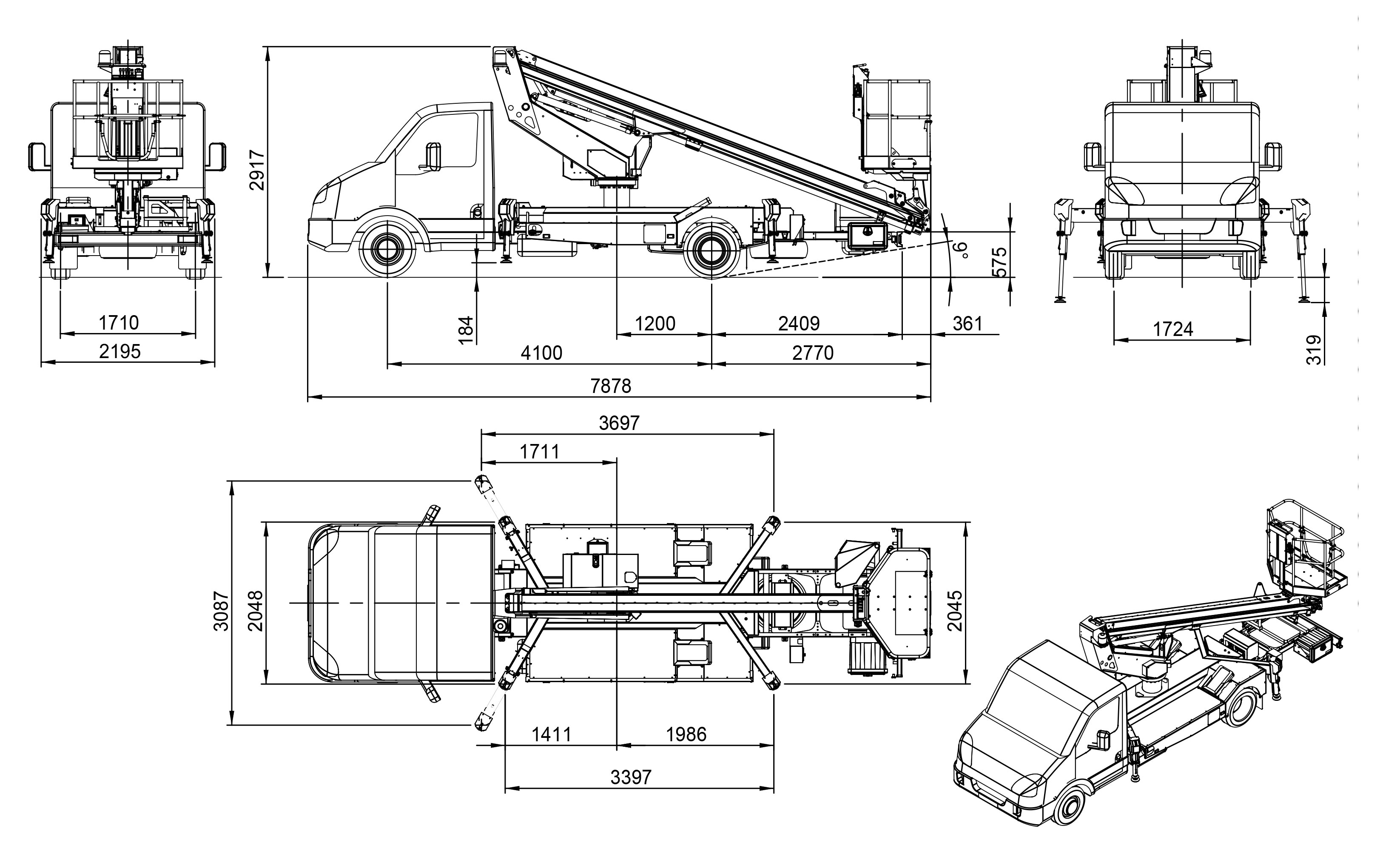

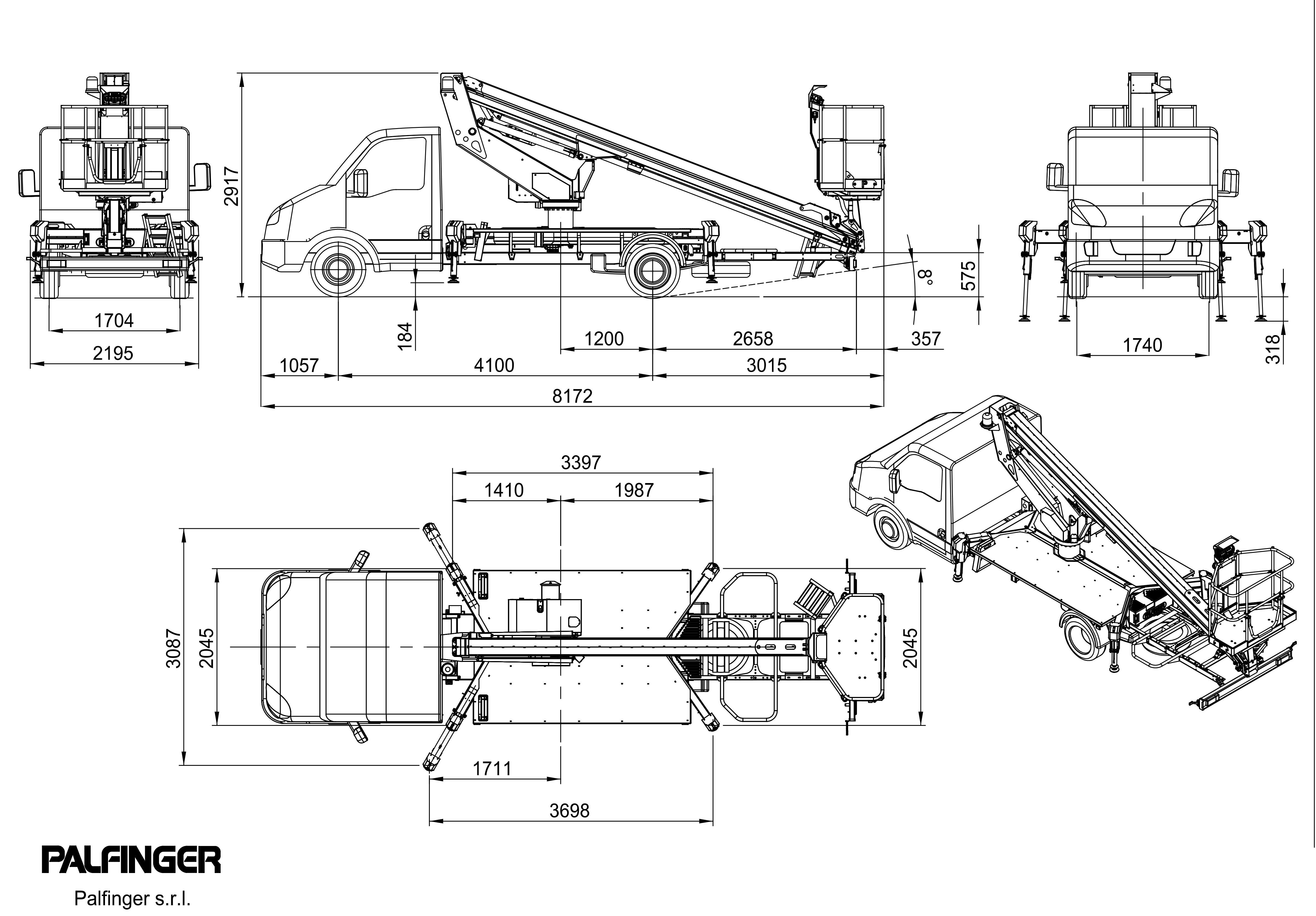

Technical Specifications

alt text
Technical data
Max. height of work
20 m
Max. basket floor height
18 m
Max. horizontal outreach /with basket load
11.7
Slewing range of basket
2 x 90°
Max. basket load
250 kg
Workman basket - breadth / length / height
1.4 x 0.85 x 1.1
Angle of main boom
-21° to + 80°
Rotation angle of turntable
370°
Height in transport position
2.87 m
Width in transport position
2.19 m
Length in transport position
7.1 m

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Chassis

Available standard chassis:

Iveco Daily 35S14

Further chassis on request

Discover Standard Features

One Button Folding

Fold the aerial work platform quickly and easily with the PALFINGER Home function.

Perfect Protection

The KTL coating provides optimal, long-lasting surface protection. This surface treatment process offers excellent corrosion protection for the whole life of a platform, maintaining performance and helping to retain value.
