21-29m

PT 25 TJ

The Performance Artist

alt text
alt text
alt text
alt text
alt text
alt text
alt text
Aerial Work Platform
Key Specs
Working Height
24.7 m
Basket Load
300 kg
Side Reach
18,7 m

Reach new heights with one of the most powerful and versatile 3.5 t aerial work platforms on the market. The PT 25 TJ offers 25 m working height, an improved 18.7 m maximum outreach, and 300 kg basket load. Work more efficiently thanks to improved ergonomics, better stability, and the option to install a battery pack.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

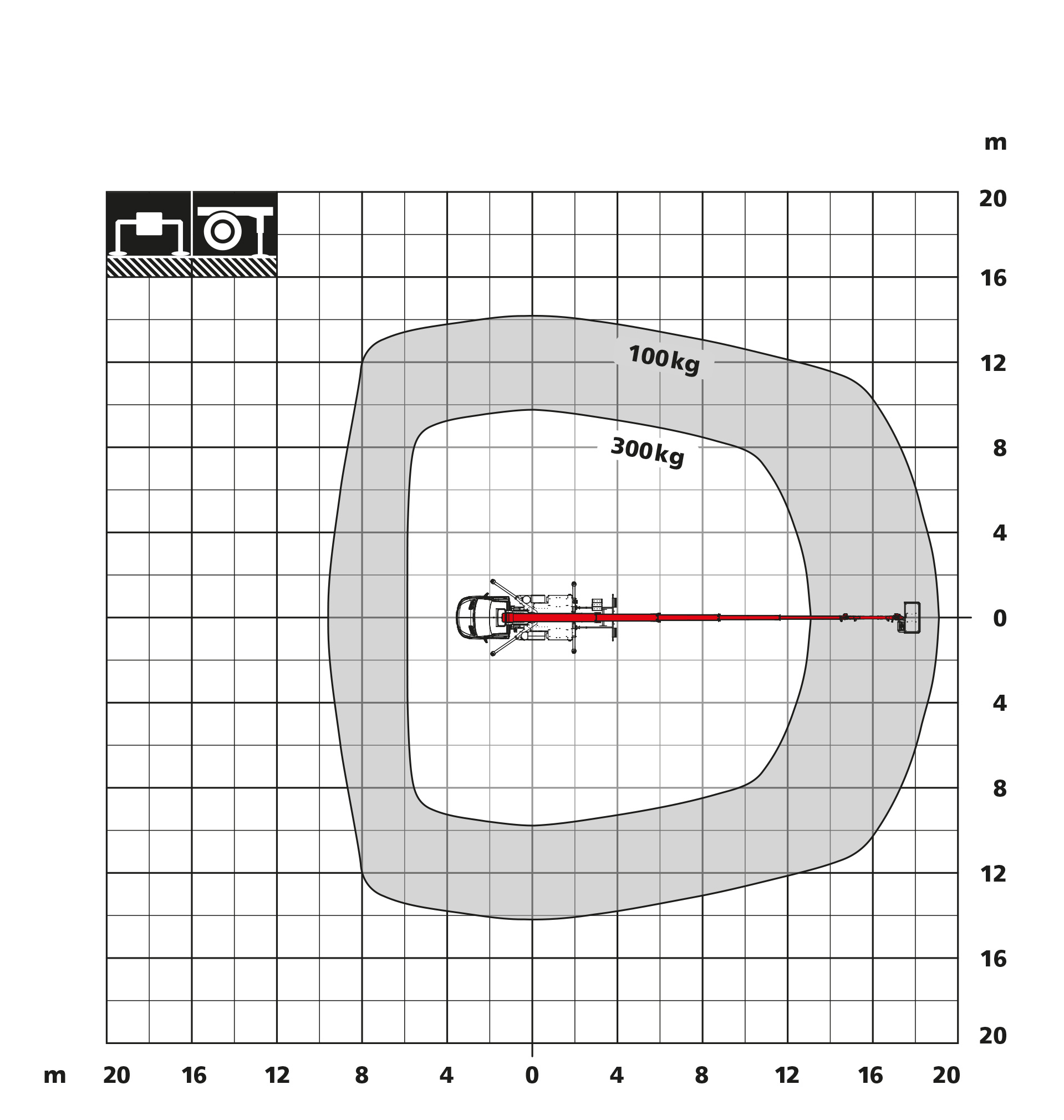

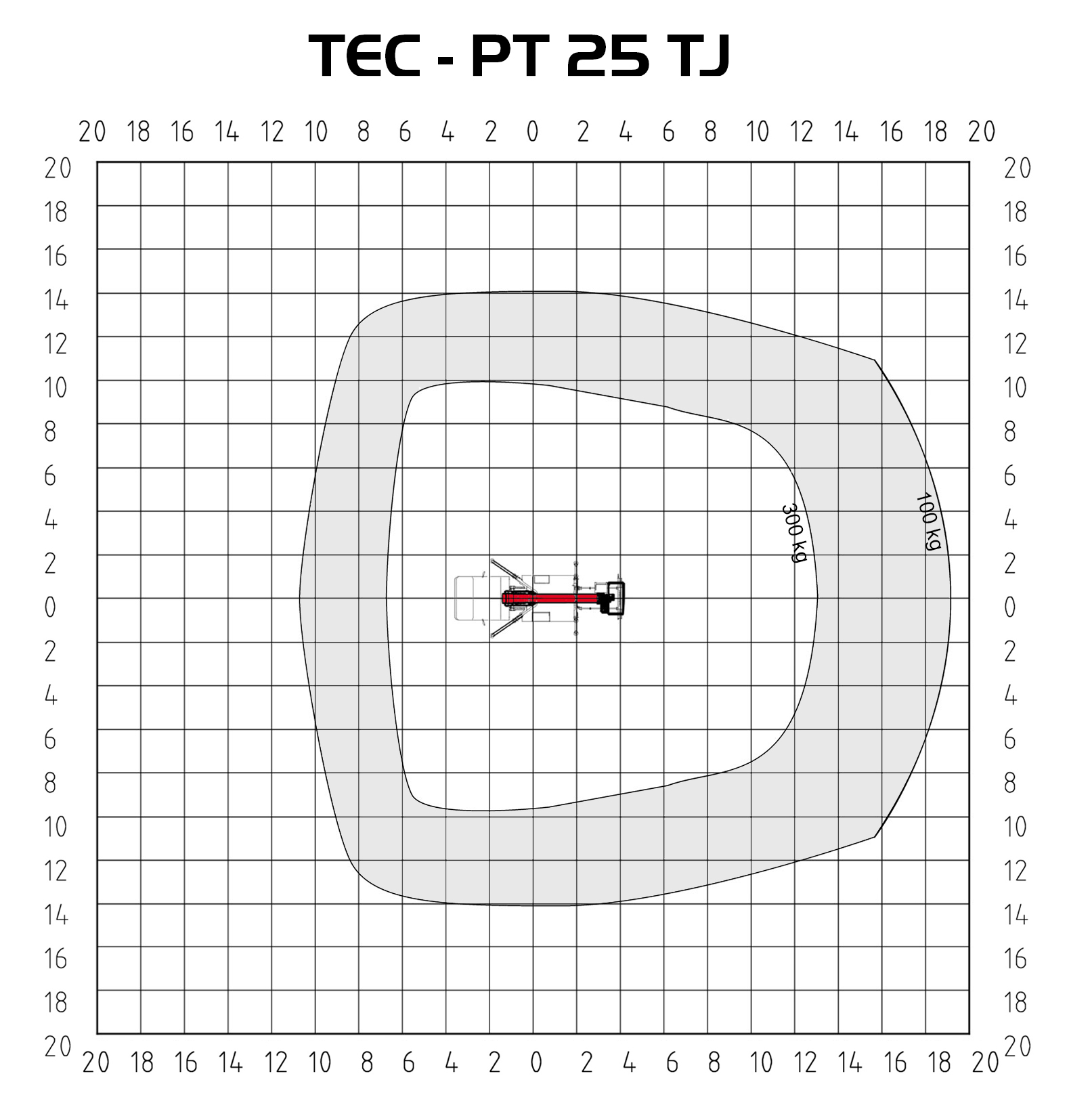

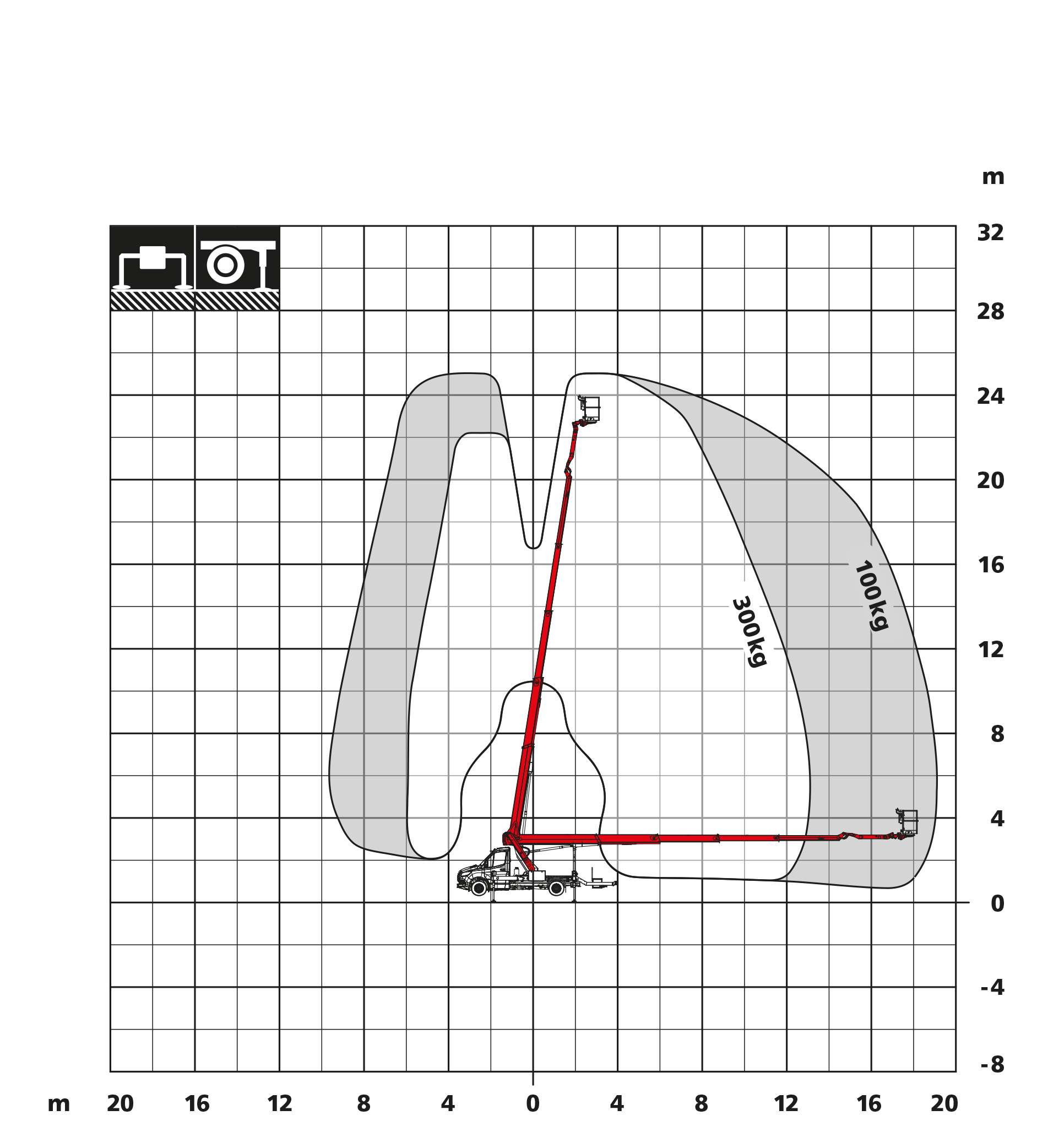

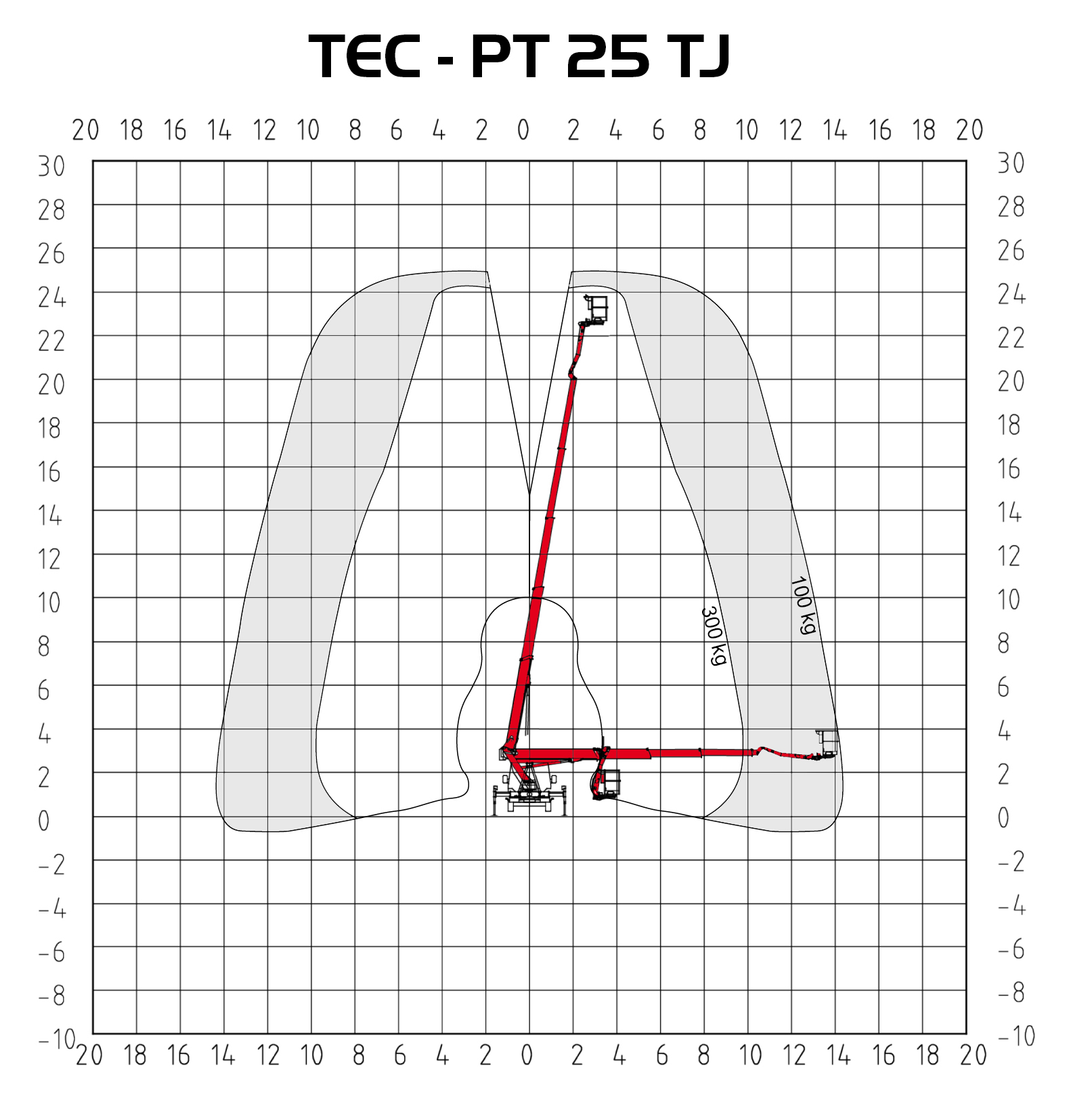

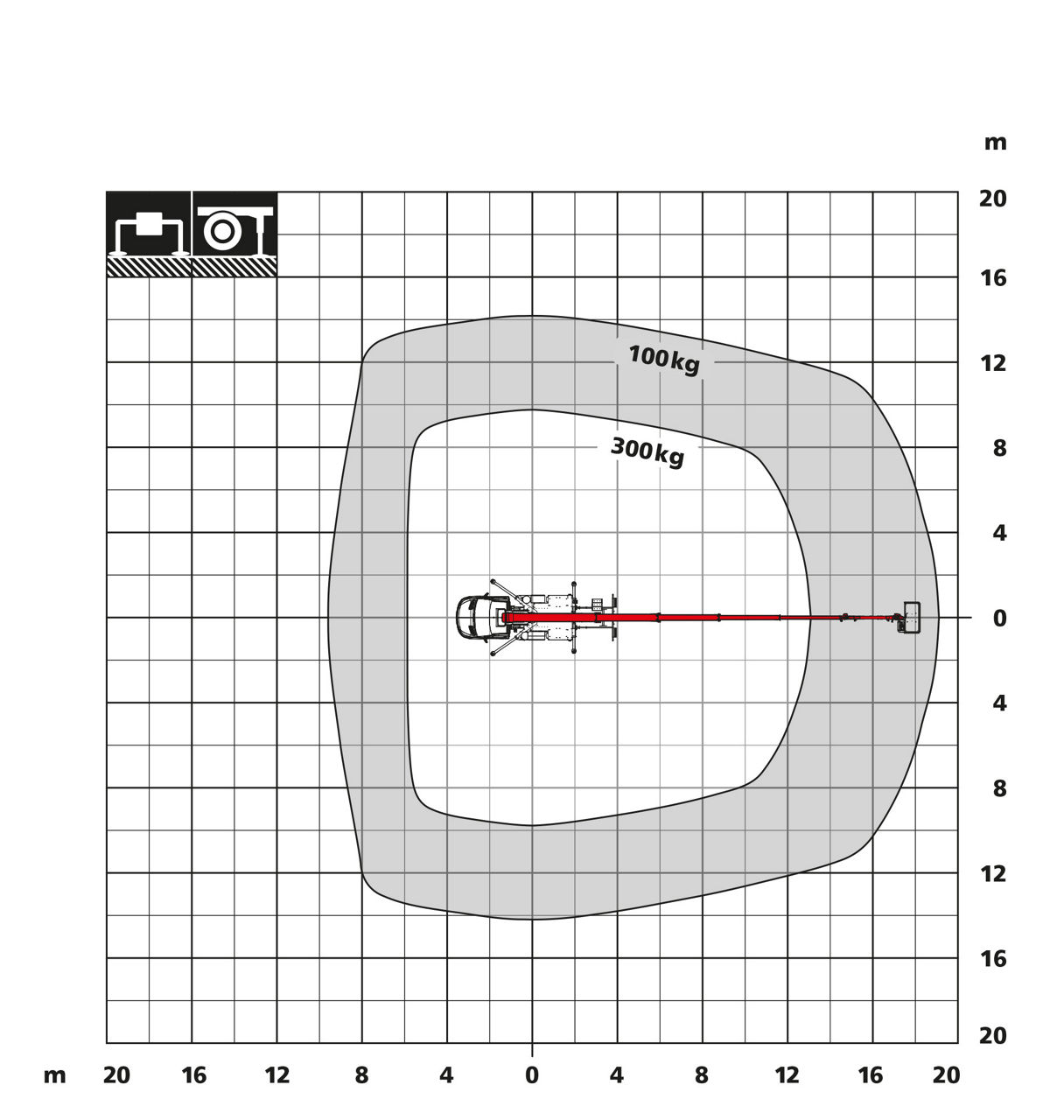

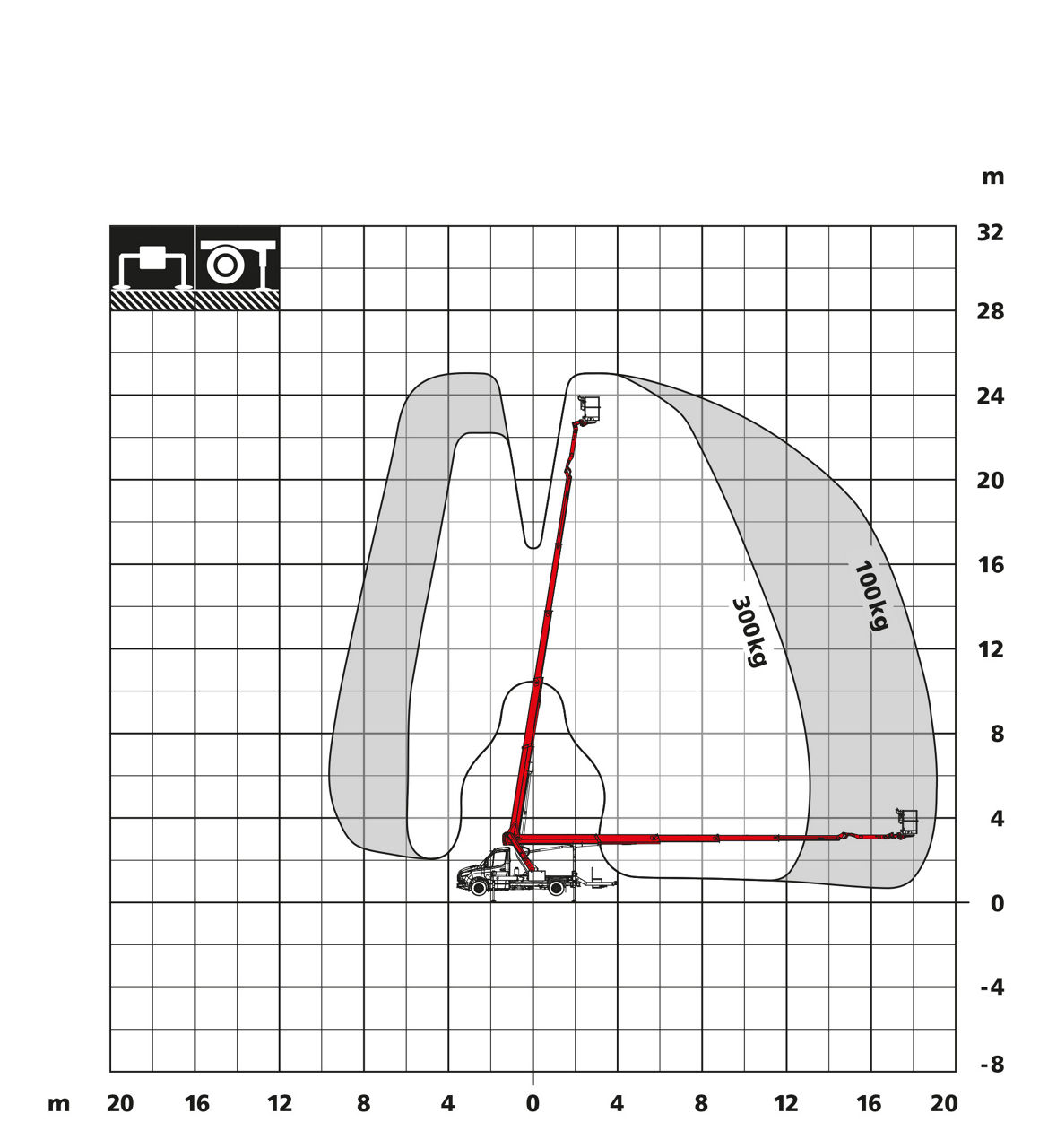

Diagrams

View
alt text

View
alt text

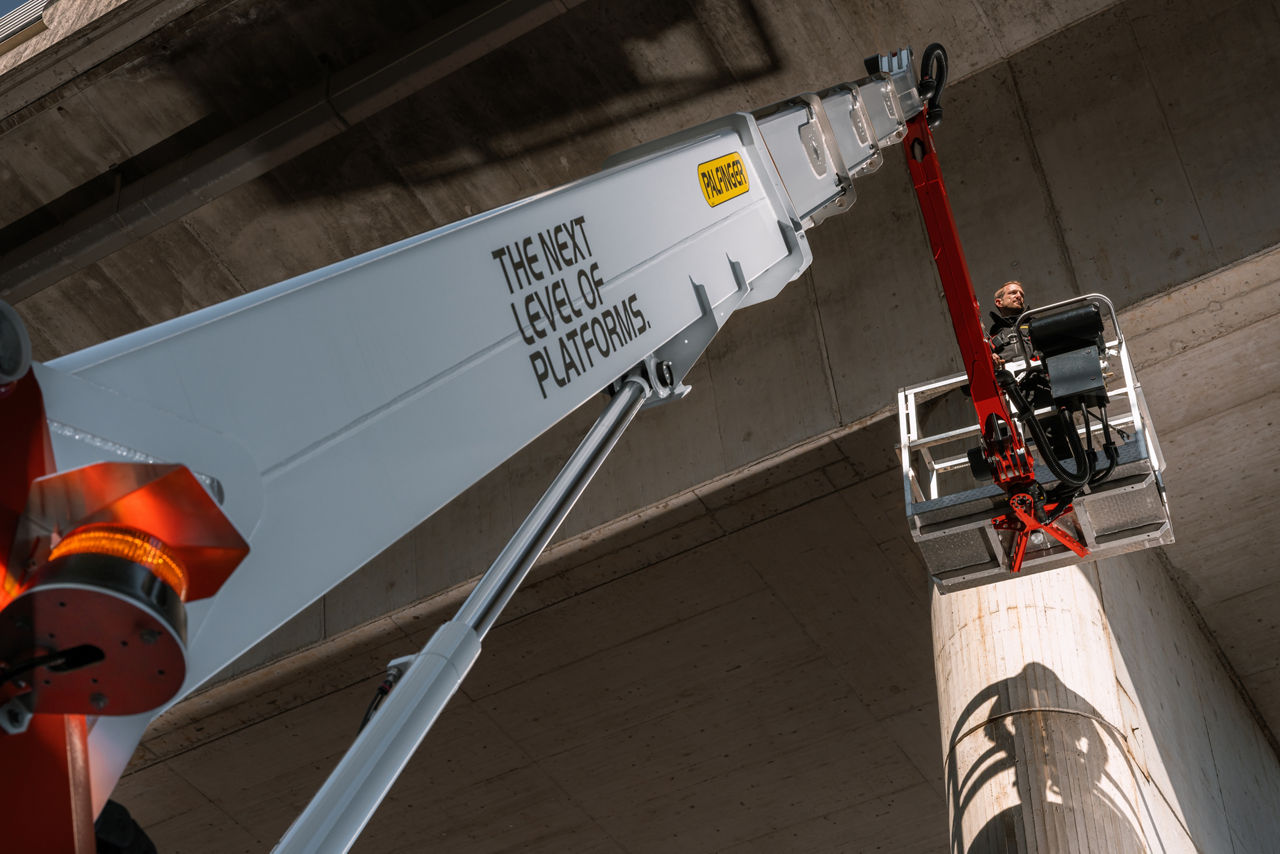

More Power, Less Weight

Boasting additional reach, increased basket load and further improved basket stability, our TEC models offer reliability and performance where they are needed most.

alt text

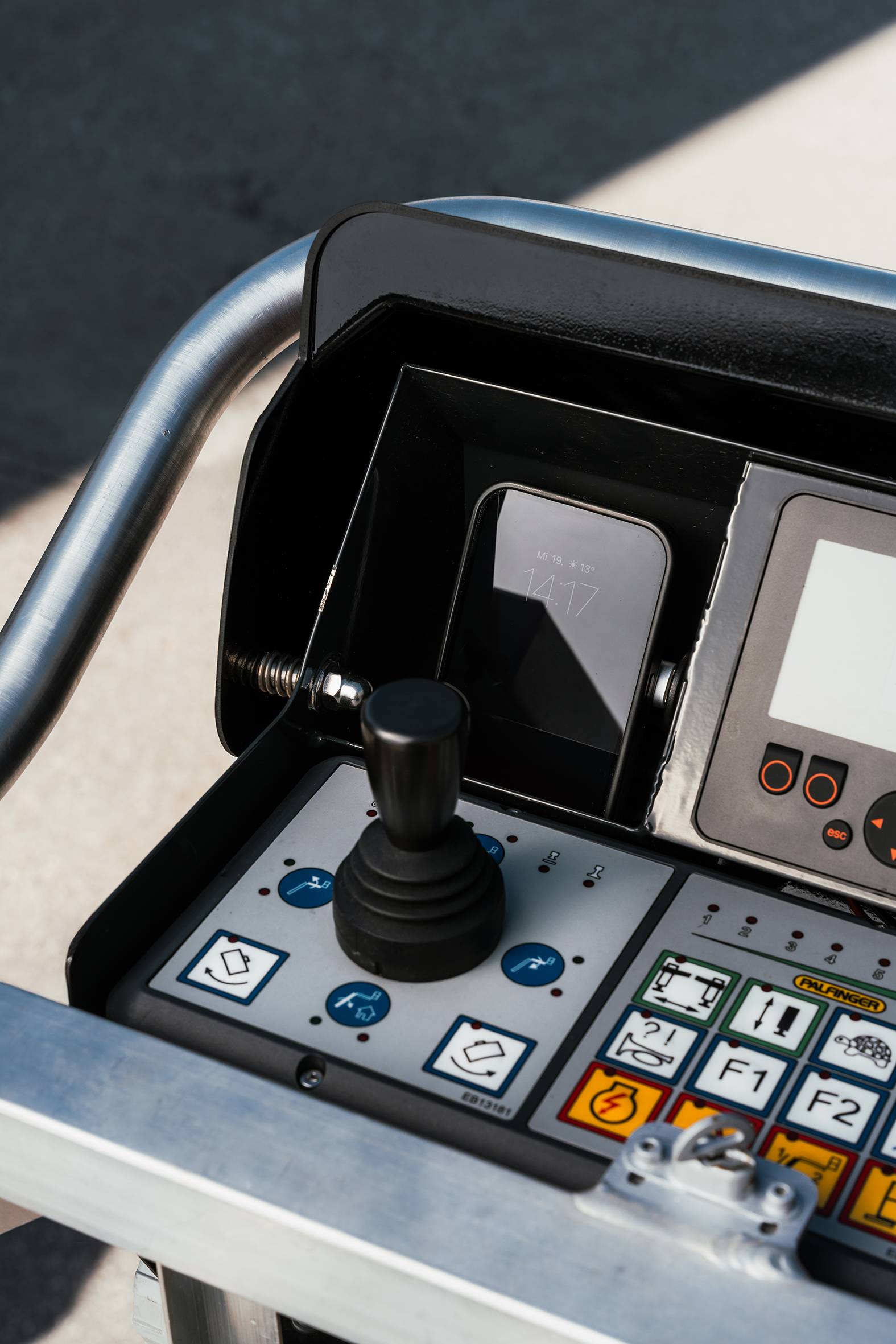

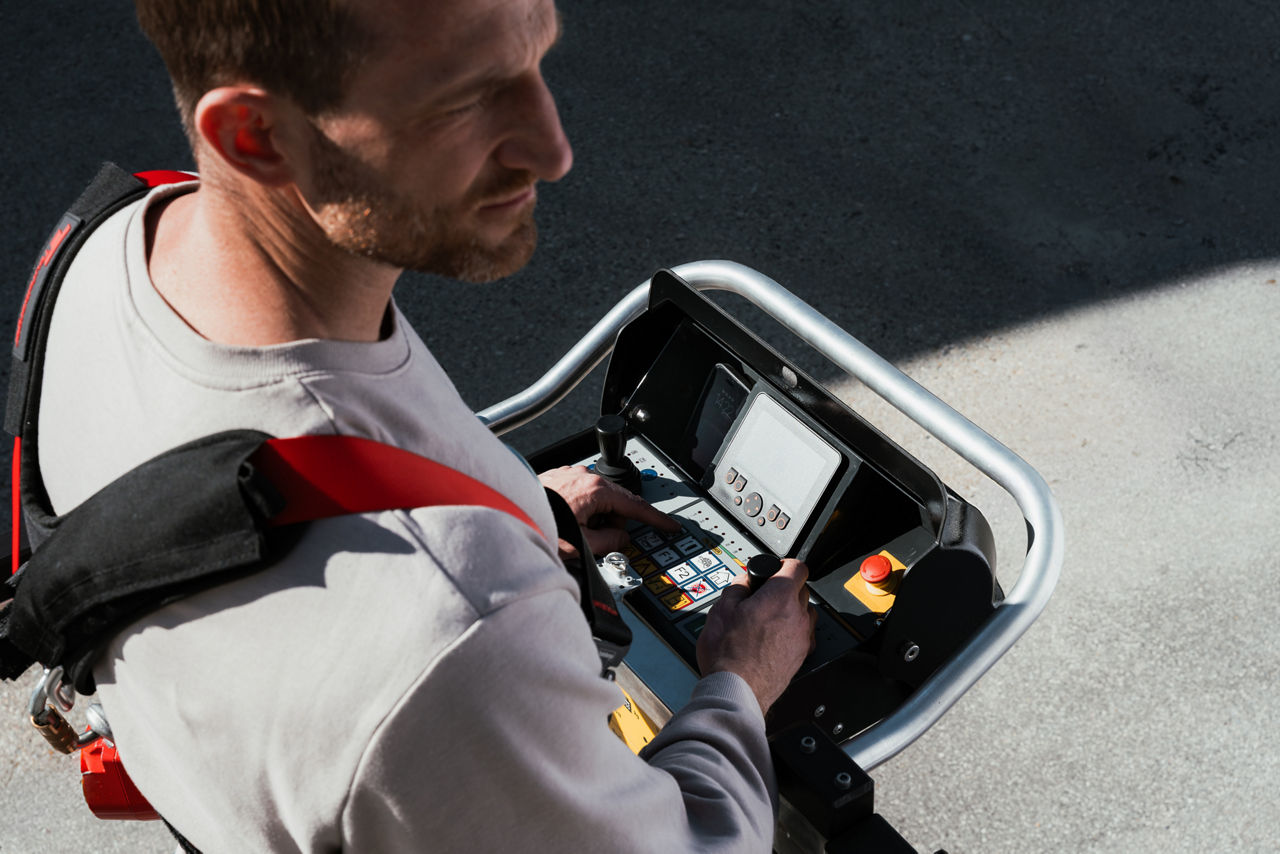

Easy To Handle

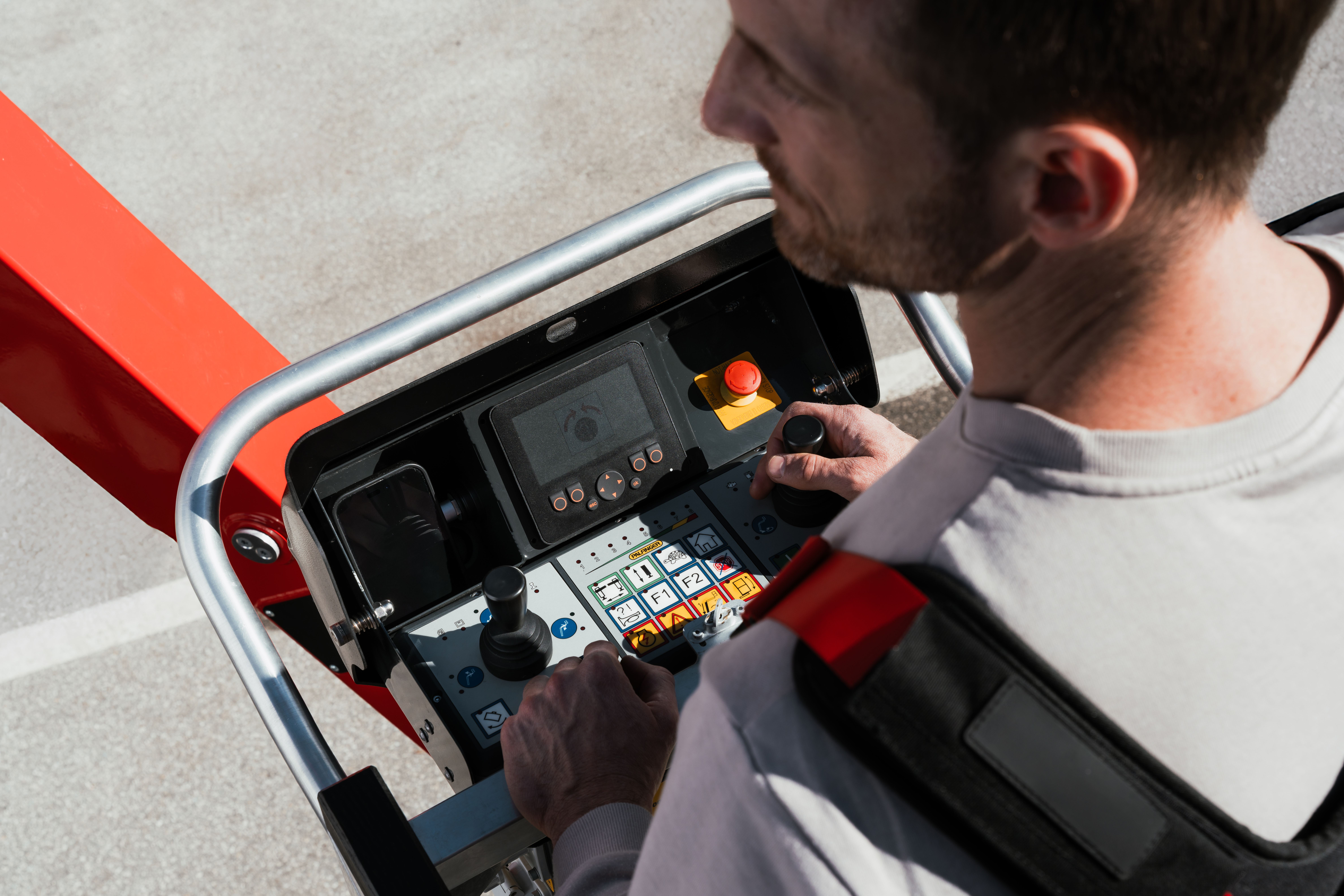

All TEC models benefit from improved ergonomic design, which reduces strain and fatigue and enables operators to focus on the job in hand.

All TEC models benefit from improved ergonomic design, which reduces strain and fatigue and enables operators to focus on the job in hand. The precise and intuitive controls make it easier than ever to maneuver the aerial work platform. These models are also versatile, featuring an automatic set-up system with integrated support levelling, optimized for various applications.
alt text

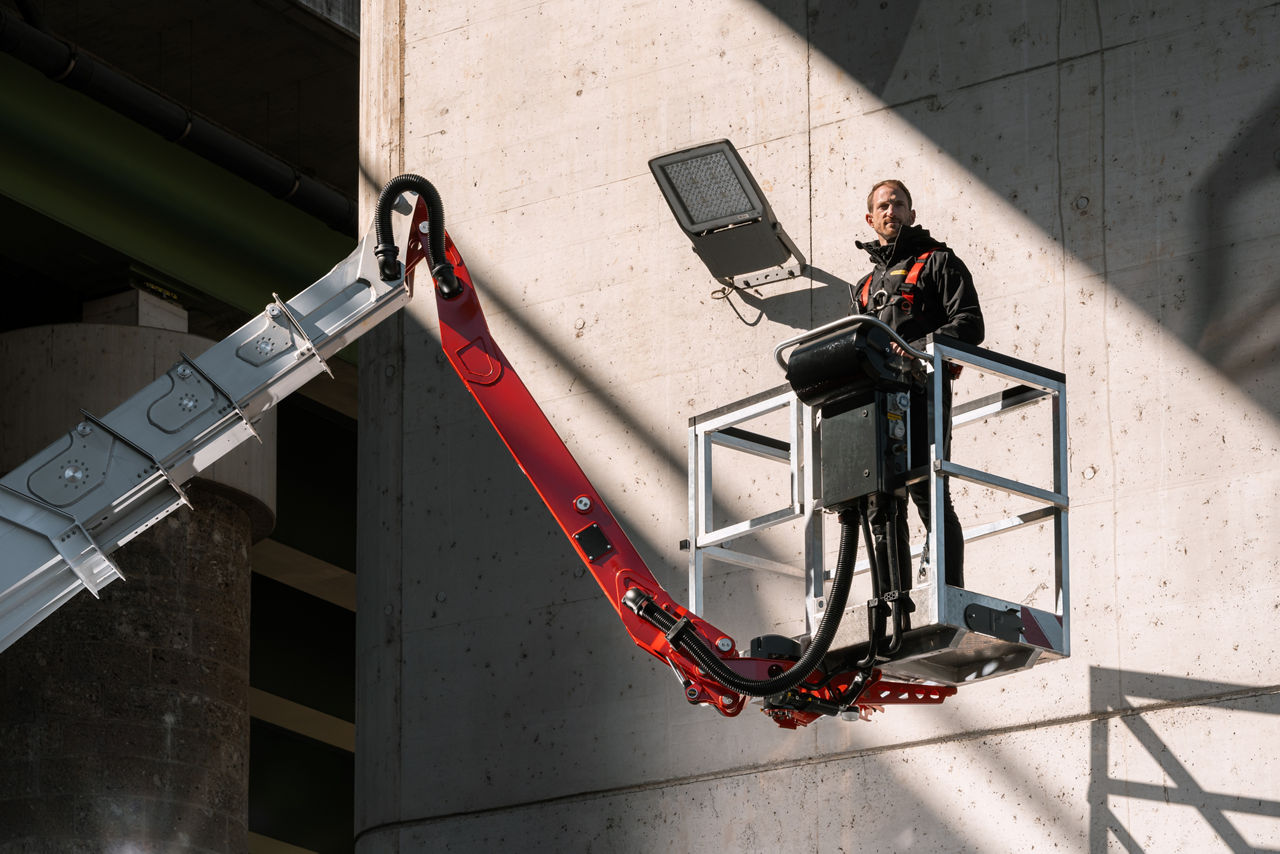

Stability Meets Comfort

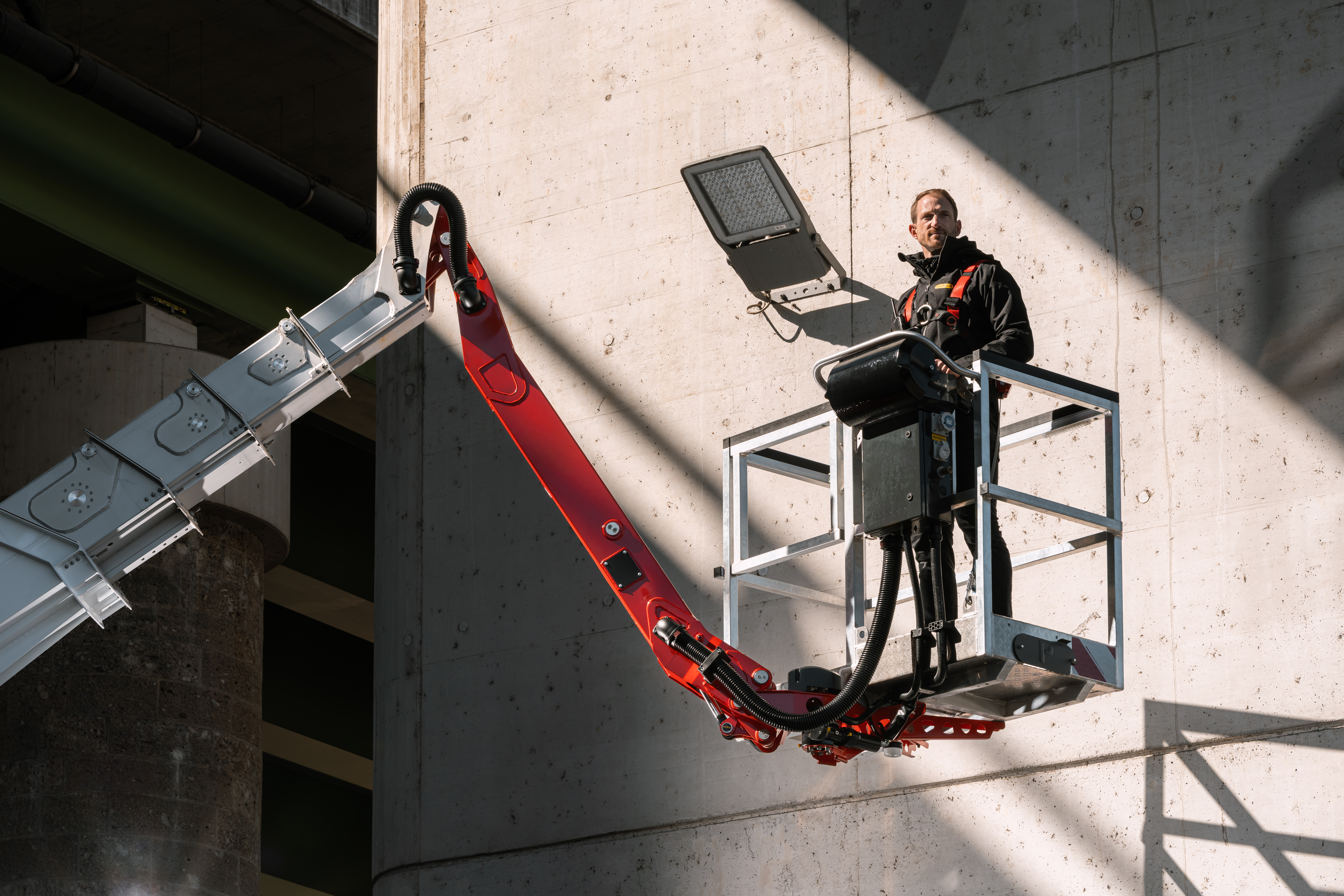

The basket boom has been redesigned to offer greater stability in the basket, while convenient new features such as the smartphone holder with charging capability increase operator comfort.

alt text

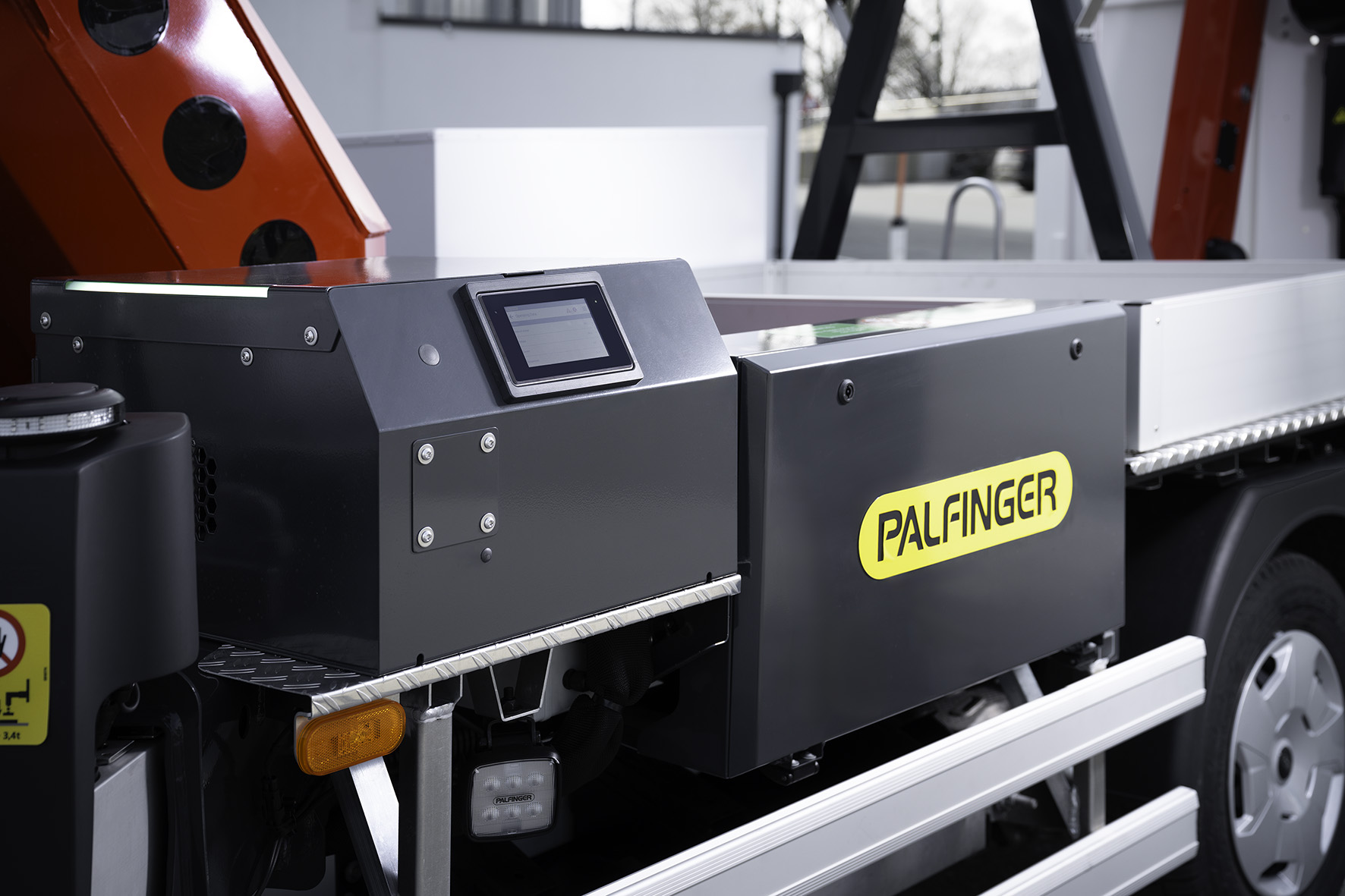

Go Green With Electric Or Hybrid

Take a greener approach with PALFINGER’s battery pack range. With hybrid or fully electric options available, enjoy high performance and low emissions on-site, with enough power for a whole day of operation.

alt text

Highlights

Safety & Versatility

Discover the TEC range. These models are fully GSR-compliant and offer a wide choice of chassis and optional extras, all within regulated weight limits.

The new TEC range offers a wide selection of chassis in different weight classes. The weight of these models has generally been reduced, meaning that even more optional extras can now be added without exceeding regulated weight limits. All aerial work platform models comply with the latest EU General Safety Regulations (GSR), which mandate a total of 11 active safety features. Eight of these have been mandatory on new trucks since July 2024.



• Choose from a wide range of chassis and weight classes (3.5 t, 5.0 t, 10.5 t)

• Work safely with GSR-compliant models that meet all safety standards

• Install optional additional equipment without exceeding regulated weight limits
alt text

Digital, Connected

PALFINGER'S Connected features enable you to receive real-time data from your devices. Benefit from simple remote diagnostics, optimized fleet management, and more.

Through our Connected features, you have the option of receiving real-time data from your PALFINGER devices. View the current status of your device at any time and use this data to optimize your fleet. If problems arise, you can utilize remote diagnostics to provide support without having to be on site. The standard Connected module keeps you on track with a constant overview of where your machines are, their service dates, and any maintenance due.



• Save time and additional costs with remote diagnostics

• Connect to fleet management systems via the data interface

• Keep a constant overview of all maintenance and service dates for your fleet
alt text

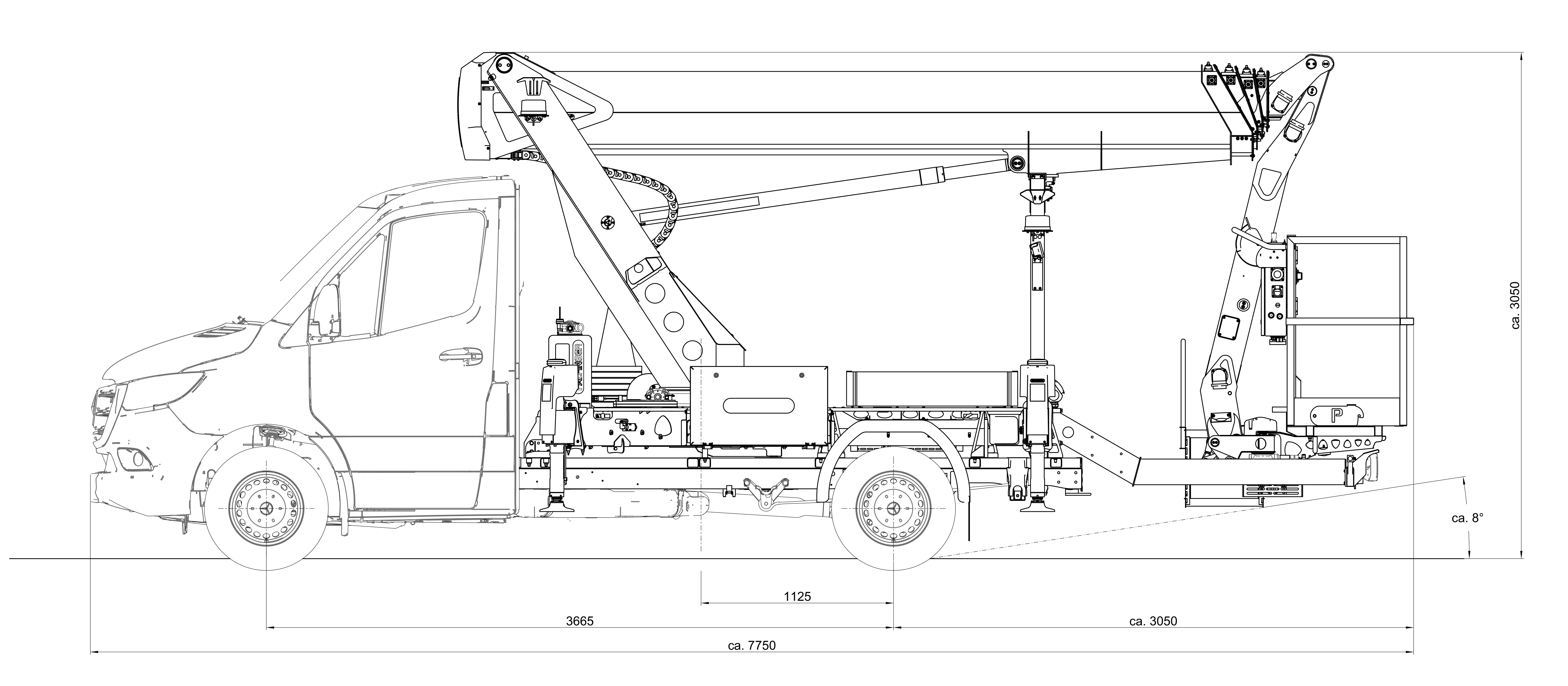

Technical Specifications

alt text
Technical data
Max. height of work
24.7 m
Max. basket floor height
22.7 m
Max. horizontal outreach /with basket load
18,7 m
Slewing range of basket
2 x 90°
Operating angle of working arm
185°
Max. basket load
300 kg
Workman basket - breadth / length / height
1,4 x 0,7 x 1,1 m
Rotation angle of turntable
500°
Height in transport position
3.05 m
Width in transport position
2.21 m
Length in transport position
7,750 mm
Overall length
7.75 m

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Chassis

Available chassis:

  • Mercedes Benz 3XX CDI 4x2 BB
  • Mercedes Benz 3XX CDI 4x2 BB
  • Iveco Daily 35S14 4x2 BB
  • Iveco eDaily 50CXX 4x2 BB
  • MAN TGL 8.XX 4x2 BB (7,49t; 8,8t)
  • Mercedes Benz Atego 8XX 4x2 BB (7,49t; 8,6t)
  • Mercedes Benz Atego 10XX A 4x4 BB S-FH (7,49t; 10,5t)

Discover Standard Features

Convenient Stabilizer System

Achieve stability fast with just the touch of a button thanks to PALFINGER's automatic support leveling feature.

Leveling Made Simple

Save time and ensure peak performance on work platforms with automatic leveling.

One Button Folding

Fold the aerial work platform quickly and easily with the PALFINGER Home function.

Perfect Protection

The KTL coating provides optimal, long-lasting surface protection. This surface treatment process offers excellent corrosion protection for the whole life of a platform, maintaining performance and helping to retain value.
