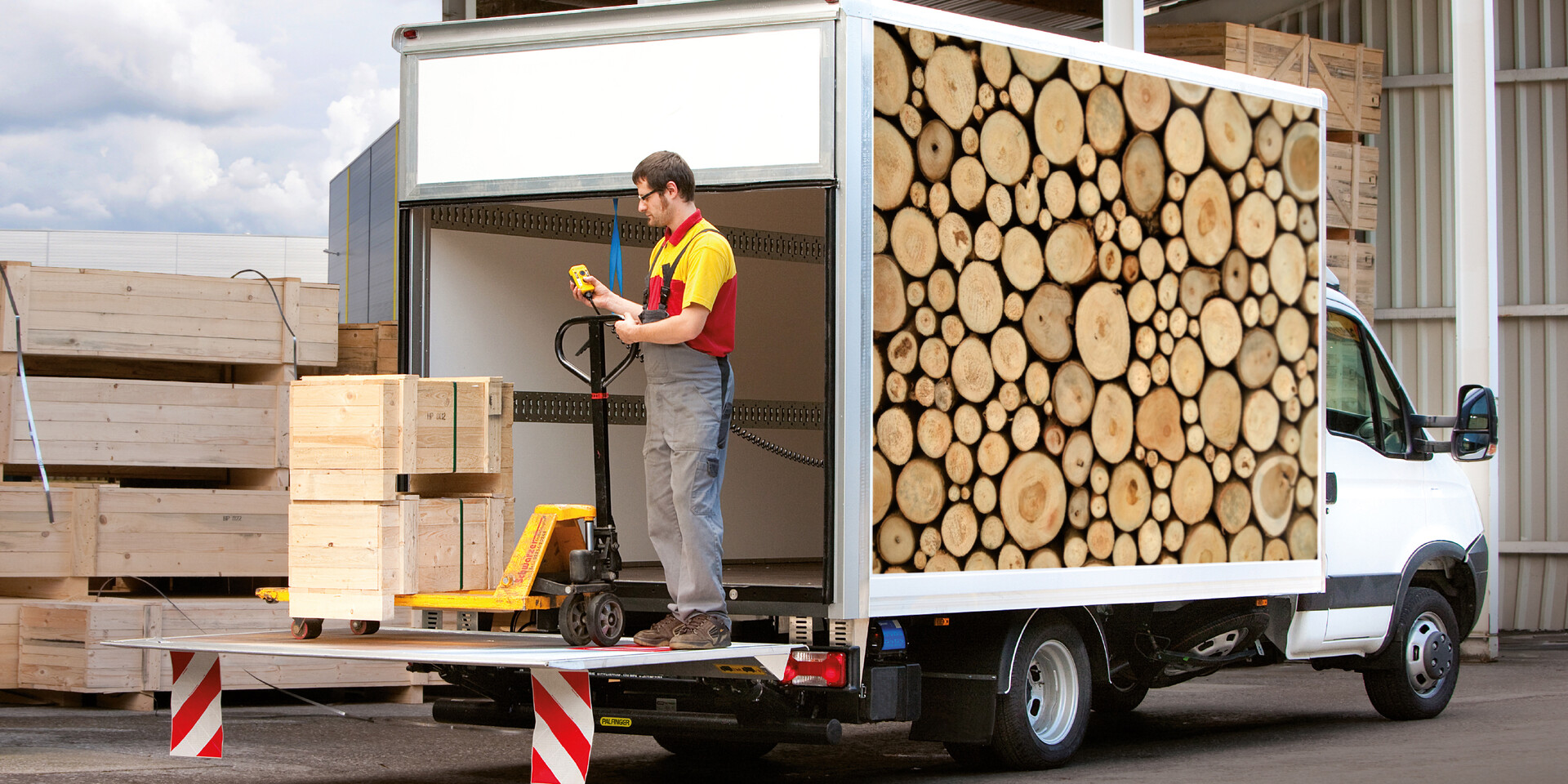

Tail Lift
MBB C 750 S / MBB C 750 SLW
- For small vans up to 7.5 t
- 750 kg lifting capacity with 600 mm load distance
- Robust four-cylinder lifting mechanism
- Single-piece underride guard / optionally as three-piece component
- A fixture for a ball-head coupling is available with the three-piece underride guard
- Low system weight
- Simple attachment thanks to boltable mounting plates
- Also available as part-sized tail lift
Available for
- Mercedes-Benz Sprinter 3/5
- Volkswagen Crafter 30/35/50
- Iveco Daily
- Renault Master
- Ford Transit
- Citroen Jumper / Fiat Ducato / Peugeot Boxer
- Further vehicle types on request
Cantilever
Experience the product features
Lifting gear standard
- Cylinders with protection bellows and tubes
- All steel components in KTL
- Vehicle specific mounting brackets
- Lifting gear powder-coated (in RAL9011 or NOVA grey)
- Lifting gear micro-galvanised 750er
- Hydr. Stabiliser, large, installed, pair (double-acting cylinders)
- Mechanical stabilisers, large, lose, pair
Operation standard
- Control box with self-closing cover and Z-bracket / EVERY ADDITIONAL CONTROL HAS TO BE SELECTED INDIVIDUALLY!
- 3+1 controls (instead of control box)
- 4-button control planel, slim, for internal installation (as further control device)
- 4-button control panel, box format for external installation (as further control device)
- Foot controls integrated in platform (as further control unit)
- 2-button wanderlead hand control w/o plug (as further control device)
- 3-button wanderlead hand control w/o plug (as further control device)
- Slim control panel basic (instead control box)
- Radio remote control RCBT (standard set) SN2050730
- Radio remote control Akerström
- Key switch or turning switch, lockable (not possible with MBB 3+1 and MBB 3+3+1 controls)
Electrics / Sensors standard
- 12V or 24V
- Drivers cab switch with indicator OR interface ETMA Code A (V-lifts only cab switch)
- Sensors b13 (lifting gear) and b15L (platform)
- Surcharge for plug-in sensor b15S platform (instead sensor b15L)
- Surcharge for sensor b15L lifting gear (instead sensor b13) = "2x b15"
- Development of a customised program for MBB Control
- ETMA Code A + B (including plus and minus cable 3,8m)
- Cable for box body light
Lifting capacity | 750 kg |
Main beam | 120 x 80 x 5 mm |
Lifting gear hydraulics | 2 lifting cylinder / 2 tilting cylinder |
Platform overlap with floor | - 44 mm |
Lift arm pitch /Lift arm length | 460 / 1120 / 1240 |
Load centre - lengthwise | 600 mm |
Load centre - across center | Central 50% of rated load on one side |
Inclination angle of the platform | +90° to -10° |
Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
---|---|---|---|---|---|
alu | 2100 | 1450 | 210 | * | |
alu | 2100 | 1600 | 216 | * |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
a (mm) | Q (kg) |
600 | 500 |
700 | 430 |
820 | 360 |
1120 | 260 |
Lift arms (in mm) | 900 |
H (max.) Loading height unloaded | 1554 |
H (min.) Loading height loaded | 1225 |
F (max.) Middle of main beam to upper edge of loading floor | 924 |
K (min.) at dimension F (max.) | 655 |
D (min.) Installation space (min.) | 846 |
D (max.) Installation space (max.) | 921 |
F (min.) | 860 |
K (max.) at dimension F (min.) | 730 |
G (max.) Unloaded (middle of main beam to ground) | - |
G (min.) loaded | - |
E (max.) Vehicle frame width (max.) | - |
E (min.) Vehicle frame width (min.) | - |
