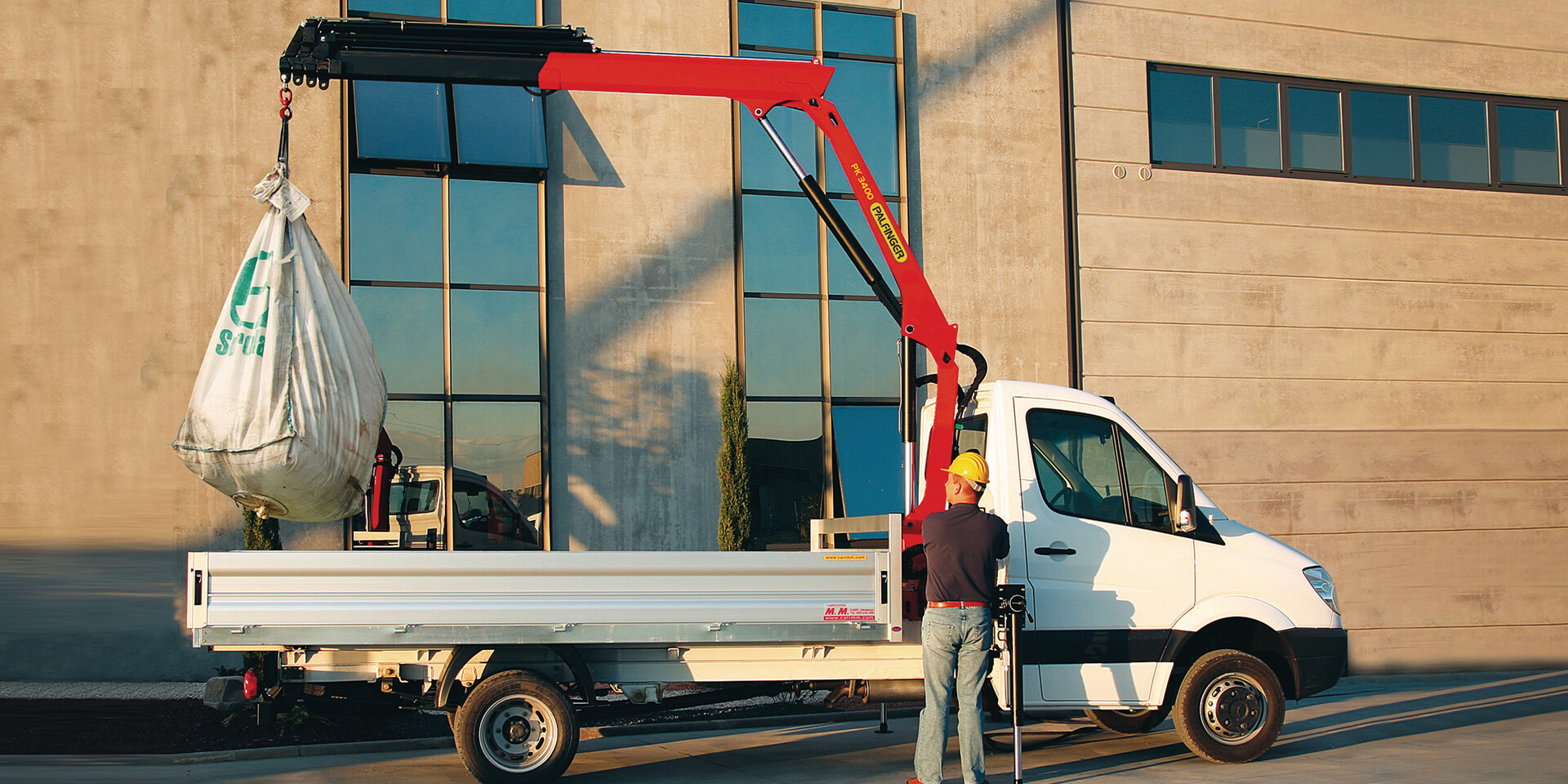

PK 3400 High Performance
PK 3400 High Performance
Loader Crane
| Max. lifting moment | 3.1 mt |
| Max. lifting capacity | 990 kg |
| Max. hydraulic outreach | 9.7 m |
| Slewing angle | 370° |
| Slewing torque | 0.4 mt |
| Stabilizer spread (std) | 3.3 m |
| Fitting space required (std) | 0.53 m |
| Width folded | 1.90 m |
| Max. operating pressure | 250 bar |
| Pump capacity | 15 l/min |
| Dead weight (std) | 447 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 3.1 | 4.9 | 370 | 0.4 | 25.0 | 15 | 447 | 1650 | 1900 | 530 |
| A | 3.0 | 6.5 | 370 | 0.4 | 25.0 | 15 | 495 | 1650 | 1900 | 530 |
| B | 2.8 | 8.1 | 370 | 0.4 | 25.0 | 15 | 540 | 1650 | 1915 | 530 |
| C | 2.7 | 9.8 | 370 | 0.4 | 25.0 | 15 | 580 | 1650 | 2000 | 530 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
