4-Way

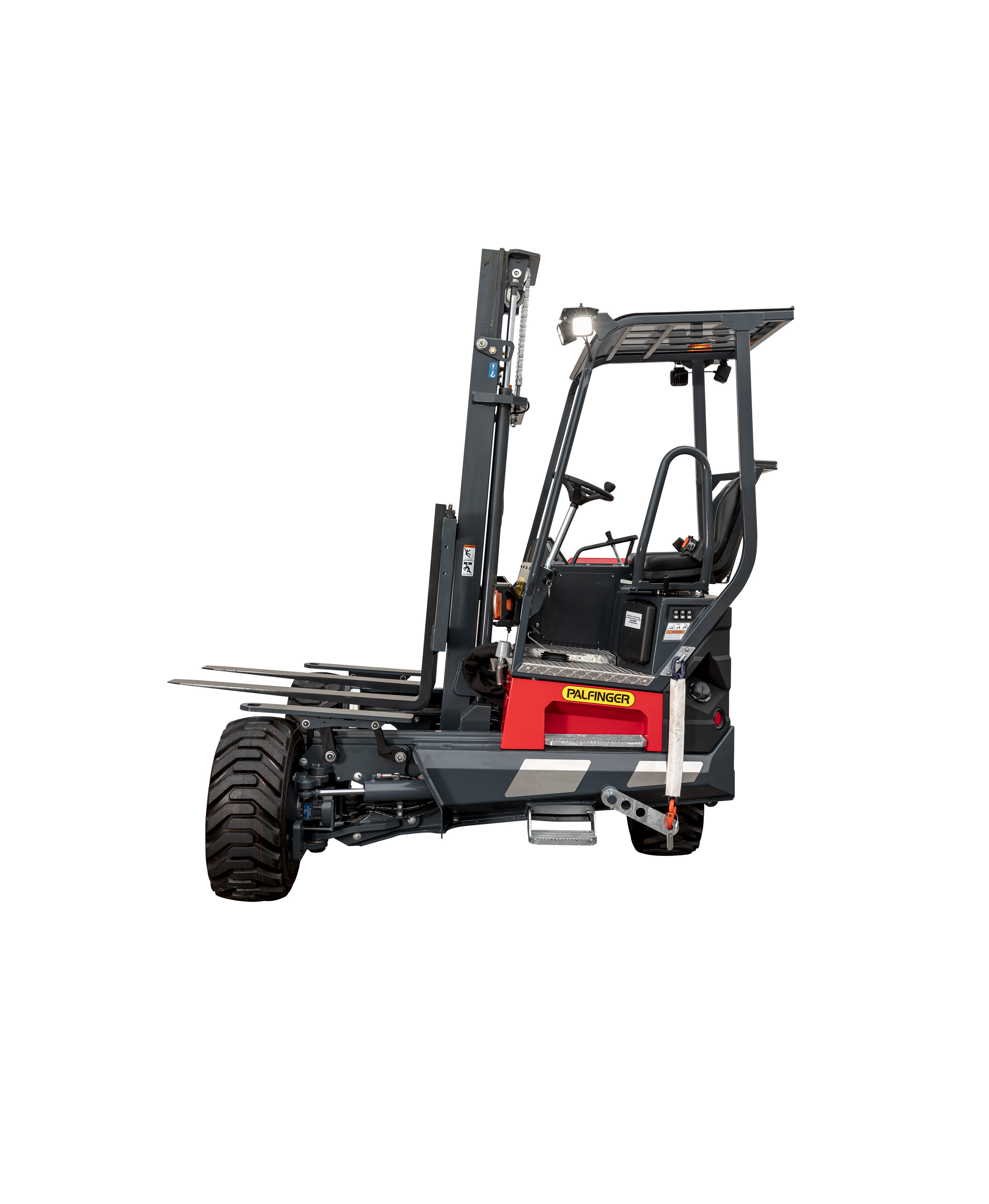

FHS 55 4W
Side Seat Series
Truck-Mounted Forklift
Key Specs
Imperial
Metric
- Visibility
- Open View Mast Open View Mast
- Lowest Laden Weight
- 3141 kg (3048 mm) | 3196 kg (3658 mm) 6925 lbs (120") | 7045 lbs (144")

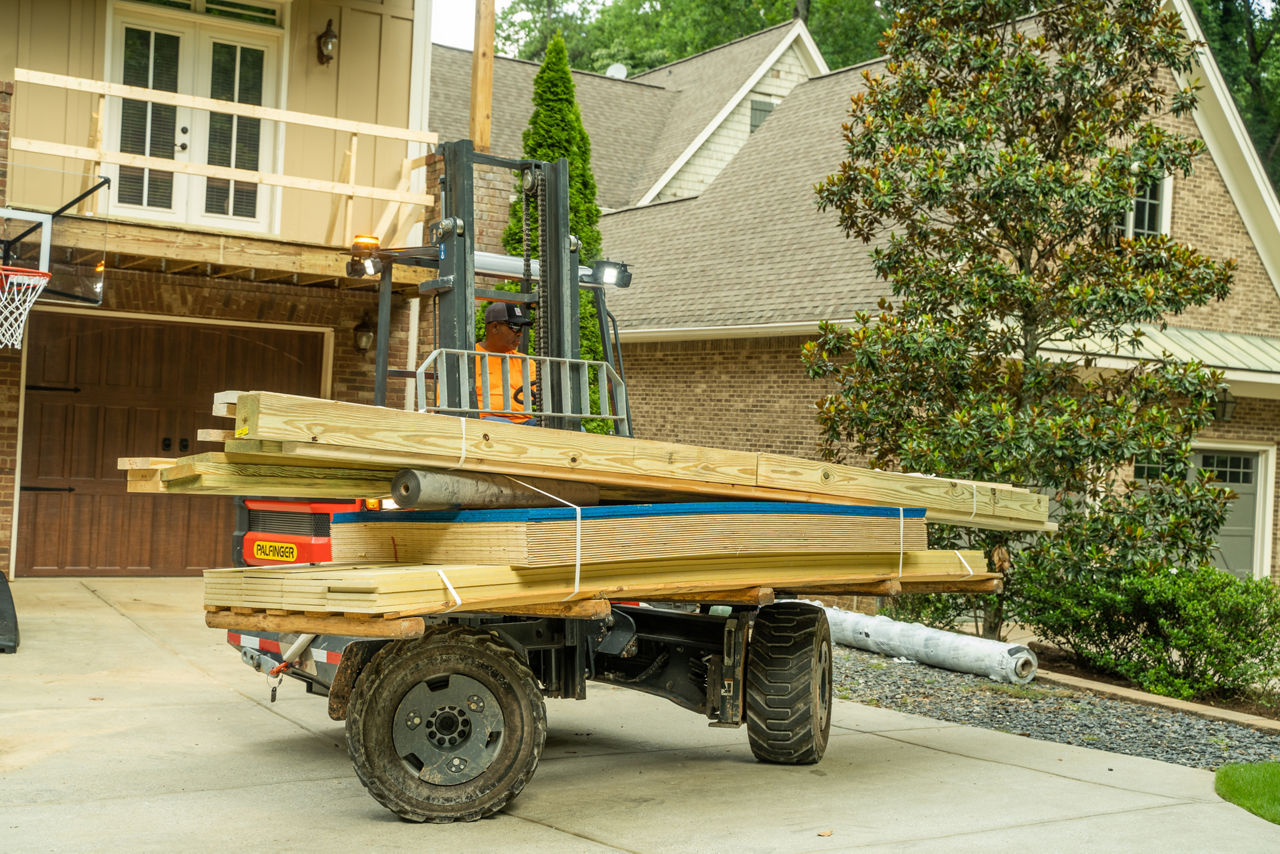

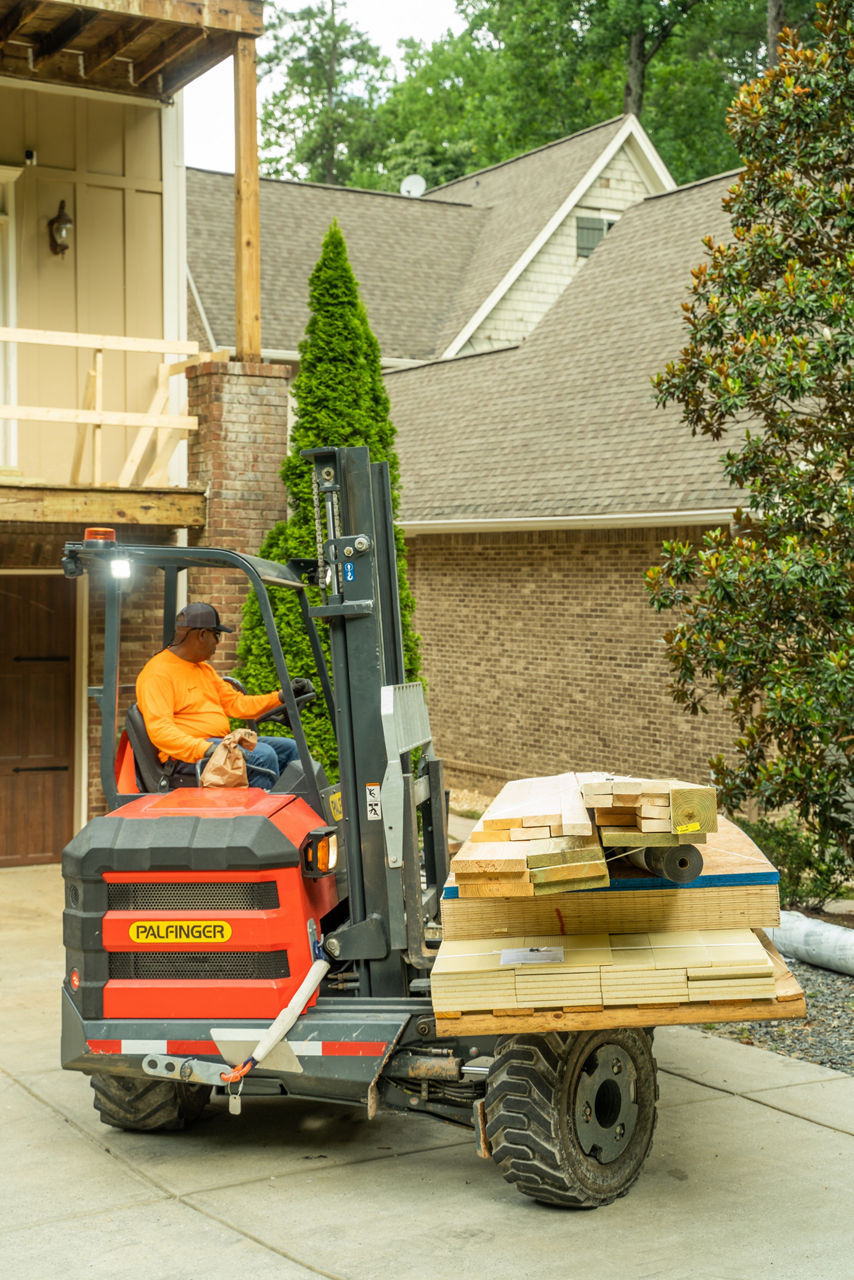

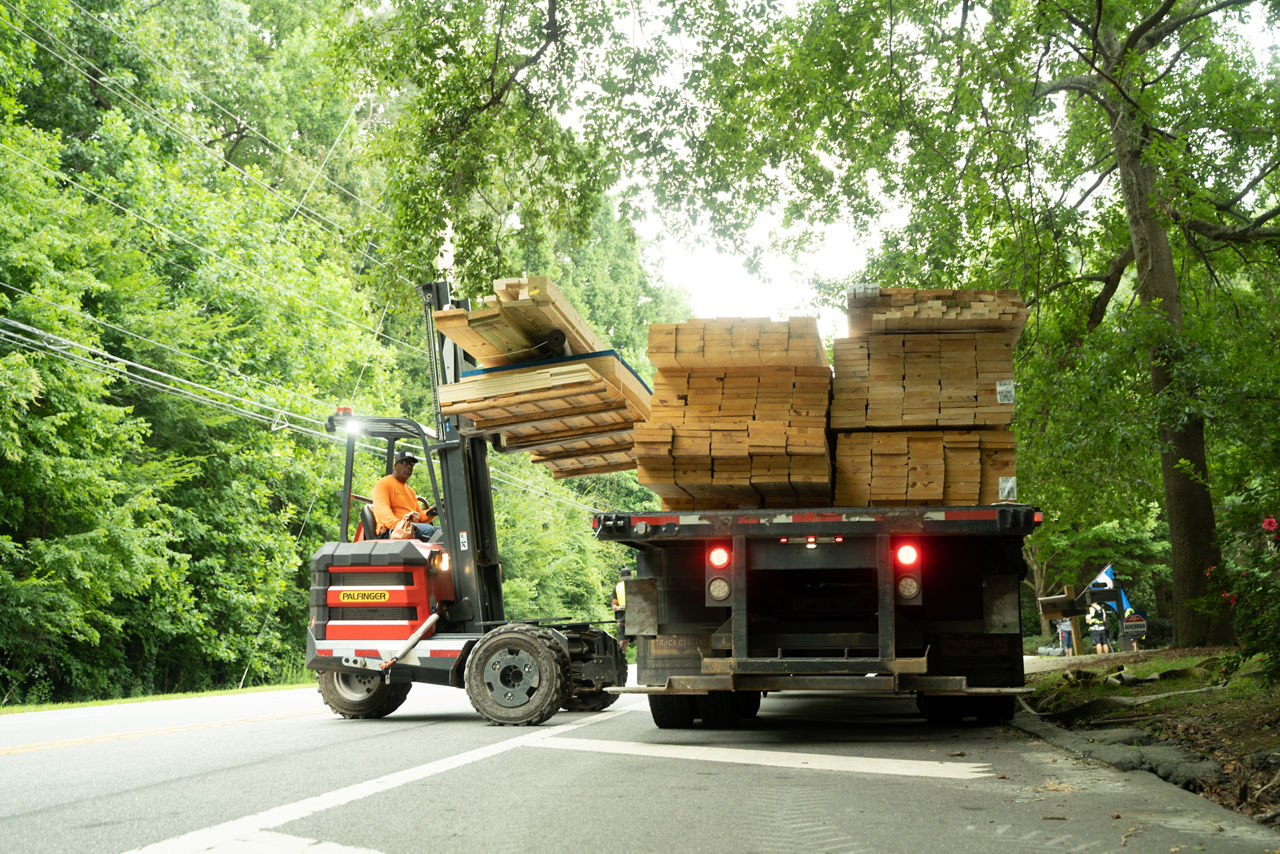

Deliver long loads like lumber with ease using the FHS 55 4W. Its instant 4-way travel mode enables smooth sideways movement through tight spaces. Independent brakes on all wheels boost safety and control—perfect for navigating narrow paths with precision.
.jpg)
.jpg)
Highlights
Carriage Cylinders
Recessed carriage cylinders sit below the mast carriage, lowering the machine’s center of gravity for improved stability. This smart design also shields the cylinders from falling debris, reducing the risk of damage and extending component life—ideal for tough job site conditions.
Corrosion Resistance and Guarding
Built to last, PALFINGER’s durable composite panels resist impact and wear. A KTL-treated, powder-coated chassis protects against corrosion, while galvanized steps and guards boost longevity. Smooth performance comes from dacrotized mast chains and zinc-coated rollers. Valve stem guards and a reinforced chassis enhance safety and durability.
Revolutionize Safety with Ground Control
Boost operator safety with the ORIGINAL Ground Control System—standard on all models. Operators stay on the ground while using three electro-hydraulic switches to mount or dismount truck-mounted forklifts. No climbing means fewer injuries, faster operation, and safer workdays—especially in harsh weather. Discover the smarter way to work.
Main Frame Channels
Engineered for strength and control, the main frame features a 4" channel section with roller bearings for larger mast rollers—minimizing wear and boosting durability. Rear 45° corners reduce turning radius and shield body panels. ROPS/FOPS-certified guard, DOT lighting, strobe, folding SMV sign, 180° rear steering, and angled seat enhance safety, visibility, and maneuverability.
Clear Vision, Confident Control
Experience unmatched visibility with a wide Class IV fork carriage opening and Class III fork boards. Lift cylinders are smartly positioned behind the mast uprights, giving operators a clear, unobstructed view of the fork tips. It’s panoramic visibility that boosts safety, precision, and confidence on every job.
Power Through Any Terrain
Tackle rough ground, curbs, and hills with ease. Performance+ delivers all-wheel drive, a high-torque engine, and smooth hydraulics for fast ground speed and total control. Brakes on all three wheels enhance safety, while a pump-mounted differential lock boosts reliability and eliminates bulky hoses—engineered for the toughest conditions.
Effortless Access, Smarter Seating
A patented swivel seat rotates 25° outward, making it easier and faster for operators to get in and out of the cab. This smart design improves comfort, reduces strain, and enhances daily efficiency—especially during frequent stops. It’s a small movement that makes a big difference in operator experience.
Commanding Visibility & Built-In Safety
Boost visibility and reduce fatigue with a 5° inward seat angle—designed for easier reversing and all-around awareness. Operators stay comfortable and alert with less neck strain. For added safety, the integrated smart side guard closes automatically, protecting the operator and preventing misuse every time.
Technical Specifications
Technical data U.S. units
- Capacity @ 24'' load center
- 5500 lbs
- Horsepower
- 56 hp
- Engine
- Diesel
- Engine emission compliance EPA
- TIER 4 Final
- Maximum engine RPM
- 2700 rpm
- Electrical system
- 12 Volt
- Drive wheels (All with brakes)
- 3
- Steering
- Hydrostatic
- Tire type: front
- 31"x13"-16 1/2" 10-PLY (Skid steer)
- Tire type: rear
- 31"x15 1/2"-15" 8-PLY (Tractor grip)
- Tire outside diameter (Front / Rear)
- 31"/31"
- Tire width (Front / Rear)
- 13"/15 1/2"
- Maximum speed
- 7 mph
- Maximum gradability
- 30% (4-way 15%)
- Turning radius
- 75"
- Unladen weight excluding forks
- 6925 lbs | 7045 lbs
- Working pressure for attachments
- 3000 psi
- Tilt of mast (Forward / Back)
- 10⁰/ 8⁰
- Tilt of fork carriage (Forward / Back)
- N/A
- Sideshift
- 6"
- Fork section: Lumber (L x W x H)
- 48" x 6" x 2"
- Mast carriage travel
- 31 1/2"
- Reach across truck bed
- N/A
- Counter weights
- No
- Height to top of canopy
- 101"
- Fork carriage width
- 47 1/4" (CLASS IV 25" OPENING)
- Frame opening
- 58"
- Overall width
- 101 1/2" | 101" (4-way)
- Overhang
- 60"
- Wheel base
- 65 1/2"
- C. OF. G. from fork face
- 17"
- Lift height
- 120" | 144"
- Mast height collapsed
- 88 3/4" | 100 3/4"
- Mast height raised
- 148 3/4" | 172 3/4"
- Ground clearance
- 11"
- Face of fork to center of front tire
- 15"
- Ansi standard
- B56.14
Weights will change depending on wheel and fork options. Weights listed do not include forks or accessories.
Technical data metric
- Capacity @ 24'' load center
- 2494.8 kg
- Horsepower
- 56 hp
- Engine
- Diesel
- Engine emission compliance EPA
- TIER 4 Final
- Maximum engine RPM
- 2700 rpm
- Electrical system
- 12 Volt
- Drive wheels (All with brakes)
- 3
- Steering
- Hydrostatic
- Tire type: front
- 787.4 mm x 330.2 mm - 419.1 mm 10-PLY (Skid steer)
- Tire type: rear
- 787.4 mm x 393.7 mm - 381 mm 8-PLY (Tractor grip)
- Tire outside diameter (Front / Rear)
- 787.4 mm / 787.4 mm
- Tire width (Front / Rear)
- 330.2 mm / 393.7 mm
- Maximum speed
- 11.27 kph
- Maximum gradability
- 30% (4-way 15%)
- Turning radius
- 1905 mm
- Unladen weight excluding forks
- 3141.13 kg | 3195.56 kg
- Working pressure for attachments
- 20684.27 kPa
- Tilt of mast (Forward / Back)
- 10⁰/ 8⁰
- Tilt of fork carriage (Forward / Back)
- N/A
- Sideshift
- 152.4 mm
- Fork section: Lumber (L x W x H)
- 1219.2 mm x 152.4 mm x 50.8 mm
- Mast carriage travel
- 800.1 mm
- Reach across truck bed
- N/A
- Counterweights
- No
- Height to top of canopy
- 2565.4 mm
- Fork carriage width
- 1200.15mm (CLASS IV 635mm OPENING)
- Frame opening
- 1473.2 mm
- Overall width
- 2578.1 mm | 2565.4 mm (4-way)
- Overhang
- 1524 mm
- Wheel base
- 1663.7 mm
- C. OF. G. from fork face
- 431.8 mm
- Lift height
- 3048 mm | 3657.6 mm
- Mast height collapsed
- 2254.25 mm | 2559.05 mm
- Mast height raised
- 148.75 mm | 4368.8 mm
- Ground clearance
- 279.4 mm
- Face of fork to center of front tire
- 381 mm
- Ansi standard
- B56.14
Weights will change depending on wheel and fork options. Weights listed do not include forks or accessories.
Standard Features
All-Wheel Braking
- Experience superior control and peace of mind with all-wheel braking, which delivers powerful, balanced stopping performance on any terrain. This advanced safety feature boosts operator confidence, reduces risk, and ensures reliable handling in demanding job sites or roadway conditions.
Rear 45° Angled Frame Corners
- Maximize maneuverability and eliminate rear tailight damage with rear 45° angled frame corners—engineered for a tighter turning radius that lets you glide through narrow spaces with ease. Perfect for busy job sites, this smart design boosts efficiency, reduces wear, and keeps your operation moving smoothly.
Double Lift Cylinder
- Our double lift cylinder design improves operator visibility by positioning cylinders behind the mast channels, creating a clear line of sight. This setup enhances safety and precision during loading and unloading, while delivering smoother lift performance and better control in tight spaces.
Galvanized Stabilizers & Motor Guards
- Galvanized stabilizers and motor guards fight off rust and corrosion, keeping critical components protected in harsh environments. This durable design reduces maintenance, extends equipment life, and ensures reliable performance—perfect for demanding job sites and all-weather operation.
Galvanized Transport Chain Hanger
- Galvanized transport chain hanger points are built to resist rust and corrosion, ensuring long-term durability in harsh environments. This rugged upgrade minimizes maintenance, protects key components, and keeps your forklift performing reliably—rain or shine, job after job.
1" Pitch Oversized Lift Chains
- Built for durability and visibility, the 1" pitch oversized lift chains extend service life while opening up the operator’s view through the mast. This rugged design reduces maintenance needs and enhances safety—perfect for demanding applications where uptime and precision matter.
4" Mast Carriage & Roller Bearings
- Minimize wear pad headaches—oversized 4" mast carriage channels and roller bearings deliver ultra-smooth, low-maintenance performance. Built for durability and precision, this design ensures reliable operation in tough conditions, keeping your forklift running longer and stronger.
Pump-Mounted Diff Block
- Streamline maintenance and boost reliability with a pump-mounted differential block—eliminating bulky hoses for a cleaner layout. This smart design simplifies diagnostics and hose replacement, reducing downtime and keeping your truck-mounted forklift running efficiently in the field.
Load Supports
Load support arms add stability and control when handling long loads in 4-way mode, especially in narrow spaces. Their streamlined design allows fast setup without sacrificing visibility or safety—ideal for truck-mounted forklift operations where precision and efficiency matter most.
Speed Steer
Speed Steer makes switching from standard to 4-way mode effortless—just press one switch. Designed for precision and ease, this advanced steering system offers intuitive control and smooth maneuvering in tight spaces, boosting operator confidence and efficiency in demanding forklift operations.
4W Steer Cylinders
In standard mode, 4-way steer cylinders remain closed, shielding the rod from corrosion and wear. This smart design enhances long-term durability, protection, and reliability—ideal for demanding environments where truck-mounted forklifts face tough conditions.
Auto-Reset Hydraulic Steering Circuit
Experience smoother operation with an auto-reset hydraulic steering circuit—no manual resets required. This intelligent system enhances ease of use and keeps the forklift ready for precise maneuvering, improving efficiency in demanding delivery environments.
