Standard

FHC 55 STD

Center Seat Series

alt text
Truck-Mounted Forklift
Key Specs
Imperial
Metric
Visibility
Open View Mast Open View Mast
Lowest Laden Weight
2854 kg (3.05 m) | 2908 kg (3.66 m) 6292lbs (120") | 6412 lbs (144")

Compact, powerful, and built for speed—the FHC 55 truck-mounted forklift lifts up to 5,500 lbs with ease. Its lightweight design fits most trucks and trailers, enhancing delivery performance and reducing downtime. Ideal for fast, efficient logistics and material handling.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

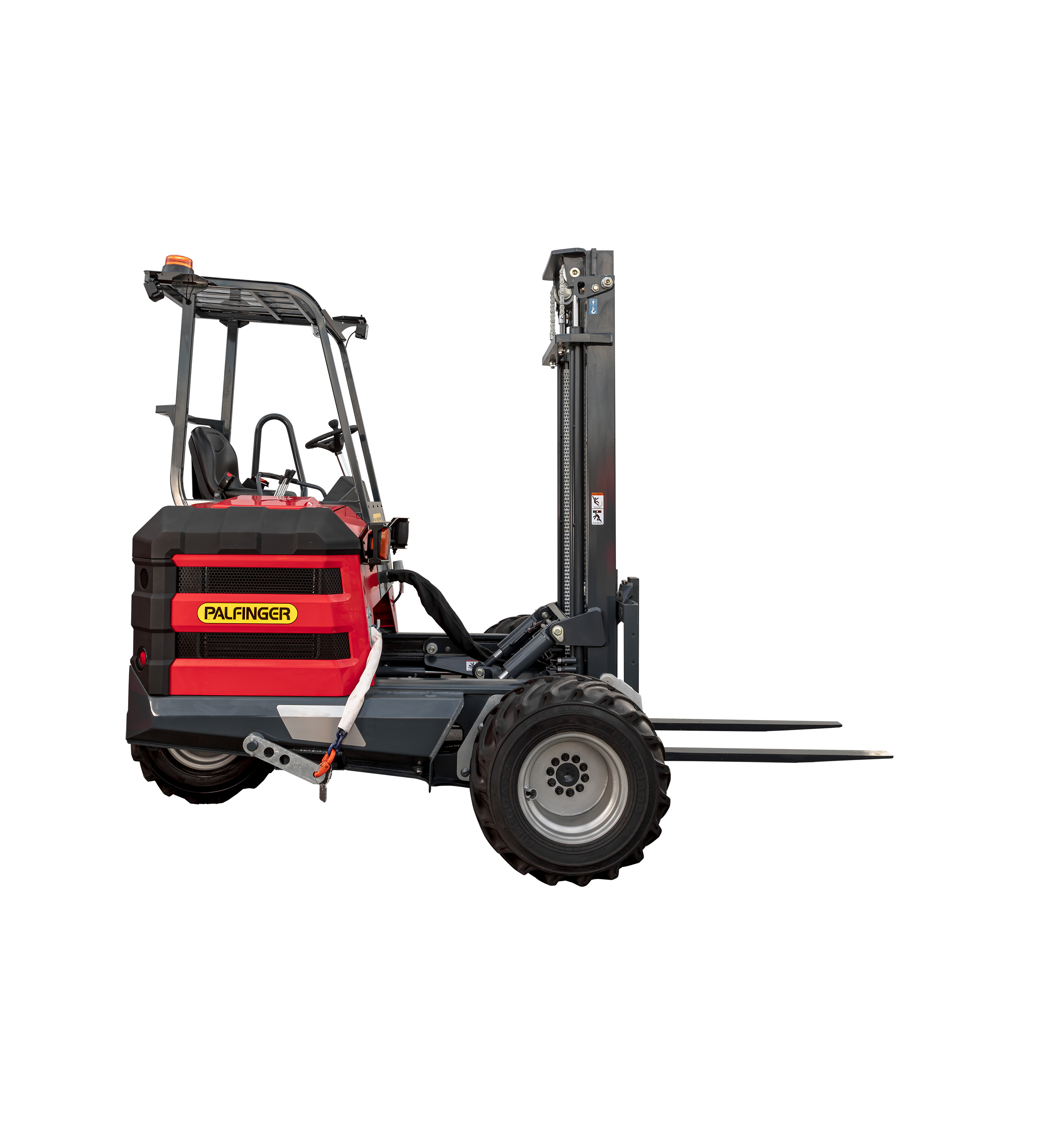

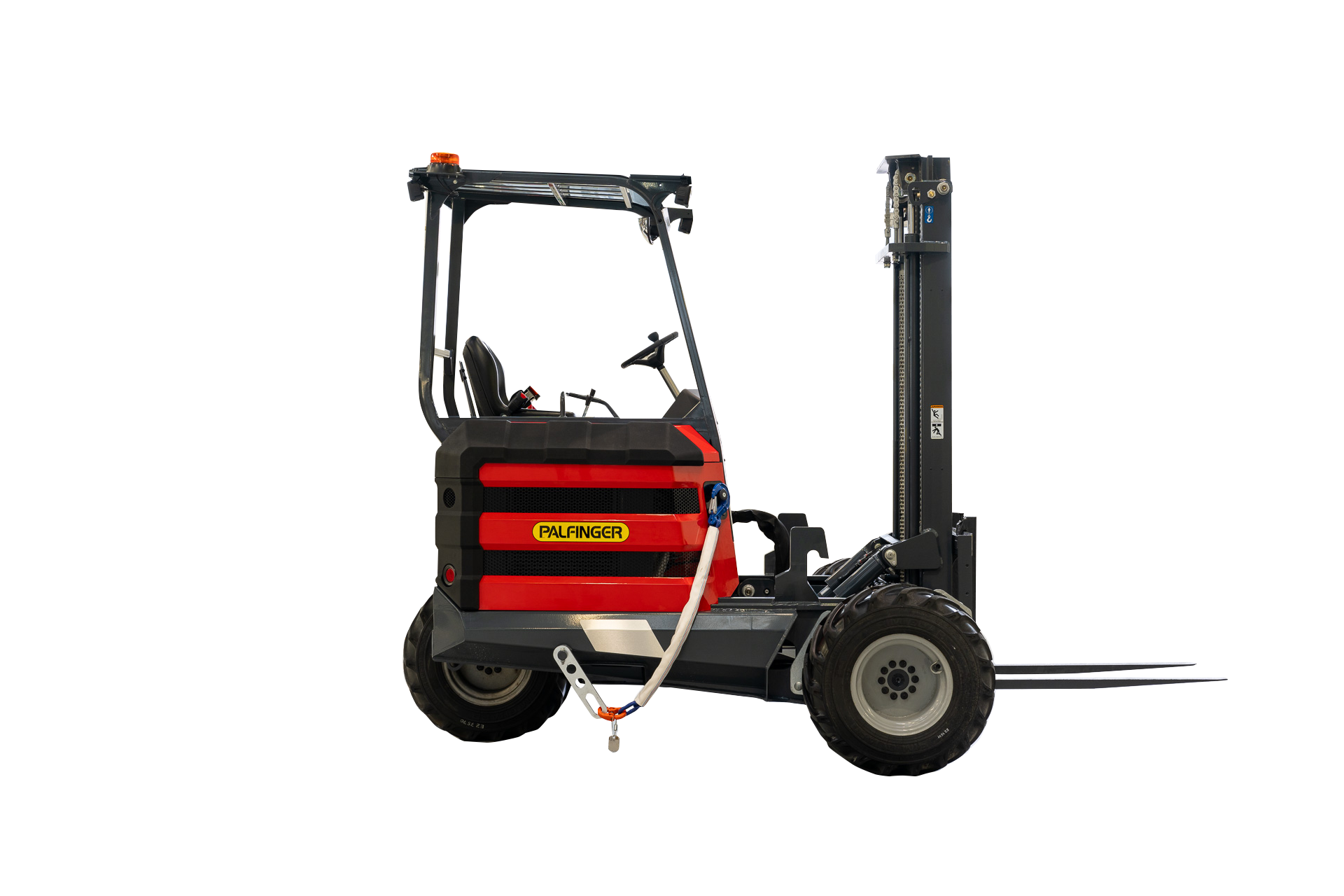

Left Side View

  • Contemporary angular styling with 45° corners complements modern commercial vehicles
  • Side-mounted operator controls eliminate climbing during mounting/dismounting
  • Integrated side guard with automatic closing for added safety
  • 3-point entry/exit with ergonomic steps and grab handles
  • Ground-level diesel fill for easy refueling on or off the truck

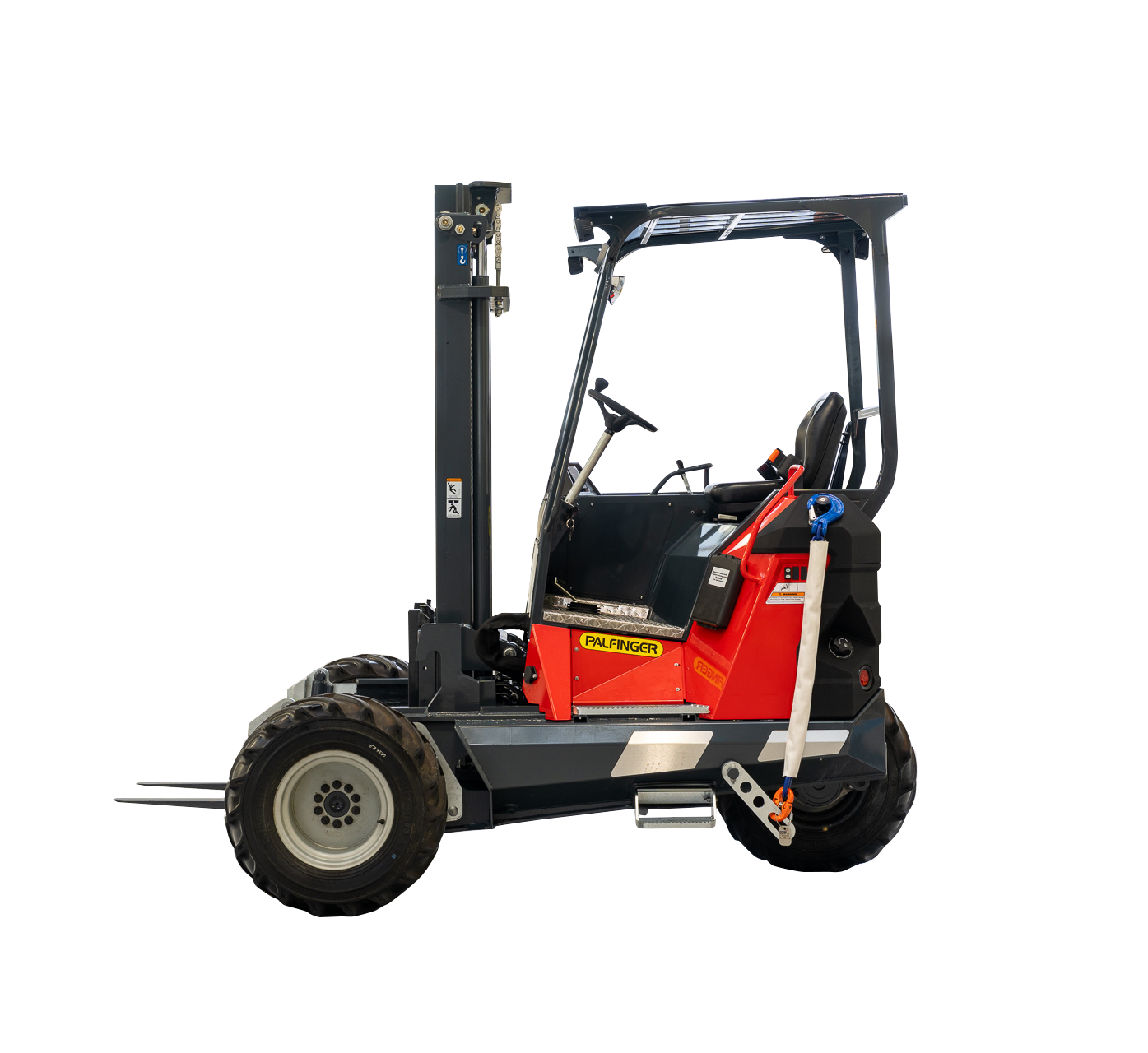

Right Side View

  • Spacious, ergonomic operator cabin with intuitive controls, digital display & armrest
  • Ergonomic foot pedals for all-day comfort and control
  • Radiator panel & molded rear bumpers for added durability
  • Main frame side pods boost structural rigidity and deliver a clean, modern look

alt text

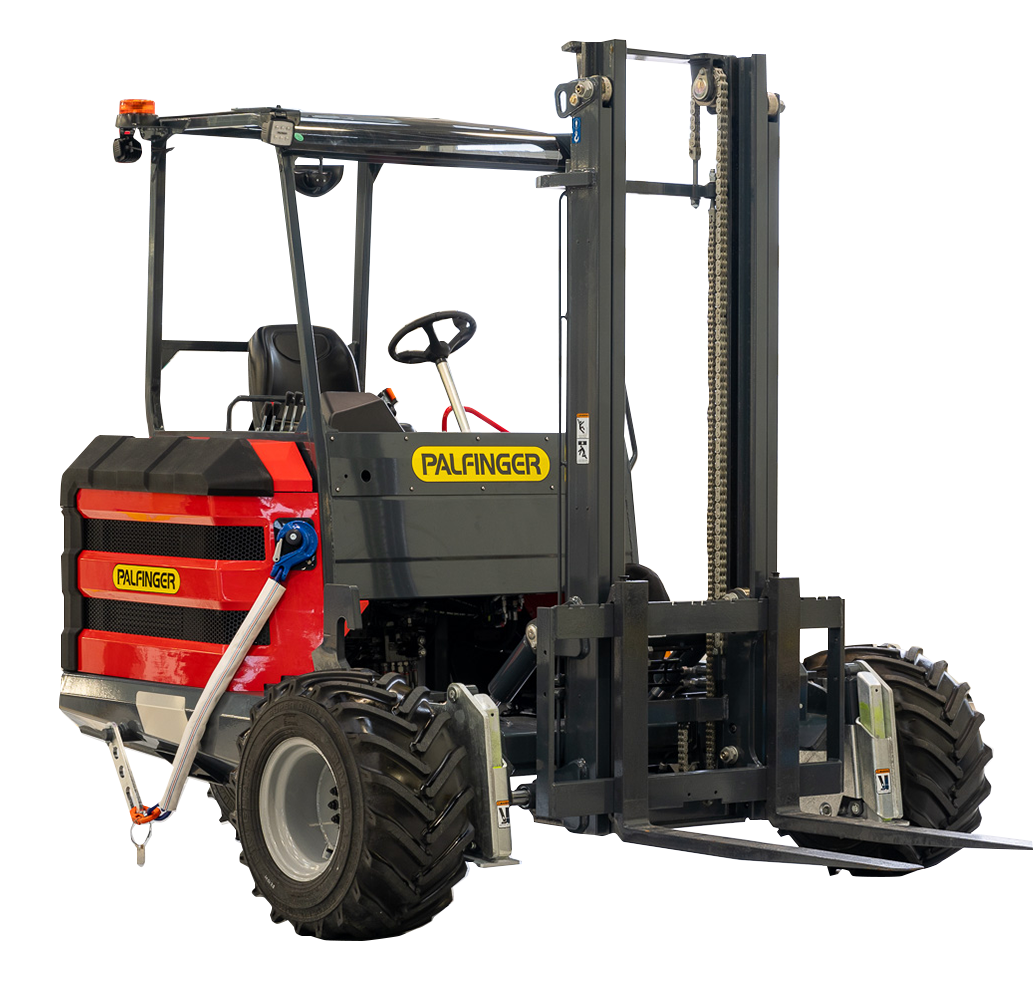

Front View

  • Low-profile engine hood boosts visibility for safer operation
  • LED work lights provide bright, efficient illumination in low-light conditions
  • Front DOT-compliant lighting kit ensures road-ready visibility and safety
  • Class IV carriage opening enhances forward visibility through the mast

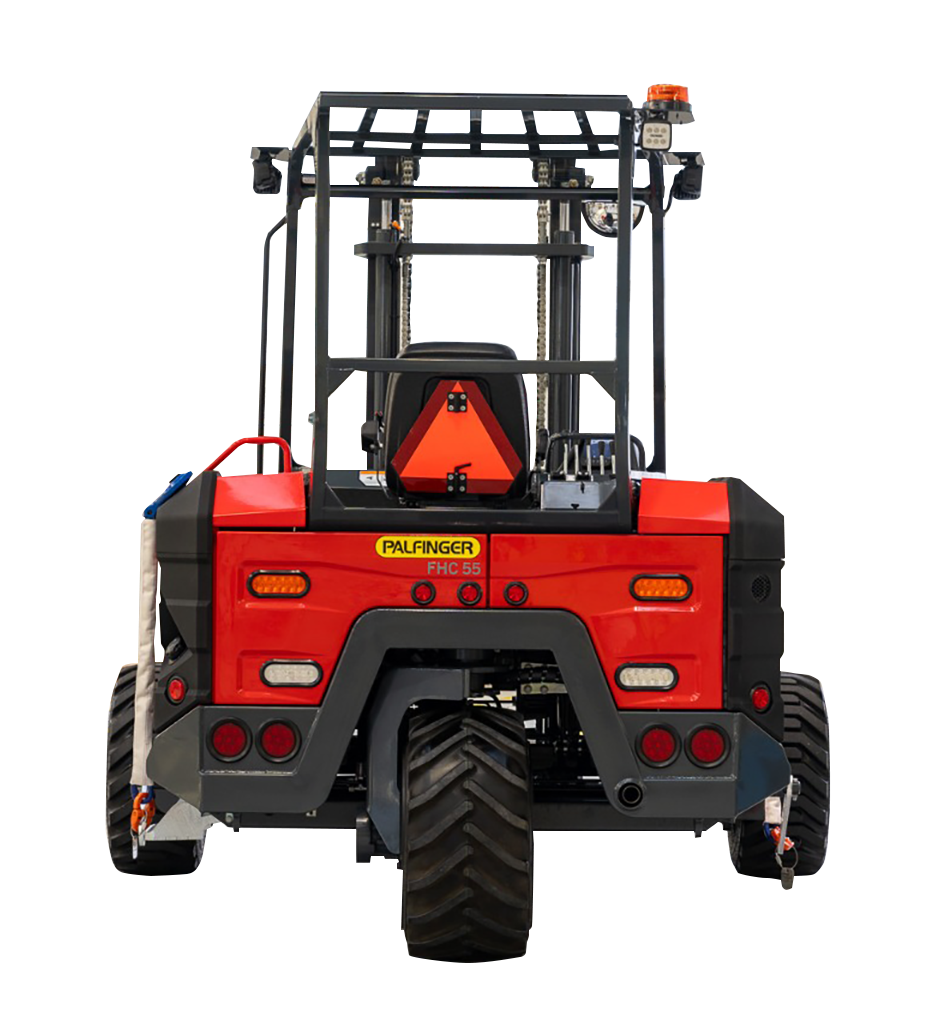

Rear View

  • 45° rear corners reduce turning radius and protect body panels
  • ROPS/FOPS-certified overhead guard ensures operator safety
  • Rear DOT-compliant lighting kit enhances road visibility
  • Folding SMV sign & strobe light boost jobsite awareness
  • 180° rear steering enables tight, precise maneuvering
  • 5° inward seat angle improves rearward visibility

Highlights

Carriage Cylinders

Recessed carriage cylinders sit below the mast carriage, lowering the machine’s center of gravity for improved stability. This smart design also shields the cylinders from falling debris, reducing the risk of damage and extending component life—ideal for tough job site conditions.
    alt text

    Corrosion Resistance and Guarding

    Built to last, PALFINGER’s durable composite panels resist impact and wear. A KTL-treated, powder-coated chassis protects against corrosion, while galvanized steps and guards boost longevity. Smooth performance comes from dacrotized mast chains and zinc-coated rollers. Valve stem guards and a reinforced chassis enhance safety and durability.
      alt text

      Revolutionize Safety with Ground Control

      Boost operator safety with the ORIGINAL Ground Control System—standard on all models. Operators stay on the ground while using three electro-hydraulic switches to mount or dismount truck-mounted forklifts. No climbing means fewer injuries, faster operation, and safer workdays—especially in harsh weather. Discover the smarter way to work.
      alt text

      Main Frame Channels

      Engineered for strength and control, the main frame features a 4" channel section with roller bearings for larger mast rollers—minimizing wear and boosting durability. Rear 45° corners reduce turning radius and shield body panels. ROPS/FOPS-certified guard, DOT lighting, strobe, folding SMV sign, 180° rear steering, and angled seat enhance safety, visibility, and maneuverability.
        alt text

        Clear Vision, Confident Control

        Experience unmatched visibility with a wide Class IV fork carriage opening and Class III fork boards. Lift cylinders are smartly positioned behind the mast uprights, giving operators a clear, unobstructed view of the fork tips. It’s panoramic visibility that boosts safety, precision, and confidence on every job.
        alt text

        Power Through Any Terrain

        Tackle rough ground, curbs, and hills with ease. Performance+ delivers all-wheel drive, a high-torque engine, and smooth hydraulics for fast ground speed and total control. Brakes on all three wheels enhance safety, while a pump-mounted differential lock boosts reliability and eliminates bulky hoses—engineered for the toughest conditions.
        alt text

        Commanding Visibility & Built-In Safety

        Boost visibility and reduce fatigue with a 5° inward seat angle—designed for easier reversing and all-around awareness. Operators stay comfortable and alert with less neck strain. For added safety, the integrated smart side guard closes automatically, protecting the operator and preventing misuse every time.
          alt text

          Equipment & Accessories

          Engine Block Heater

          Ensure reliable cold starts and reduce engine wear with this engine block heater. Ideal for harsh cold climates, it keeps engine coolant warm, improves startup efficiency, and extends engine life. Easy to install and essential for winter operations.

          Weld-On Mounting Kit

          A properly engineered, factory-approved mounting kit ensures your truck-mounted forklift connects securely for safe transport. Built for durability and easy installation, it guarantees correct fitment and reliable compatibility—delivering peace of mind and long-term performance.

          Fork Positioner

          Enhance load control and efficiency with this fork positioner. This hydraulic attachment allows operators to adjust fork spacing from the cab, improving handling of varied pallet sizes and reducing manual repositioning. Ideal for high-volume, multi-size load operations.

          Seat Cover

          Upgrade your operator experience with our durable, weather-resistant seat cover. This easy-to-install cover protects against wear, moisture, and dirt while adding comfort for long shifts. Ideal for harsh environments and frequent use.

          Technical Specifications

          alt text
          Technical data U.S. units
          Capacity @ 24'' load center
          5500 lbs
          Horsepower
          56 hp
          Engine
          Diesel
          Engine emission compliance EPA
          TIER 4 Final
          Maximum engine RPM
          2,700 rpm
          Electrical system
          12 Volt
          Drive wheels (All with brakes)
          3
          Steering
          Hydrostatic
          Tire type: front
          31"x15.5"-15" 8-PLY (Skid Steer)
          Tire type: rear
          31"x15.5"-15" 8-PLY (Tractor Grip)
          Tire outside diameter (Front / Rear)
          31"
          Tire width (Front / Rear)
          15 1/2"
          Maximum speed
          7 mph
          Maximum gradability
          30%
          Turning radius
          81"
          Unladen weight excluding forks
          6292 lbs | 6412 lbs
          Working pressure for attachments
          3000 psi
          Tilt of mast (Forward / Back)
          10° / 8°
          Tilt of fork carriage (Forward / Back)
          N/A
          Sideshift
          6"
          Fork section: Pallet (L x W x H)
          48" x 4" x 1 3/4"
          Fork section: Brick & Block (L x W x H)
          48" x 2" x 2"
          Fork section: Lumber (L x W x H)
          48" x 6" x 2"
          Mast carriage travel
          25.25"
          Reach across truck bed
          N/A
          Counter weights
          No
          Height to top of canopy
          101"
          Fork carriage width
          47 1/4" (CLASS IV 25" OPENING)
          Frame opening
          58"
          Overall width
          101 1/2"
          Overhang
          72"
          Wheel base
          71 1/2"
          C. OF. G. from fork face
          24"
          Lift height
          120" | 144"
          Mast height collapsed
          88 3/4" | 100 3/4"
          Mast height raised
          148 3/4" | 172 3/4"
          Ground clearance
          11"
          Face of fork to center of front tire
          9"
          Ansi standard
          B56.14

          Weights will change depending on wheel and fork options. Weights listed do not include forks or accessories.

          Technical data metric
          Capacity @ 24'' load center
          2500 kg
          Horsepower
          56 hp
          Engine
          Diesel
          Engine emission compliance EPA
          TIER 4 Final
          Maximum engine RPM
          2700 rpm
          Electrical system
          12 Volt
          Drive wheels (All with brakes)
          3
          Steering
          Hydrostatic
          Tire type: front
          787.4 mm x 393.7 mm - 381 mm 8-PLY (Tractor grip)
          Tire type: rear
          787.4 mm x 393.7 mm - 381 mm 8-PLY (Tractor grip)
          Tire outside diameter (Front / Rear)
          790 mm
          Tire width (Front / Rear)
          395 mm
          Maximum speed
          11 kph
          Maximum gradability
          30%
          Turning radius
          2060 mm
          Unladen weight excluding forks
          2854 kg | 2908 kg
          Working pressure for attachments
          210 bar
          Tilt of mast (Forward / Back)
          10° / 8°
          Tilt of fork carriage (Forward / Back)
          N/A
          Sideshift
          150 mm
          Fork section: Pallet (L x W x H)
          1220 mm x 100 mm x 45 mm
          Fork section: Brick & Block (L x W x H)
          1220 mm x 50 mm x 50 mm
          Mast carriage travel
          640 mm
          Reach across truck bed
          N/A
          Counterweights
          No
          Height to top of canopy
          2565 mm
          Fork carriage width
          1200 mm (CLASS IV 635mm OPENING)
          Frame opening
          1475 mm
          Overall width
          2578 mm
          Overhang
          1830 mm
          Wheel base
          1663.7 mm
          C. OF. G. from fork face
          476.25 mm
          Lift height
          3.05 m | 3.66 m
          Mast height collapsed
          2255 mm | 2560 mm
          Mast height raised
          3780 mm | 4390 mm
          Ground clearance
          280 mm
          Face of fork to center of front tire
          230 mm
          Ansi standard
          B56.14

          Weights will change depending on wheel and fork options. Weights listed do not include forks or accessories.

          Standard Features

          Discover Standard Features

          All-Wheel Braking

          Experience superior control and peace of mind with all-wheel braking, which delivers powerful, balanced stopping performance on any terrain. This advanced safety feature boosts operator confidence, reduces risk, and ensures reliable handling in demanding job sites or roadway conditions.

          Rear 45° Angled Frame Corners

          Maximize maneuverability and eliminate rear tailight damage with rear 45° angled frame corners—engineered for a tighter turning radius that lets you glide through narrow spaces with ease. Perfect for busy job sites, this smart design boosts efficiency, reduces wear, and keeps your operation moving smoothly.

          Double Lift Cylinder

          Our double lift cylinder design improves operator visibility by positioning cylinders behind the mast channels, creating a clear line of sight. This setup enhances safety and precision during loading and unloading, while delivering smoother lift performance and better control in tight spaces.

          Galvanized Stabilizers & Motor Guards

          Galvanized stabilizers and motor guards fight off rust and corrosion, keeping critical components protected in harsh environments. This durable design reduces maintenance, extends equipment life, and ensures reliable performance—perfect for demanding job sites and all-weather operation.

          Galvanized Transport Chain Hanger

          Galvanized transport chain hanger points are built to resist rust and corrosion, ensuring long-term durability in harsh environments. This rugged upgrade minimizes maintenance, protects key components, and keeps your forklift performing reliably—rain or shine, job after job.

          1" Pitch Oversized Lift Chains

          Built for durability and visibility, the 1" pitch oversized lift chains extend service life while opening up the operator’s view through the mast. This rugged design reduces maintenance needs and enhances safety—perfect for demanding applications where uptime and precision matter.

          4" Mast Carriage & Roller Bearings

          Minimize wear pad headaches—oversized 4" mast carriage channels and roller bearings deliver ultra-smooth, low-maintenance performance. Built for durability and precision, this design ensures reliable operation in tough conditions, keeping your forklift running longer and stronger.

          Pump-Mounted Diff Block

          Streamline maintenance and boost reliability with a pump-mounted differential block—eliminating bulky hoses for a cleaner layout. This smart design simplifies diagnostics and hose replacement, reducing downtime and keeping your truck-mounted forklift running efficiently in the field.

          Optional Features

          Lumber Forks

          Specifically designed for handling lumber, these 6" wide full-tapered and polished forks provide the reach and strength needed to move long boards, beams, and timber safely. Ideal for sawmills, construction sites, and material yards, they offer stable load control and efficient transport for oversized wood products.

          Telematics

          Get real-time forklift data at your fingertips. Track service needs, fuel levels, operating hours, and location—all in one place. Status codes and performance stats help you stay ahead of maintenance, while low fuel alerts and geo data keep your fleet running smoothly. Smarter insights mean less downtime and more productivity.

          *comes standard on all FHS models, but requires PALFINGER Connected enablement

          Long Load Forks

          Handle bulky or extended loads with confidence using long load forks designed for truck-mounted forklifts. These heavy-duty forks offer increased reach and load capabilities, making them ideal for transporting lumber, piping, and other oversized materials safely and efficiently.

          Brick & Block Forks

          Built to handle dense, stacked materials, brick and block forks offer reinforced strength and stability for truck-mounted forklifts. Their wider profile and durable design make them ideal for transporting masonry products safely and efficiently across construction sites and supply yards.

          Turf Tire

          Designed for sensitive surfaces, turf tires offer smooth, low-impact movement for truck-mounted forklifts. Their wide tread reduces ground disturbance while maintaining traction and stability—ideal for landscaping, golf courses, and other soft terrain applications.

          *comes at an additional cost

          Trencher Grip Tire

          Designed for tough terrain, trencher grip tires deliver aggressive traction and stability for truck-mounted forklifts. Their deep, rugged tread pattern ensures reliable performance on loose soil, gravel, and uneven surfaces—ideal for construction, utility, and off-road applications.

          *comes at an additional cost

          Pallet Forks

          Designed for everyday material transport, pallet forks offer reliable strength and stability for truck-mounted forklifts. Ideal for lifting and moving standard pallets, they provide efficient performance across various palletized loads across all job sites—making them a must-have for general-purpose unloading.

          Skid Steer Tire

          Engineered for durability and traction, these skid steer-style tires are ideal for truck-mounted forklifts operating on rough or uneven surfaces. Their deep tread design enhances grip, stability, and wear resistance—ensuring reliable performance across demanding job sites.
