A Line

M13A

Next-Level Performance And Protection

alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
Epsilon Timber and Recycling Crane
Key Specs
Imperial
Metric
Max. outreach
9.8 m
Max. lifting moment
4,380 kg
Dead Weight
2,520 kg

The EPSILON A-line takes a robust, market-proven design to the next level. The high-M13A delivers unmatched performance, features Epscope and Epslink, and is available in three variants – from a 7.1 m (23 ft) fixed boom to a market-leading 9.8 m (32 ft) double telescopic arm.

*Depending on the variant and equipment selected.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Protected hydraulic routing

Epslink and Epscope combine to deliver unmatched performance.

Protected hydraulic guide

EPSLINK

Epslink is EPSILON’s patented link-rotator combination. It features an extraordinarily robust four-eye-cast link with internal hose routing – and combines with Epscope to provide a practical, professional solution.

alt text

EPSCOPE

Epscope is EPSILON’s patented extension boom system, available in both single and double telescope variants. The extension cylinder and hose equipment are mounted internally, which allows operators to work safely without the risk of mechanical damage to key components.

alt text
alt text

KTL, finite element modeling, and functional design

Innovative technology for long-lasting surface protection, durability testing, and optimized functionality.

KTL + Finite Elemente + Functional Design

Cathodic dip coating (KTL)

This specialist surface treatment lays the foundations for long-lasting surface protection. PALFINGER’s Marburg and Lengau production facilities feature fully automated cathodic dip coating lines.

This treatment starts by degreasing and rinsing components before activating them, applying a zinc phosphate coating and then rinsing again. This is followed by passivation and a final rinsing step with ultra-pure water before the components undergo cathodic dip coating. Sophisticated robotic systems then finalize the process.

alt text

Finite element method

At EPSILON, we apply the finite element method to optimize our crane construction processes. We have deployed this state-of-the-art modeling technique for several years to refine all supporting elements made from fine-grain steel.

alt text

Functional Design

We develop every shape and detail based on function and practical application. Our designs follow a clear technical logic that ensures efficient, intuitive operation and high performance. This approach combines technical precision with a clean, functional aesthetic.
alt text

Shortest Loader Length, Big Reach Advantage

Maximize versatility with the industry’s shortest stow length—just 21'. Perfect for bodies as small as 22', yet extends to an impressive 32' for full reach. Designed for timber and refuse loaders, this solution delivers unmatched flexibility, space savings, and performance for demanding jobs.

alt text

Engineered for Payload: Power Meets Efficiency

Engineered for ultimate efficiency, our timber and refuse loaders deliver the best weight-to-lift ratio in the industry. Lighter design means more payload capacity without sacrificing strength. Get unmatched lifting power, superior durability, and optimized performance—every pound counts when you choose the lightest loader built for heavy-duty jobs.

alt text

Highlights

Stunning visual appearance

Every line and angle in the design is guided by technical logic and practical use to ensure optimized handling, excellent visibility, and straightforward maintenance – with all RAL colors available upon request.
alt text

Technical Specifications

Technical Data

Telescopic boom length

Number of extensions

Net load moment [kNm]

Net slewing torque [kNm]

Slewing angle [°]

Max. reach [m]

Operating pressure [bar]
71 dm 1 133 kNm 19 kNm 999 ° 7.1 m 235 bar
80 dm 1 0 kNm 19 kNm 999 ° 8 m 235 bar
88 dm 1 0 kNm 19 kNm 999 ° 8.8 m 235 bar
89 dm 1 0 kNm 20 kNm 999 ° 8.9 m 235 bar
98 dm 2 0 kNm 19 kNm 999 ° 9.8 m 235 bar
Dead weight without joint/rotator

Telescopic boom length [dm]
71 dm
80 dm
88 dm
89 dm
98 dm

Discover Standard Features

Epscope

Internally routed hoses and an integrated telescopic cylinder permit safe working without the risk of damage from external sources.

alt text
Epslink

This high-strength four-lug link with rotator and optimized hose routing is suitable for EPSILON polyp grabs and clamshell grabbers.

alt text
Cathodic Dip Coating (CDC)

An innovative technology for long-lasting surface protection.

alt text
Finite Element Technology

At EPSILON, we apply the finite element method to optimize our crane construction processes. We have deployed this state-of-the-art modeling technique for several years to refine all supporting elements made from fine-grain steel.

alt text
Double Row Bearing

The double row bearing is engineered for heavy-duty timber and refuse loader applications, reducing maintenance and increasing durability. Designed for demanding work, it ensures smoother operation and longer service life in the toughest conditions.

Frame Mount Oil Cooler

The frame-mounted oil cooler is a space-saving solution designed for timber and refuse loaders. It reduces installation time with a fully integrated design, requires no extra steps, and stays perfectly protected inside the frame for long-lasting performance.

Weight-Strength Optimization (FEM)

Our timber and refuse loaders use advanced Finite Element Method (FEM) simulations to minimize weight without compromising durability. Experience superior performance, efficiency, and reliability with cutting-edge engineering designed for heavy-duty operations.

Linkage System

The advanced linkage system between the main and outer boom delivers maximum lifting power where timber and refuse loaders need it most. Enjoy constant speed and smooth operation across the entire working range for superior efficiency and control.

Control Methods

alt text

Comfort Drive (topseat)

The command center for professionals.

The Comfort Drive control system features ergonomic arm rests with fold-down joysticks, set in a spacious seat. The protective frame and cover supplement this comfort with enhanced safety.



Optional equipment for harsh environments is also available – such as a heated seat and backrest to optimize operator comfort.

alt text

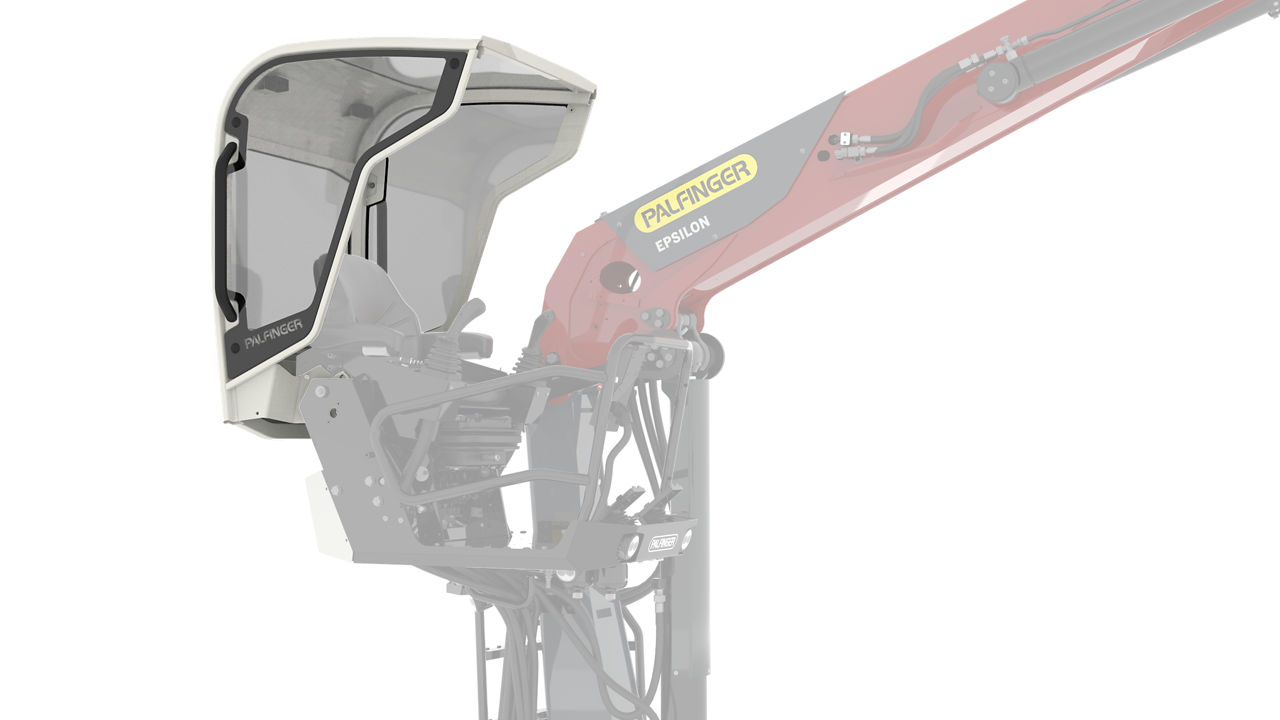

The optional Epshood thermoplastic protector shields the operator from sun, wind, rain, and snow.
