Tree-Mek™ PK 65002-SH
Kenworth 2026 T880
- Location
- 4151 OH-18, US, 44883
- Dealer
- Palfinger USA, LLC.
- Availability
- In stock
- Product Type
- New
- Contact Person
- Jason Smith

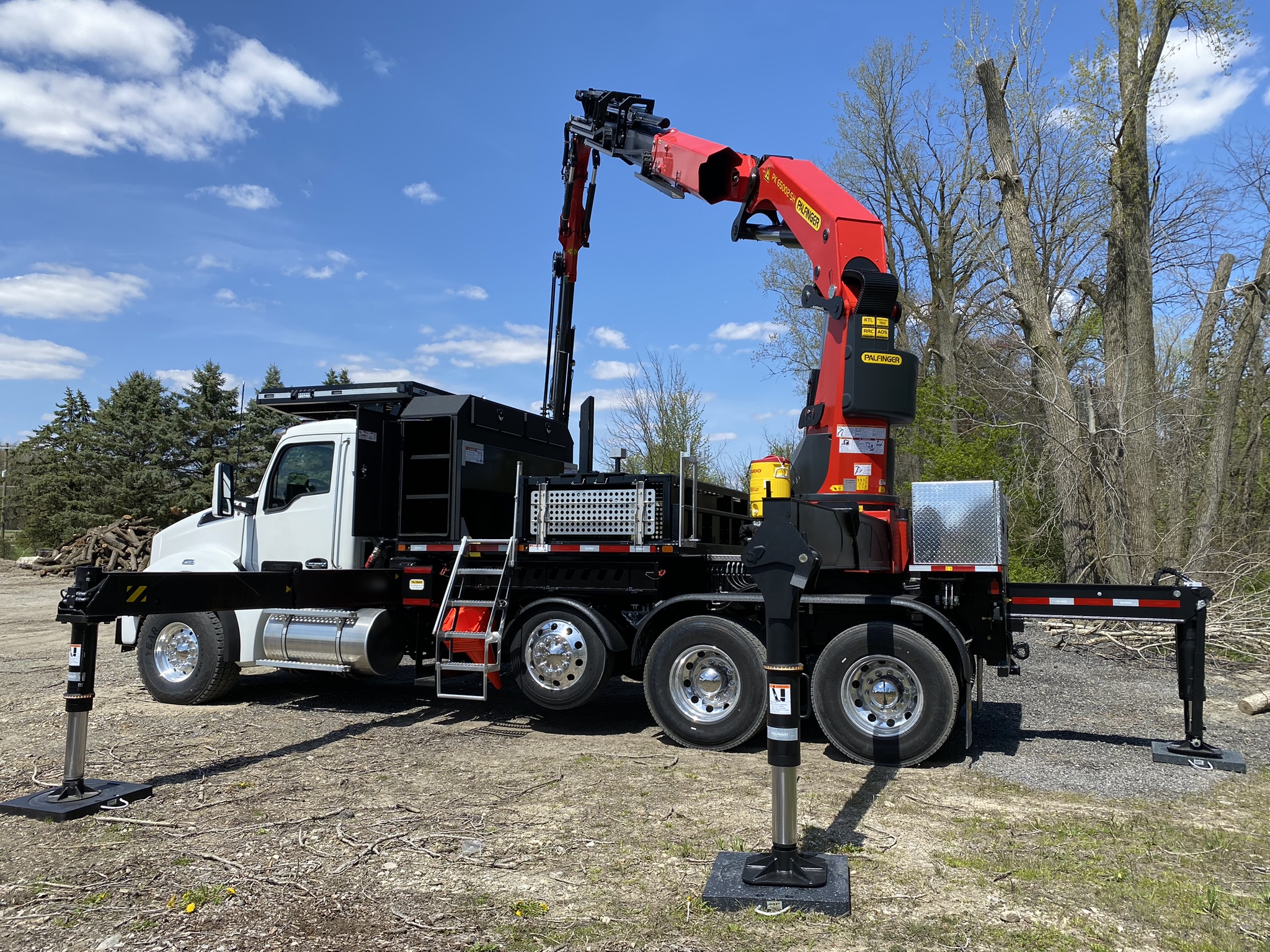

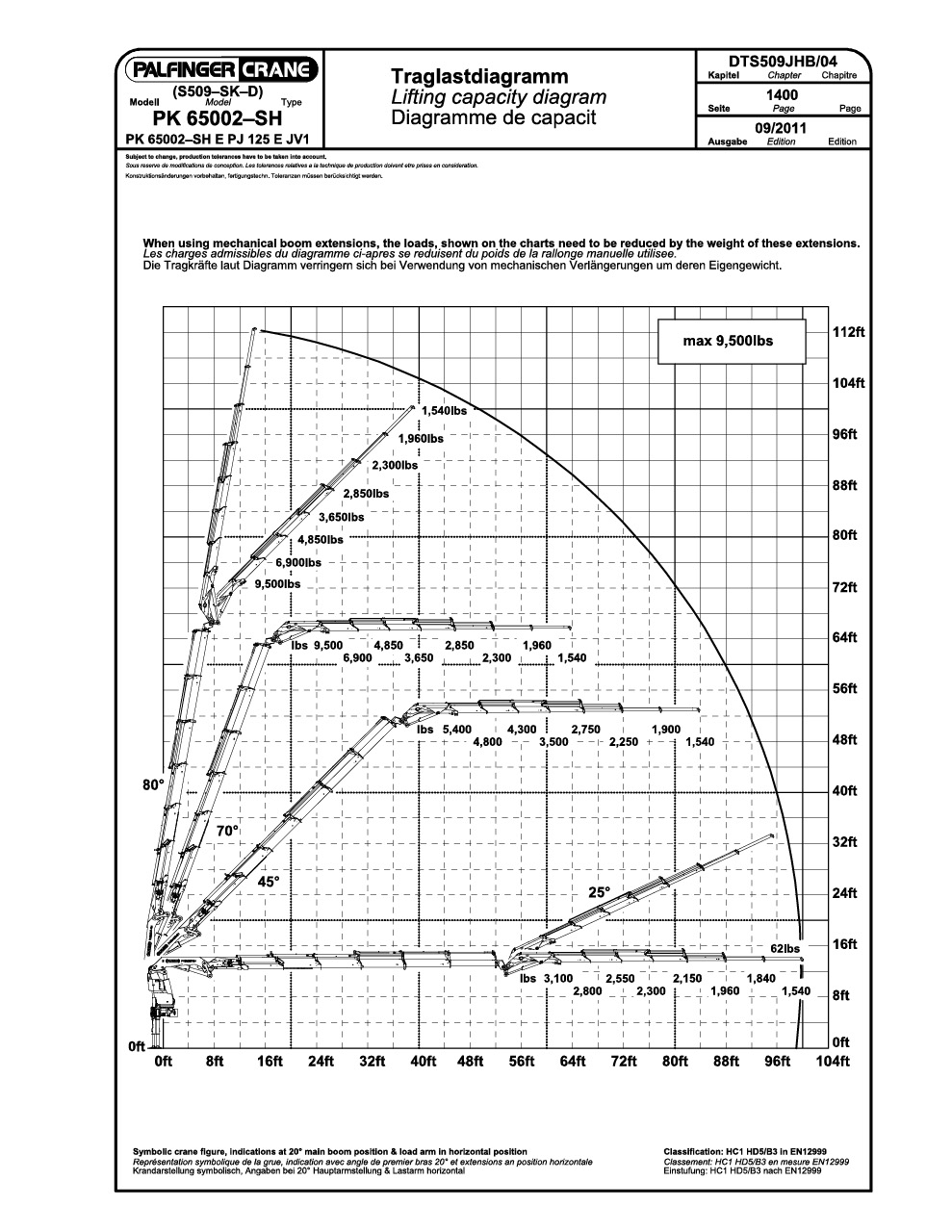

PK65002-SH E PJ125-E 65 TON/M Articulating Crane
- Rear-mounted boom to allow for maximum available crane reach

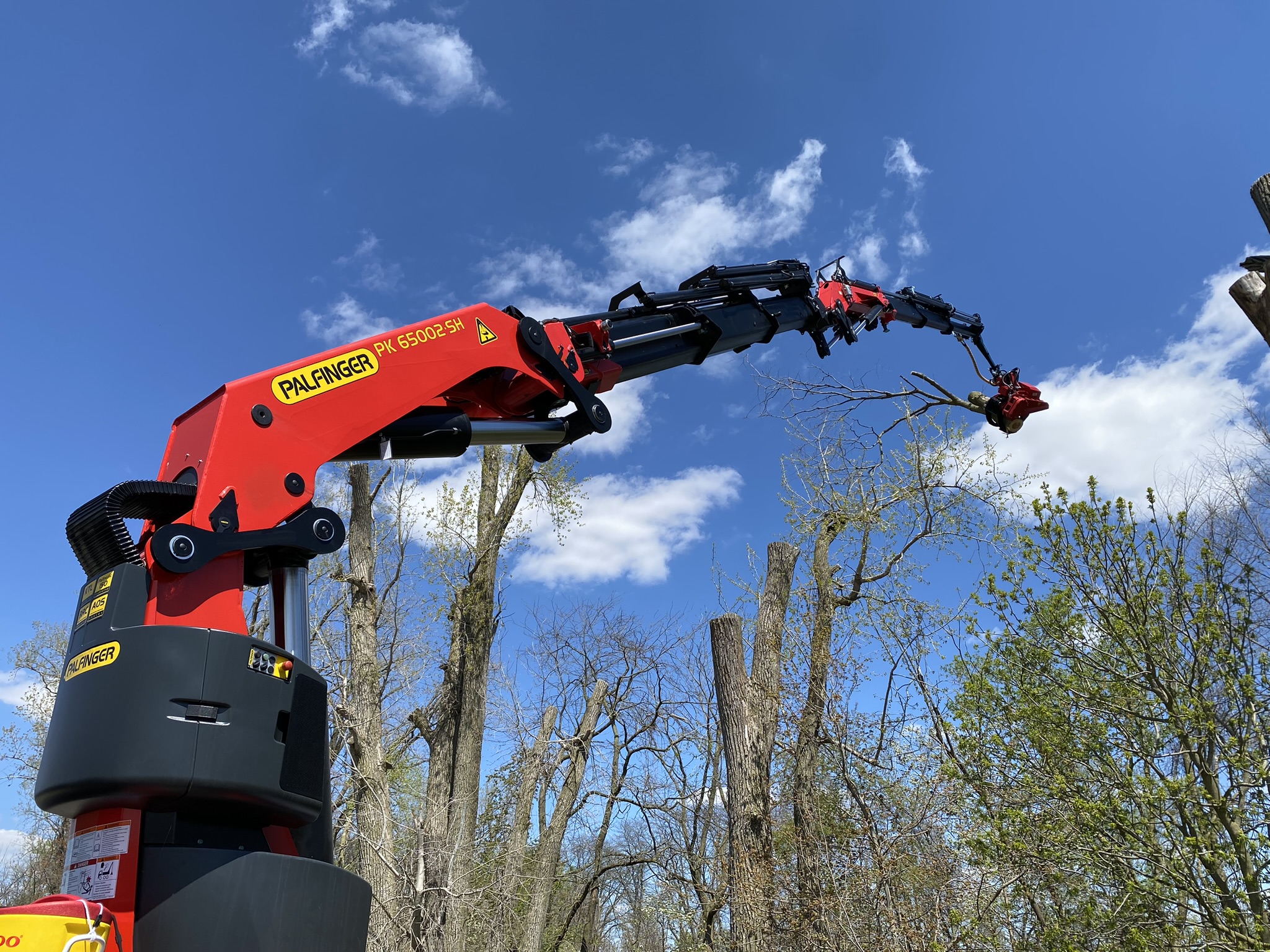

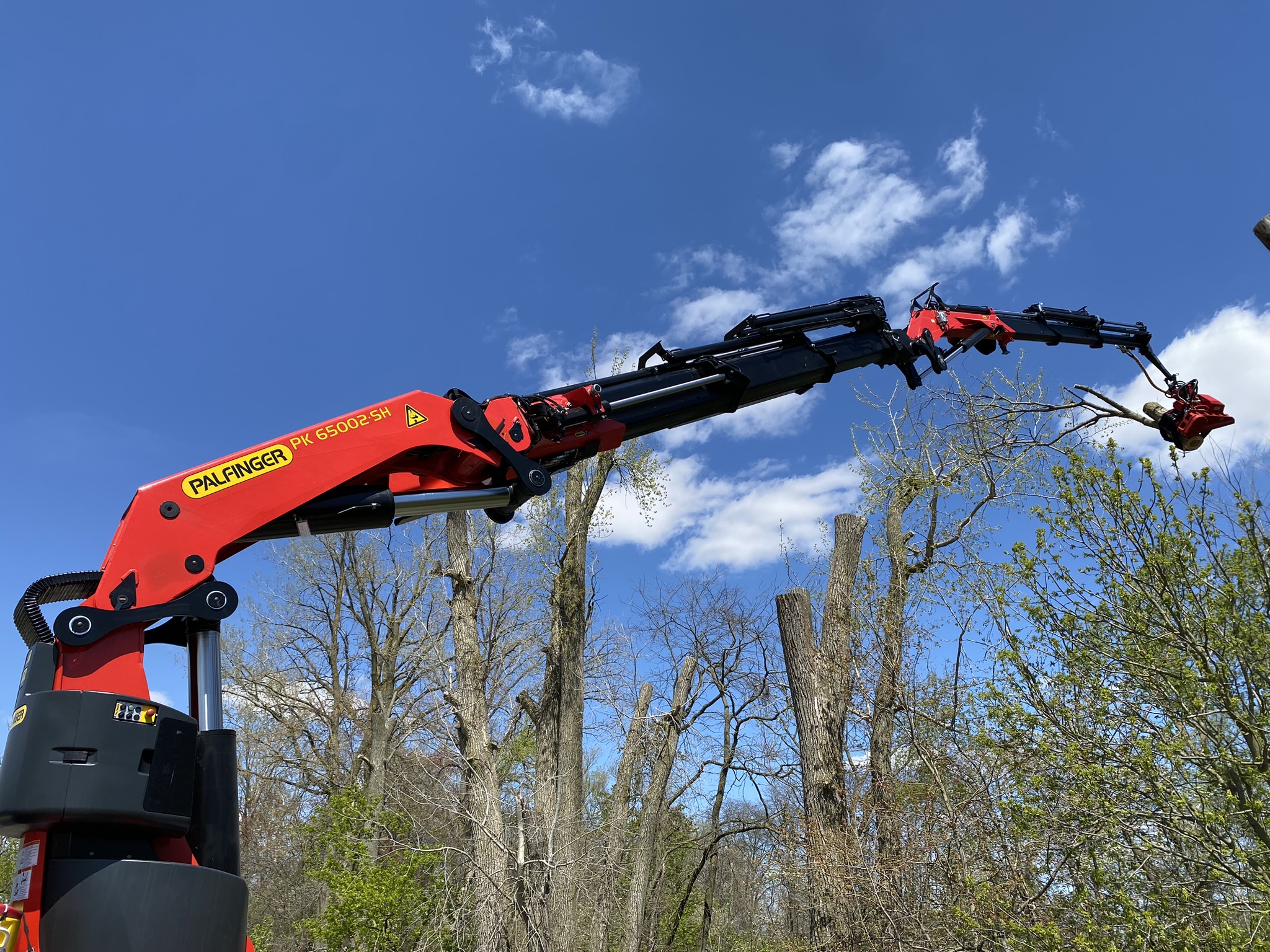

- Main boom with 6 Extensions and fly jib with 6 Extensions

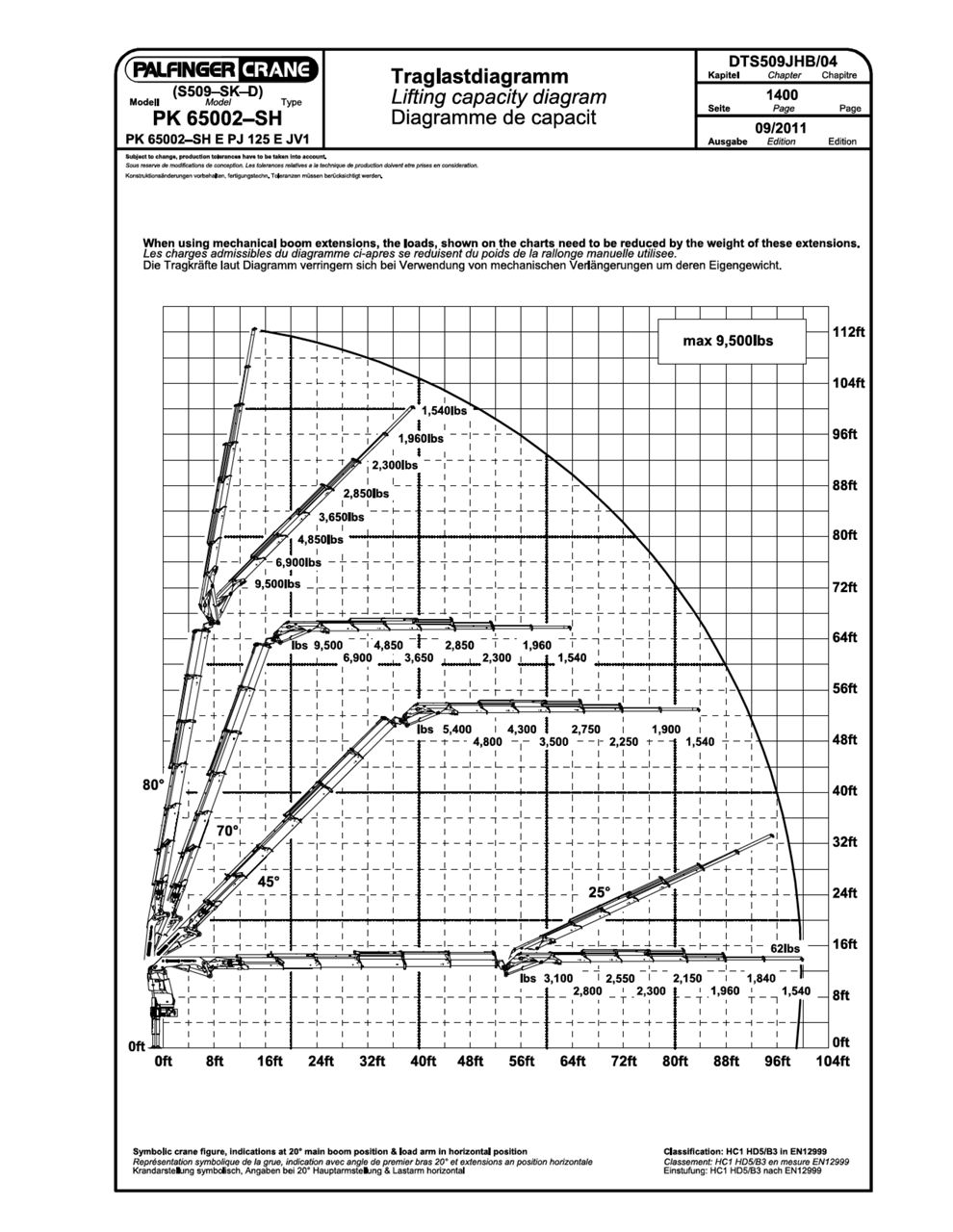

- Capacity of 2,000 lbs. at hydraulic vertical outreach of 106'
- Capacity of 1,900 lbs. at hydraulic horizontal outreach of 94'
- Active Oscillation Suppression to eliminate boom bounce
- Fully protected 105 Gallon hydraulic oil reservoir with integral heater
- Thermostatically controlled hydraulic oil cooler
- Hydraulic quick connect between the main boom and fly jib
- Eight-function Scanreco radio remote system
- 4200 Lumen boom lights on the main boom and fly jib
- Automatic tiltable jack legs on the crane and rear auxiliary stabilizers
- Five composite stabilizer pads and pad holders
- 9 Ton and 12-ton load hooks
- Manual boom section for connection of grapple saw
- Fully proportional load-sensing Danfoss control valve and hydraulic oil pump
- PAL150 Electronic overload control system
- Capacity percentage readout at stabilizer controls and remote transmitter
- Installed on High tensile welded torsion box to eliminate frame twist
- 360-degree stability tested to 120% of crane capacity
- Hydraulic plumbing via formed steel lines wherever possible
9’ X 102” Platform Body With Rumber Decking
- Rubberized, non-slip, replaceable decking material
- 40" oil reservoir and toolbox protector at the front of the deck

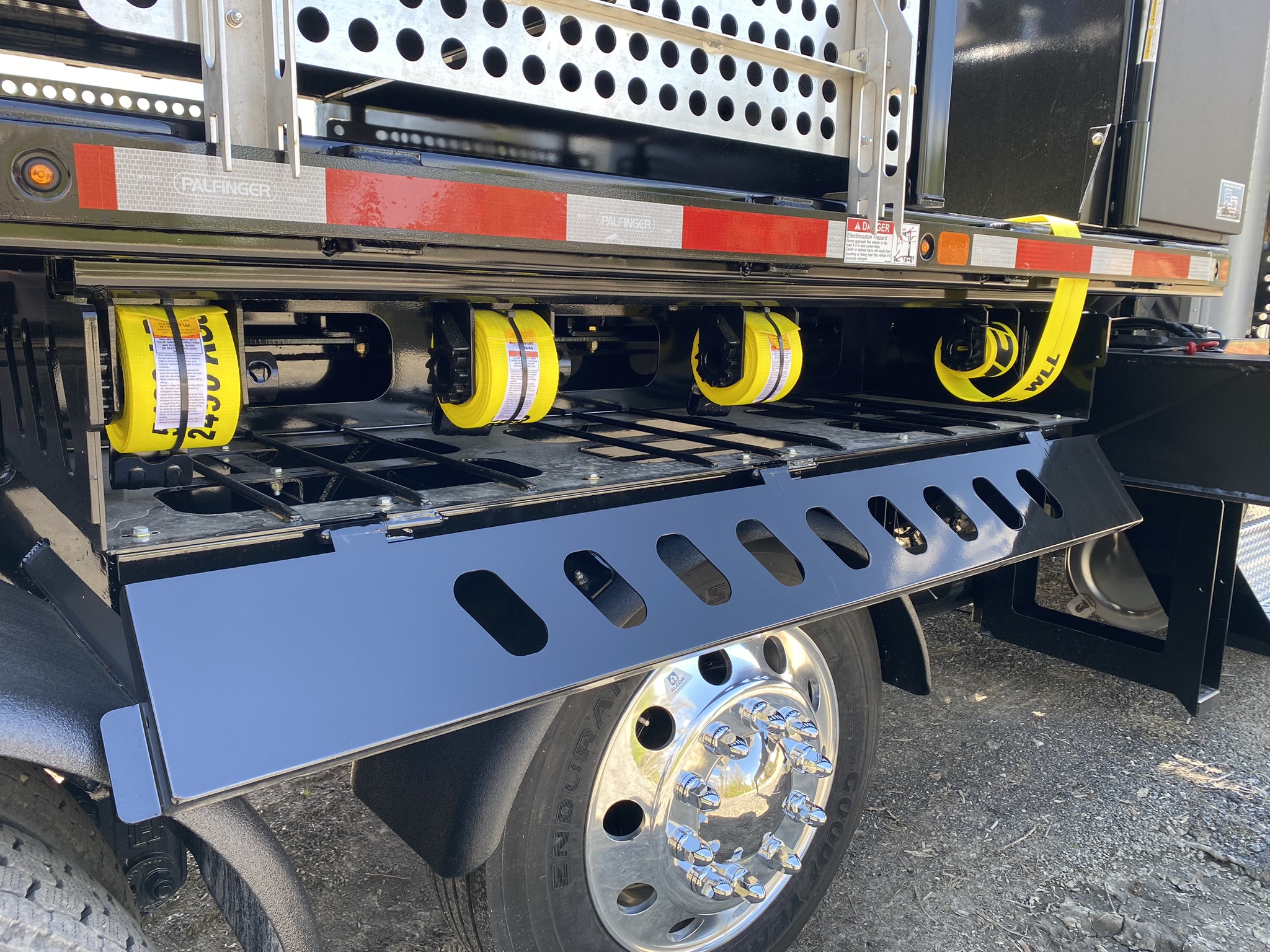

- Underbody sliding winch track and winches
- Underbody cribbing storage racks
- Mat rack installed on the bed with a moveable grapple saw mount
- Hydraulic plumbing protected under flatbed
- Flatbed is removable to access steel hydraulic plumbing
Standard Features
- Mecanil SG280 Grapple Saw with storage bracket and spare parts kit
- Rear pintle plate with pintle, d-rings, Reese receiver, backup alarm

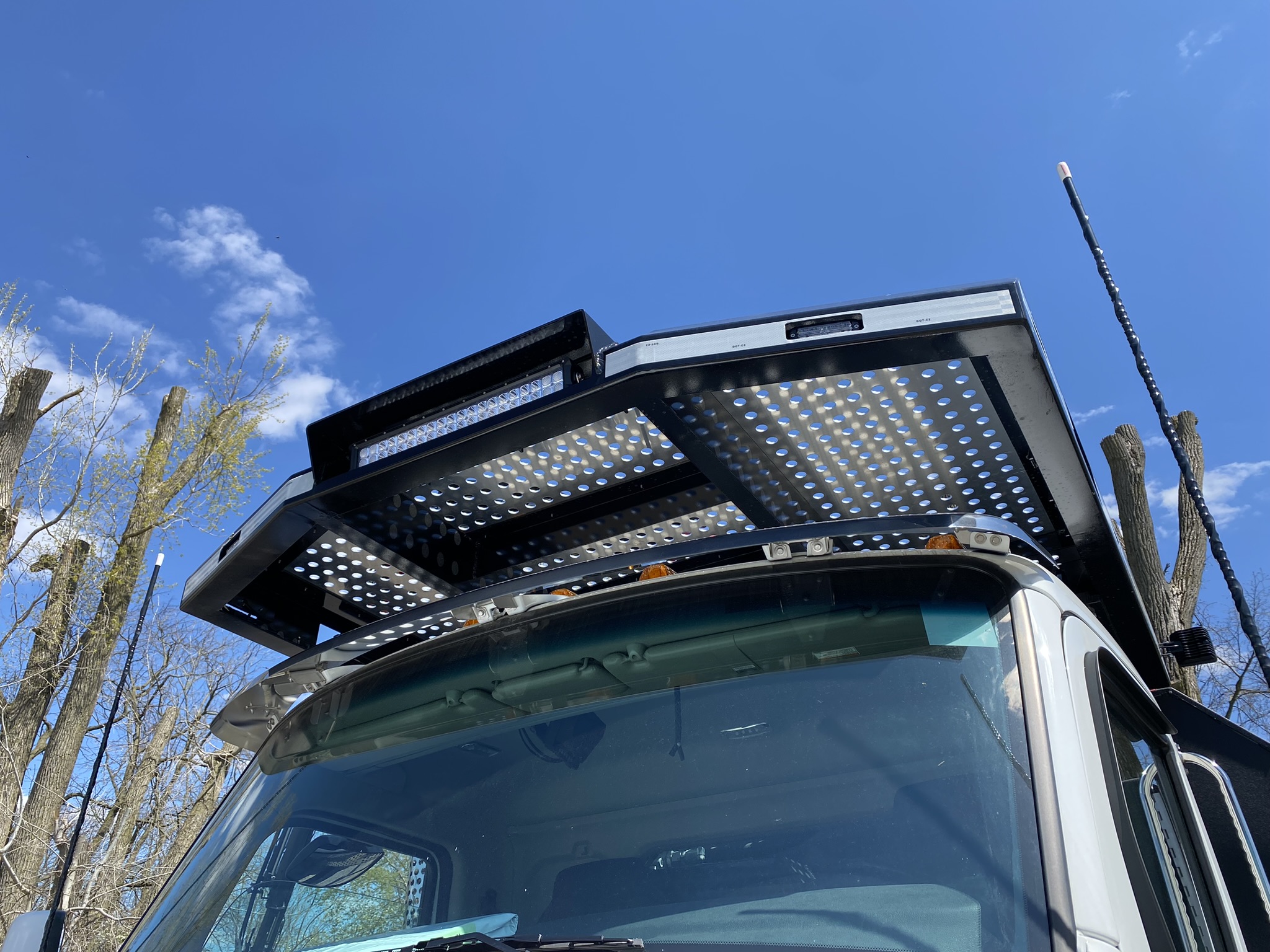

- Lighted cab protector with beacons and four light bars
- Six work lights located on the truck perimeter to light the work area
- Backup camera and LCD screen in cab with audio coms
- Air connection to chassis air supply for blowing out saws
- Eight 28" traffic cones and cone storage bracket
- Igloo water cooler and water cooler bracket
- Spare parts kit for grapple saw and crane
- Spare crane transmitter and grapple transmitter
- 1000-watt power inverter to charge grapple batteries
- Sauber Galvanized wheel chocks and chock holders
- In-cab remote control storage bracket
- Winch binder bar

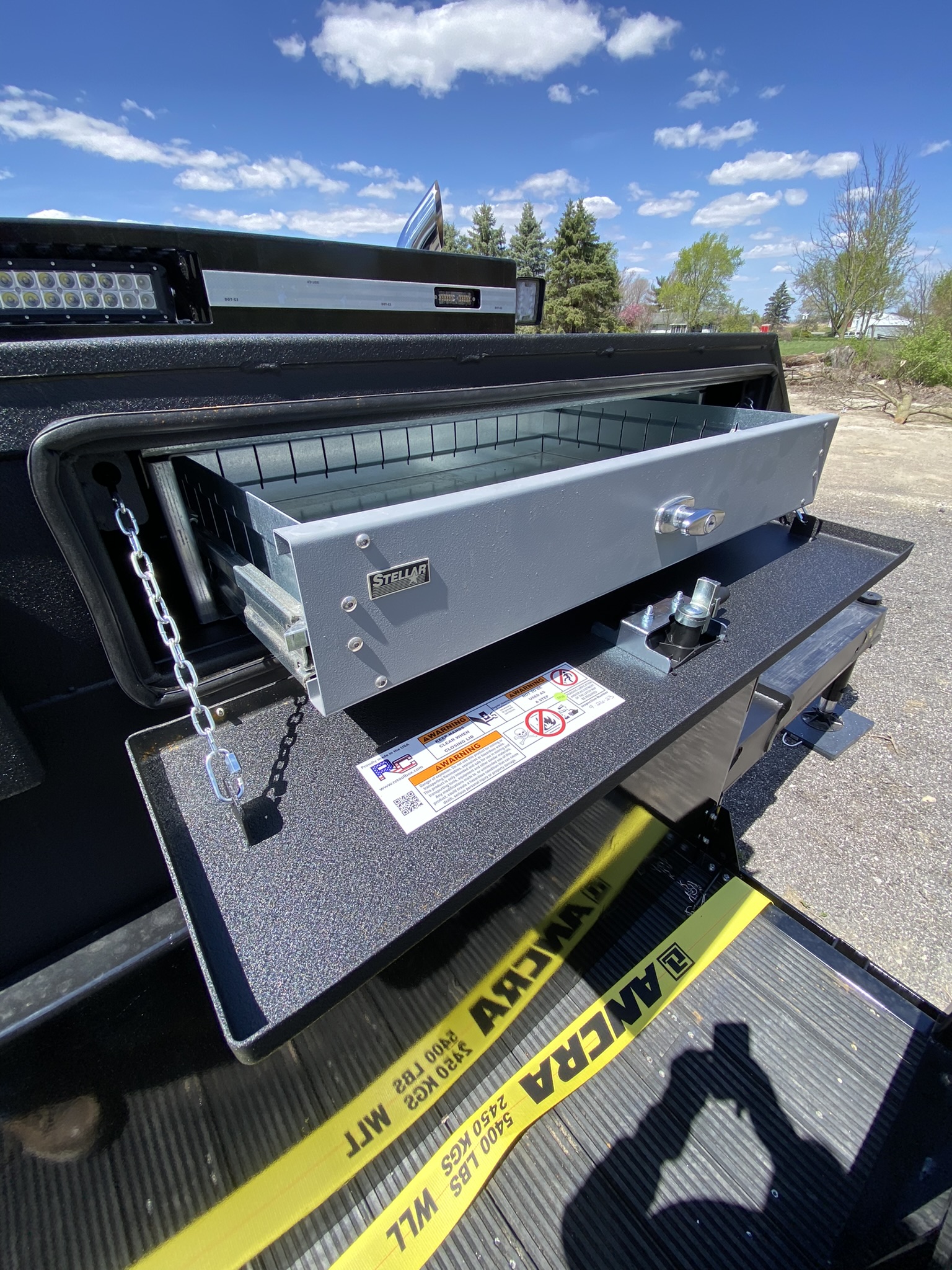

- Custom 24" x 52" x 96" pass-through toolbox with slide-out drawers

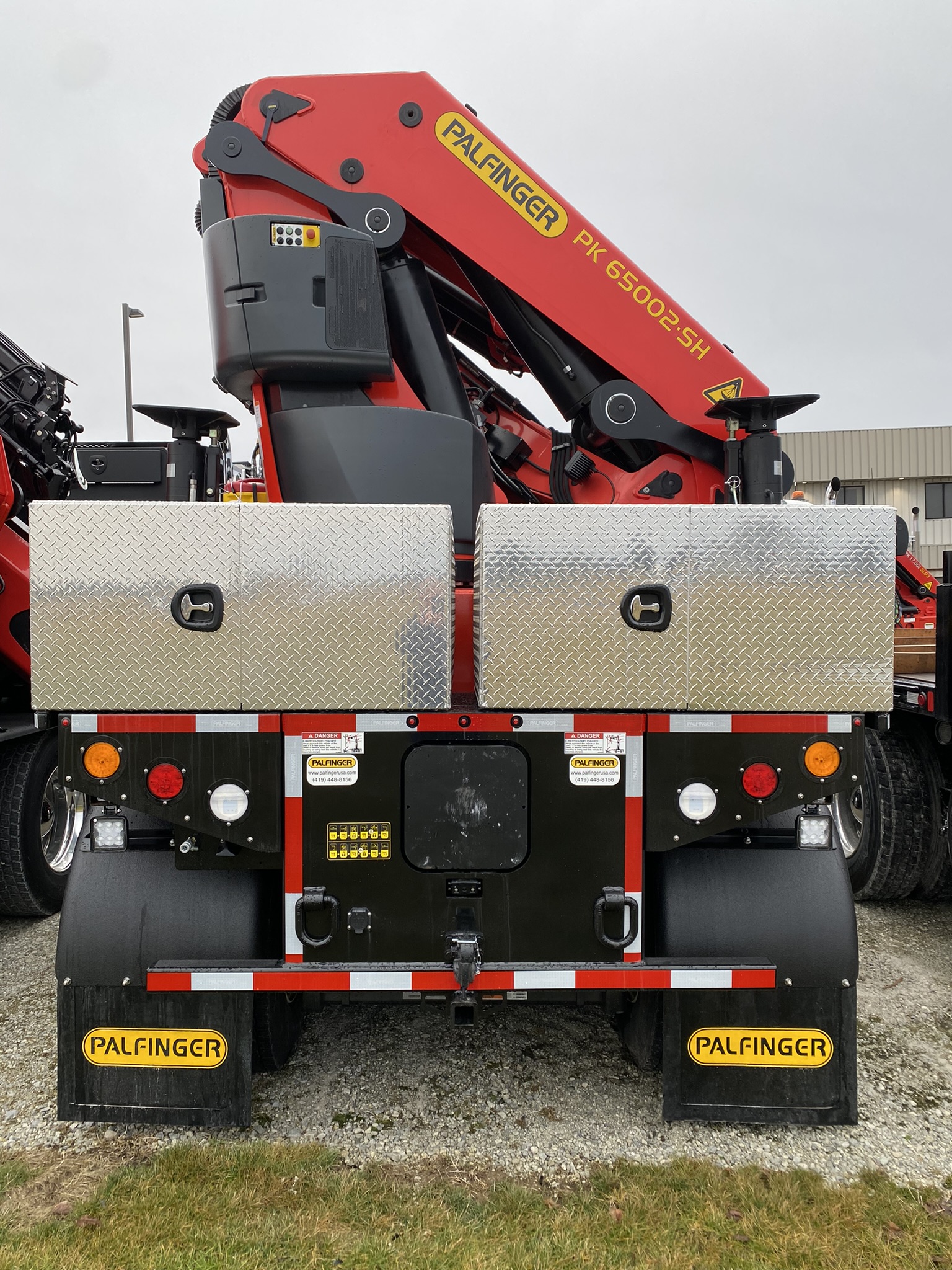

- Two - 24" x 24" x 48" aluminum toolboxes
- Aluminum axle fenders sprayed with Line-X protective coating
- Nikon Forestry Pro laser rangefinder
- Complete chassis DOT inspection
- OSHA required first annual crane inspection
Kenworth T880 Four-Axle 79,500 LB. GVW Chassis
- Cummins ISX15 565 Horsepower Diesel Engine with 1,850 ft/lb. torque
- Jacobs-style engine brake
- Allison 4500 fully automatic transmission
- 20,000 lb. axle, suspension, steering gears, tires and brakes
- 46,000 lb. air-ride drive axles with full-locking differential
- 13,500 lb. capacity self-steering air-lift axle
- Alcoa Dura-Bright aluminum wheels
- Double frame rail to meet crane RBM requirement
- 90-gallon fuel tank
- Chrome bumper, cab visor, exhaust
- Aluminum DPF cover and fuel tank/steps
