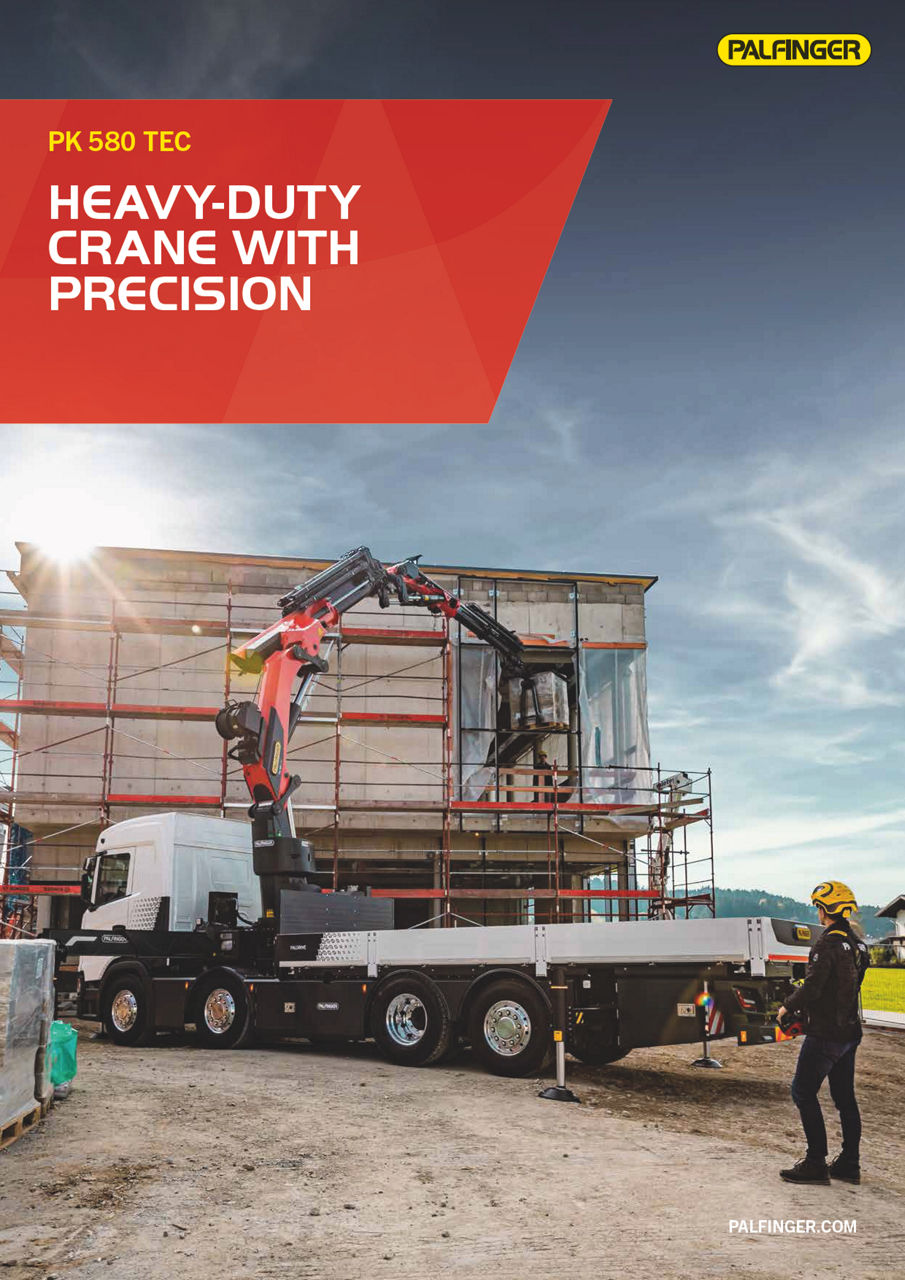

PK 580 TEC

HYDRAULICS & TECHNICS

• 7 hydraulic boom extensions
• High-speed boom extension system with return oil recovery
• Swivel range endless
• Hydraulic support leg extension (max.support width 7.800 mm)
• Support legs can be swiveled hydraulically through 180°
• Additional hydraulic support (support width ca. 5.200 mm)
• Hose equipment for two additional devices including quick coupling (multi-faster)
• 2,5 to cable winch on the main arm (hydr. foldable)
• Rope length: 90m

ASSISTANCE SYSTEMS

• Paltronic 180
• HPSC + LOAD
• Remote controlled stabilizers
• CPS (cabin protection)
• FPS (Frame Protection System)
• P-FOLD (Folding Assistant)
• AOS (Active Oscillation Suppression)
• SRC (Synchronised Rope Control)
• RTC (Rope Tension Control)


EQUIPMENT

• Palcom P6 radio remote control /8 functions with linear levers
• LED working lights on crane and fly-jib
• 11,5 to load hook
• 2-stranded rope equipment on the crane
• Painting RAL3020
• hydraulic oil tank 300 l

• 6 hydraulic extensions (E)
• High-speed extension system with return oil recovery
• Hydr. tiltable upwards by 25°
• MFA-L - Multifunctional adapter
• 1-stranded rope equipment for the PJ 150
• incl. premium working light
• Hose equipment for two additional devices including quick coupling (multi-faster)

• Platform inner dimensions: 6.300 mm x 2.480 mm
• Front wall: height 1.900 mm
• Side- and rearwalls height: 400 mm
• Platform floor 27 mm plywood, impregnated and sealed
• Various lashing options on the platform floor
• Loading height: 1.180 mm
• 2 pair of Container locks, extendable to 3,0 m width
• 6 working lights
• 2 reversing lights
• Rear view camera
• Two-part telescopic ladder
• Trailer coupling: ROCKINGER Typ 400 G 150A
• 2 wheel chocks

• Engine: 520 HP, torque max. 2.650 Nm
• Gearbox: MAN TipMatic 12.28 OD + MAN pritarder
• Axle distance: 1.795mm / 3.505 mm / 1.350mm
• leaf suspension on front axles / air suspension on rear axles
• Fuel tank 390 l / AD-Blue 35l
• Tires 1st, 2nd & 4th axle: 385/65R22.5
• Tires driven axle: 315/80 R22.5
• Rims on all axles: Alcoa Durabright EVO, aluminium
• Cabin colour: RAL 9016 traffic white
• Cabin type: TM
• auxiliary heating: 4 kW
• Multifunctional steering wheel
• MAN Mediasystem Professional Navigation 12,3"
• GSR II options included
