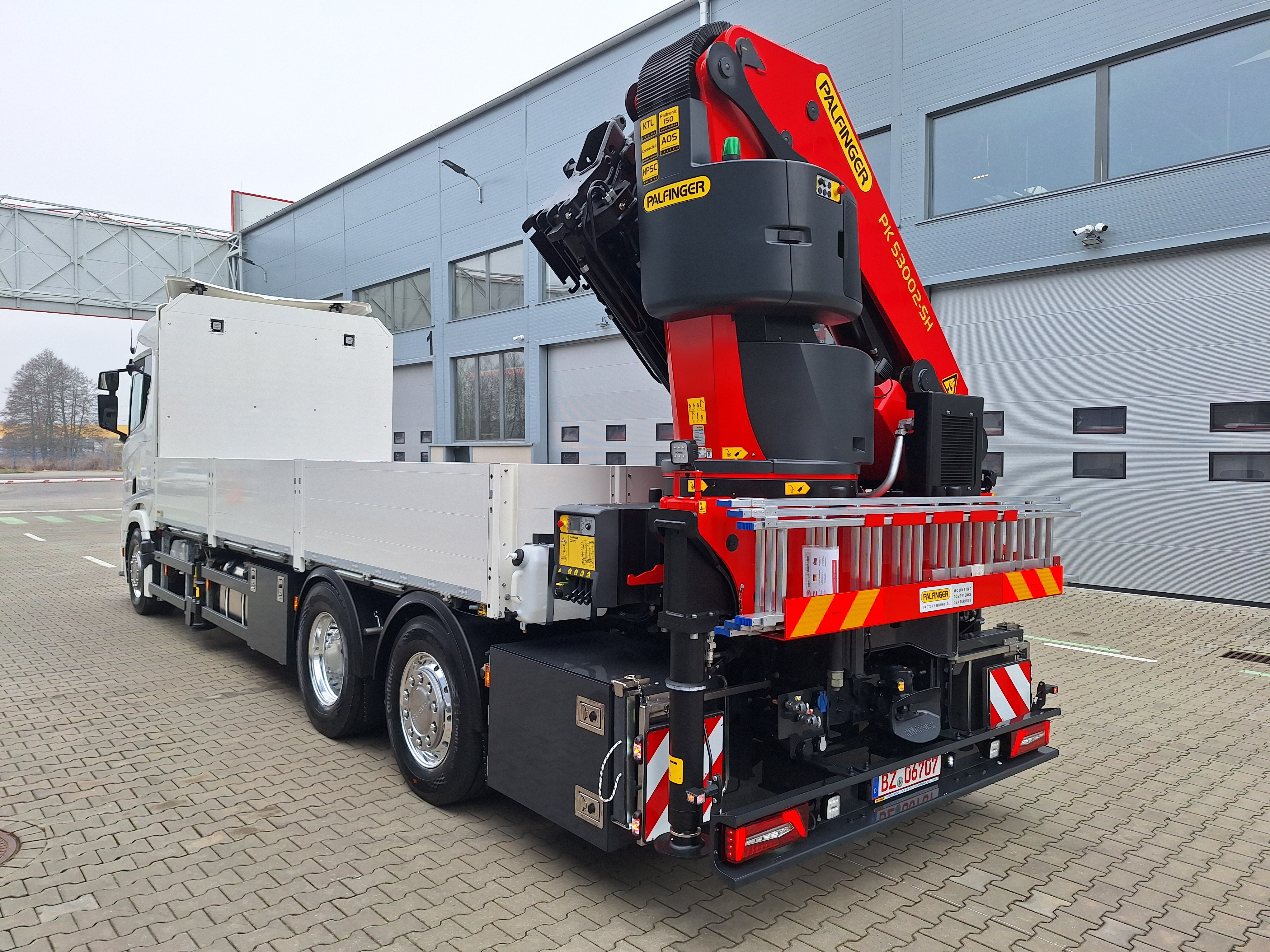

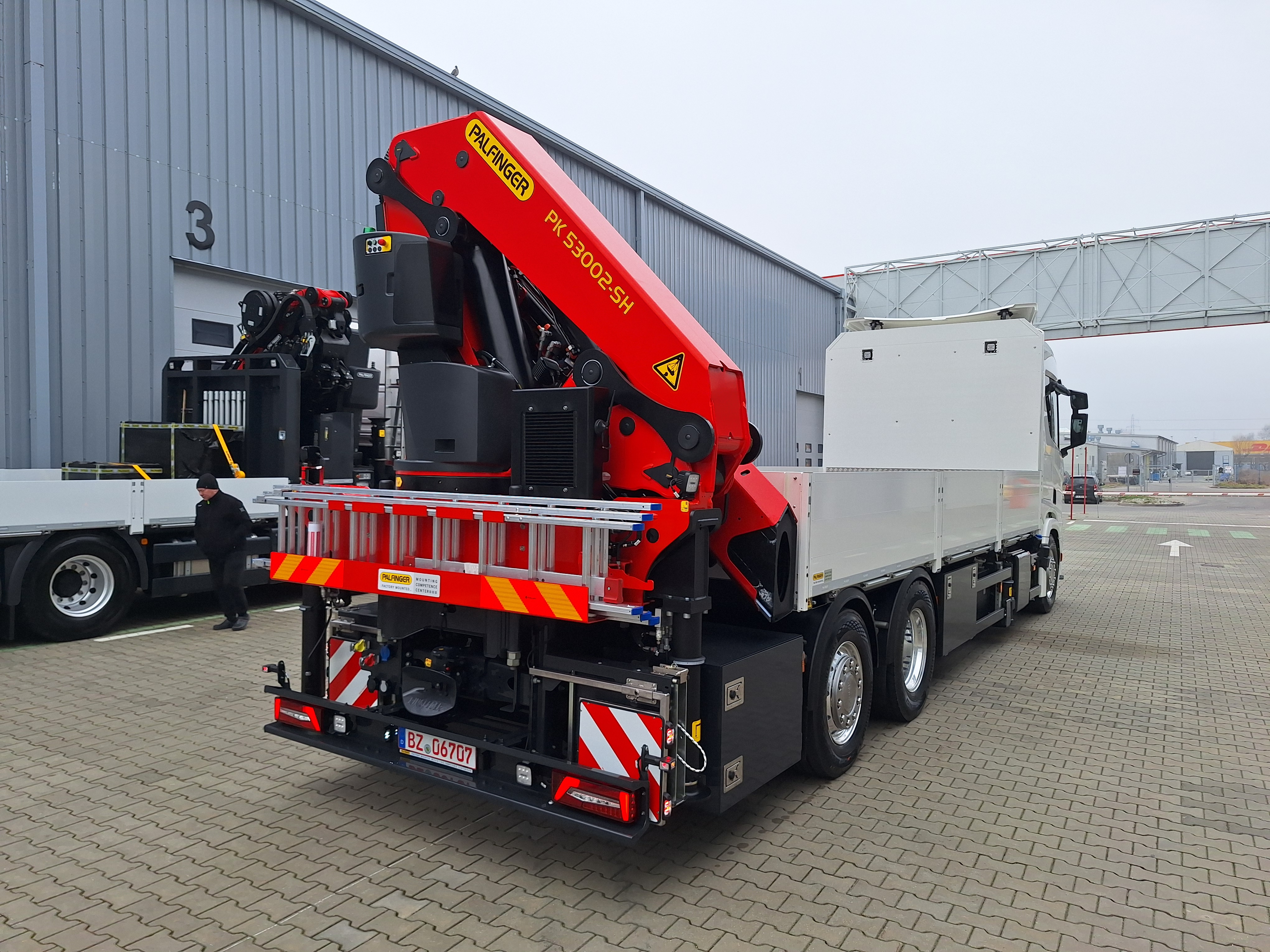

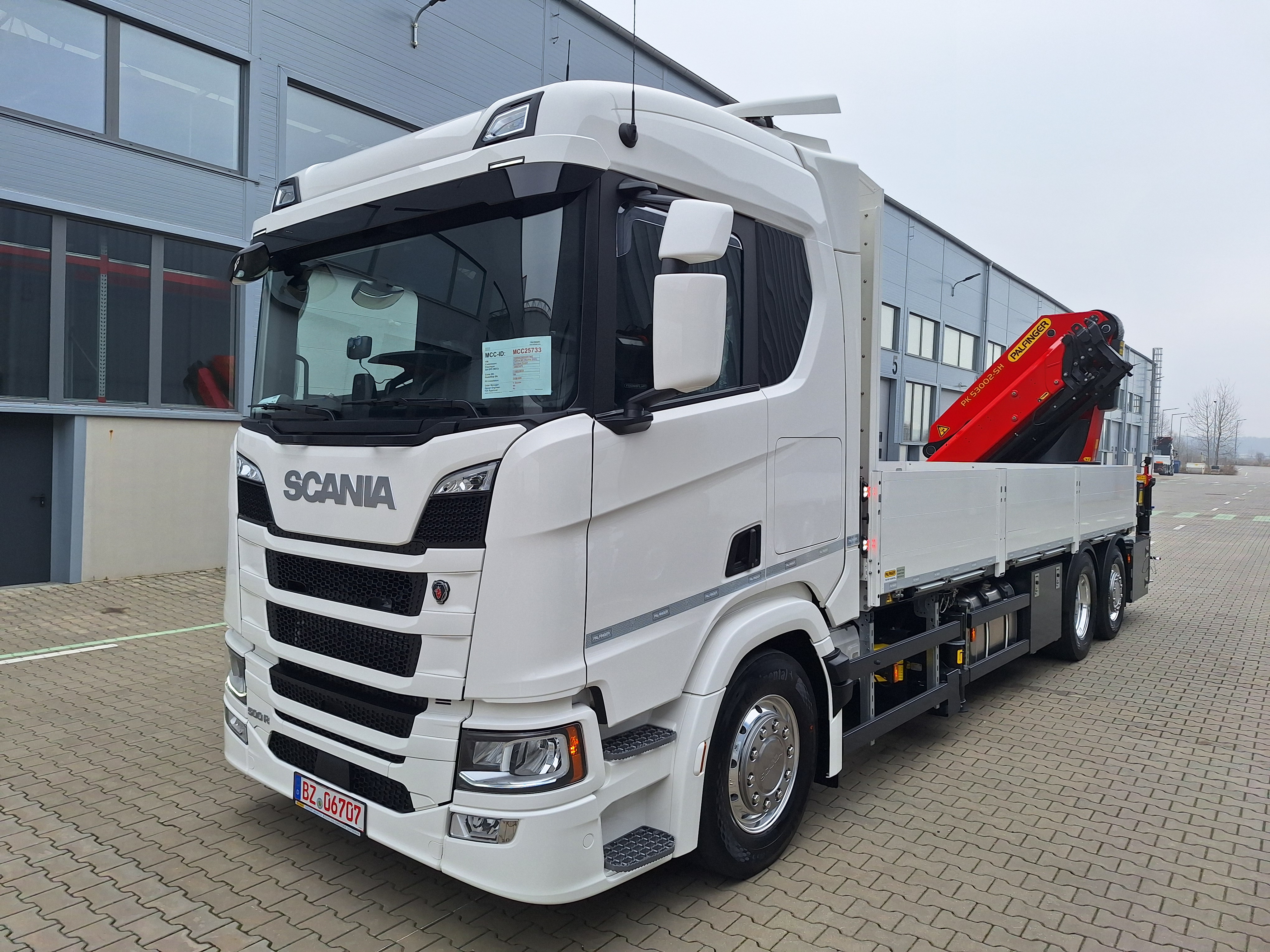

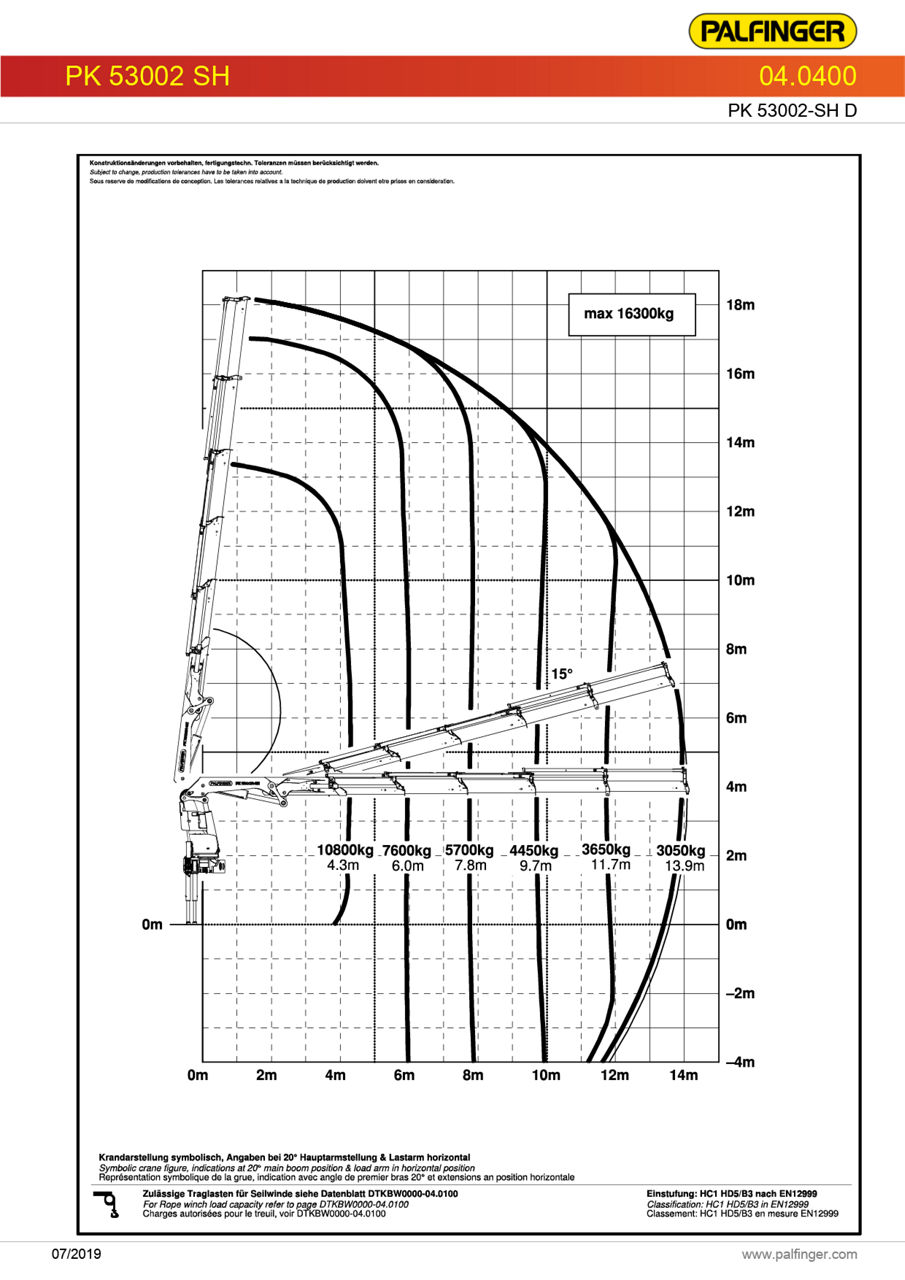

PK 53002 SH

HYDRAULICS & TECHNICS

• 5 hydraulic boom extensions
• High-speed boom extension system with return oil recovery
• Swivel range endless
• Hydraulic support leg extension (max.support width 7.800 mm)
• Additional stabilizers (max. support width ca. 5.900 mm)

ASSISTANCE SYSTEMS

• Paltronic 150
• HPSC + LOAD
• AOS (Active Oscillation Suppression)
• BRA (boom release assist)

EQUIPMENT

• Palcom P7 RRC / 2-2 cross levers
• working light on crane
• 11,5 to load hook
• Painting RAL3020
• hydraulic oil tank 300 l

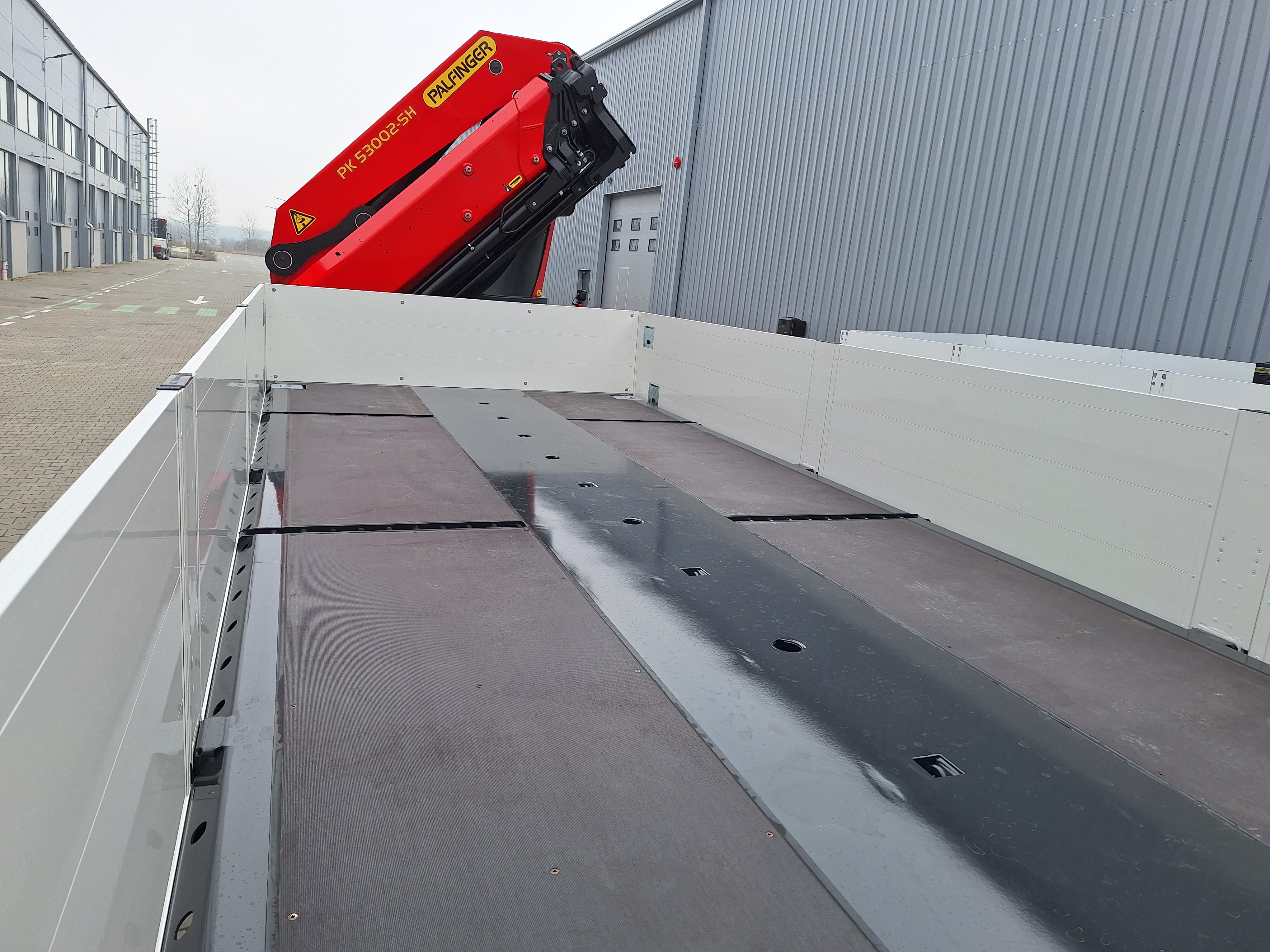

• Palfinger MCC low built platform
• Platform inner dimensions: 6.350 mm x 2.480 mm

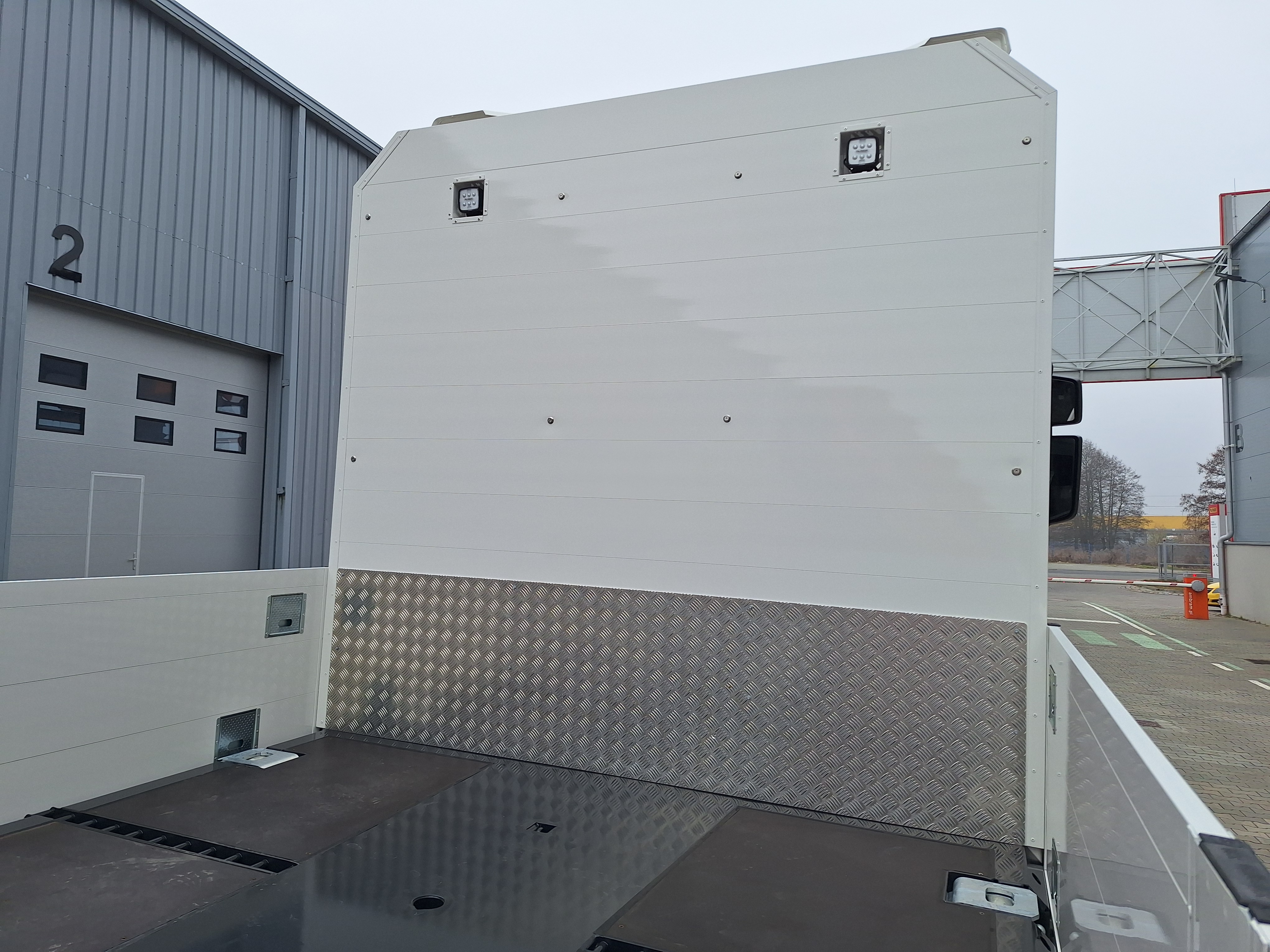

• Front wall: height 2.300 mm
• Side- and rearwalls height: 600 mm
• Platform floor 27 mm plywood, impregnated and sealed
• Various lashing options at the platform floor
• Loading height: 1.080 mm
• 2 pair of Container locks, extendable to 3 m width
• 4 working lights
• 4 reversing lights
• Rear view camera
• Trailer coupling: ROCKINGER Typ 400 G 150A
• 2 wheel chocks

• Engine power: 500 Hp, torque max. 2.650 Nm
• Gearbox: G33CM + Opticruise + retarder
• Axle distance: 5.350mm + 1.350mm
• air suspension on all axles
• Fuel tank 470l / AD-Blue 80l
• Tires 1st & 3rd axle: 385/55 R22.5
• Tires driven axle: 315/70 R22.5
• Rims on all axles: aluminium Alcoa Durabright

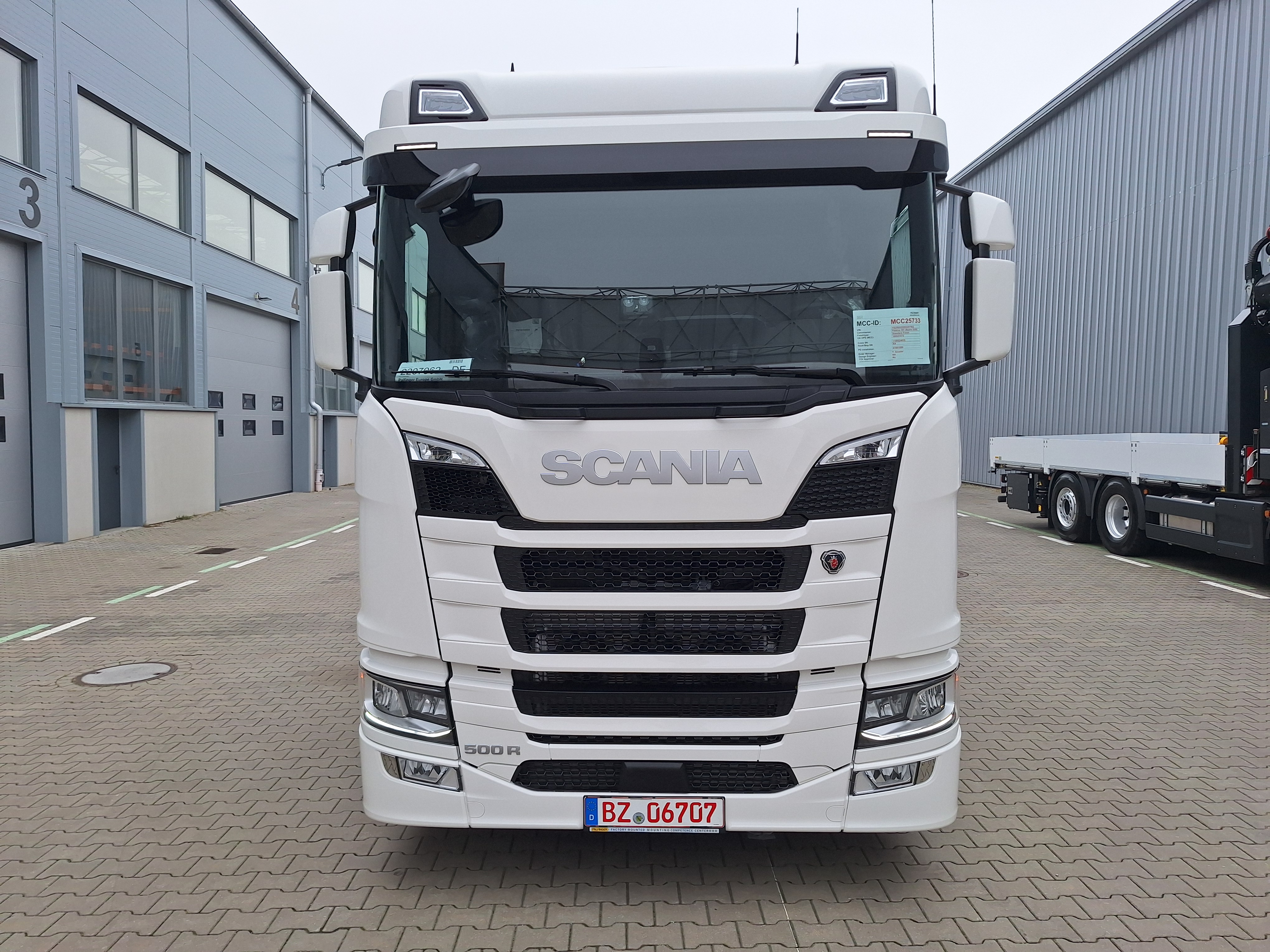

• Cabin colour: Scania Ivory White / chassis colour: Scania Sub Grey
• Cabin type: CR20N
• Premium Cabin interior
• auxiliary heating: 3kW
• Multifunctional steering wheel
• Infotainment system equipped with 10.1-inch colour display
