up to 20,000 ft lbs

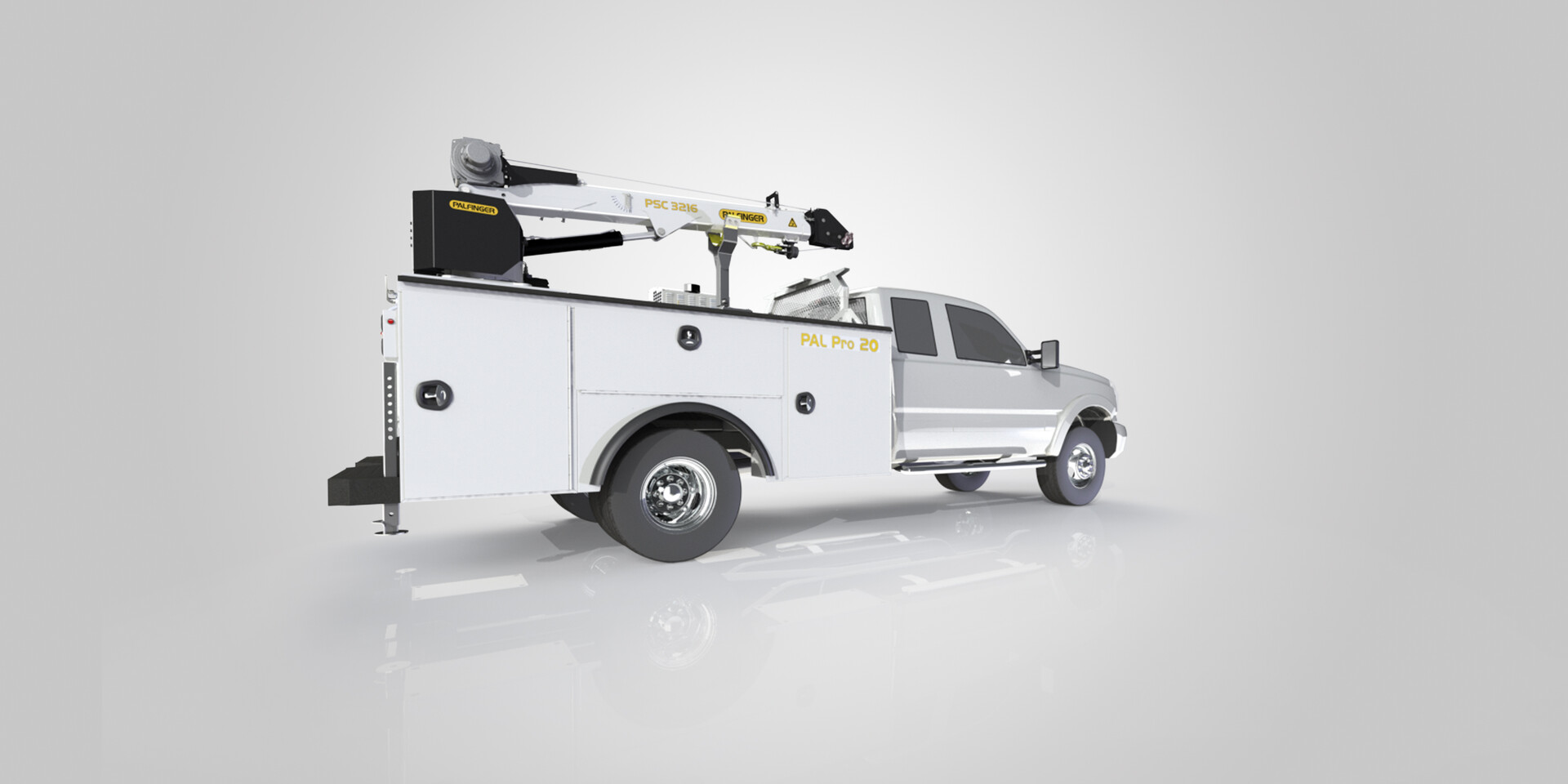

PAL Pro 20
The Ultimate Rust Protection
The PAL Pro 20 mechanics body is designed to hold up against the toughest job site conditions. A 12-step epoxy electrocoat (E-Coat) process provides the best anti-corrosion protection available for steel bodies and cranes, and is backed by our 6-year rust-thru guarantee.
Work Ready PAL Pro 20 Packages
PAL Pro 20 mechanics trucks, equipped with PALFINGER service cranes, compressors, and many available options and accessories, are a reliable solution to get your team up and running quickly, while providing your customers with the best service experience possible.
$1,000 Rebate on qualifying PAL Pro 20 Mechanics Truck Packages*
Managing a fleet? Need a Work Ready Truck immediately? We’ve got a truck and crane package for you! Engineered to handle the most demanding mobile service applications, our PAL Pro 20 Mechanics Trucks make a powerful addition to your fleet.
Designed For Crane Use

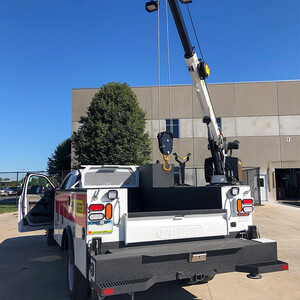

The PAL Pro 20 body features a 20,000 ft/lb crane reinforcement for PALFINGER PSC 3216, 4016, and 4025 service cranes and is reinforced throughout to effectively manage crane forces, while preventing flexing and cracking.
Reinforced For Top Mounted Accessories
Unlike normal service bodies, the PAL Pro 20 features reinforced compartment tops to prevent fatigue from top-mounted accessories. All raised compartments have structural gussets to prevent cracking, and accessory weldments are available to provide secure mounts for welders, compressors, and more.
Weight Optimized Understructure
The PAL Pro 20's understructure is designed to reduce weight, while providing the structure necessary for off-road driving and crane use. The body can be mounted on a dual wheel chassis with a GVWR as low as 10,001 lbs, providing excellent flexibility for a wide range of applications.
Body Strength Where Its Needed
The PAL Pro 20's body panel thickness has been designed to maximize payload and increase strength in high stress areas. Using a combination of 12 and 14 gauge A60 galvanneal steel, the body finds that sweet spot between weight savings, and strength.
Double Panel Doors Designed To Last
The PAL Pro 20's steel double panel doors provide rigid performance with internal C-channel stiffeners adhered with structural adhesive. Every PAL Pro 20 comes standard with gas door shocks, providing smooth opening and closing with excellent reliability.
Rugged Hinges and Latches
PALFINGER's full-length 316 marine grade stainless steel hinges are adjustable and removable, ensuring reliable performance and easy door replacement. The standard 3-point latching door handles help secure tools better than typical service body paddle latches.
Multiple Bumper Options To Meet Your Needs
Step Bumpers: 10” or 17” tread plate step bumper with recess for receiver hitch and reinforcements for outriggers or drop-down stabilizers.
Workbench Bumpers: 12", 20”, or 21" workbench bumpers provide a work surface and housing for outriggers. The 21" workbench bumper adds a thru-compartment and both the 12" and 21" feature grip strut steps.
Integrated Hitch Receivers
All PAL Pro 20 bumpers come standard with a 2" receiver tube hitch rated to 16,000 lbs towing capacity.
The Complete Package For Mobile Mechanics
PAL PRO 20 BODY
- 9' and 11' standard configurations.
- Raised curbside and streetside compartment options.
- Cranes up to 20,000 ft. lbs. of lifting capacity.
- Applicable models: PSC 3216, PSC 4016, & PSC 4025.
