Mechanics Truck Package

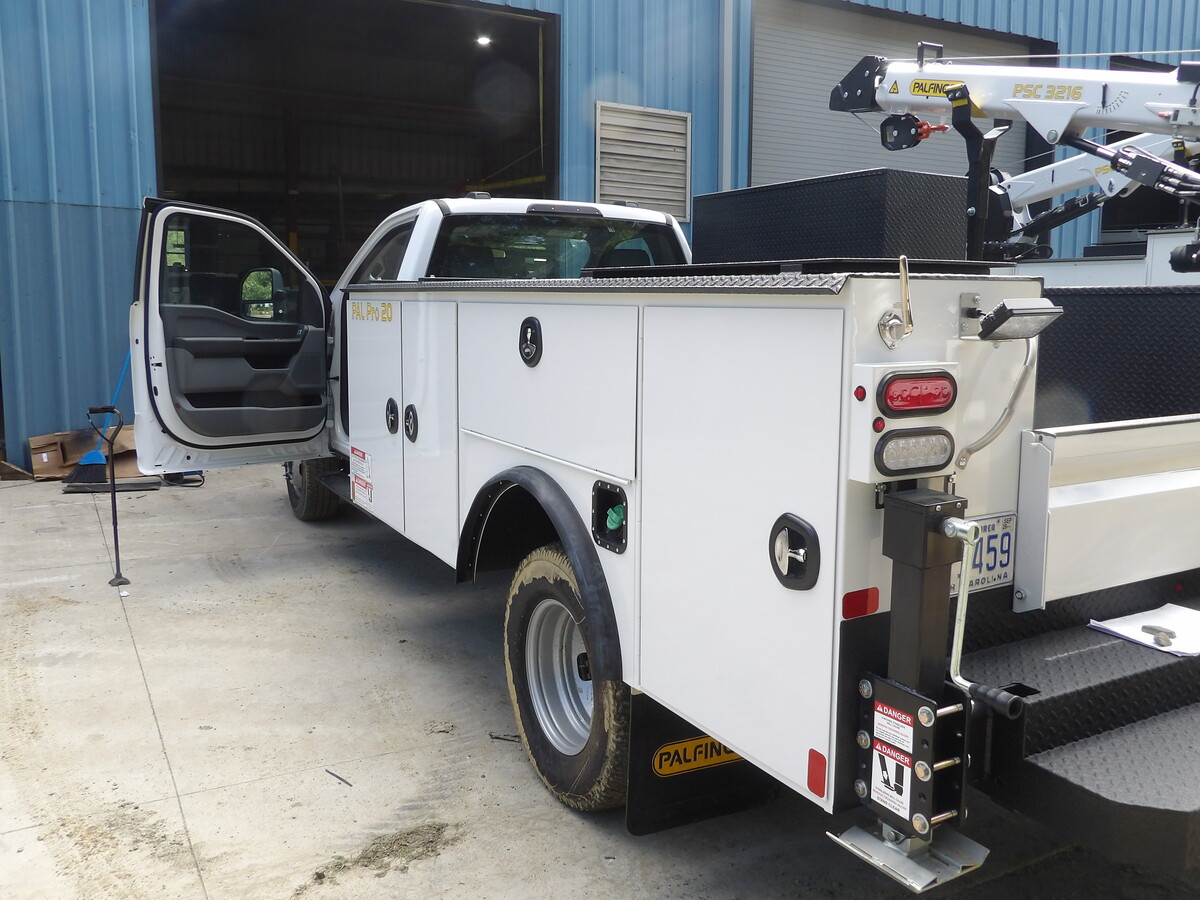

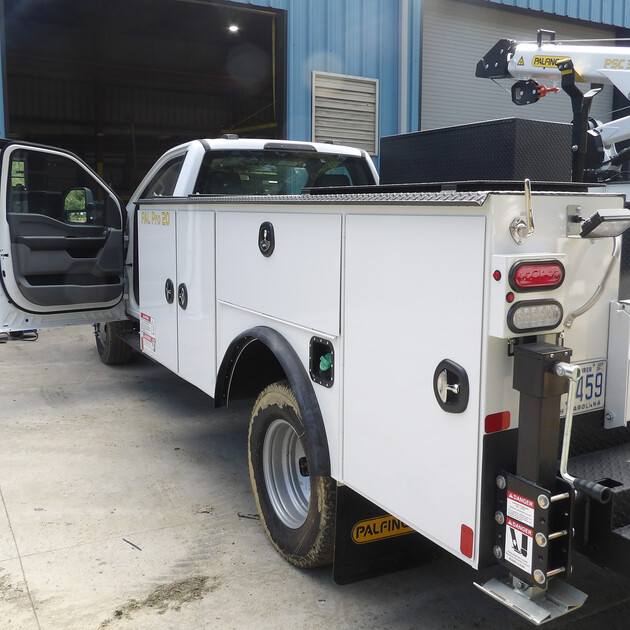

PALFINGER model PCB20-11CS Crane body and crane as follows:

-11' long heavy duty galvannealed steel body -Master Locking System

-Gas shock door retainers on all vertically hinged doors

-(8) Recessed cargo tie down rings

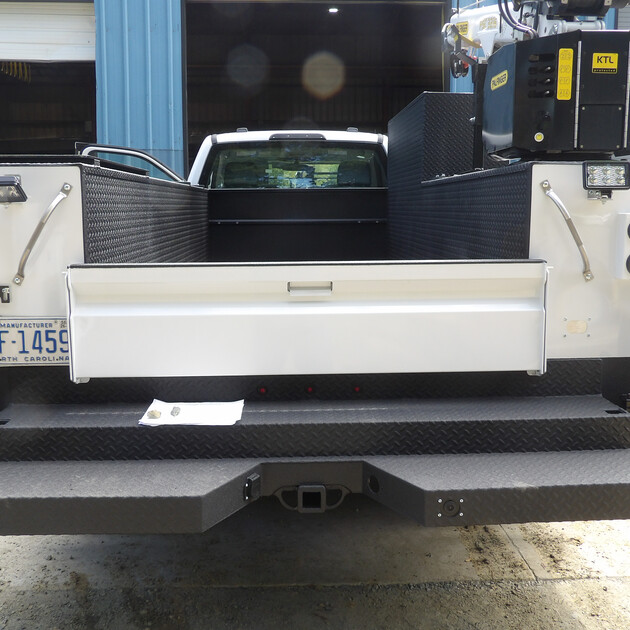

-(2) Grab handles on rear of body -14" double panel slam type tailgate -21" Workbench tail shelf, through compartment, ¼” top plate work surface and outrigger cross tube, recessed for integral receiver tube

-Electronic back-up alarm

-40"sidepack height x 20” deep with CS front raised to 60”

-Sealed automotive style wiring harness with easy access power distribution panel

-FMVSS 108 LED light and reflector kit

-LED Strip lighting in all compartments

-(2) Work lights on rear of body with wiring harness for up to an additional (4) work lights

-Entire body E-coat primed -Compartment interiors coated with Zolatone AIM White coating and inside of doors painted to match exterior color

-Understructure and bottom are undercoated

Shelving arrangement as follows:

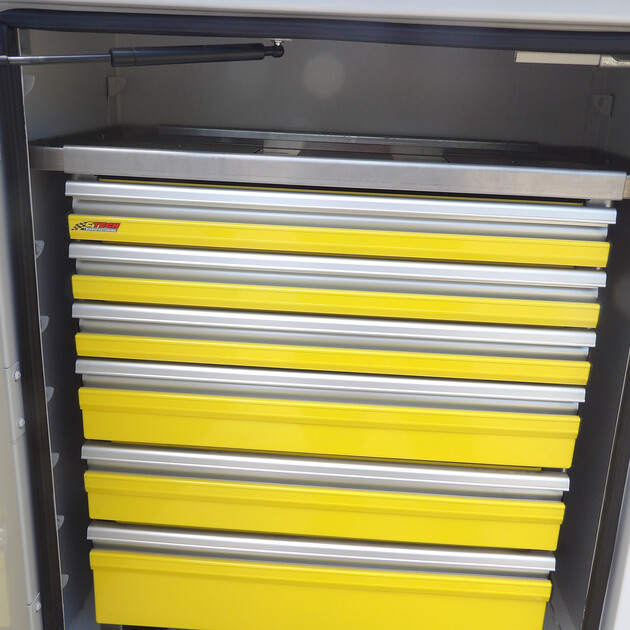

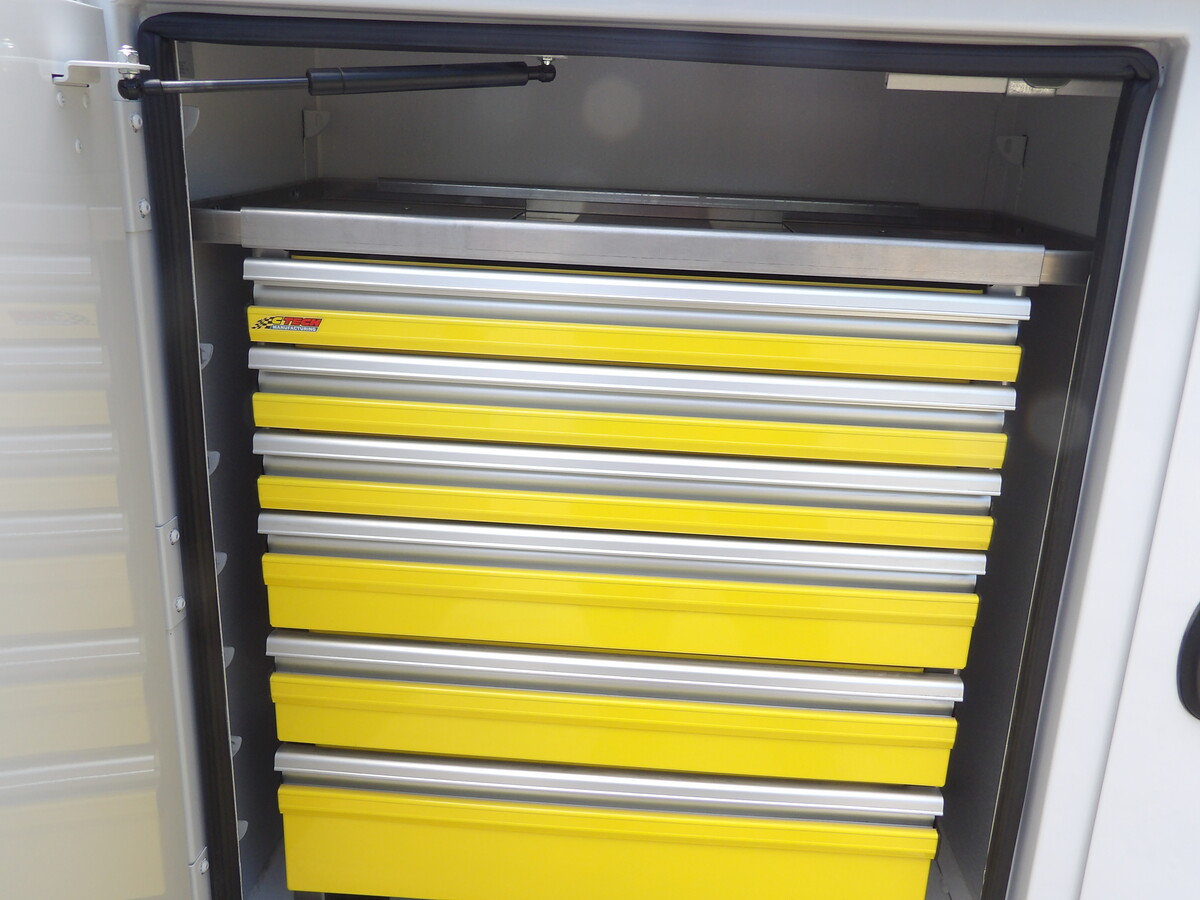

-Streetside front vertical compartment- C-Tech Aero yellow drawer unit (PUSA5020241)

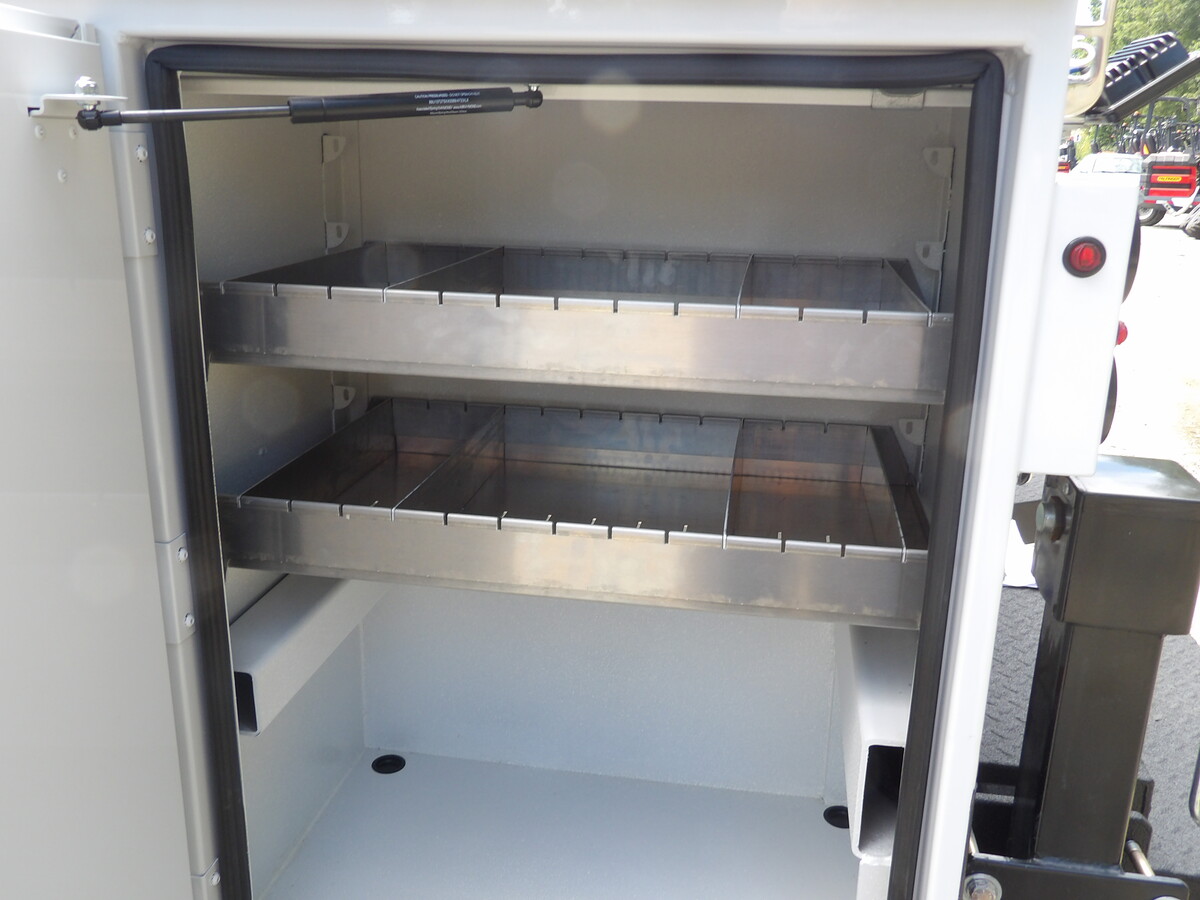

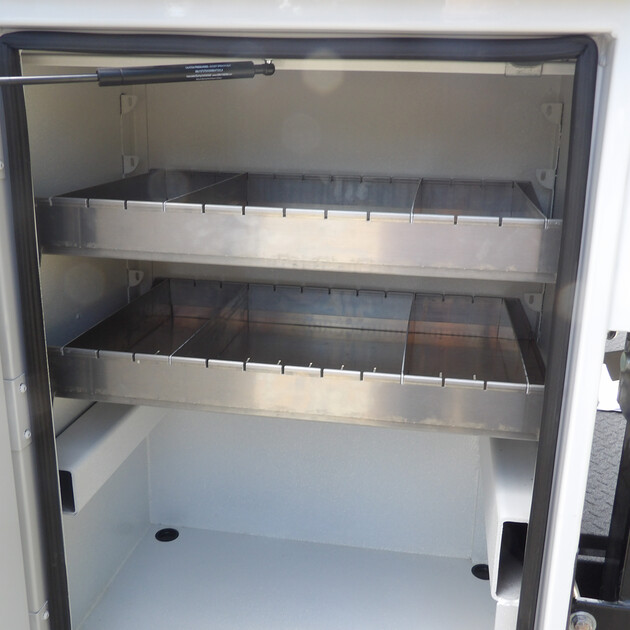

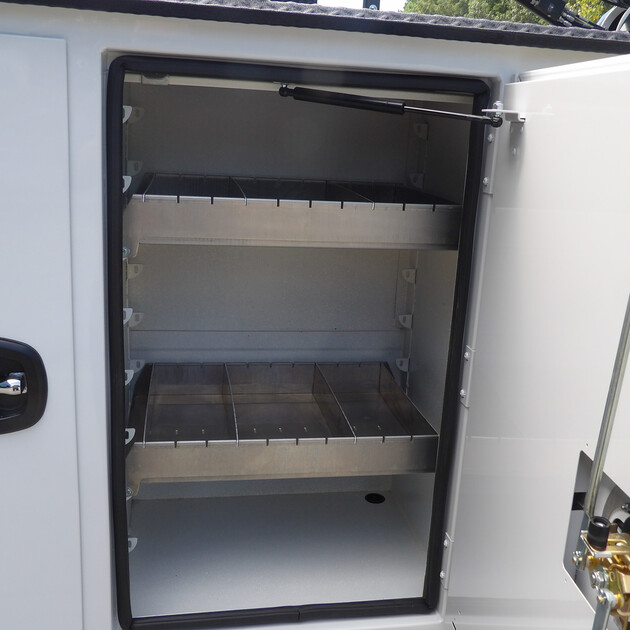

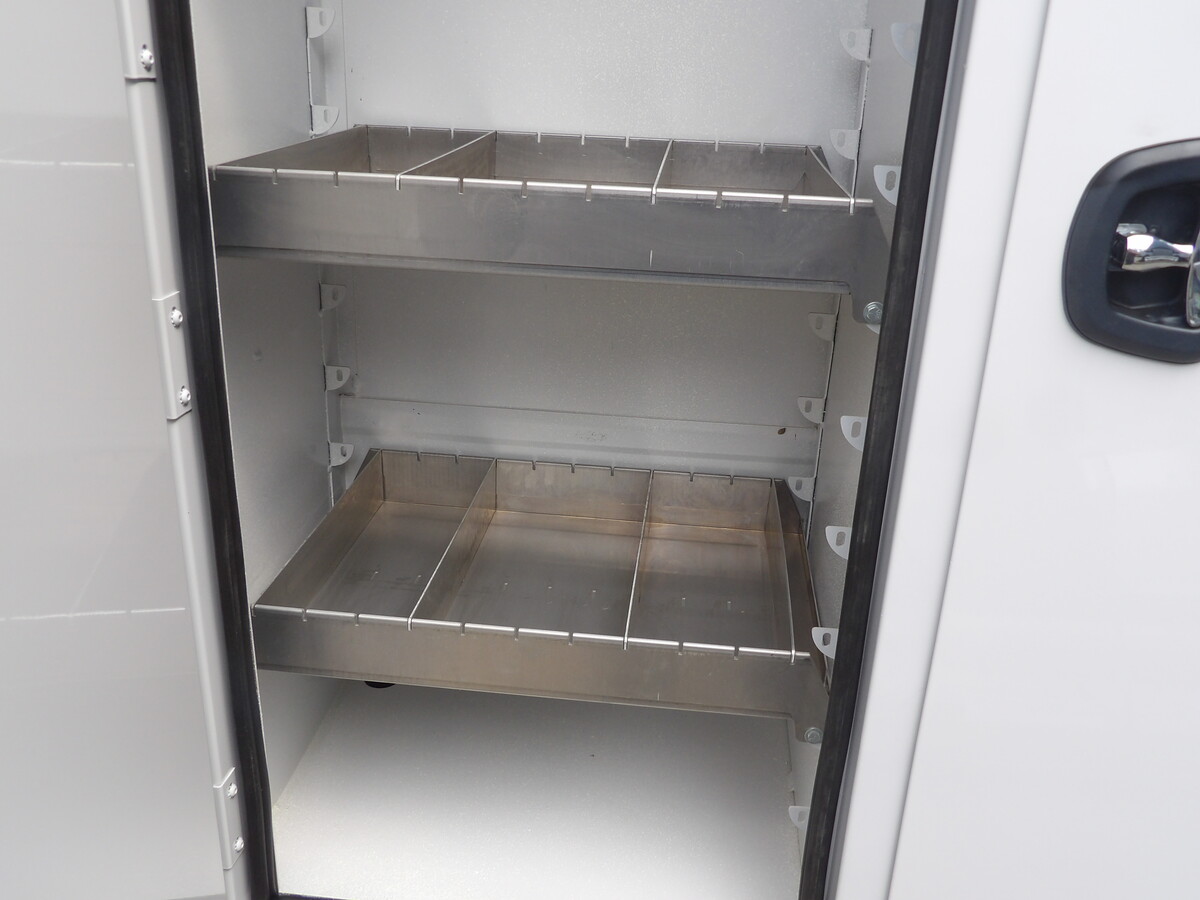

-Streetside second vertical compartment- (2) Adjustable Aluminum divider trays (Includes (4) adjustable dividers per tray)

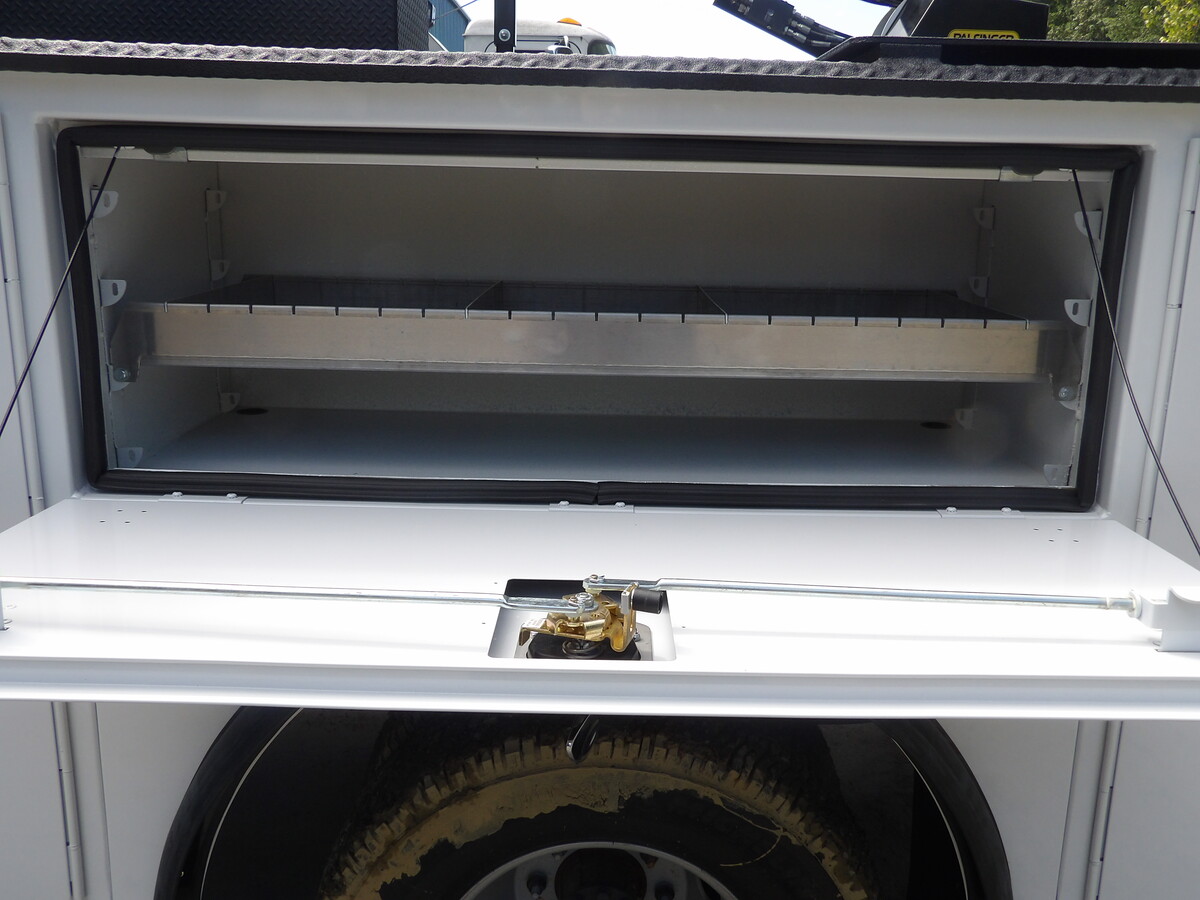

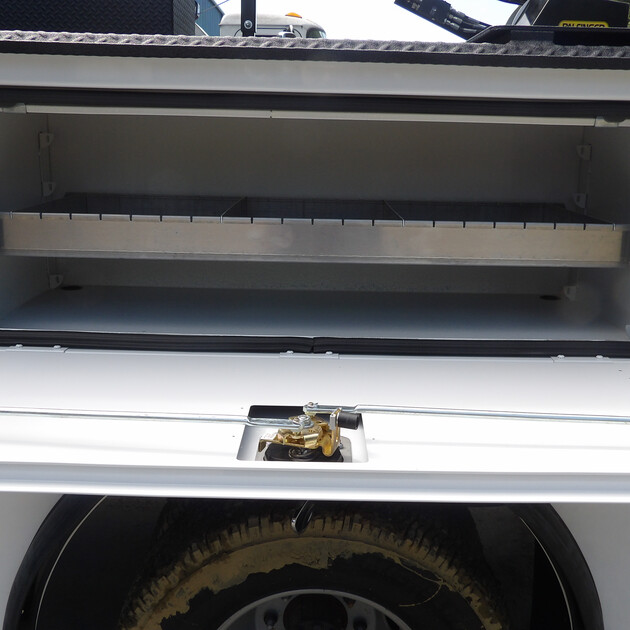

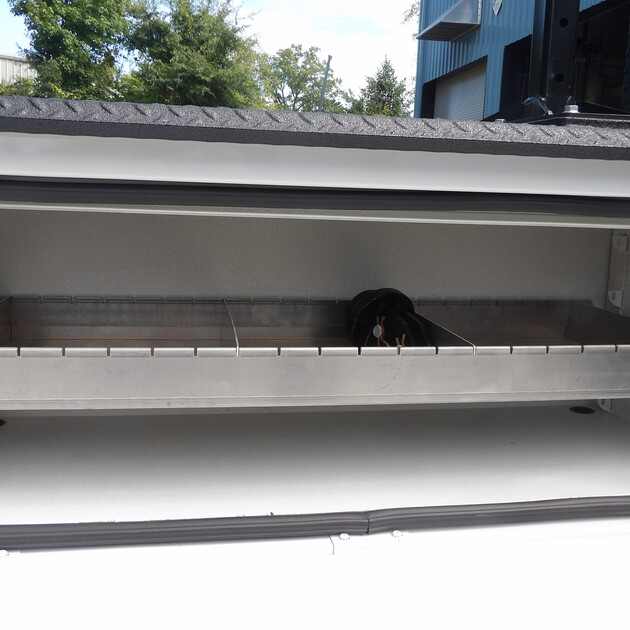

-Streetside horizontal compartment- (1) Adjustable Aluminum divider tray (includes (4) adjustable dividers)

-Streetside rear vertical compartment- (2) Adjustable Aluminum divider trays (Includes (4) adjustable dividers per tray)

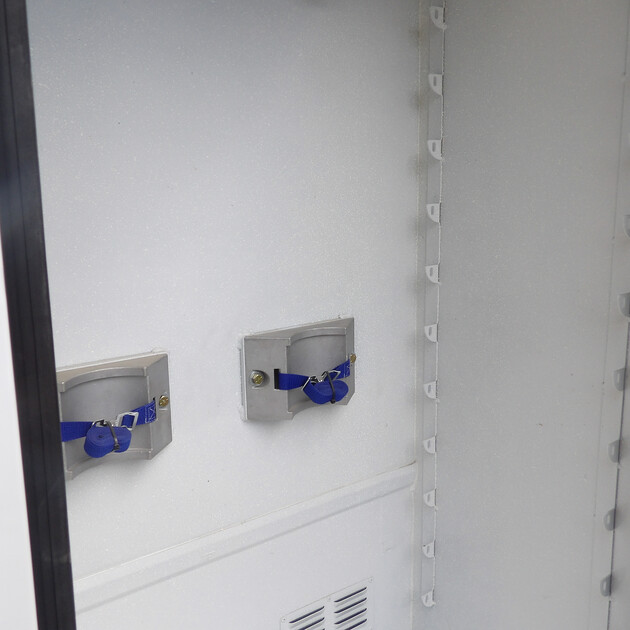

-Curbside front vertical compartment- Oxy/Acet holder for 2 tanks / 4 swivel material hooks installed (1-2-1) down from compartment top

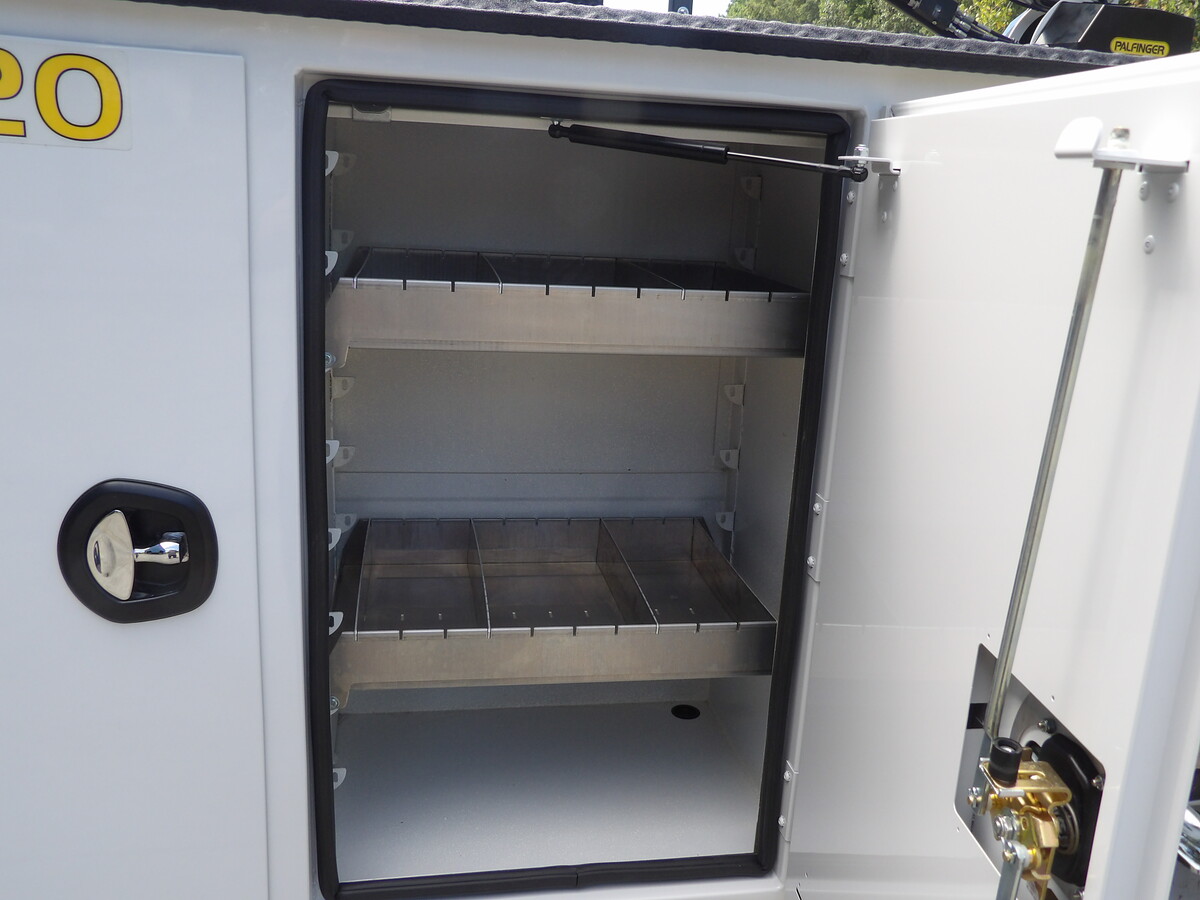

-Curbside second vertical compartment- (2) Adjustable Aluminum divider trays (Includes (4) adjustable dividers per tray)

-Curbside horizontal compartment- (1) Adjustable Aluminum divider tray (Includes (4) adjustable dividers)

-Curbside rear vertical compartment- (1) Hose reel mounting shelf

-Reinforce spring pack on rear axle to level truck

-Line-X protective coating on entire front of body, compartment backs, tops, cargo floor, inside tailgate and bumper

-Welder mounting bracket on streetside rear compartment top

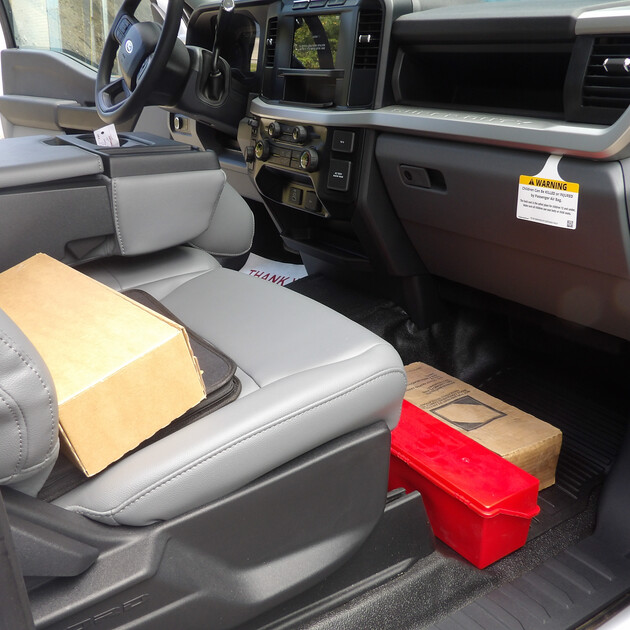

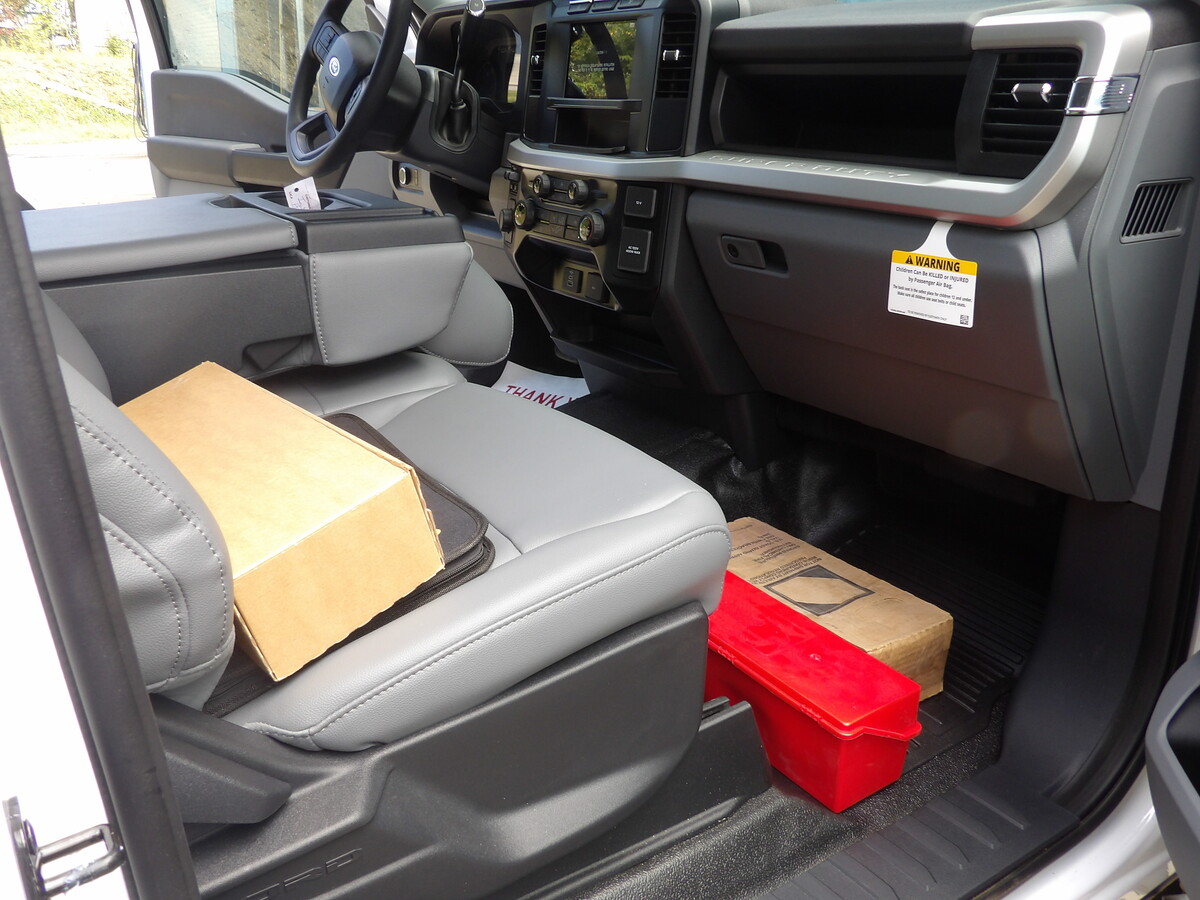

-ICC Safety kit located in cab

-Installed and painted white to match cab

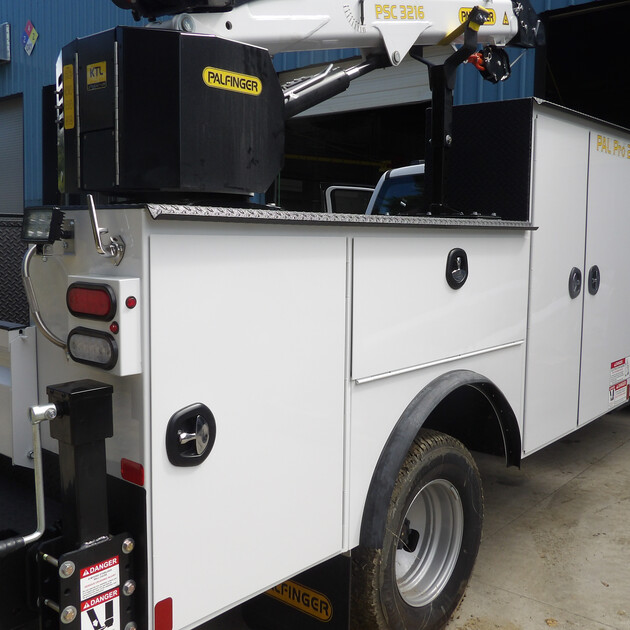

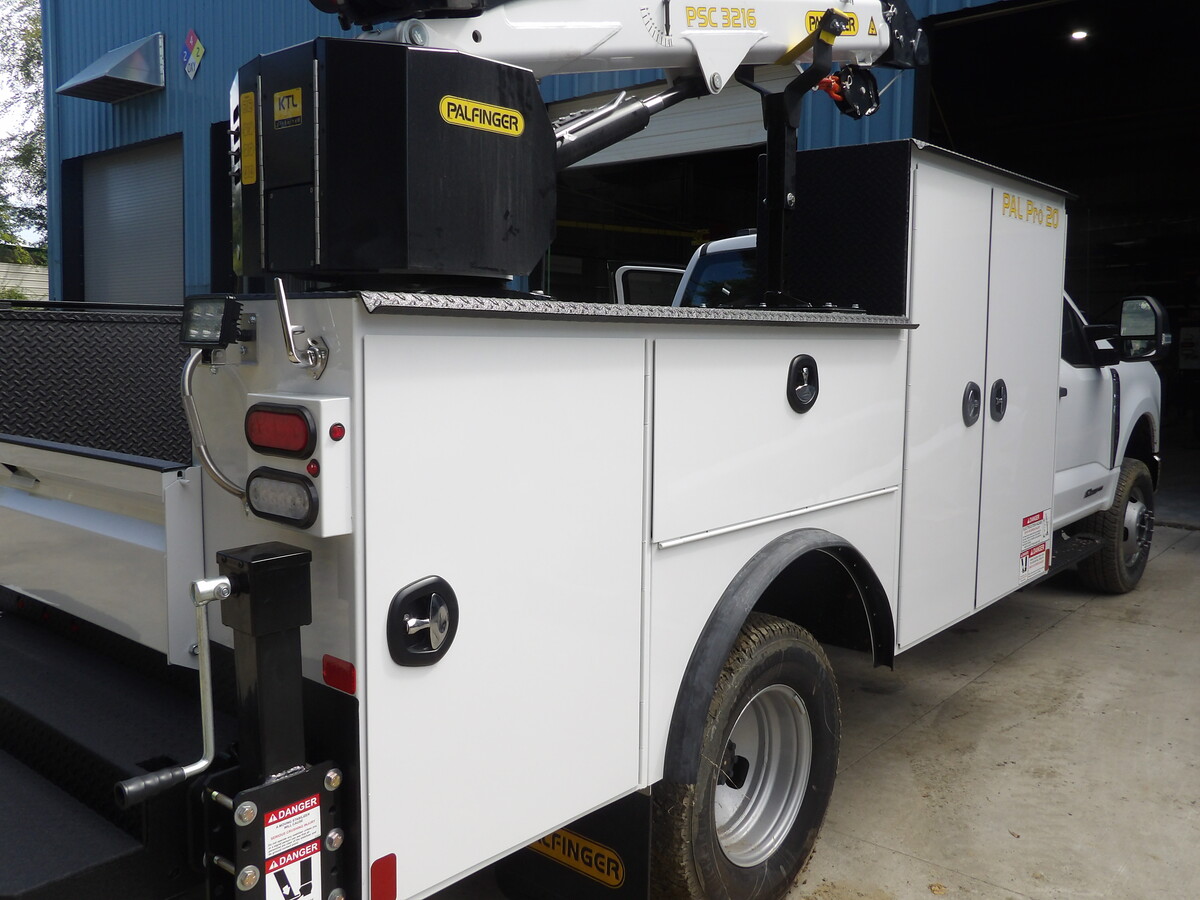

PALFINGER model PSC3216 Electric telescopic crane as follows:

- 12,500 ft/lb. Rating

- Continuous rotation -  Power extension to 11.4' and manual extension to 16'

- 4,000 lb. Maximum lift capacity (double line) -  Non-integrated load-holding valves on all cylinders

- Electronic overload protection system -  Radio remote control with proportional controls

- Crane hook and snatch block -  Hexagonal boom

- Boom support

- Rear manual out (crane side only)/Crank down outriggers

- Integrated two-block damage prevention feature

- Winch cable speed: 18 feet per minute

- 1/4" x 80' Galvanized aircraft cable

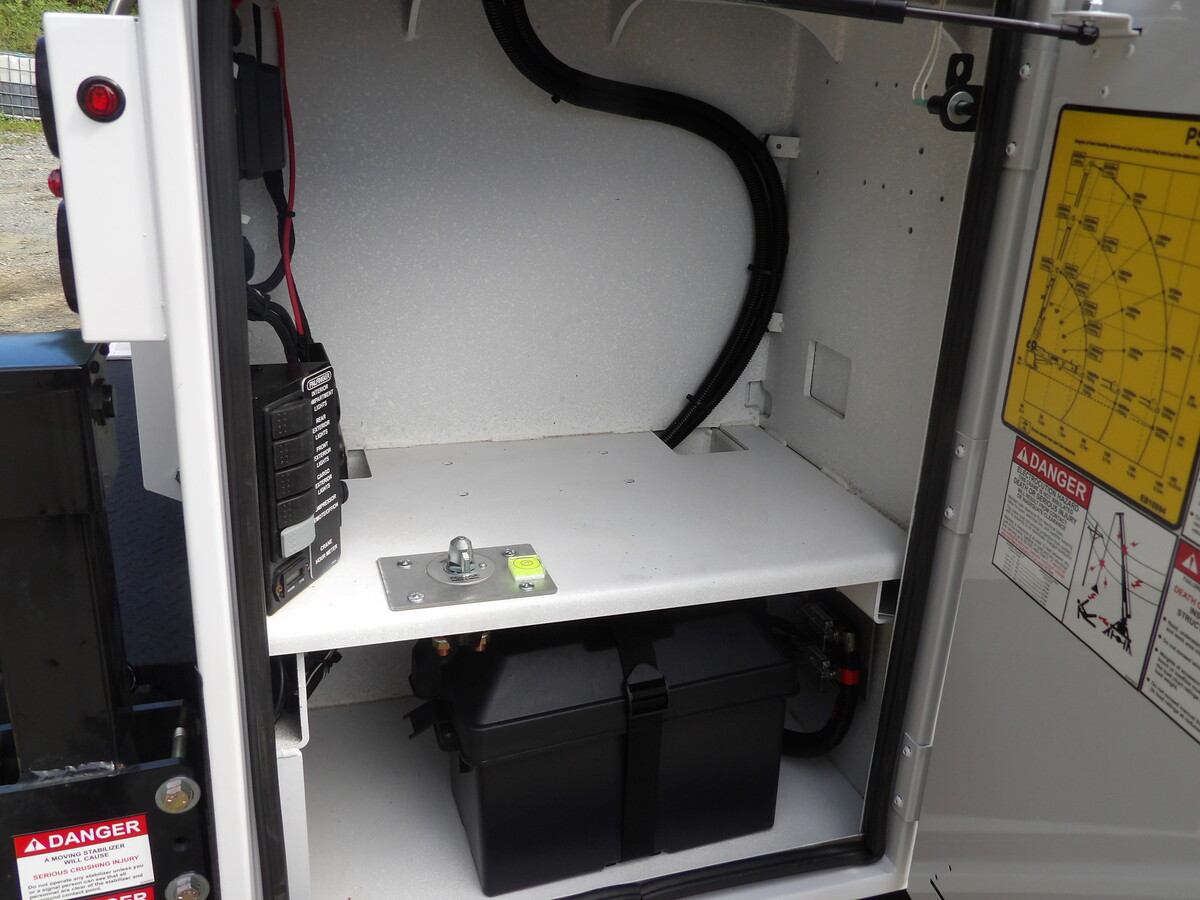

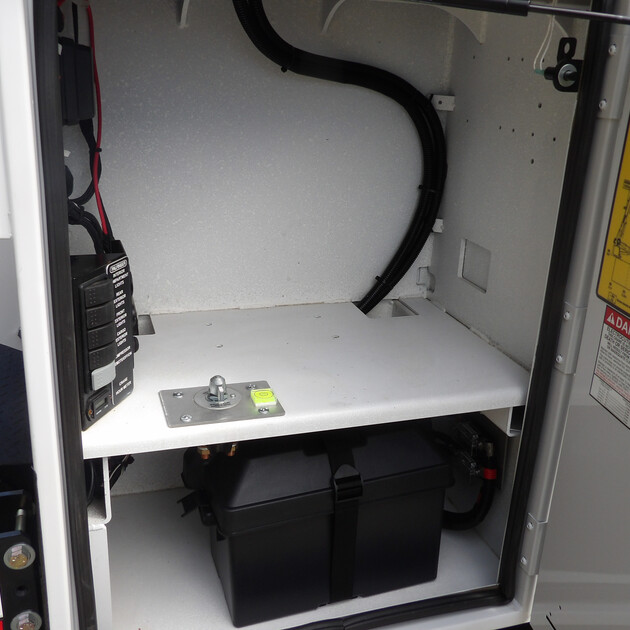

- Deep cycle battery with master cut-off installed in crane compartment

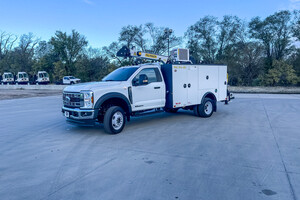

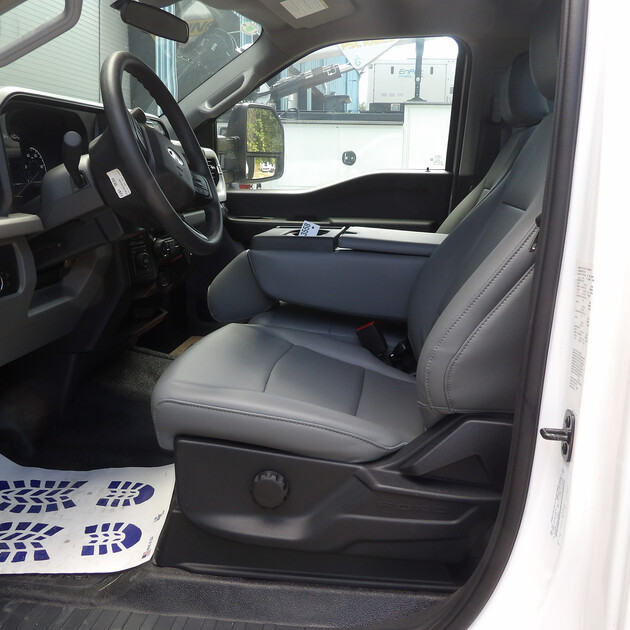

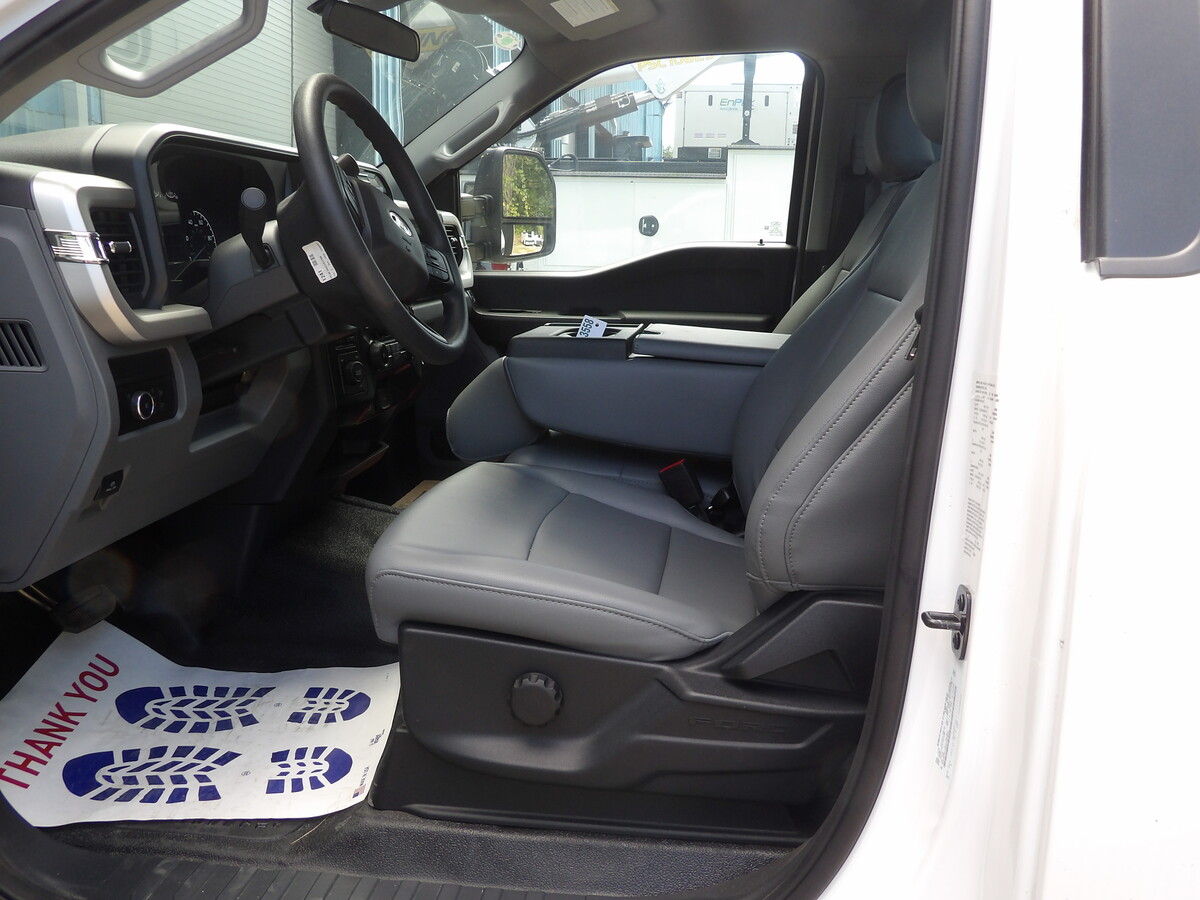

2024 FORD F-350 4x4 (F3H) XL

STANDARD CAB 169" WHEELBASE

DIESEL / AUTOMATIC
