up to 20,000 ft lbs

PAL Pro 20

Crane Body — 20,000 ft. lbs.

Mechanics Trucks
Imperial Metric
Max Lifting Moment 23235 ft. lbs. PSC 3216 PSC 4016 PSC 4025
Chassis Class 3-5

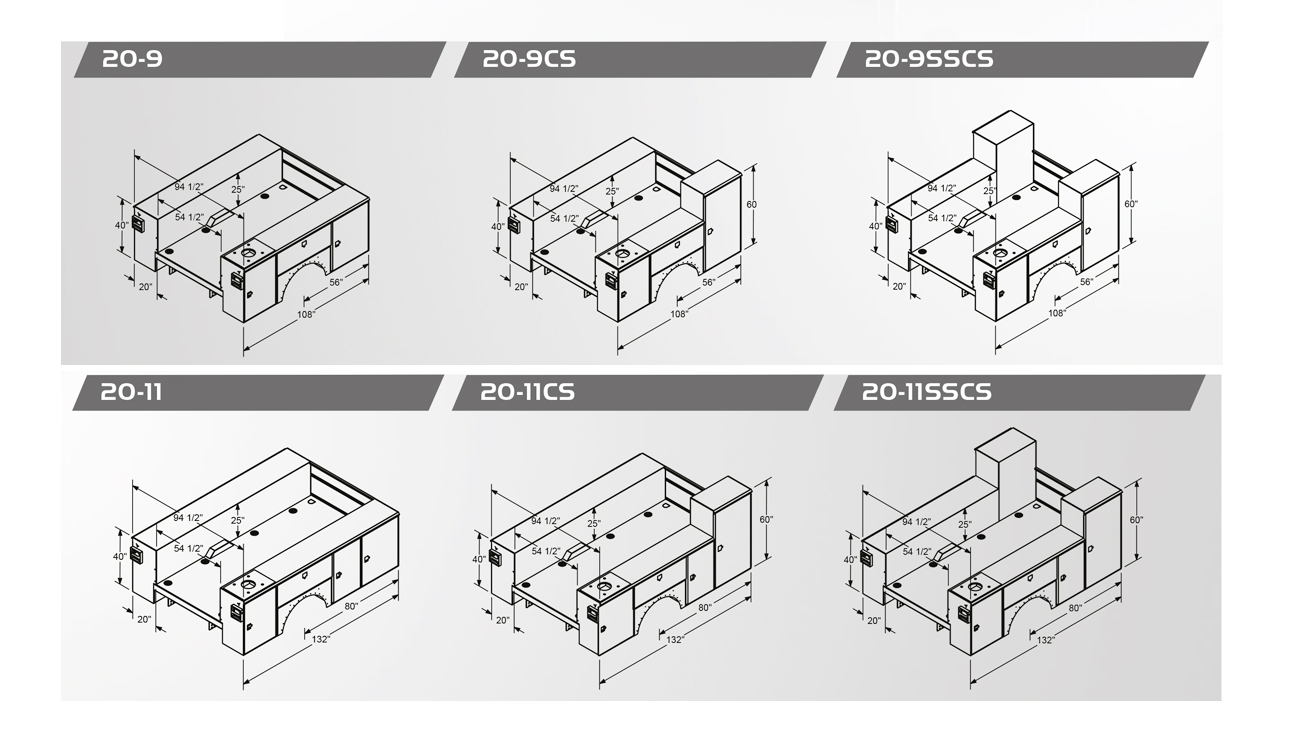

Standard Configuration Up to 11'

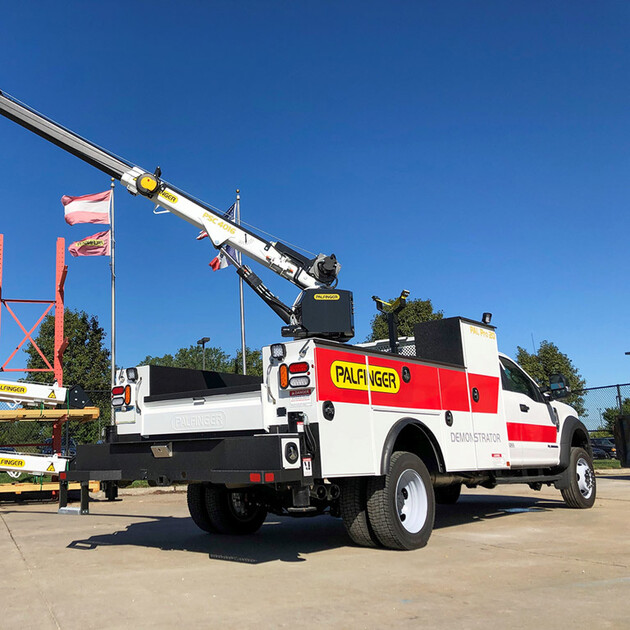

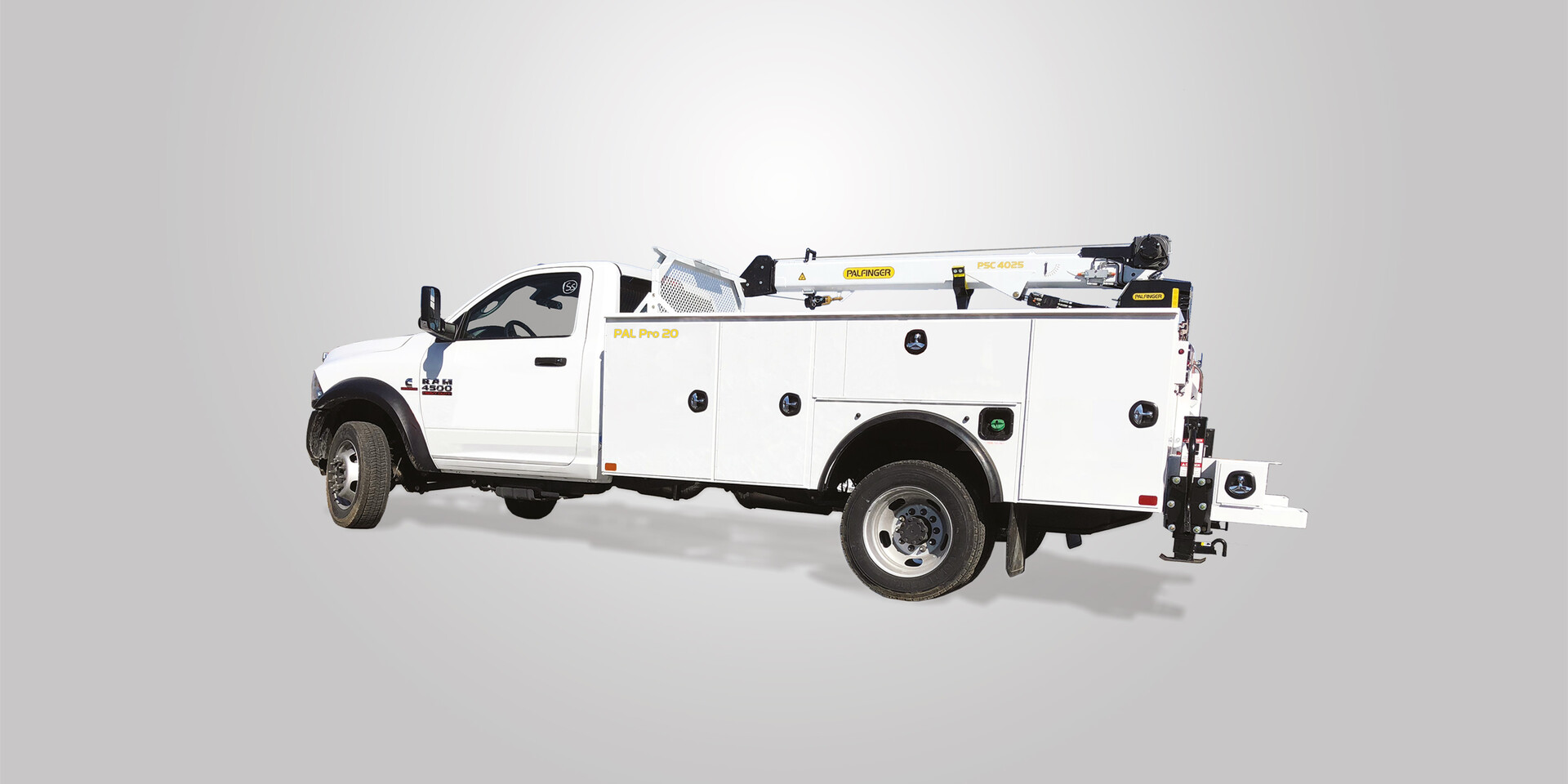

PAL Pro 20 is our newest lightweight mechanics body designed to accommodate service cranes up to 20,000 ft. lbs. of lifting capacity and engineered to fit a Class 3-5 chassis. Designed for on and off-road work, the PAL Pro 20 body, features structural reinforcements, 2-piece doors with C-channel stiffeners, automotive door bonding, 316 marine-grade stainless steel hinges, and an E-Coat paint process.

APPLICABLE CRANE MODELS

APPLICABLE COMPRESSORS

Highlights

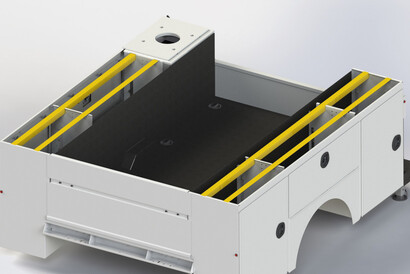

Designed For Crane Use

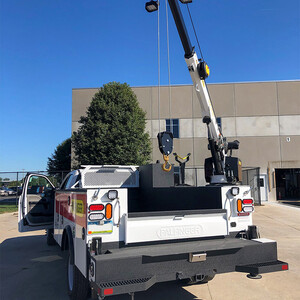

PAL Pro 20 features a 20,000 ft. lb. crane reinforcement for PALFINGER PSC 3216, 4016, and 4025 service cranes and is reinforced throughout to effectively manage crane forces, while preventing flexing and cracking.

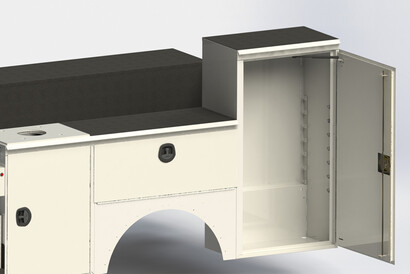

Reinforced For Top Mounted Accessories

Unlike normal service bodies, PAL Pro 20 features reinforced compartment tops to prevent fatigue from top-mounted accessories. All raised compartments have structural gussets to prevent cracking, and accessory weldments are available to provide secure mounts for welders, compressors, and more.

Optimized for Increased Payload

PAL Pro 20 is designed to be the lightest steel crane body in the industry without sacrificing durability. The body can be mounted on a dual-wheel chassis with a GVWR as low as 10,001 lbs., providing excellent flexibility for various applications.



Ready for Top-Mounted Accessories

Threaded weldment options available from the factory make installing top-mounted accessories easy. Boom rest, welder, compressor, EnPak, Air-n-Arc and AirPak mounts eliminate the need to drill holes in the body.

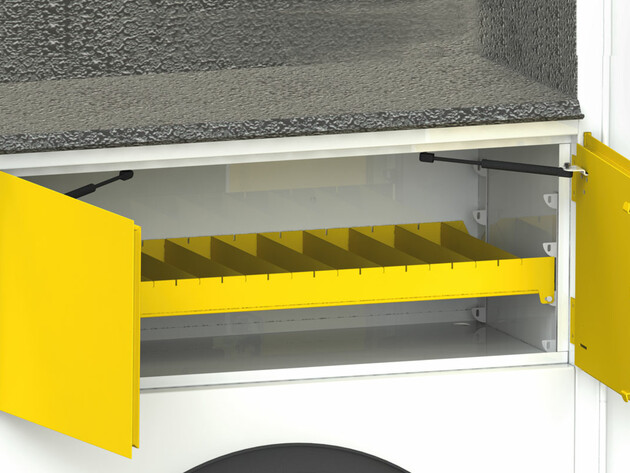

Double Panel Doors Designed To Last

PAL Pro 20 features steel double panel doors that provide rigid performance with internal C-channel stiffeners adhered with structural adhesive. Every PAL Pro 20 comes standard with gas door shocks providing smooth opening and closing with excellent reliability.



Rugged Hinges and Latches

PALFINGER's full-length 316 marine grade stainless steel hinges are adjustable and removable, ensuring reliable performance and easy door replacement. The standard 3-point latching door handles help secure tools better than typical service body paddle latches.

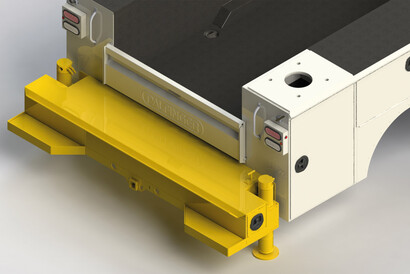

Multiple Bumper Options

Step Bumpers: 10” or 17” tread plate step bumper with recess for receiver hitch and reinforcements for outriggers or drop-down stabilizers.

Work Bench Bumpers: 12", 20”, or 21" work bench bumpers provide a work surface and housing for outriggers. The 21" work bench bumper adds a thru-compartment and both the 12" and 21" feature grip strut steps.



Integrated Hitch Receivers

All PAL Pro 20 bumpers come standard with a 2" receiver tube hitch rated to 16,000 lbs towing capacity.

Applicable Crane & Compressor Models

4,000LBS
Capacity
Up to 16 FT
Outreach
Up to 650 lbs.
Crane Weight

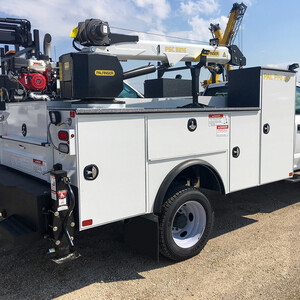

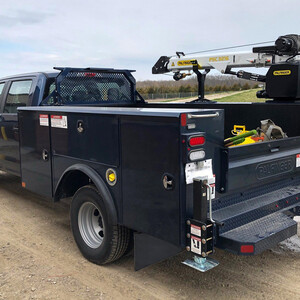

PSC 3216

4,000LBS
Capacity
Up to 16 FT
Outreach
Up to 650 lbs.
Crane Weight

PSC 4016

4,000LBS
Capacity
25 FT
Outreach
Up to 1010 lbs.
Crane Weight

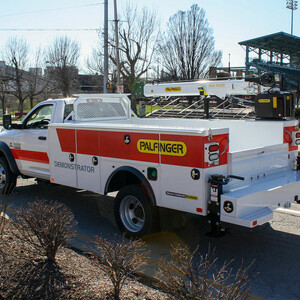

PSC 4025

45 CFM
Air Delivery
150 psi
Max System Pressure
150 lb
Weight
PAL Pro Mechanics Truck E-Coat Process
PALFINGER PAL Pro 20 Mechanics Truck
Multiple Layers of Protection

The Ultimate Rust Protection

The PAL Pro 20 mechanics body is designed to hold up against the toughest job site conditions. A 12-step epoxy electrocoat (E-Coat) process provides the best anti-corrosion protection available for steel bodies and cranes, and is backed by our 6-year rust-thru guarantee.

Learn More
Available now on PALDRIVE

Work Ready PAL Pro 20 Packages

PAL Pro 20 mechanics trucks equipped with PALFINGER service cranes, compressors, and many available options and accessories, are a reliable solution to get your team up and running quickly, while providing your customers with the best service experience possible.

Search Inventory
Downloads

Brochures

Mechanics Truck - PAL Pro 20

1,51 MB Download

Service Truck Solution Range

8,31 MB Download
