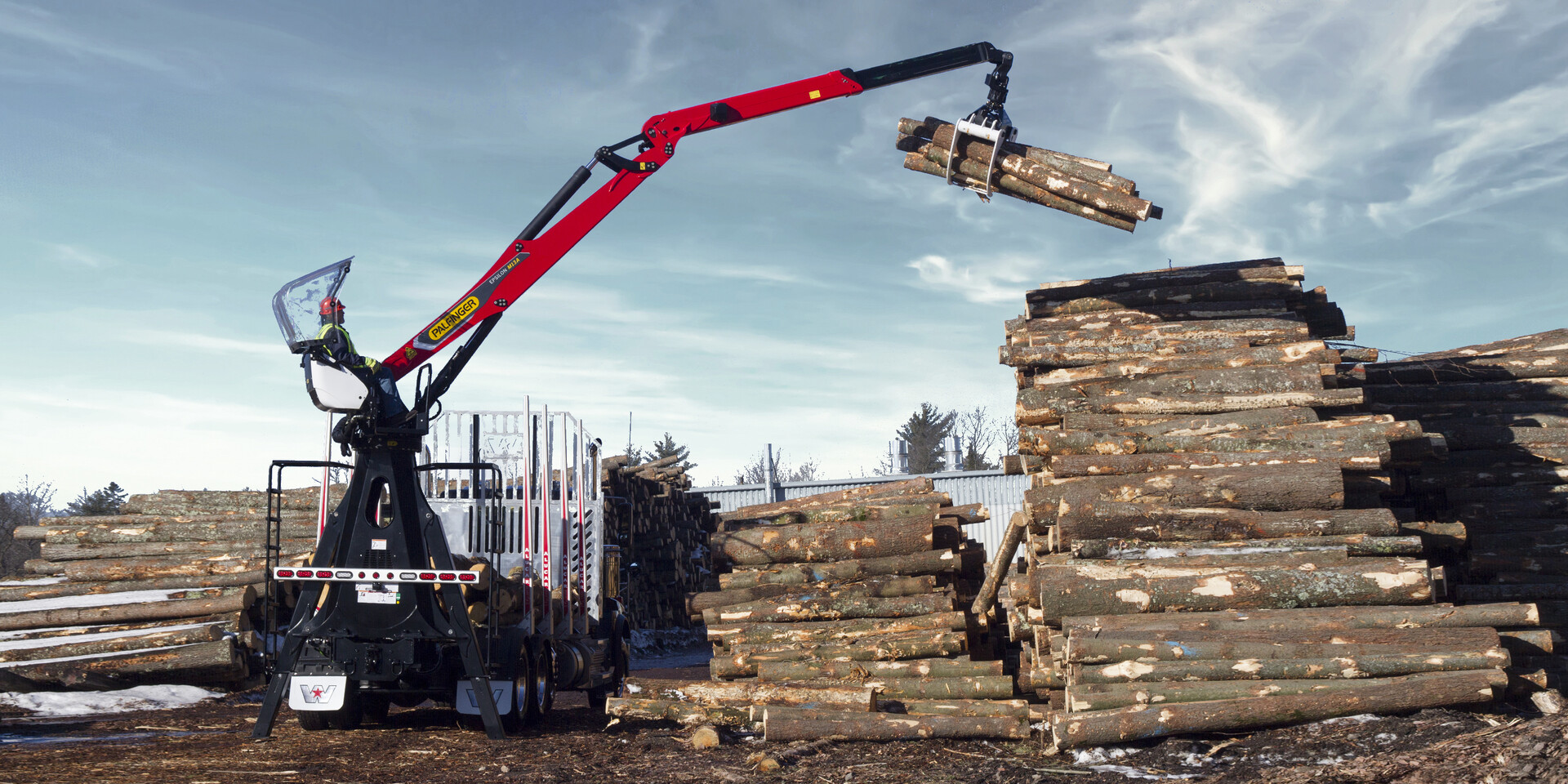

A-Line
M13A
Timber & Refuse Loaders
The new EPSILON A-Line takes a standard, market-proven and time-tested design to the next level, giving you superior efficiency and comfort on the job with its first in class weight-to-lift ratio and unrivaled Comfort Drive operating system.
EPSCOPE
Extension components are located inside the boom for maximum protection. Unparalled speed and precision derived from a synchronized chain/cylinder combination. Service maintenance is facilitated by protective covers that provide access to exchange hoses, pipes, and cylinder. No need to dismantle boom.
EPSLINK
Provides maximum protection and maneuverability through internal hose routing. No more hoses hang around the link/rotator vulnerable to breakage from timber/refuse or from being stowed on the load.
| Max. lifting capacities (lbs.) | Max capacity at full extension (lbs.) | Max outreach (ft.) | Weight without rotator/grab (lbs.) | Slewing torque (mt) | Slewing angle | Operating pressure | |
|---|---|---|---|---|---|---|---|
| Fixed | 9656 | 3571 | 23 | 4740 | 14014 | Continuous | 3410 psi - 2x21 gpm |
| Single | 9259 | 2998 | 26.2 | 5093 | 14014 | Continuous | 3410 psi - 2x21 gpm |
| Double | 8598 | 2380 | 32.2 | 5357 | 14014 | Continuous | 3410 psi - 2x21 gpm |
| Fixed | 9348 | 2667 | 28.9 | 4938 | 14014 | Continuous | 3410 psi - 2x21 gpm |
| Single | 8995 | 2425 | 29.2 | 5225 | 14014 | Continuous | 3410 psi - 2x21 gpm |
| LIFTING | Max capacity at full extension (kg.) | Max outreach (m) | Weight without rotator/grab (kg.) | Slewing torque (ft.lbs) | Slewing angle | Operating pressure | |
|---|---|---|---|---|---|---|---|
| Fixed | 4380 | 1620 | 7.1 | 2150 | 19 | Continuous | 235 bar - 2x80 l/min. |
| Single | 4200 | 1360 | 8 | 2310 | 19 | Continuous | 235 bar - 2x80 l/min. |
| Double | 3900 | 1080 | 9.8 | 2430 | 19 | Continuous | 235 bar - 2x80 l/min. |
| Fixed | 4240 | 1210 | 8.8 | 2240 | 19 | Continuous | 235 bar - 2x80 l/min. |
| Single | 4080 | 1100 | 8.9 | 2370 | 19 | Continuous | 235 bar - 2x80 l/min. |
