Heavy Duty
American Roll-Off
- Go back
- Home
- Products
- Cable Hoists
- Models
- American Roll-Off

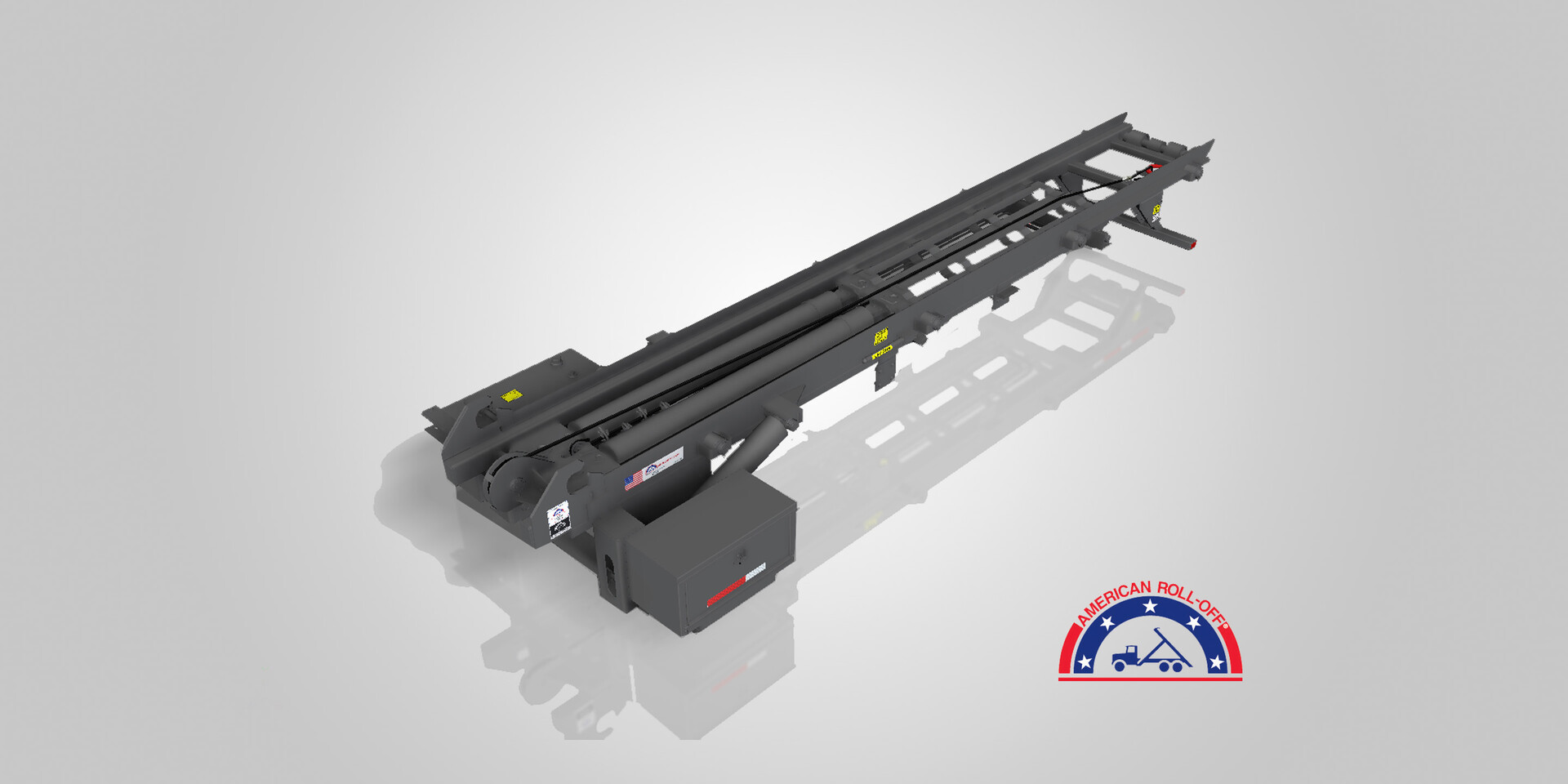

Cable Hoist
ARH Models
Imperial
Metric
Type
Type
ARH
ARH
Max Length
Max Length
7.32 m
24 ft
Max Capacity
Max Capacity
34019 kg
75000 lbs
Handle the heaviest of loads with our Heavy-Duty Cable Roll-Off Hoists. Extremely versatile, all of our Heavy Duty models can handle up to 75,000 lbs. – making them the perfect fit for your heavyweight jobs in demanding industries like scrap and other heavy-duty sectors. Proudly made in Trenton, New Jersey, the American Roll-Off Cable Hoist is the choice of customers nationwide!
| Capacity (lb) | Container length (ft.) | Dump angle | Min C/T (in.) | Hoist length (in.) | GVWR F/R (lb.) | |
|---|---|---|---|---|---|---|
| ARH 75-22 | 75000 | 12-22 ft. | 48 | 176 | 289 | 18,000/46,000 |
| ARH 75-22 IO | 75000 | 12-22 ft. | 48 | 176 | 289 | 18,000/46,000 |
| ARH 75-22 XD | 75000 | 12-22 ft. | 48 | 176 | 289 | 18,000/46,000 |
| ARH 75-24 | 75000 | 12-24 ft. | 48 | 194 | 307 | 18,000/46,000 |
| ARH 75-24 IO | 75000 | 12-24 ft. | 48 | 194 | 307 | 18,000/46,000 |
| ARH 75-24 XD | 75000 | 12-24 ft. | 48 | 194 | 307 | 18,000/46,000 |
| Capacity (kg) | Container length (m) | Dump angle | Min C/T (in) | Hoist length (cm) | GVWR F/R (lbs.) | |
|---|---|---|---|---|---|---|
| ARH 75-22 | 34019 | 3.66-6.71 m | 48 | 176 | 734.06 | 18,000/46,000 |
| ARH 75-22 IO | 34019 | 3.66-6.71 m | 48 | 176 | 734.06 | 18,000/46,000 |
| ARH 75-22 XD | 34019 | 3.66-6.71 | 48 | 176 | 734.06 | 18,000/46,000 |
| ARH 75-24 | 34019 | 3.66-7.32 m | 48 | 194 | 779.78 | 18,000/46,000 |
| ARH 75-24 IO | 34019 | 3.66-7.32 m | 48 | 194 | 779.78 | 18,000/46,000 |
| ARH 75-24 XD | 34019 | 3.66-7.32 m | 48 | 194 | 779.78 | 18,000/46,000 |
- Heavy-duty rear roller
- Removeable sheaves and pins
- Reeving cylinder
- Lifting cylinder
- Heavy-duty hinges and pivots
- Low profile track
- Casted lift cylinder baskets
- Hydraulic return filter
- Support steel ramps
- Tail cylinder under the track
- Dual automatic front left and right container stops and locks
Frame Options:
- Inside/Outside Rail
- Outside Rail only
- Outside Rail only - Extreme Duty
