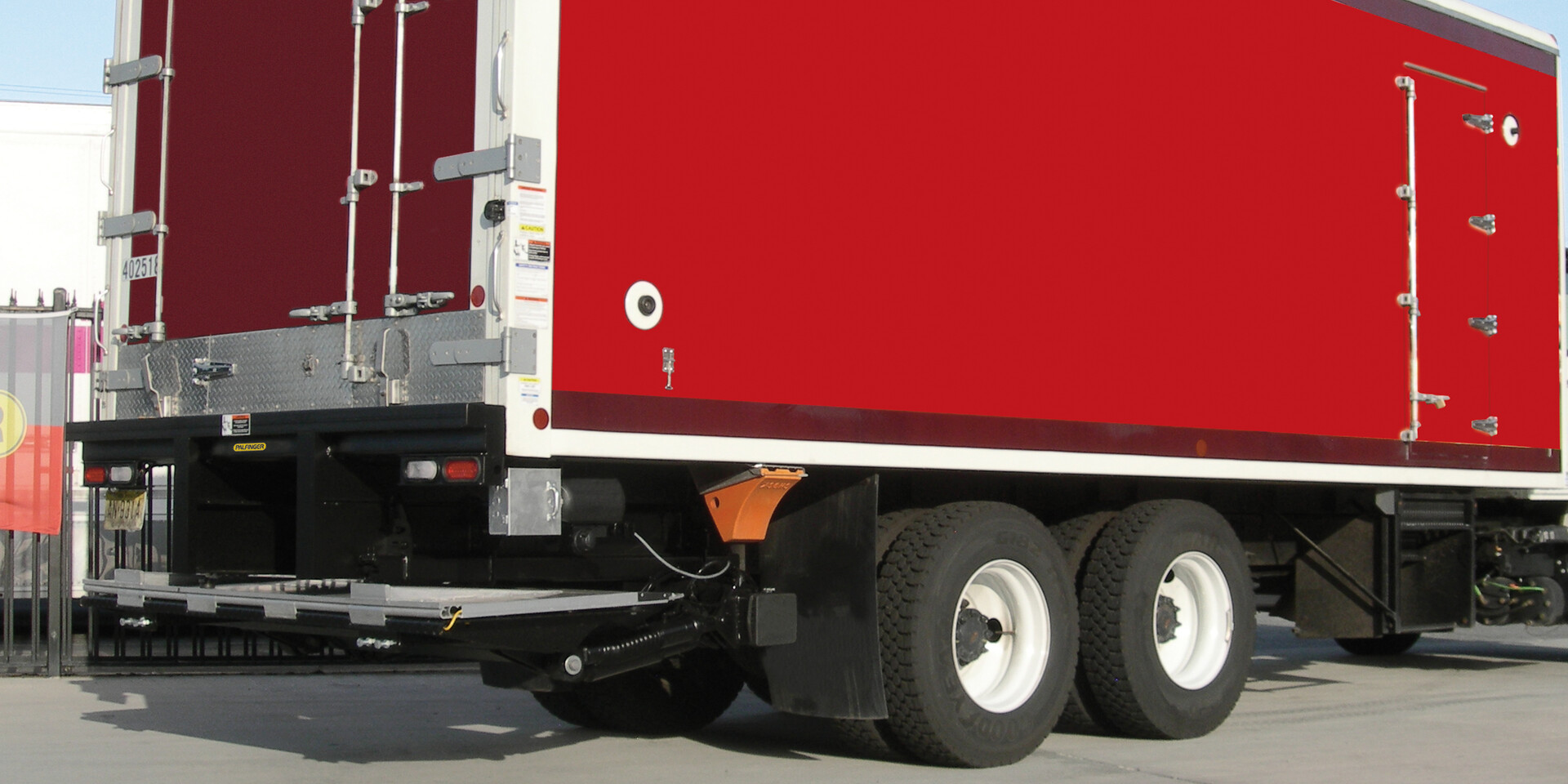

Retractable

MBB R 1500 S TRUCK

Tail Lift

  • Lifting capacity 1,500/2,000 kg with four cylinders and 750/1,000 mm load distance
  • Simple-fold platform
  • Specially designed for installation on motor vehicles
  • Optimal adaptation for different frame widths of 750 – 865 mm
  • Steel/aluminium platform design ≥ Spring-supported folding section
  • Platform housing serves as underride guard
  • Steel bridging projection for espagnolettes
  • Powerful cylinder for horizontal positioning of the tail lift
  • Compact design thanks to a torsion-resistant steel moving frame, pre-assembled end beam and welded brackets
  • Control box holder for installation on the moving unit
Downloads

Brochures

Datasheet Feasibility Study

0,12 MB Download

Operating Instructions

15,72 MB Download

MBB R 1500 S TRUCK / MBB R 2000 L TRUCK

0,63 MB Download

MBB R 750 S – MBB R 2500 S not pre-assembled

0,21 MB Download

MBB R 750 S – MBB R 2500 S pre-assembled

0,16 MB Download
