up to 43,000 ft lbs

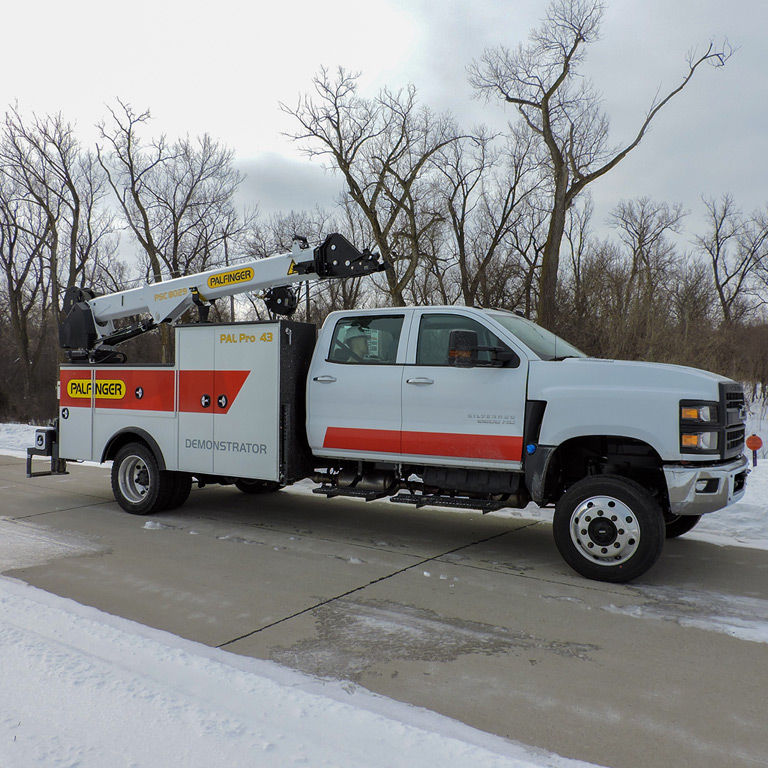

PAL Pro 43

True Crane Body — 43,000 ft. lbs.

alt text
alt text
alt text
alt text
alt text
alt text
Mechanics Trucks
Key Specs
Imperial
Metric
Max Lifting Moment
6.8 mt 49180 ft. lbs.
Chassis Class
5 5
Standard Configuration
Up to 3.4 m Up to 11'

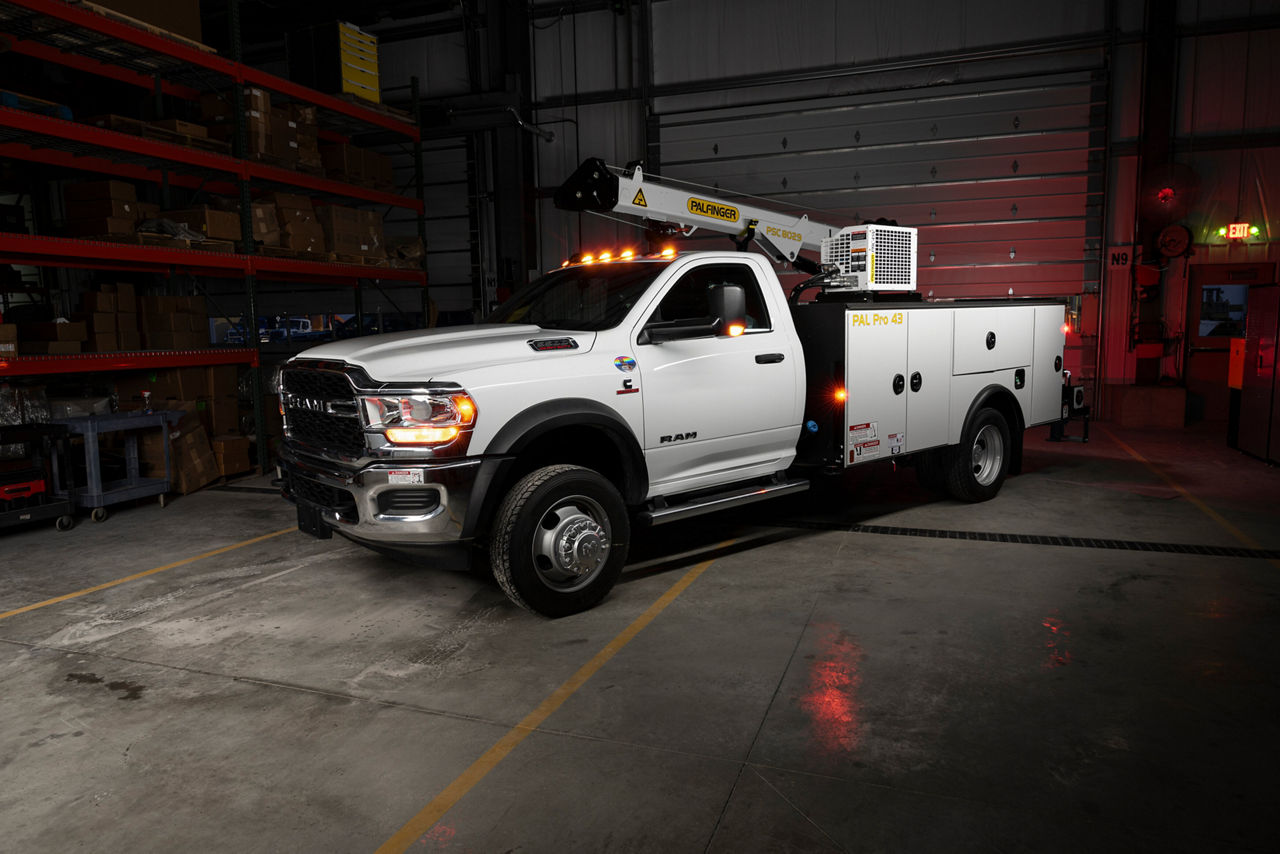

The PAL Pro 43 is the ultimate all-steel mechanics body for heavy lifting. Built for 8,000 lb service cranes with 43,000 ft-lb capacity, it features 12-gauge A60 galvanneal steel, a hybrid torsion box to prevent frame twist, and industry-leading rust protection. Built tough for big jobs.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Diagrams

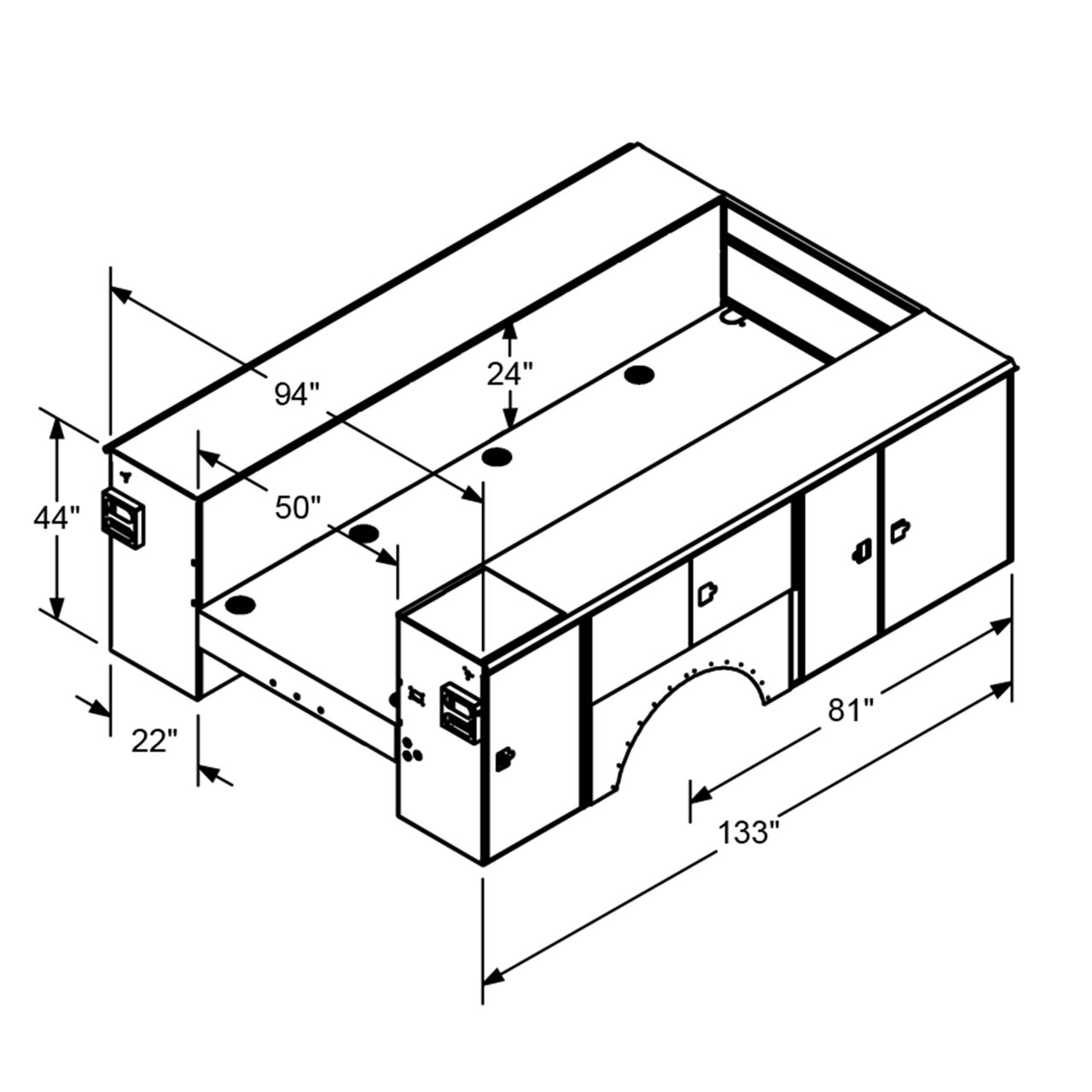

43-11

View
alt text

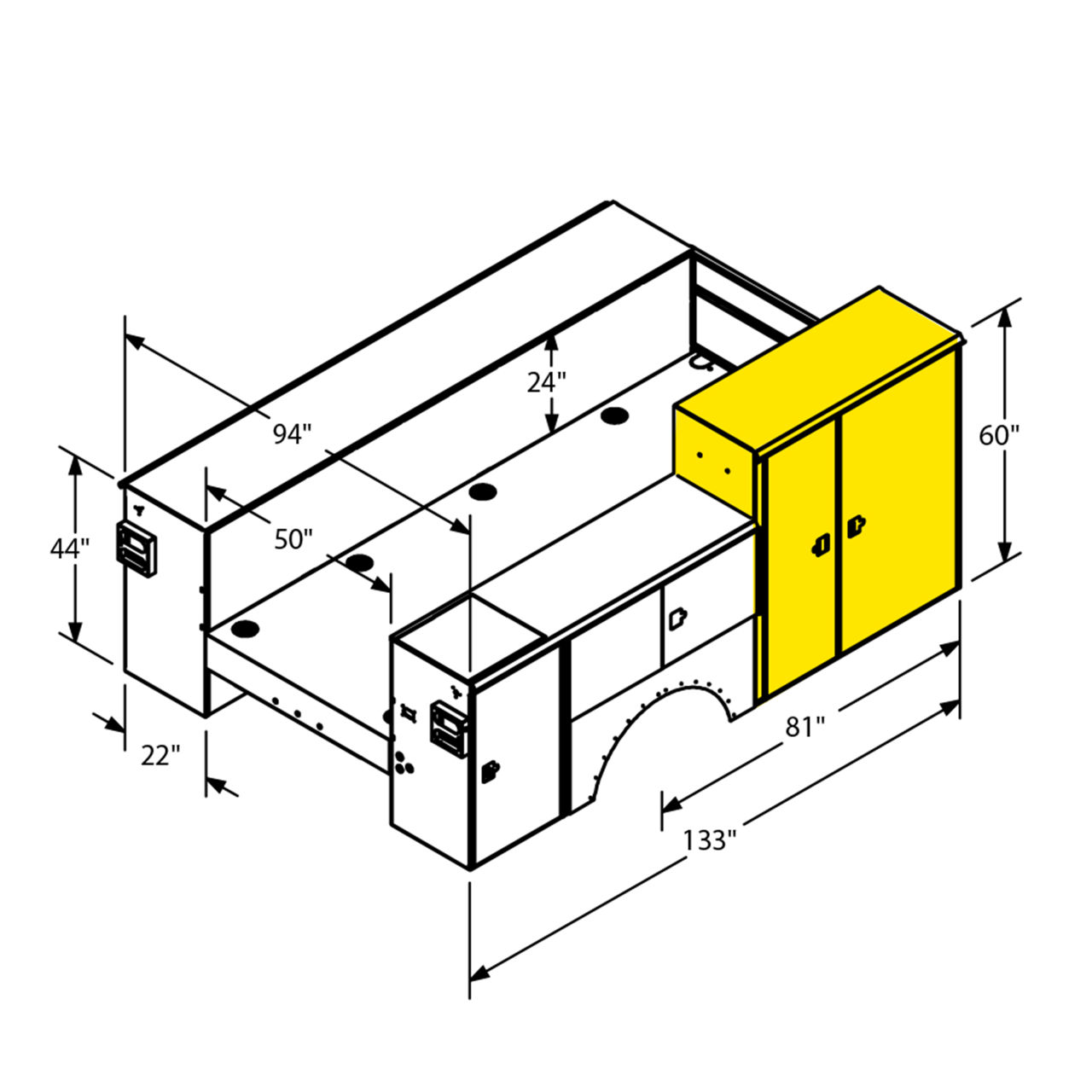

43-11CS

View
alt text

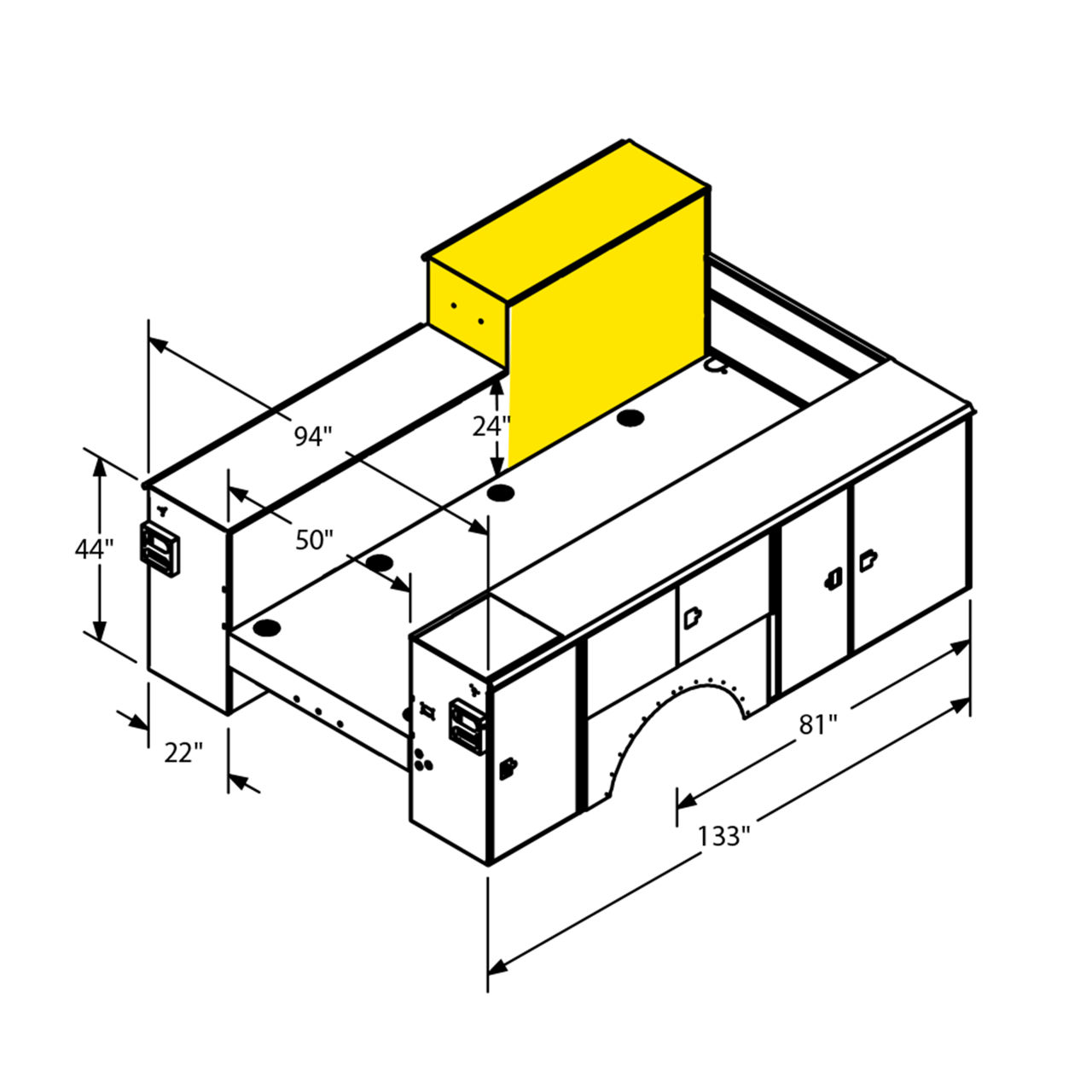

43-11SS

View
alt text

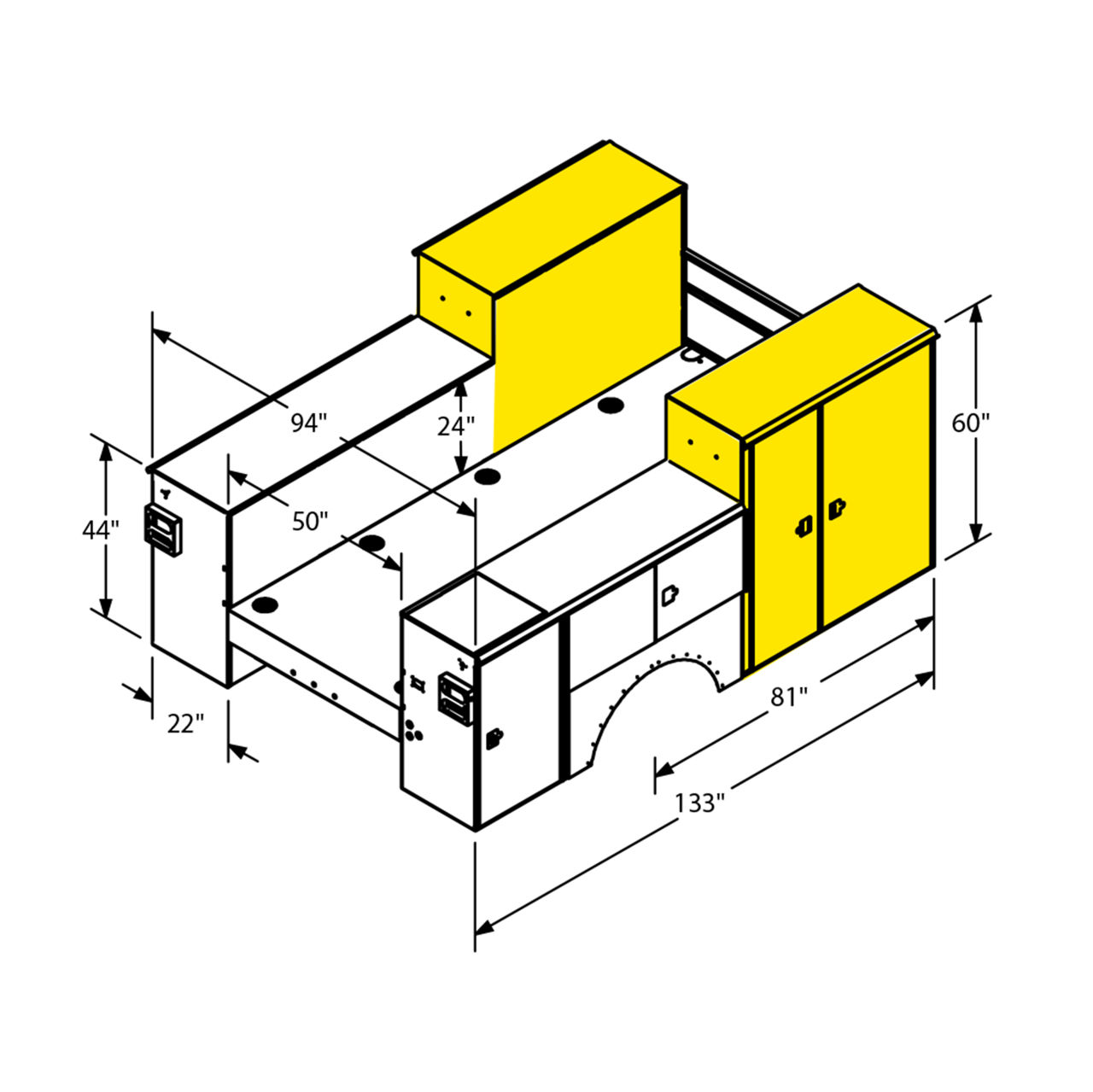

43-11SSCS

View
alt text

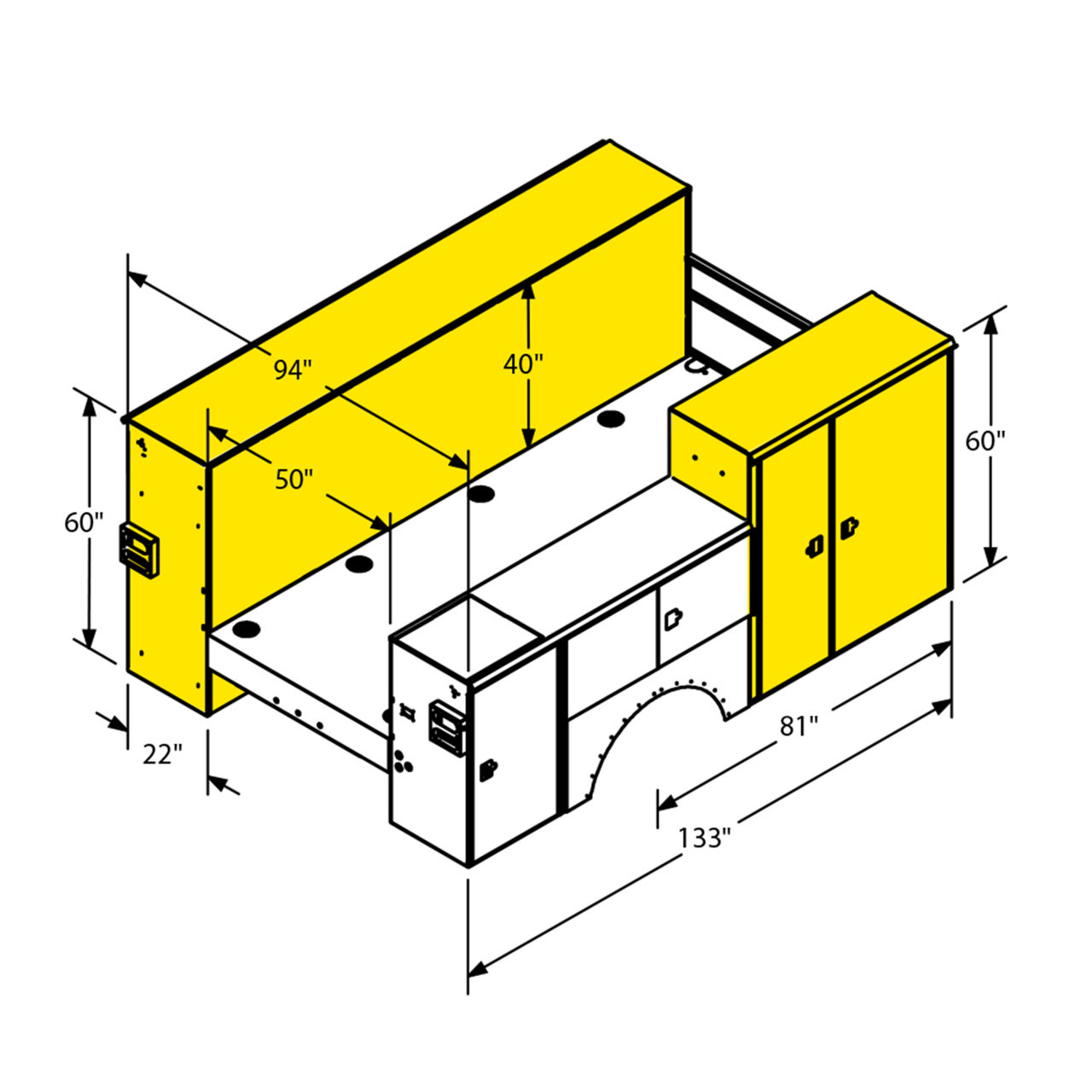

43-11SS60CS

View
alt text

The Ultimate Defense Against Corrosion

Boost your mechanics truck’s durability with PALFINGER’s E-Coat Corrosion Protection. Our advanced 12-step electrocoat dip process cleans, primes, and coats every inch of metal for full coverage and automotive-grade rust defense—built to withstand the toughest jobs and environments.

alt text

Stop Body Cracks Before They Start

PALFINGER’s internal gussets are engineered for strength. Every raised compartment includes gussets that reinforce specific areas, preventing fatigue and cracking—so your mechanics truck stays tough and reliable for the long haul.

alt text

Ultimate Interior Protection

Zolatone shields compartment interiors from damage caused by tools, chains, and parts while preventing rust. Its durable coating keeps surfaces protected and bright with a clean white finish—adding strength and visibility where you need it most.

alt text

Highlights

Stop Frame Twist. Boost Crane Stability.

The hybrid torsion box is engineered for crane applications using 10-gauge A-60 galvanneal steel. This design eliminates truck frame twist and side pack deflection, delivering unmatched strength and stability for heavy lifting jobs.
alt text

Strength Where You Need It Most

Tubular 3" x 5" structural steel cross-members interlace the torsion box to deliver superior payload support. This heavy-duty design ensures your compartments stay strong under demanding loads, providing durability and reliability for every job.
alt text

Lift Heavy Loads with Confidence

Integrated outrigger housing transfers crane loads directly to the ground, reducing stress on the chassis frame. This smart design improves stability and safety, ensuring your truck handles heavy lifts without compromise.
alt text

Stay Stable Under Pressure

Rear shear plate mounts reinforce your truck by stopping side-to-side movement on the chassis. Built from heavy-duty steel, they deliver extra support for crane operations and heavy payloads—keeping your truck secure and strong.
alt text

Class 5 Strength. Built-In Reliability.

Get unmatched towing power with a 2.5" I.D. receiver tube attached directly to the body. Rated for 16,000 lbs, this integrated Class 5 hitch provides the strength and stability you need for heavy-duty performance every day.
alt text

Equipment & Accessories

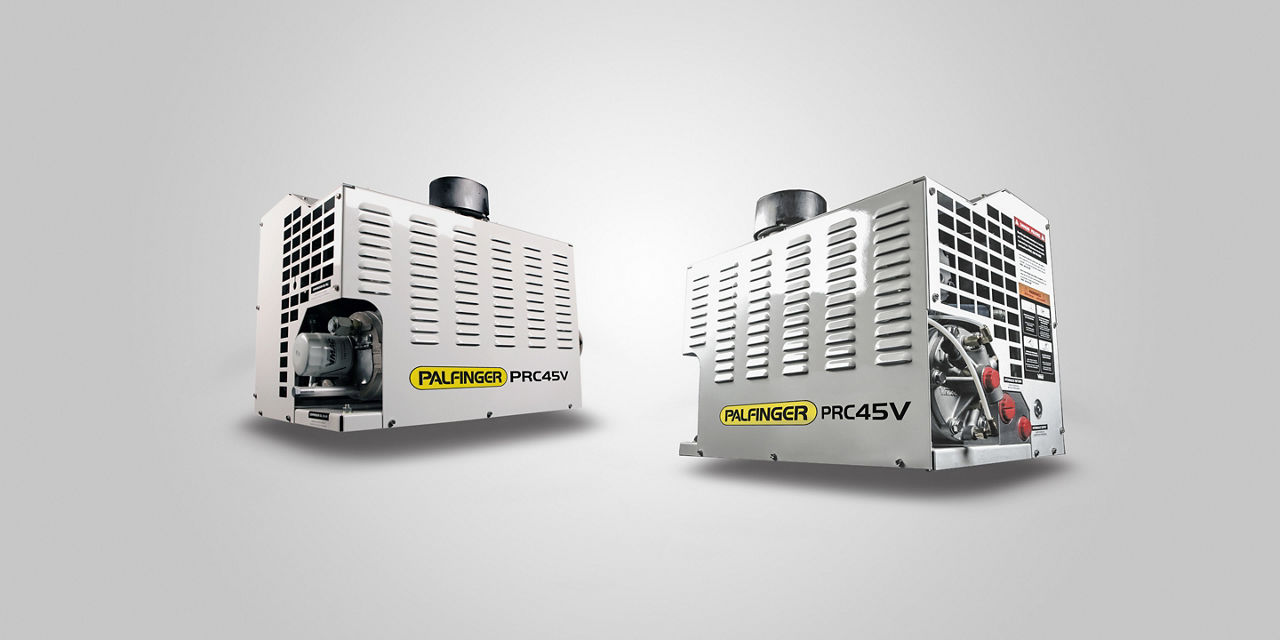

PRC45V Hydraulic Compressor

The lightest hydraulic deck-mounted rotary screw air compressor for mechanics trucks. At just 150 lbs, it delivers 45 CFM at 150 PSI with 100% duty cycle—compact, powerful, and built for extreme conditions.
alt text

Personnel Basket

Innovative compact aerial lift for service cranes. Quick-connect setup, 37' reach, collapsible storage box, and lightweight design—perfect for Class 4 trucks with 5,000 lb cranes.
alt text

Technical Specifications

Standard Features
  • 44" standard compartment heights
  • 11' standard configurations
  • Treadplate cargo floor, load space walls and compartment tops
  • Double-panel doors with internal C-channel stiffeners, adhered with structural adhesive
  • Non-marring boom rest
  • A-60 galvanneal zinc-coated steel
  • PALFINGER stamped tailgate

Optional Features

Raised Compartments Up to 60″ High

Maximize storage with raised compartment configurations up to 60" high. Perfect for mechanic trucks, these options provide extra space for tools and equipment while maintaining durability and accessibility. Customize your work truck for ultimate efficiency and organization.

Workbench Tailshelf: Solid or Open Top

Choose workbench tailshelf configurations that fit your needs—solid top for durability or top-open design for easy access. Perfect for mechanic trucks, these options boost productivity and organization while delivering rugged performance for demanding jobs.

Stabilizer Options: Power or Manual

Choose the right stabilizer for your mechanics truck—options include power or manual extension configurations for maximum control and stability. Built tough for demanding jobs, ensuring safety and performance every time.

No Logo Tailgate

Upgrade your mechanic truck with a clean, professional look—no logo tailgate included. Built tough for heavy-duty jobs, this option delivers durability and versatility while keeping your branding flexible. Perfect for fleets or custom designs. Get the strength you need without the extra graphics.

alt text

Headache Rack with Light Bar Bracket

Protect your cab and avoid costly rear window repairs with a headache rack featuring a light bar bracket and punched screen. This smart design prevents cargo from contacting the rear window, saving time, money, and cleanup while adding durability and functionality.

Threaded Weldments for Boom & Equipment

Versatile threaded weldment options for mechanics trucks—ideal for securely installing boom rests, welders, compressors, and more. Built tough for reliable performance and easy customization on demanding job sites.

Aluminum Divider Trays for Organization

Organize tools and parts with lightweight, durable aluminum divider trays—perfect for mechanics trucks. Designed for easy customization and long-lasting performance, these trays keep everything in place for maximum efficiency on the job.

Durable Aluminum Roll-Out Drawers

Lightweight yet tough aluminum roll-out drawers for mechanic trucks—maximize storage, improve organization, and access tools with ease using one hand, one-motion operation. Built for durability and smooth performance in demanding work environments.

Bright LED Work Lighting Solutions

Light up your work area with powerful, energy-efficient LED work lighting—perfect for mechanics trucks. Designed for durability and superior visibility, these lights enhance safety and productivity in any environment, day or night.

LED Compartment Lighting

Illuminate every compartment with bright, energy-efficient LED lighting—designed for mechanics trucks to improve visibility, safety, and productivity. Built for durability, these lights keep your tools and workspace well-lit in any condition.

Air Compressor Hose Reel & FRL

Power up your mechanics truck with an air compressor hose reel and FRL system—designed for easy access, smooth operation, and reliable air delivery. Built for demanding jobs, this setup ensures efficiency and durability on every worksite.

Durable Two-Part Polyurethane Finish

Protect your mechanic truck with an automotive-grade, two-part polyurethane top coat. This premium finish delivers superior durability, UV resistance, and a sleek look that stands up to tough jobsite conditions. Built for long-lasting performance and professional appeal.

Heavy-Duty Master Lock System

Secure your mechanics truck with a rugged Master Lock system—engineered for maximum protection and peace of mind. Built tough to safeguard tools and equipment against theft, ensuring reliability and security on every job.

Low-Sliding Roof for Easy Access

Optimize your mechanic's truck with a low-sliding roof—engineered for easy access, streamlined storage, and maximum efficiency. Built tough for durability while providing smooth operation and a sleek, space-saving design.

Bolt-On Handrail

The bolt-on handrail adds an extra layer of protection for operators. Designed for safety, it provides a secure grip and stability—keeping your mechanics safe and compliant on every job site.
