Cargo

The MiniFix

Cargo Lift

alt text
alt text
alt text
alt text
alt text
alt text
alt text
Liftgates
Key Specs
Imperial
Metric
Weight Capacity
Up to 599 kg Up to 1320 lbs.
Platform Size
1574.8 mm x 1397 mm 62"x55"
Bed Height
762 mm 30"

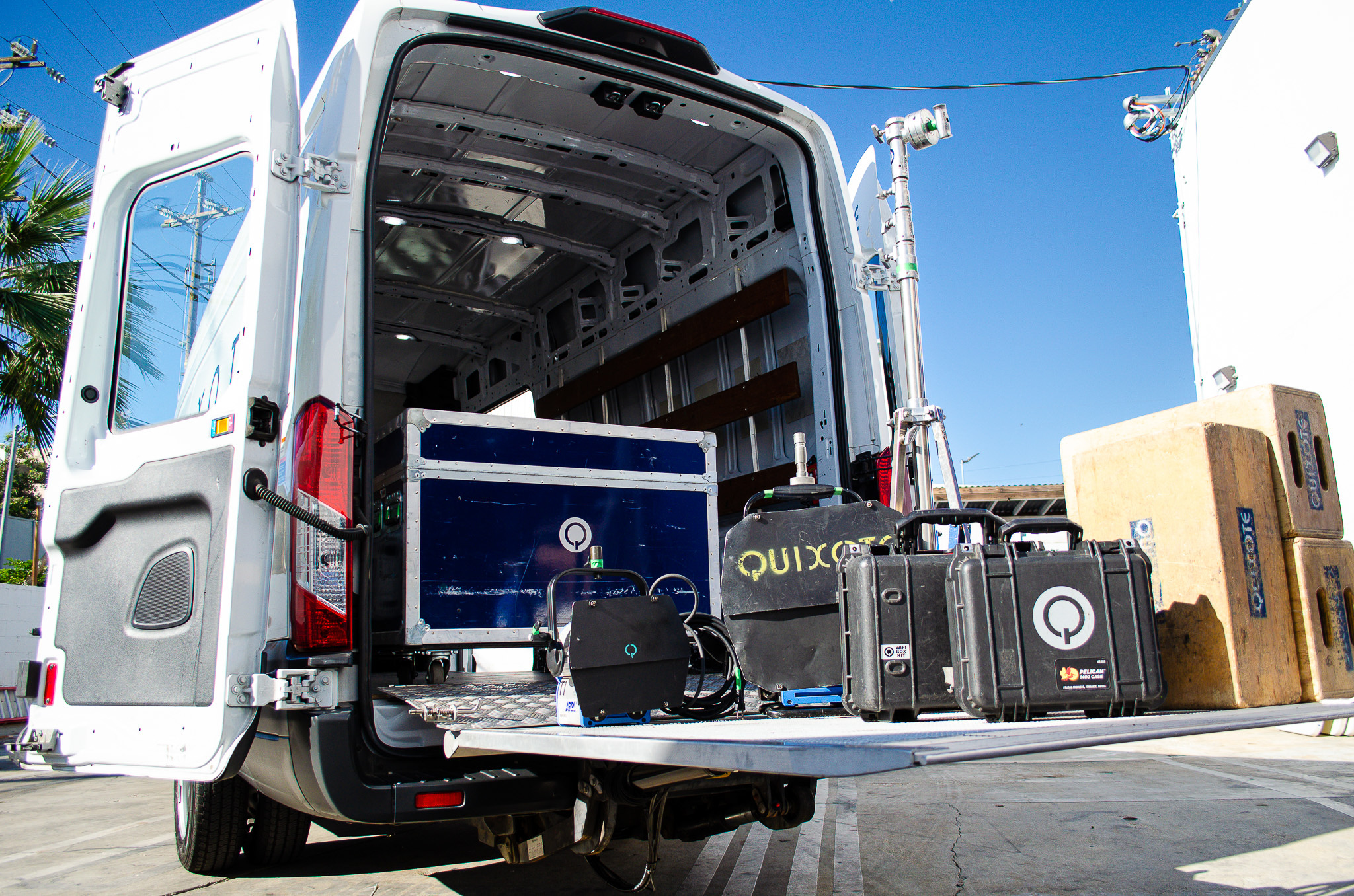

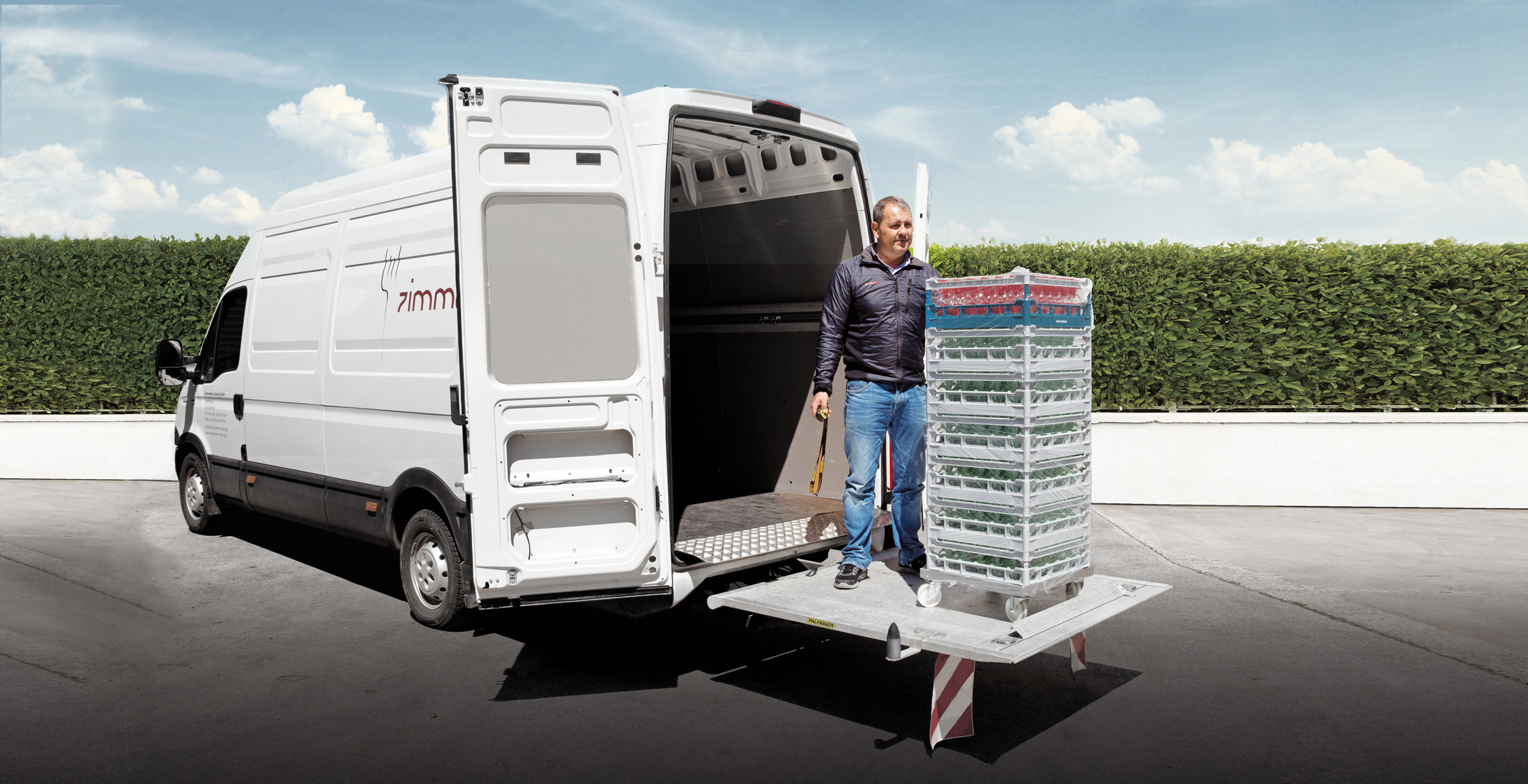

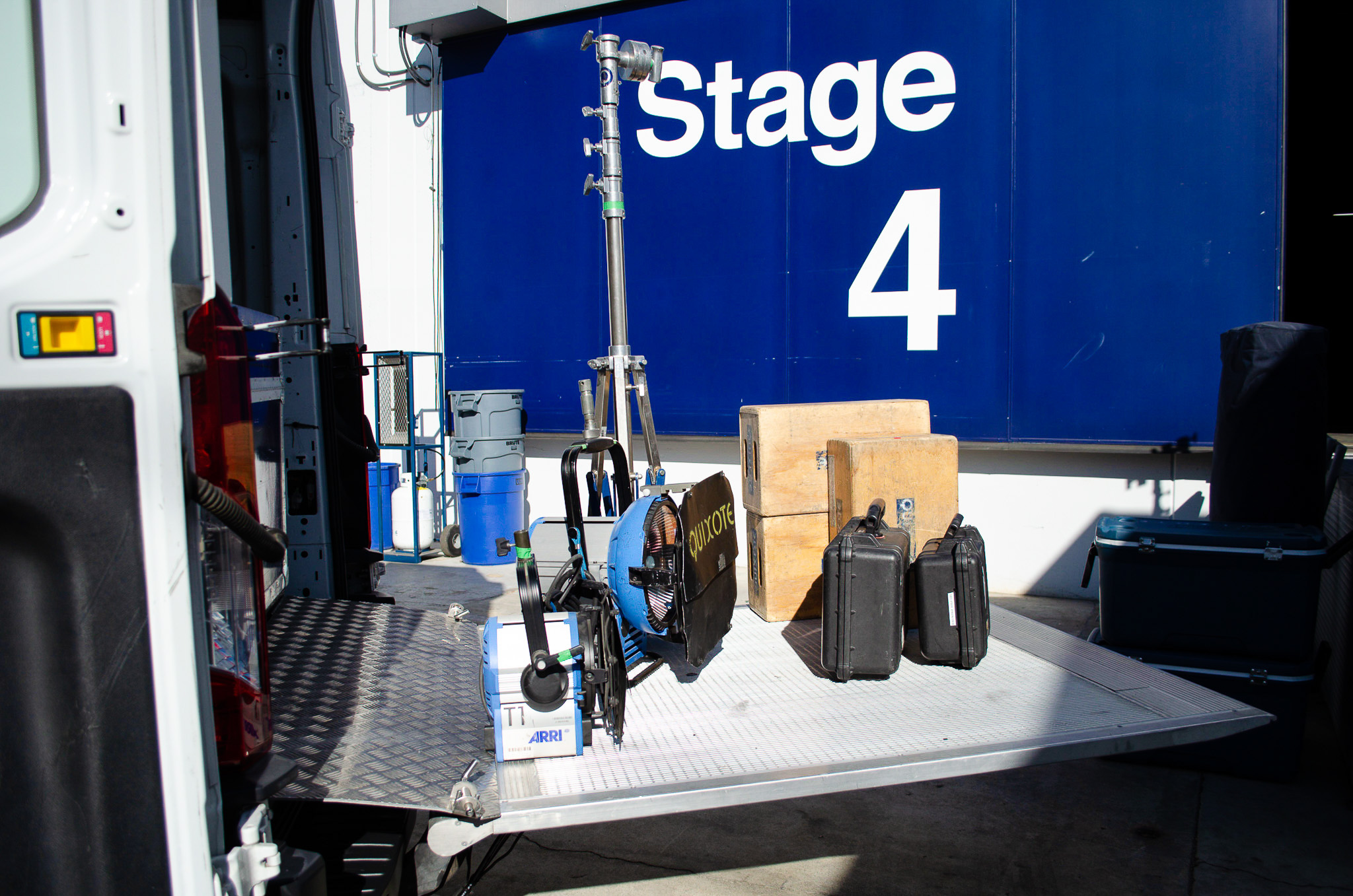

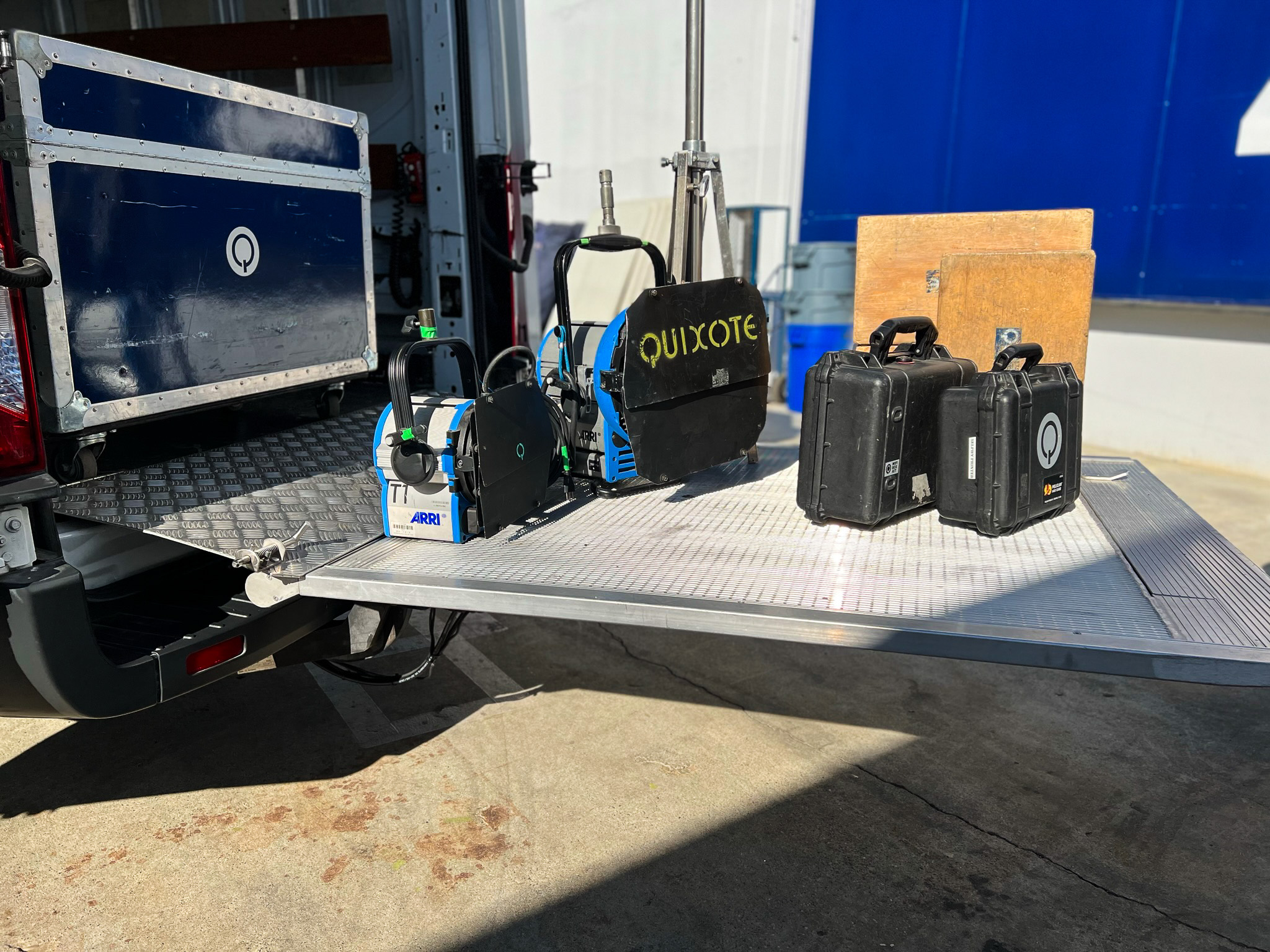

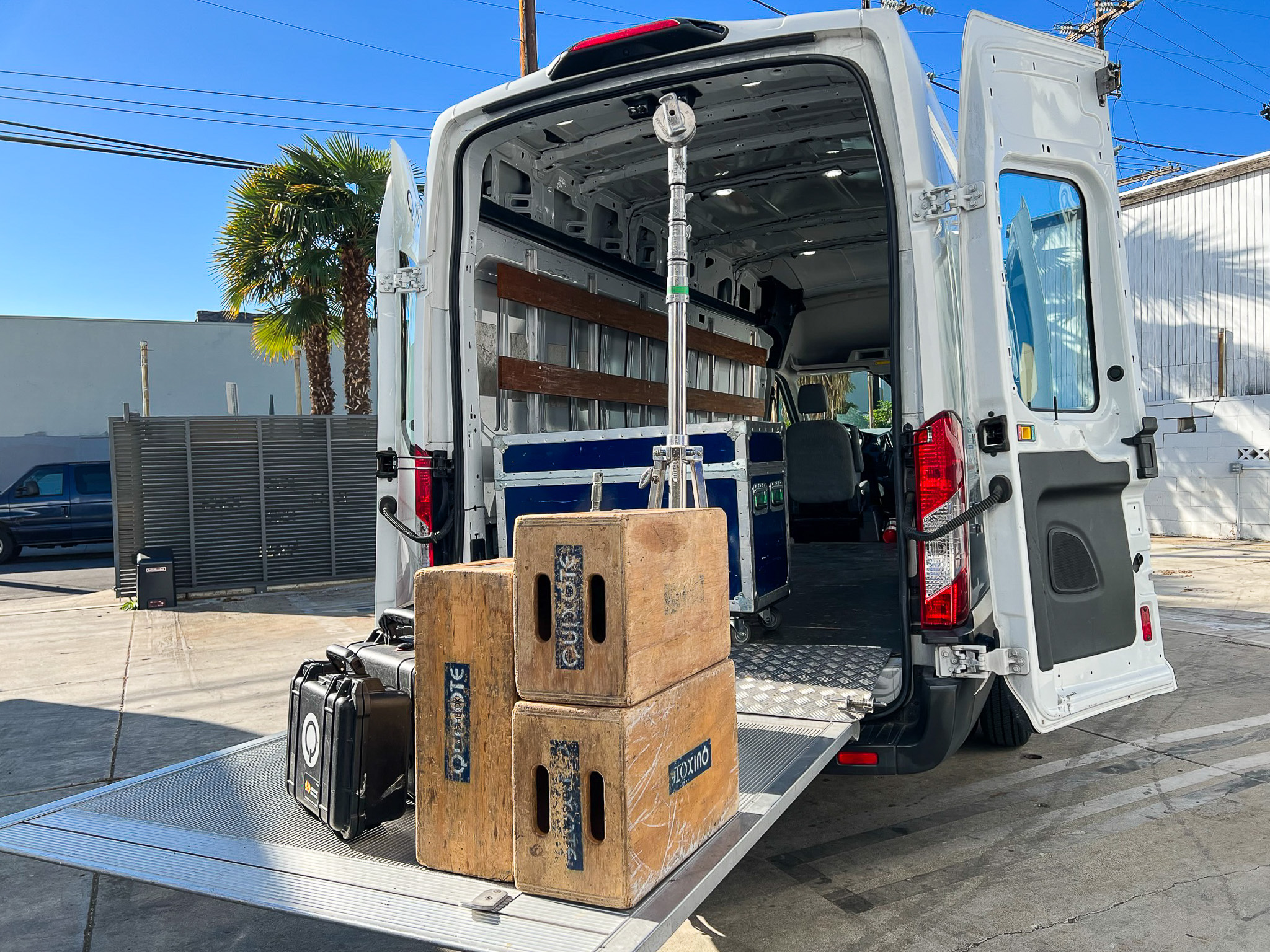

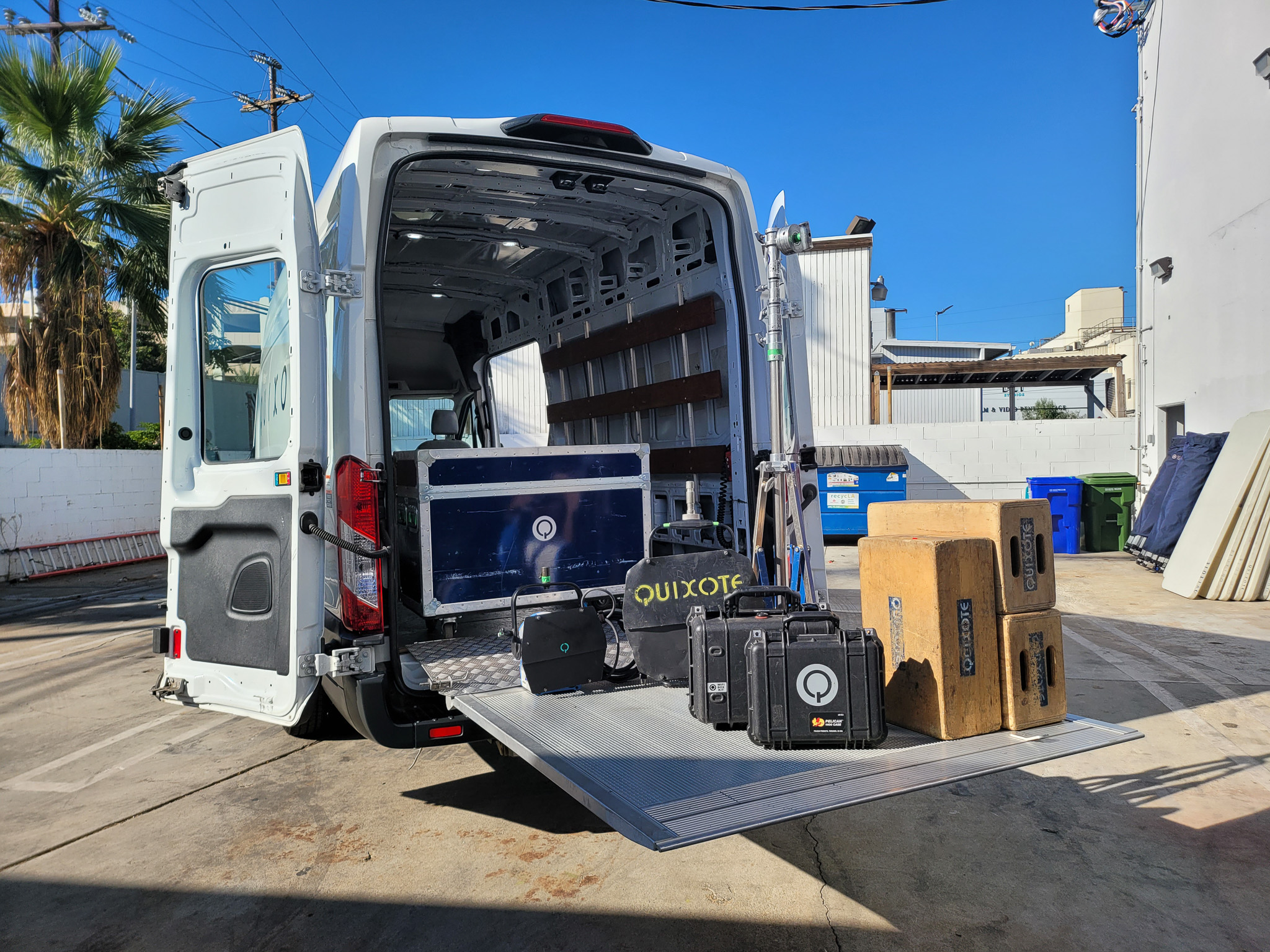

MiniFix delivers a smart external-mounted solution for Ford, Mercedes, Nissan, and RAM panel vans. Enjoy quick bolt-on installation tailored to each model.

Note: Sprinter step bumpers aren’t compatible, and the spare tire must be relocated for a secure, efficient setup.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

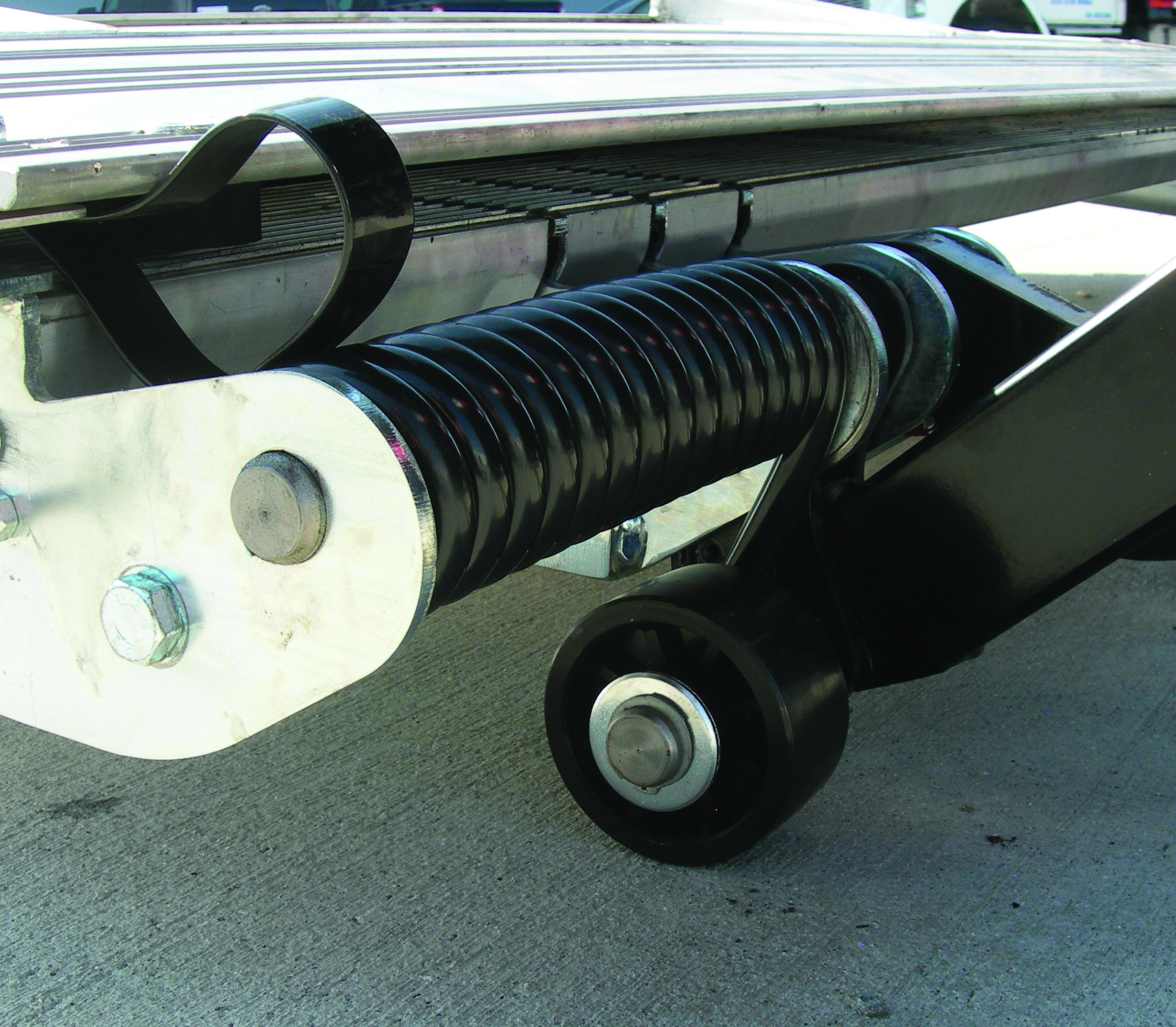

Ground Rollers That Safeguard Every Delivery

Protect your liftgate, your customer’s lot, and your reputation—platform ground rollers reduce wear and tear during loading while preventing surface damage. Designed for smooth operation and added safety, they’re a smart upgrade for any fleet focused on durability and professionalism.

alt text

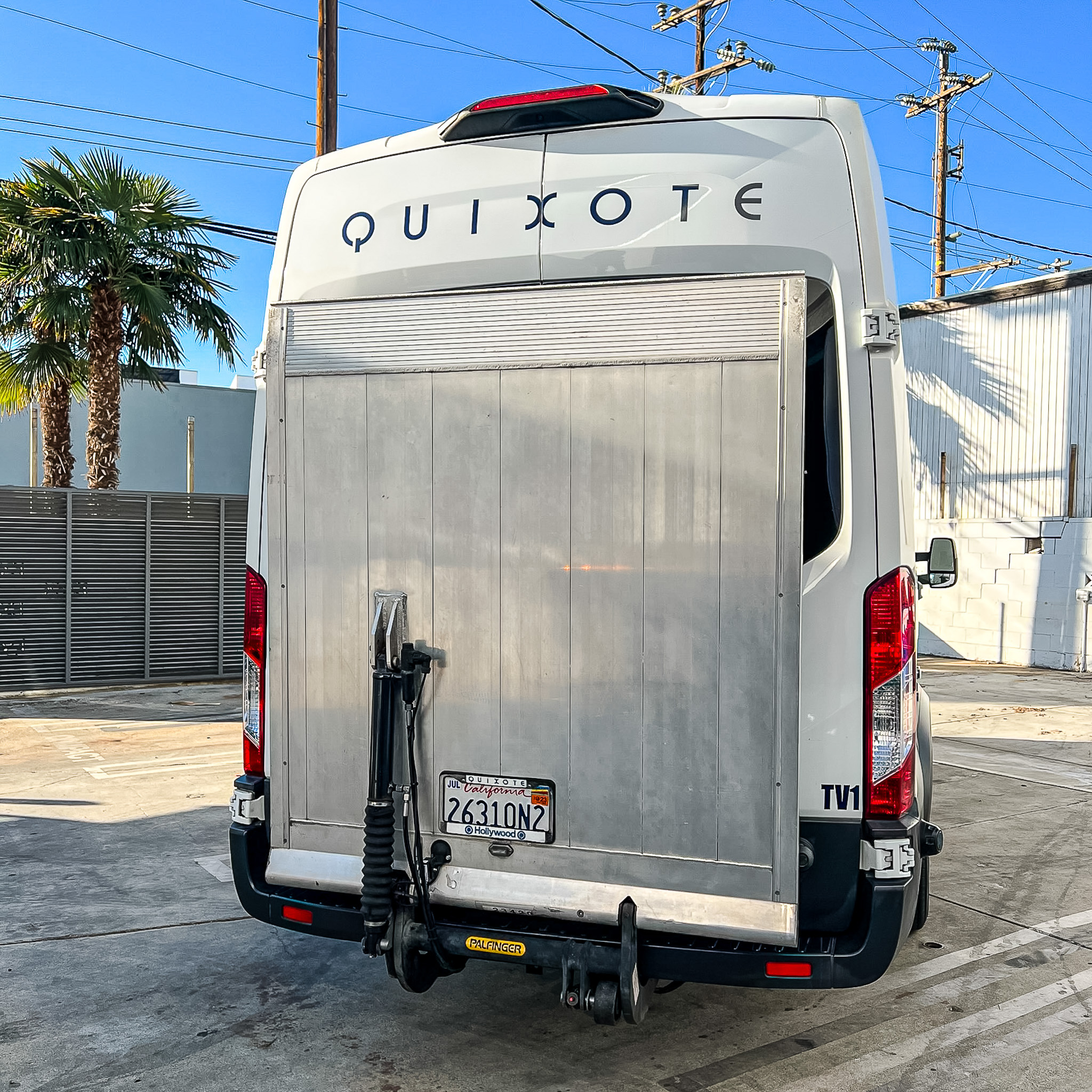

Protected Power, Ready to Perform

The thermo-protected power pack is fully enclosed in the mount tube for added protection and slides out for quick inspection. Oversized, high-quality components reduce maintenance and downtime, ensuring reliable liftgate performance in demanding conditions and extreme temperatures.



alt text

Technical Specifications

Technical data U.S. Units

Lifting capacity (lbs)

Approx. weight (lbs)

Bed height range (inch)

Platform size length (inch)

Platform size width (inch)
The MiniFix 1,100 lbs 360 lbs. 18-30" 62" 55"
The MiniFix 1,320 lbs 360 lbs. 18-30" 62" 55"
Technical data metric

Lifting capacity

Approx. weight

Bed height range

Platform size length

Platform size width

The MiniFix 498 kg 163 kgs. 457-762 mm 1574 mm 1397 mm
The MiniFix 599 kg 163 kgs. 457-762 mm 1574 mm 1397 mm
Standard features
  • Two cylinder lift: one lift, one tilt
  • Hydraulic cylinder locks
  • Level ride platform

Discover Standard Features

Cart Stops

Secure cargo and prevent roll-off with heavy-duty cart stops—designed for liftgate-equipped service trucks. Built to withstand tough jobsite conditions, they offer reliable load control during loading and unloading. Easy to use, durable, and essential for safe, efficient operations.

Bushings & Zerks at All Pivot Points

Bushings and grease zerks at all pivot points ensure smoother operation and extended component life. Designed for durability and easy maintenance, this setup minimizes wear and reduces service intervals—ideal for fleets seeking long-term reliability and performance.

alt text
Handheld Remote

Control liftgate functions with ease using our handheld remote—designed for durability, precision, and convenience. Whether you're loading or unloading, enjoy smooth, responsive operation right at your fingertips. Built for tough environments and reliable performance.

Optional Features

Wireless Remote

Wireless remote controls offer fast, reliable liftgate operation with enhanced safety and flexibility. Operators can manage lift functions, improving workflow —perfect for busy delivery environments and efficient fleet performance.

Platform-Mounted Foot Controls

PALFINGER’s platform-mounted foot controls offer hands-free convenience and safer operation. Designed for efficiency, they allow quick access to liftgate functions while keeping operators focused and secure—ideal for fast-paced loading environments and improved workflow.
