Liftgates
Key Specs
Imperial
Metric
Weight Capacity
Up to 2722 kg Up to 6600 lbs.
Platform Size
Up to 2133.6 mm x 2032 mm Up to 84"x80"
Bed Height
Up to 1422.4 mm Up to 56"

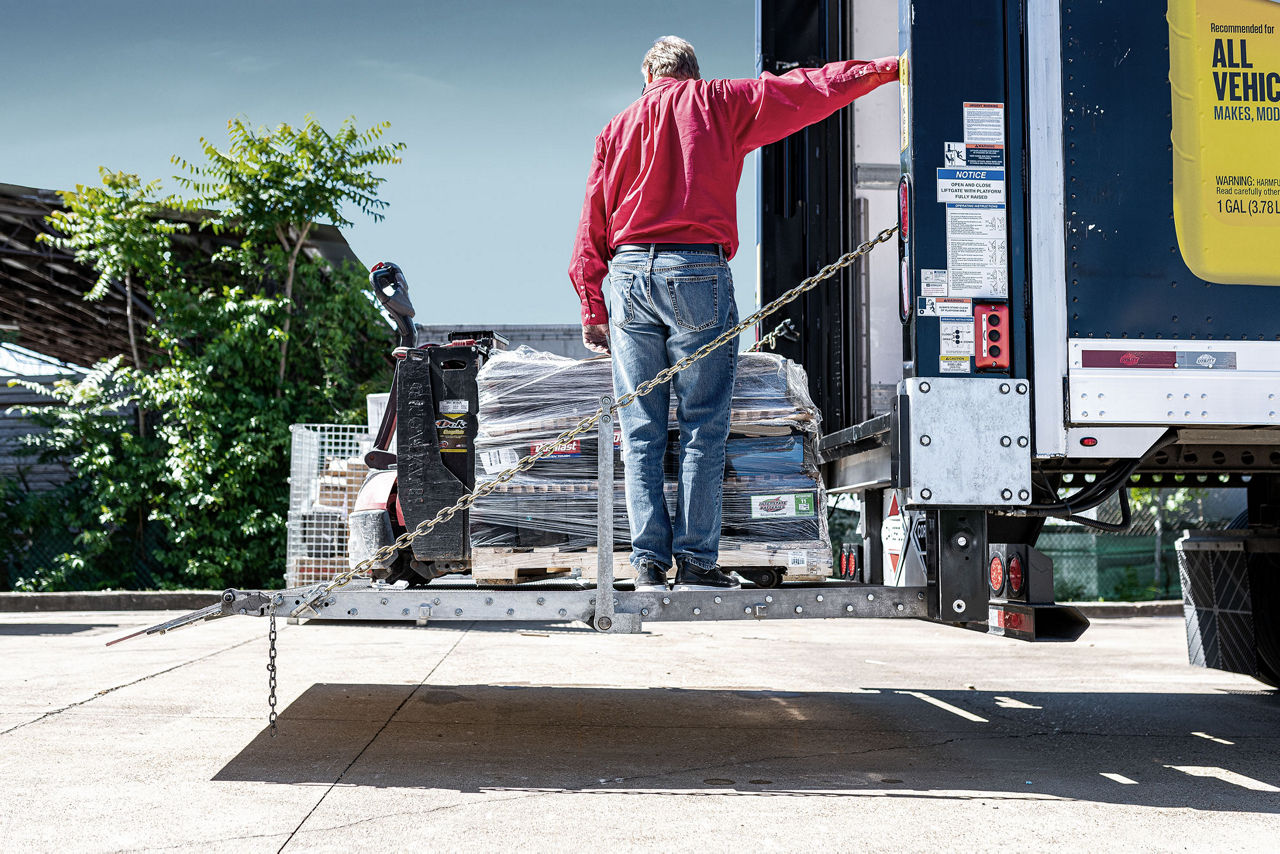

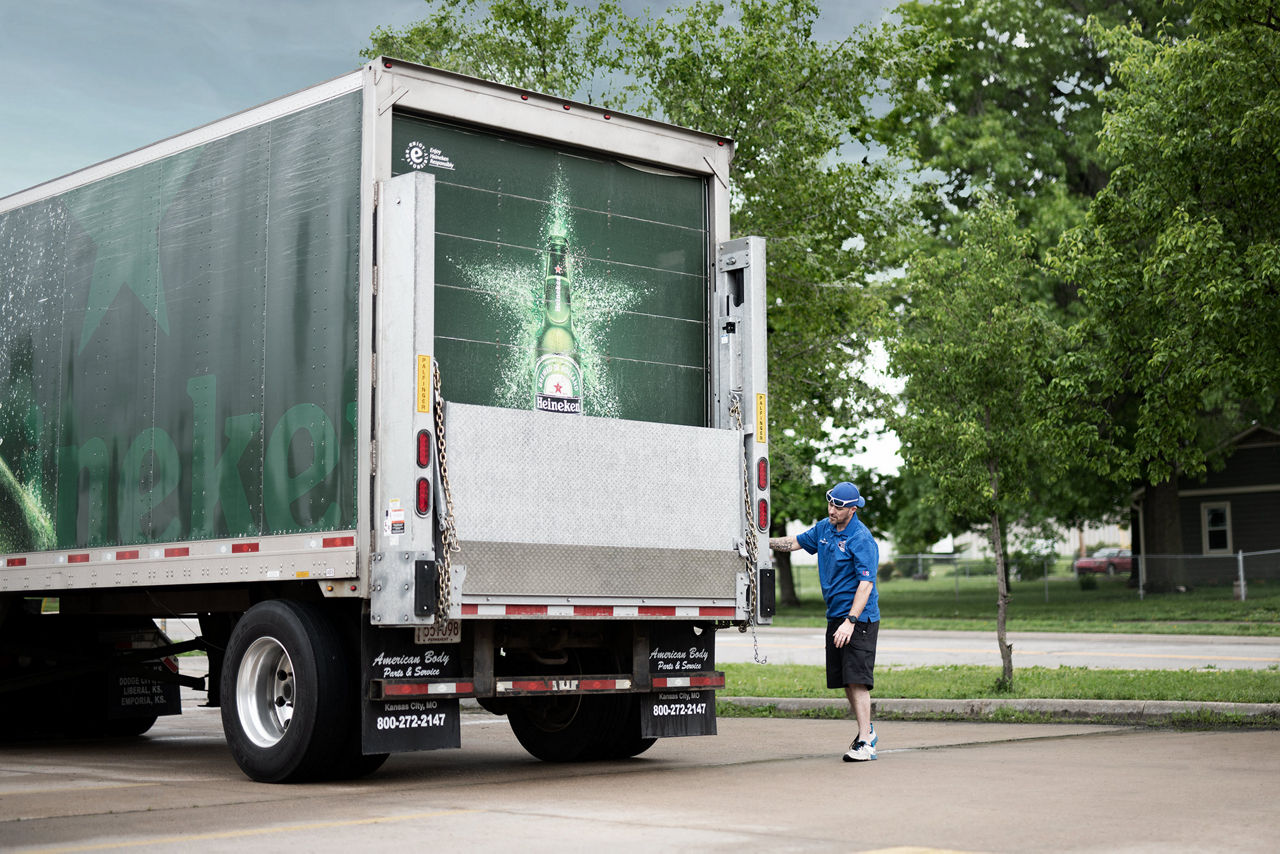

Introducing the all-new PTV—built tough for daily use and redesigned for ultimate performance. Enjoy faster installs, effortless operation, and minimal upkeep. With longer service life, lower costs, and PALFINGER’s unmatched support, keep your fleet moving and your business soaring.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Advanced Column Structure for Dock Impact Resistance

Features a two-piece design with a bolt-on column wrap and built-in air gap to absorb dock impact forces. The wrap bolts securely to trailer channels for added strength and rigidity, ensuring superior protection and durability. Engineered for heavy-duty performance, this solution minimizes damage and extends the life of your dock equipment.

Ground Rollers That Safeguard Every Delivery

Protect your liftgate, your customer’s lot, and your reputation—platform ground rollers reduce wear and tear during loading while preventing surface damage. Designed for smooth operation and added safety, they’re a smart upgrade for any fleet focused on durability and professionalism.

alt text

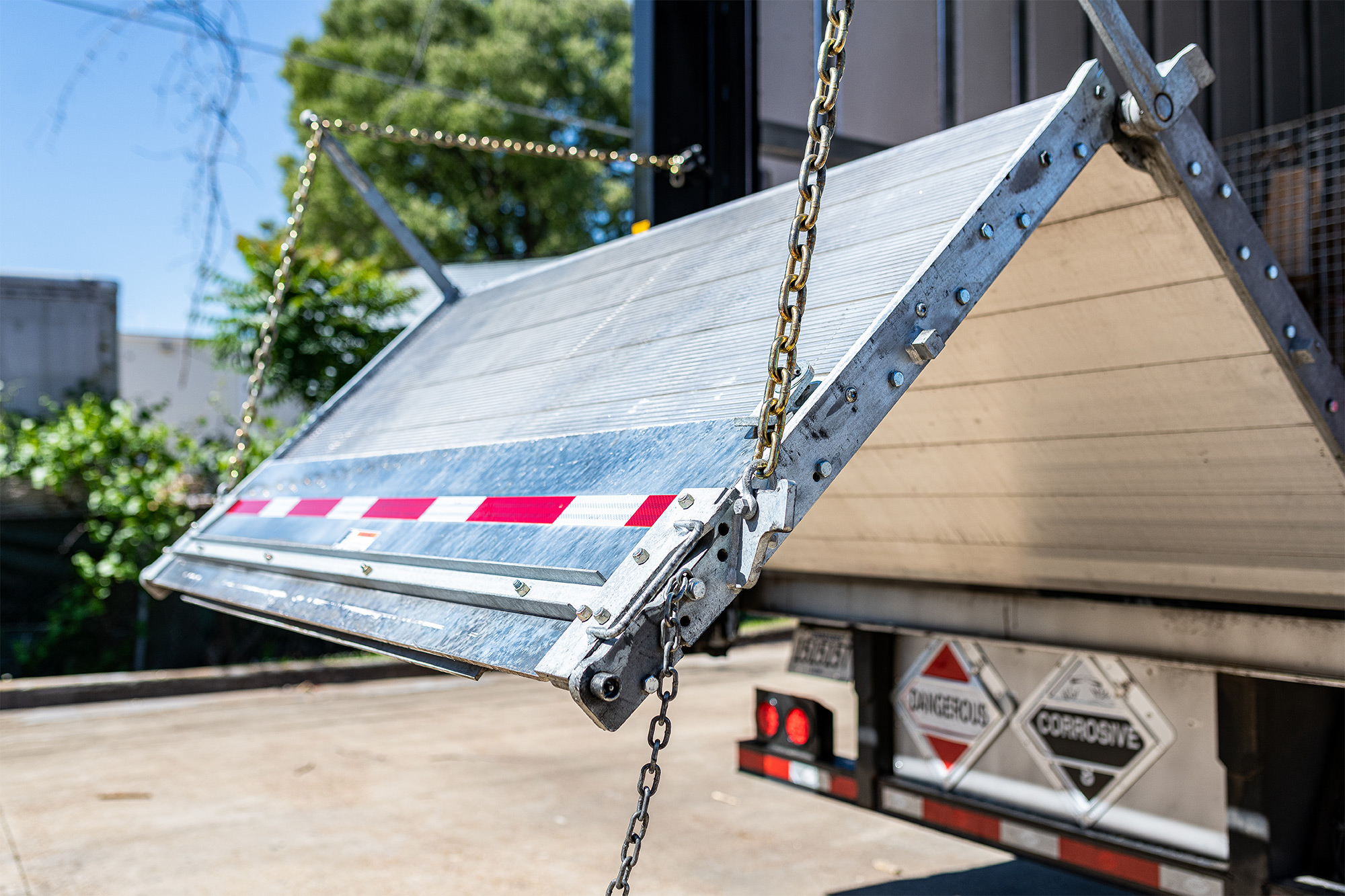

Durable Aluminum Platform with Heavy-Duty Components

The aluminum platform features heavy-duty steel side bars and hinges, complete with bushings, grease zerks, and stainless pins for long-lasting durability. Optional steel platforms are available upon request, offering strength and reliability for demanding liftgate applications.

alt text

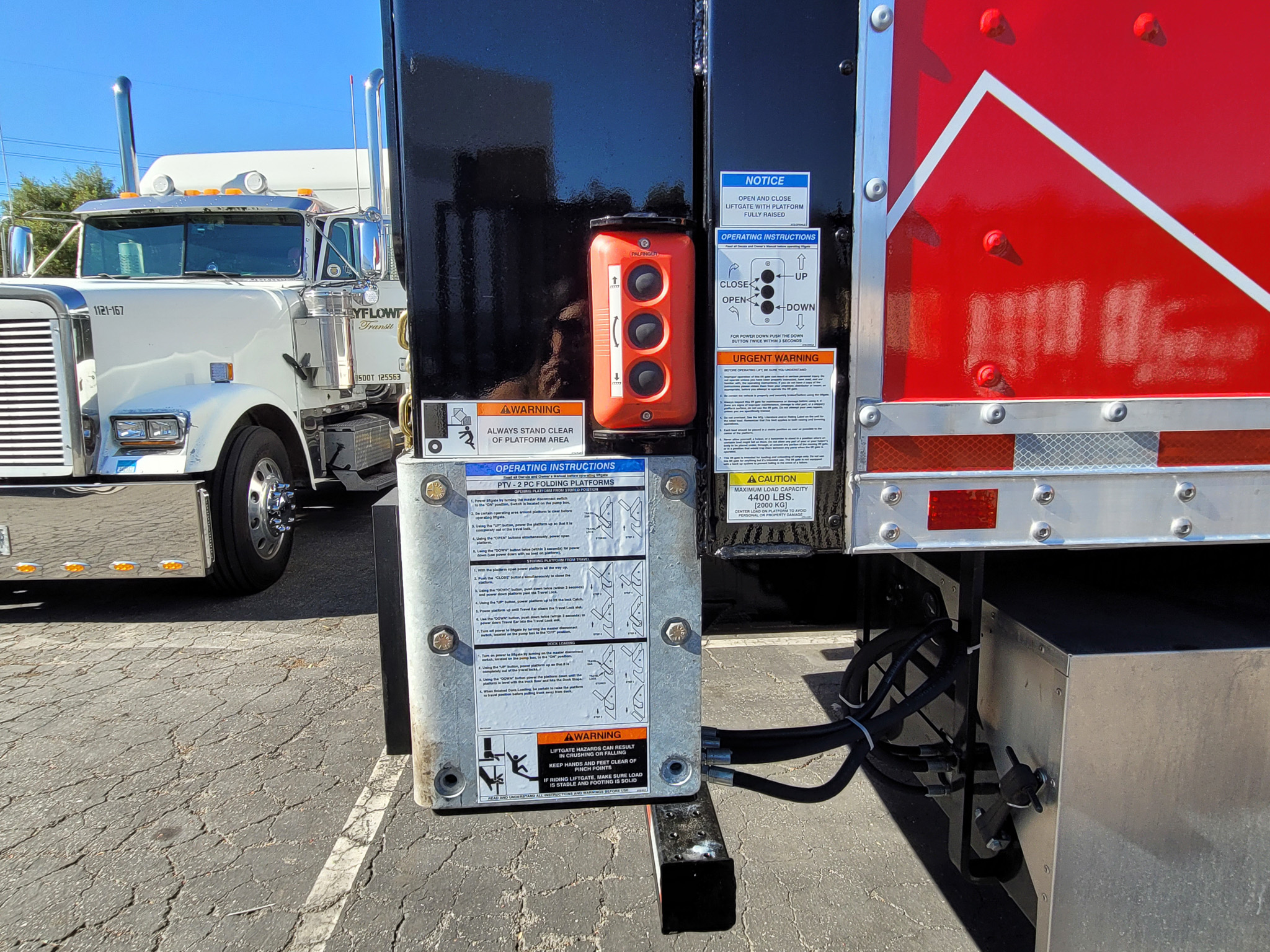

Smart Controls Ready for Telematics

PALFINGER’s advanced Control System features built-in diagnostics for quick voltage and system checks. It includes cycle counting, a resettable service counter, and CAN bus compatibility for fleet feedback. Housed in a rugged, hinged rubber enclosure, the PC board offers enhanced protection and visibility—ready for today’s telematics demands.

alt text

Technical Specifications

Technical data U.S. Units

Lifting capacity (lbs)

Bed height range (inch)

Platform size length (inch)

Platform size width (inch)

Weight Installed Steel (lbs)

Weight Installed Aluminum (lbs)
PTV 35 3,500 lbs 40-56" Available in 42" | 60" | 72" | 84" lengths Available in 80" | 86" widths 1770-2149 lbs 1666-1924 lbs
PTV 44 4,400 lbs 40-56" Available in 42" | 60" | 72" | 84" lengths Available in 80" | 86" widths 1770-2149 lbs 1666-1924 lbs
PTV 55 5,500 lbs 40-56" Available in 60" | 72" | 84" lengths Available in 80" | 86" widths 2095-2162 lbs 1862-1932 lbs
PTV 66 6,600 lbs 40-56" Available in 60" | 72" | 84" lengths Available in 80" | 86" widths 2095-2162 lbs 1862-1932 lbs

Bed height ranges: min = loaded / max = unloaded

** Models with optional ARR require 6“ less floor height than units with a 12“ fixed ramp when dock loading

Technical data metric

Lifting capacity

Bed height range

Platform size length

Platform size width

Weight Installed Steel (lbs)

Weight Installed Aluminum (lbs)
PTV 35 1,600 kg 1016-1422 mm Available in 1067 mm | 1524 mm | 1829 mm | 2134 mm lengths Available in 2032 mm | 2184 mm width 803-975 kg 756-873 kg
PTV 44 2,000 kg 1016-1422 mm Available in 1067 mm | 1524 mm | 1829 mm | 2134 mm lengths Available in 2032 mm | 2184 mm width 803-975 kg 756-873 kg
PTV 55 2,500 kg 1016-1422 mm Available in 1524 mm | 1829 mm | 2134 mm lengths Available in 2032 mm | 2184 mm width 950-981 kg 845-876 kg
PTV 66 3,000 kg 1016-1422 mm Available in 1524 mm | 1829 mm | 2134 mm lengths Available in 2032 mm | 2184 mm width 950-981 kg 845-876 kg

Bed height ranges: min = loaded / max = unloaded

** Models with optional ARR require 6“ less floor height than units with a 12“ fixed ramp when dock loading

Standard features
  • Quick Change Runner Switch Harness
  • Plug-n-Play LED Tail Light Harness
  • Bolt-on Column Wraps (Replaceable)
  • Enclosed Power Unit with Battery Kit & Hanger Frame
  • Manifold Hose Connections at Liftgate and Pump
  • Adjustable Platform Chains
  • Hardened Stainless Steel Pins
  • Dock Loading Bottom Stops
  • Master Power Disconnect Switch
  • Built-in Pressure Gauge
  • Built-in Voltage Gauge
  • Slide Pads

Discover Standard Features

Dual Pump and Motor

Power up performance with dual pump and motor systems—designed for faster liftgate operation, improved reliability, and reduced downtime. Ideal for high-cycle fleets and demanding commercial use. Experience smoother, more efficient lifting with built-in redundancy and superior hydraulic control.

*Optional for PTV35 & 44

Extra Heavy-duty Trailer Dock Bumpers

PALFINGER’s extra heavy-duty trailer dock bumpers are built to absorb impact, protect your liftgate, and extend trailer life. Engineered for rugged performance in high-traffic loading zones, they reduce wear and damage—delivering long-term value and reliability for demanding fleet operations.

Bushings & Zerks at All Pivot Points

Bushings and grease zerks at all pivot points ensure smoother operation and extended component life. Designed for durability and easy maintenance, this setup minimizes wear and reduces service intervals—ideal for fleets seeking long-term reliability and performance.

alt text
Galvanized

PALFINGER offers galvanized finishes in multiple combinations to suit your climate and operational needs. Engineered for superior corrosion resistance, this durable coating protects against rust and harsh conditions—ideal for demanding environments and long-term performance.

alt text

Optional Features

Cart Stops

Secure cargo and prevent roll-off with heavy-duty cart stops—designed for liftgate-equipped service trucks. Built to withstand tough jobsite conditions, they offer reliable load control during loading and unloading. Easy to use, durable, and essential for safe, efficient operations.

16" Aluminum Retention Ramp

Improve cargo control with a 16" aluminum retention ramp — durable and designed to keep loads secure. Designed to prevent roll-off during loading and unloading, offering reliable performance.

Wireless Remote

Wireless remote controls offer fast, reliable liftgate operation with enhanced safety and flexibility. Operators can manage lift functions, improving workflow —perfect for busy delivery environments and efficient fleet performance.

Bolt-On Applications

Bolt-on ready for fast installs, this liftgate delivers strength and simplicity. With a large platform, durable construction, and easy-to-integrate design, it’s built for fleets that demand reliability and quick turnaround—no welding, no hassle, just bolt and go.

Integrated Warning Lights

Integrated warning lights on the liftgate platform boost visibility during loading and unloading, especially in low-light or high-traffic areas. Designed for safety and compliance, they help protect operators and equipment while enhancing overall liftgate performance.

Dock Seal Header Kits

Designed for a tight seal, these kits minimize energy loss, safeguard cargo, and improve safety during loading and unloading. Built to withstand harsh conditions, they deliver long-lasting performance and efficiency for your operation.

Dock Seal Header LED Flood Light Kit

Illuminate your loading dock with the dock seal header LED flood light kit. Designed for durability and bright, energy-efficient lighting, this kit improves visibility and safety during loading and unloading. Built for harsh conditions, it delivers reliable performance and long-lasting efficiency.

Dual Nose Box

Upgrade your electrical charge setup with the dual nose box—designed for durability and easy access. Perfect for managing multiple types of tractor charge cable setups. Built tough for demanding environments, this solution keeps your fleet running smoothly.

Hose Kits: 3', 9', 18', 27'

Optimize the length for your hydraulic needs, depending on the trailer length—available in 3', 9', 18', and 27' lengths. Built for durability and performance, these hose kits ensure reliable connections and smooth operation for liftgate systems. Optimize your setup with premium quality hoses designed to withstand demanding conditions.

Solar Chargers

Power your liftgate anywhere with reliable solar chargers. Designed for durability and efficiency, these chargers keep batteries charged and reduce downtime, even in remote locations. Harness clean energy to lower operating costs and extend battery and electrical components' life—perfect for fleets that demand nonstop performance.
