Folding

PLR

Folding Lift

Key Specs

Imperial

Metric

Weight Capacity: Up to 1497 kg Up to 3300 lbs.

Platform Size: Up to 1524 mm x 2032 mm Up to 60"x80"

Bed Height: Up to 1422.4 mm Up to 56"

View all specifications

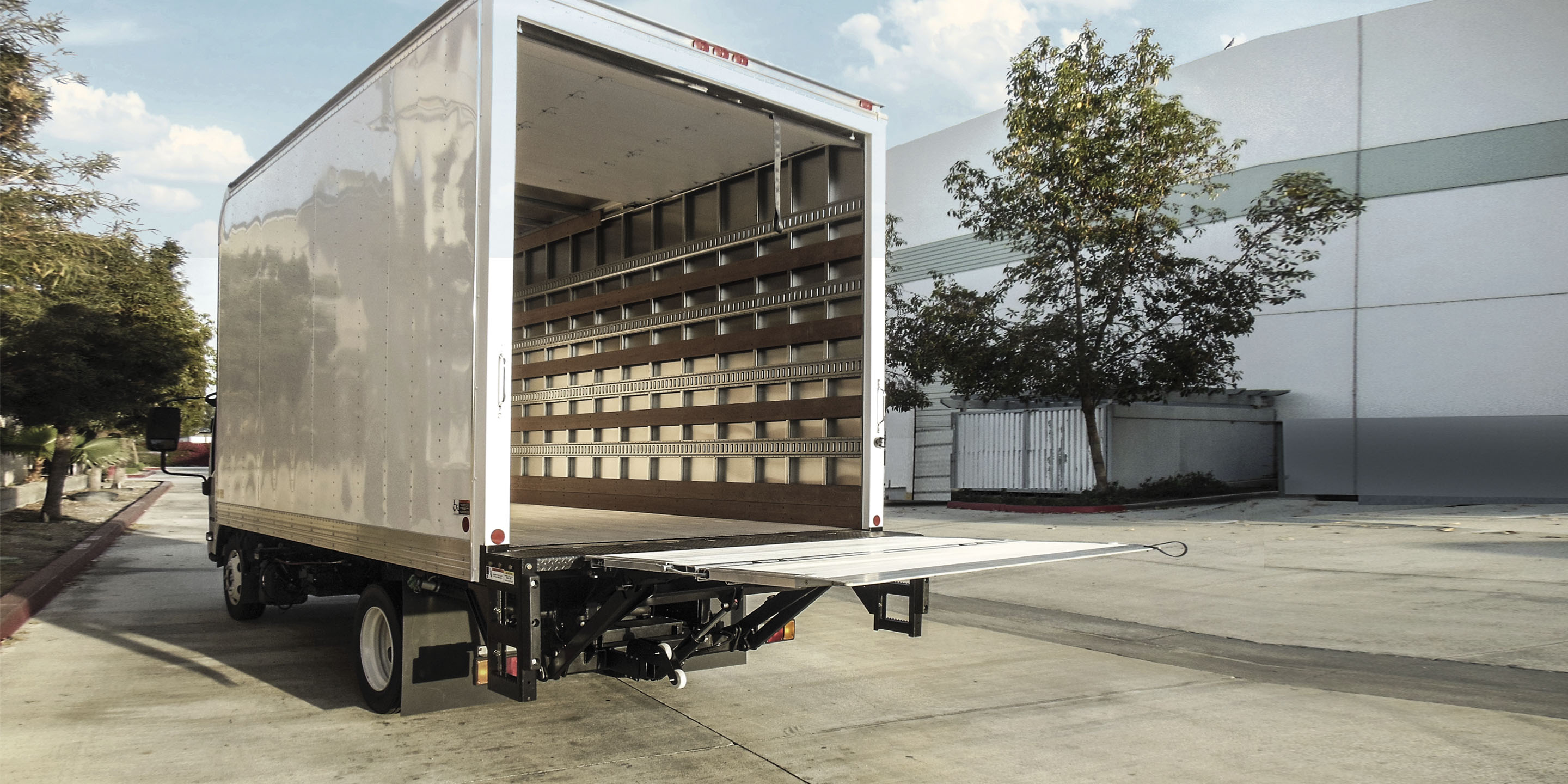

Boost ROI with the PLR—ideal for city deliveries. Features include up to 3,300 lb capacity, dual cylinders for stability, multiple platform sizes, walk ramp options, and power-down versions in painted or galvanized finishes for harsh climates. Simple operation means maximum fleet efficiency.

Find Sales Partner

Protected Power, Ready to Perform

The thermo-protected power pack is fully enclosed in the mount tube for added protection and slides out for quick inspection. Oversized, high-quality components reduce maintenance and downtime, ensuring reliable liftgate performance in demanding conditions and extreme temperatures.

Bushings and Grease Zerks

PALFINGER’s PTV-BG liftgate features corrosion-protected hardened pins and grease-loading perforated bushings for extended service intervals. These rugged components are part of a low-maintenance design built to go the distance—just one example of the thoughtful engineering behind every PALFINGER liftgate.

Technical Specifications

PALFINGER Liftgates PLR Brochure

PALFINGER Liftgates Range Brochure

Technical data U.S. Units

	Lifting capacity (lbs)	Approx. weight (lbs)	Bed height range (inch)	Platform size length (inch)	Platform size width (inch)
PLR 20	2,000 lbs	695-840 lbs.	36-52"	Available in 42" \| 48" \| 54" lengths	80"
PLR 25	2,500 lbs	705-920 lbs.	36-52" \| *900 mm arm is standard on 60" platforms	Available in 42" \| 48" \| 54" \| 60" lengths	80"
PLR 33	3,300 lbs	745-920 lbs.	39-52" \| *900 mm arm is standard on 60" platforms	Available in 48" \| 54" \| 60" lengths	80"

Technical data metric

	Lifting capacity	Approx. weight	Bed height range	Platform size length	Platform size width
PLR 20	907 kg	315-381 kg.	914-1320 mm	Available in 1066 mm \| 1219 mm \| 1371 mm lengths	2032 mm
PLR 25	1,133 kg	319-417 kg.	914-1320 mm \| *900 mm arm is standard on 60" platforms	Available in 1066 mm \| 1219 mm \| 1371 mm \| 1524 mm lengths	2032 mm
PLR 33	1,496 kg	337-417 kgs.	990-1320 mm \| *900 mm arm is standard on 60" platforms	Available in 1219 mm \| 1371 mm \| 1524 mm lengths	2032 mm

Standard features

Feature	PLR 2000 1 Cylinder	PLR 2500 1 Cylinder	PLR 2500 Dual Cylinder	PLR 3300 Dual Cylinder
Dual platform roller	S	S	S	S
Cab shut-off switch	S	S	S	S
Black painted finish	S	S	S	S
Galvanized finish	O	O	O	O
All steel platform	S	S	S	S
Steel/Aluminum platform	O	O	O	O
All aluminum platform	O	O	O	O
Cart stops (all platforms)	O	O	O	O
No bumper	S	S	S	S
Center bumper	-	-	O	O
DOT center bumper	-	-	O	O
2" receiver hitch - 10,000 lbs.	-	-	O	O
21" or 28" dock bumper	O	O	O	O
Rubber dock bumper pads	O	O	O	O
Flex step dock bumpers	O	O	O	O
Dock bumper light kits	O	O	O	O
Walk ramp kit	O	O	O	O
Gravity down	S	S	S	S
Power down	O	O	O	O

S = standard O = Optional

Available loading area with cart stop platform

42" = 34"

48" = 40"

54" = 46"

60" = 52"

Options

Feature	PLR 2000 1 Cylinder	PLR 2500 1 Cylinder	PLR 2500 Dual Cylinder	PLR 3300 Dual Cylinder
Dual platform roller	S	S	S	S
Cab shut-off switch	S	S	S	S
Black painted finish	S	S	S	S
Galvanized finish	O	O	O	O
All steel platform	S	S	S	S
Steel/Aluminum platform	O	O	O	O
All aluminum platform	O	O	O	O
Cart stops (all platforms)	O	O	O	O
No bumper	S	S	S	S
Center bumper	-	-	O	O
DOT center bumper	-	-	O	O
2" receiver hitch - 10,000 lbs.	-	-	O	O
21" or 28" dock bumper	O	O	O	O
Rubber dock bumper pads	O	O	O	O
Flex step dock bumpers	O	O	O	O
Dock bumper light kits	O	O	O	O
Walk ramp kit	O	O	O	O
Gravity down	S	S	S	S
Power down	O	O	O	O

S = standard O = Optional

Available loading area with cart stop platform

42" = 34"

48" = 40"

54" = 46"

60" = 52

Discover Standard Features

Galvanized

PALFINGER offers galvanized finishes in multiple combinations to suit your climate and operational needs. Engineered for superior corrosion resistance, this durable coating protects against rust and harsh conditions—ideal for demanding environments and long-term performance.

Optional Features

Power Down

Power-down functionality ensures smooth, controlled descent—ideal for precision unloading and added safety. Designed for reliability in demanding conditions, this system delivers consistent performance, reduced wear, and better operator control with every cycle.

Rubber Pads

Protect your liftgate and cargo with durable rubber pads on the dock bumpers —designed to absorb impact, reduce wear, and improve grip during loading and unloading. Ideal for high-traffic fleets, these pads extend equipment life and enhance safety in every delivery. A simple upgrade with lasting benefits.

Extra Heavy-duty Trailer Dock Bumpers

PALFINGER’s extra heavy-duty trailer dock bumpers are built to absorb impact, protect your liftgate, and extend trailer life. Engineered for rugged performance in high-traffic loading zones, they reduce wear and damage—delivering long-term value and reliability for demanding fleet operations.

2" Receiver Hitch

Add towing versatility with a 2" receiver hitch—perfect for attaching cargo carriers, bike racks, or trailers. Built for strength and compatibility, it enhances your liftgate’s utility while maintaining safety and performance. A smart upgrade for fleet flexibility.

Cart Stops

Secure cargo and prevent roll-off with heavy-duty cart stops—designed for liftgate-equipped service trucks. Built to withstand tough jobsite conditions, they offer reliable load control during loading and unloading. Easy to use, durable, and essential for safe, efficient operations.

Aluminum Platforms

Boost load capacity and durability with aluminum platforms—lightweight, corrosion-resistant, and built to perform. Ideal for delivery fleets and commercial vehicles.
