ILUK
Slider
Liftgates
Key Specs
Imperial
Metric
- Weight Capacity
- Up to 2722 kg Up to 6000 lbs.
- Platform Size
- Up to 2082.8 mm x 2387.6 mm Up to 82"x94"
- Bed Height
- Up to 1473.2 mm Up to 58"

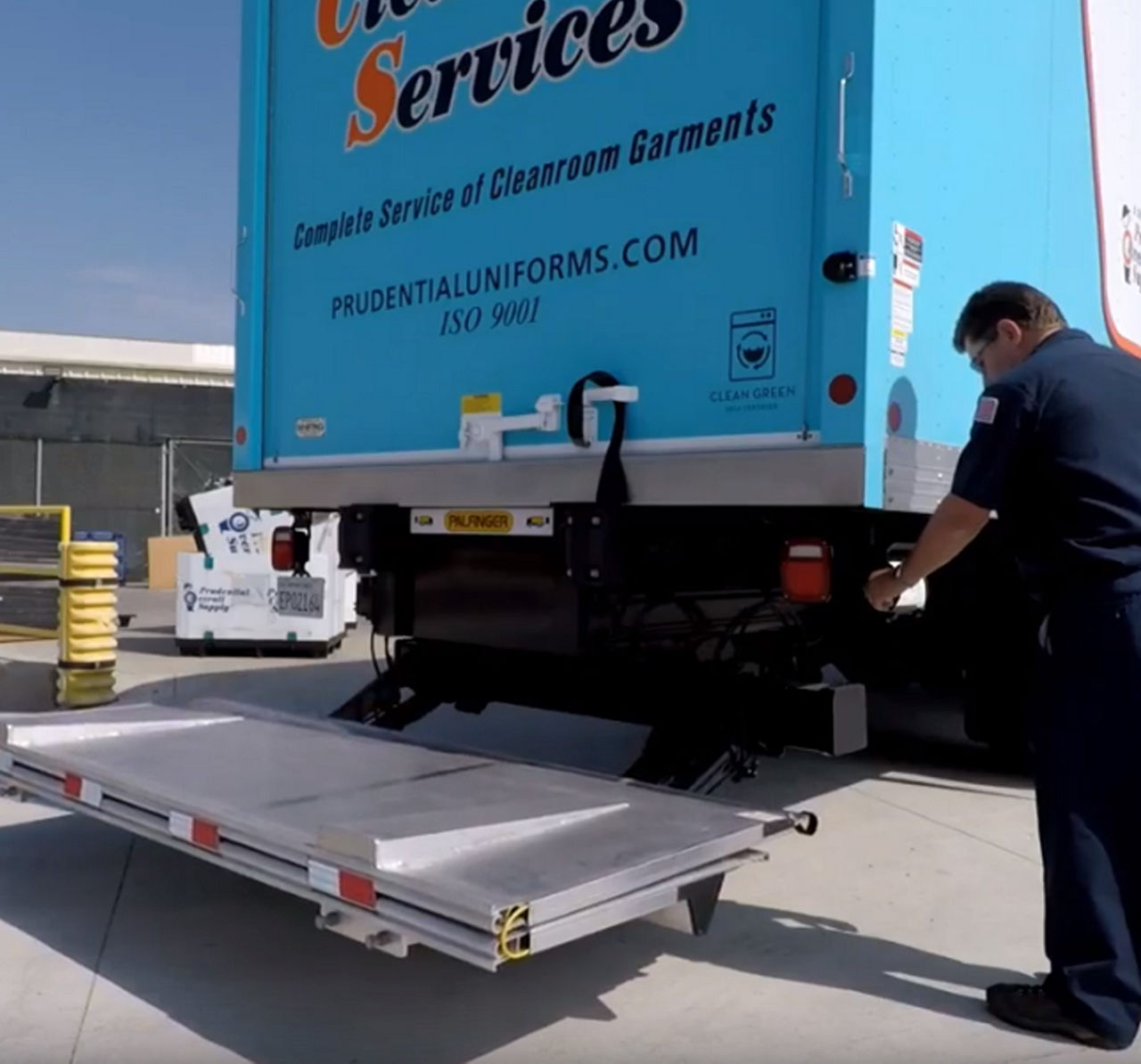

The ILUK underbody liftgate offers a high-capacity, level-ride platform stored safely beneath the vehicle for dock loading without extra steps. It stays out of the way until needed, combining convenience, protection, and efficiency for demanding fleet operations.
Technical Specifications
Technical data U.S. Units
|
Lifting capacity (lbs) |
Approx. weight (lbs) |
Bed height range (inch) |
Platform size length (inch) |
Platform size width (inch) |
|
|---|---|---|---|---|---|
| ILUK 33 | 3,300 lbs | 1180 lbs. | 36-56" | 74" | 94" |
| ILUK 44 | 4,400 lbs | 1250-1290 lbs. | 36-56" | Available in 74" | 82" lengths | 94" |
| ILUK 55 | 5,500 lbs | 1350-1390 lbs. | 36-56" | Available in 74" | 82" lengths | 94" |
| ILUK 60 | 6,000 lbs | 1390 lbs. | 36-56" | 82" length | 94" |
Technical data metric
|
Lifting capacity |
Approx. weight |
Bed height range |
Platform size length |
Platform size width |
|
|---|---|---|---|---|---|
| ILUK 33 | 1,496 kg | 535 kgs. | 914-1422 mm | 1828 mm | 2387 mm |
| ILUK 44 | 1,995 kg | 566-585 kgs. | 914-1422 mm | Available in 1879 mm | 2082 mm lengths | 2387 mm |
| ILUK 55 | 2,494 kg | 612-630 kgs. | 914-1422 mm | Available in 1879 mm | 2082 mm lengths | 2387 mm |
| ILUK 60 | 2,722 kg | 630 kgs. | 914-1422 mm | 2082 mm length | 2387 mm |
Standard features
- Large platforms
- Level ride
- 4 cylinder wide optimized construction
- 150 AMP circuit breaker

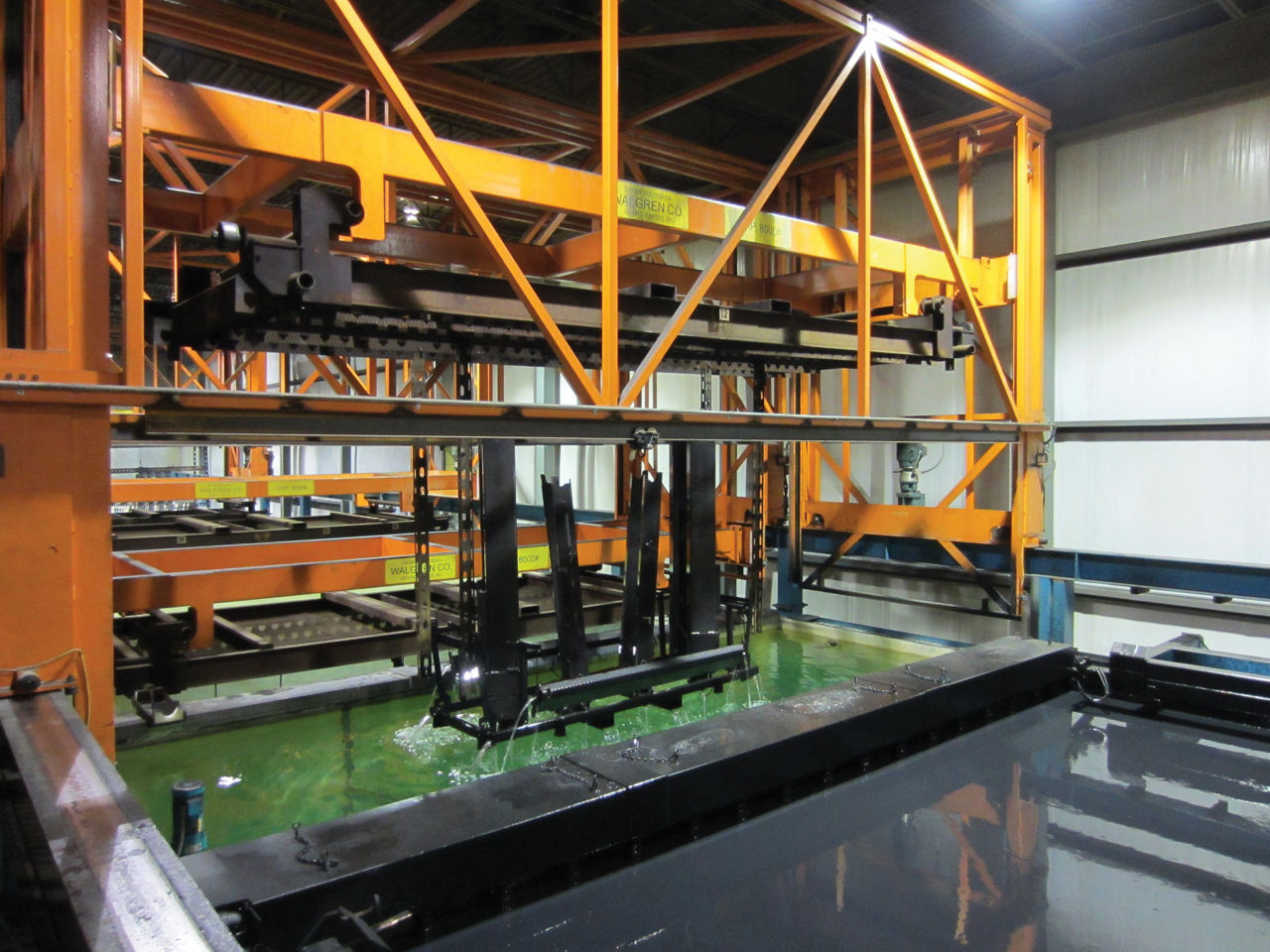

E-Coat Protection
PALFINGER’s standard e-coat process ensures unmatched corrosion protection. All parts are cleaned in 4 baths, pre-treated with phosphate coating, then fully immersed in high-performance PPG paint. A direct current bonds the coating to steel, sealing every surface for lasting durability.
Platform-Mounted Foot Controls
PALFINGER’s platform-mounted foot controls offer hands-free convenience and safer operation. Designed for efficiency, they allow quick access to liftgate functions while keeping operators focused and secure—ideal for fast-paced loading environments and improved workflow.
Handheld Remote
Control liftgate functions with ease using our handheld remote—designed for durability, precision, and convenience. Whether you're loading or unloading, enjoy smooth, responsive operation right at your fingertips. Built for tough environments and reliable performance.
Cart Stops
Secure cargo and prevent roll-off with heavy-duty cart stops—designed for liftgate-equipped service trucks. Built to withstand tough jobsite conditions, they offer reliable load control during loading and unloading. Easy to use, durable, and essential for safe, efficient operations.
Bushings & Zerks at All Pivot Points
Bushings and grease zerks at all pivot points ensure smoother operation and extended component life. Designed for durability and easy maintenance, this setup minimizes wear and reduces service intervals—ideal for fleets seeking long-term reliability and performance.
