Slider
ILU
Slider
Liftgates
Key Specs
Imperial
Metric
- Weight Capacity
- Up to 2268 kg Up to 5000 lbs.
- Platform Size
- Up to 1879.6 mm x 2387.6 mm Up to 74"x94"
- Bed Height
- Up to 1422.4 mm Up to 56"

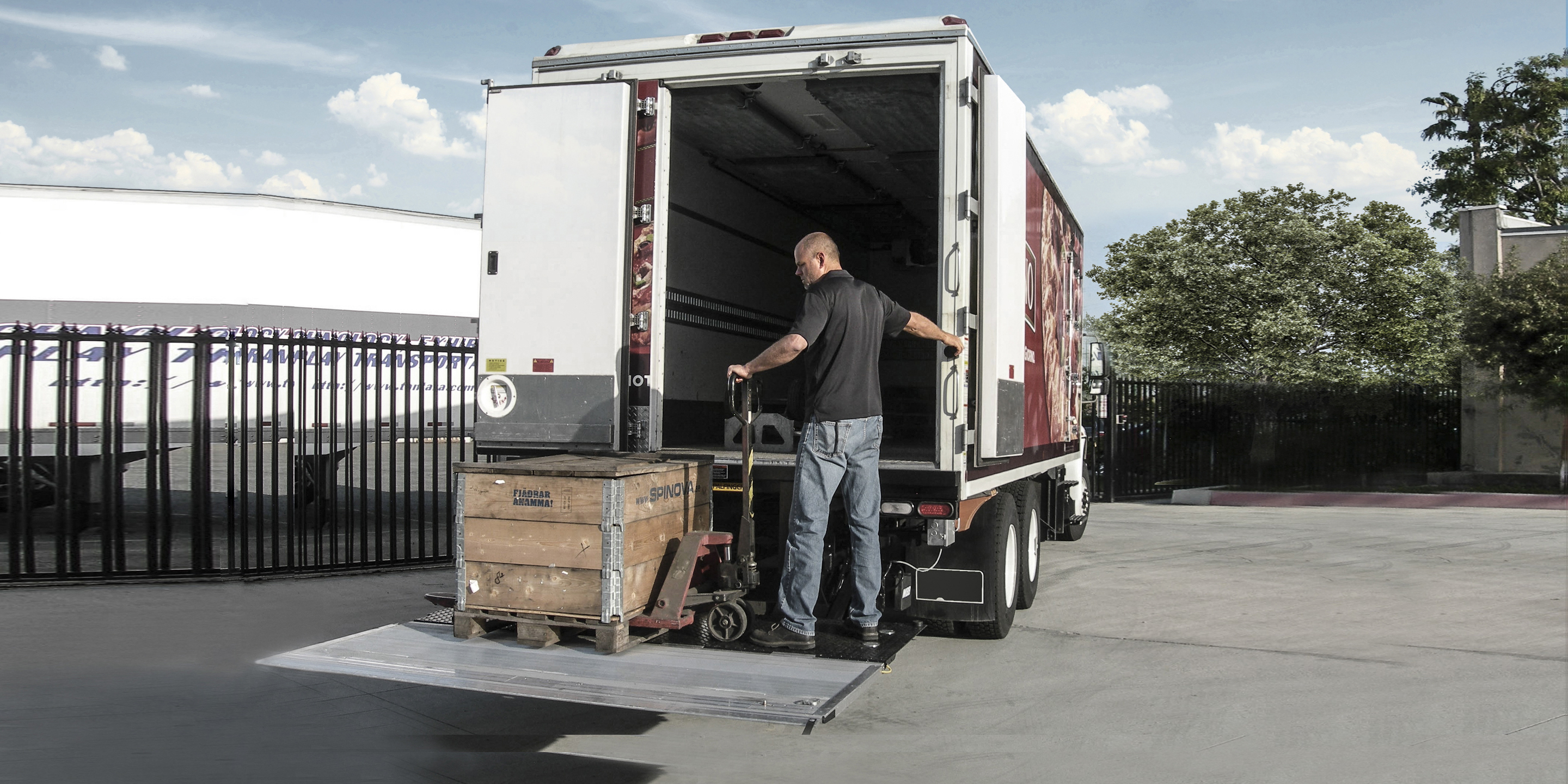

Simplify dock loading with the ILU Under Slide Lift. Rapid mount, protected under-vehicle storage, and a spacious platform make operations smooth. Built tough with a torsion-assisted flip and slide-in power pack for reliability and easy handling every time.
Technical Specifications
Technical data U.S. Units
|
Lifting capacity (lbs) |
Approx. weight (lbs) |
Bed height range (inch) |
Platform size length (inch) |
Platform size width (inch) |
|
|---|---|---|---|---|---|
| ILU 40 | 4,000 lbs | 1300 lbs. | 38-56" | 67" | 94" |
| ILU 50 | 5,000 lbs | 1350 lbs. | 38-56" | 67" | 94" |
Technical data metric
|
Lifting capacity |
Approx. weight |
Bed height range |
Platform size length |
Platform size width |
|
|---|---|---|---|---|---|
| ILU 40 | 1,814 kg | 589 kgs. | 965-1422 mm | 1701 mm | 2387 mm |
| ILU 50 | 2,267 kg | 612 kgs. | 1701 mm | 2387 mm |
Standard features
- Large platforms
- Level ride
- 4 cylinder wide optimized construction
- 150 AMP circuit breaker
Bushings & Zerks at All Pivot Points
Bushings and grease zerks at all pivot points ensure smoother operation and extended component life. Designed for durability and easy maintenance, this setup minimizes wear and reduces service intervals—ideal for fleets seeking long-term reliability and performance.
E-Coat Protection
PALFINGER’s standard e-coat process ensures unmatched corrosion protection. All parts are cleaned in 4 baths, pre-treated with phosphate coating, then fully immersed in high-performance PPG paint. A direct current bonds the coating to steel, sealing every surface for lasting durability.
Cart Stops
Secure cargo and prevent roll-off with heavy-duty cart stops—designed for liftgate-equipped service trucks. Built to withstand tough jobsite conditions, they offer reliable load control during loading and unloading. Easy to use, durable, and essential for safe, efficient operations.
Platform-Mounted Foot Controls
PALFINGER’s platform-mounted foot controls offer hands-free convenience and safer operation. Designed for efficiency, they allow quick access to liftgate functions while keeping operators focused and secure—ideal for fast-paced loading environments and improved workflow.
Handheld Remote
Control liftgate functions with ease using our handheld remote—designed for durability, precision, and convenience. Whether you're loading or unloading, enjoy smooth, responsive operation right at your fingertips. Built for tough environments and reliable performance.
