Cantilever

ILQ

Cantilever

alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
Liftgates
Key Specs
Imperial
Metric
Weight Capacity
Up to 998 kg 2200 lbs.
Platform Size
Up to 1524 mm x 2489.2 mm Up to 60"x98"
Bed Height
Up to 990.6 mm Up to 39"

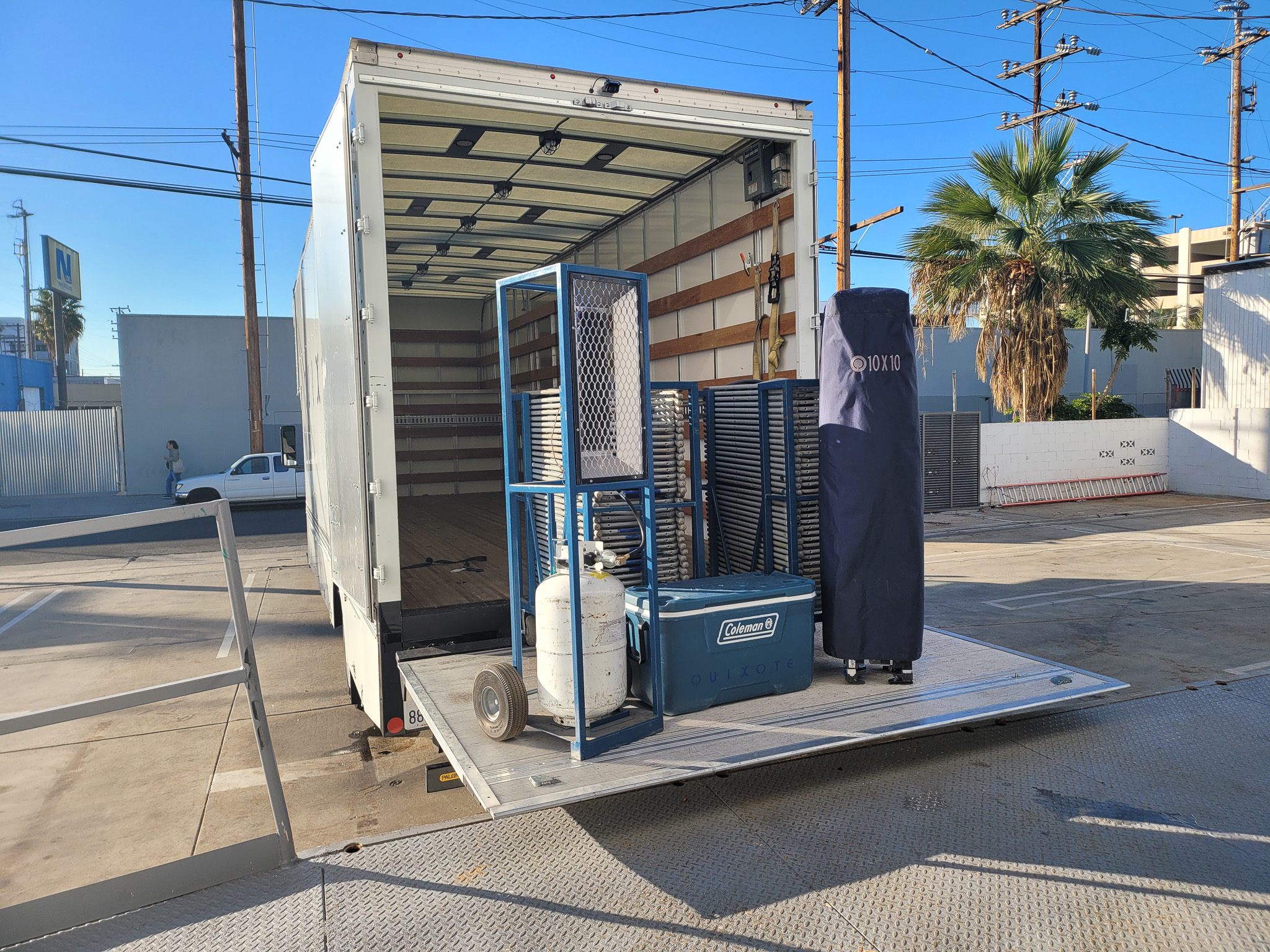

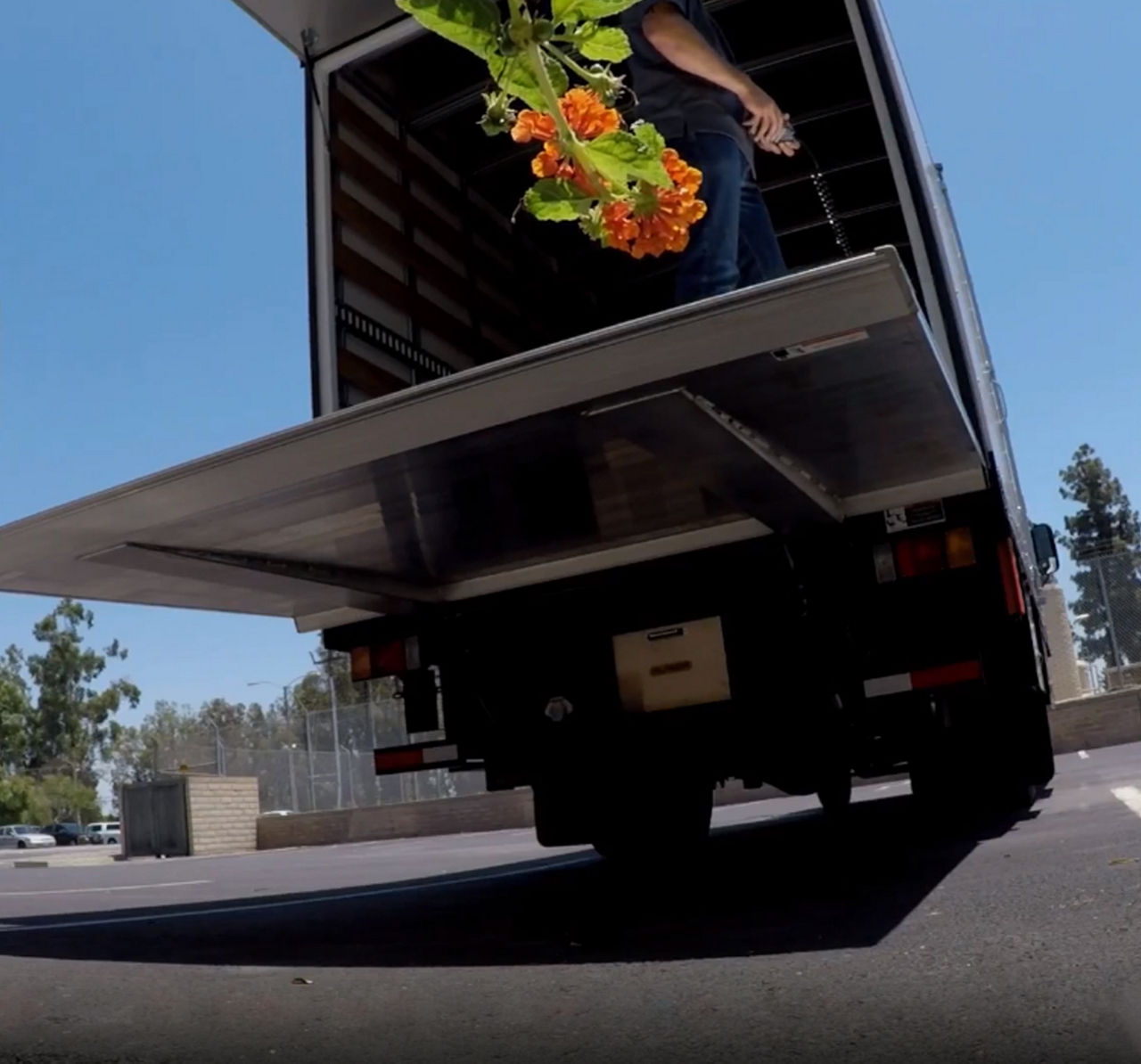

The ILQ liftgate is your tailgate, rear door, and dock plate in one. Its rugged, adjustable platform handles any terrain or angle with ease—delivering smooth, safe loading and unmatched durability for years of heavy-duty performance.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Protected Power, Ready to Perform

The thermo-protected power pack is fully enclosed in the mount tube for added protection and slides out for quick inspection. Oversized, high-quality components reduce maintenance and downtime, ensuring reliable liftgate performance in demanding conditions and extreme temperatures.



alt text

Bushings and Grease Zerks

PALFINGER’s PTV-BG liftgate features corrosion-protected hardened pins and grease-loading perforated bushings for extended service intervals. These rugged components are part of a low-maintenance design built to go the distance—just one example of the thoughtful engineering behind every PALFINGER liftgate.

alt text

Ground Rollers That Safeguard Every Delivery

Protect your liftgate, your customer’s lot, and your reputation—platform ground rollers reduce wear and tear during loading while preventing surface damage. Designed for smooth operation and added safety, they’re a smart upgrade for any fleet focused on durability and professionalism.

alt text

Technical Specifications

Technical data U.S. Units

Lifting capacity (lbs)

Approx. weight (lbs)

Bed height range (inch)

Platform size length (inch)

Platform size width (inch)
ILQ 22 2,200 lbs 690-790 lbs. 30-39" Available in 48" | 60" lengths Available in 94" | 98" widths
Technical data metric

Lifting capacity

Approx. weight

Bed height range

Platform size length

Platform size width

ILQ 22 997 kg 312-358 kgs. 762-990 mm Available in 1219 mm | 1524 mm lengths Available in 2387 mm | 2489 mm widths
Standard features
  • Three-piece under-ride guard
  • 105-degree tilting platform maintains level through operation
  • Cab shut-off switch
  • 150 AMP circuit breaker
  • Automatic leveling

Discover Standard Features

E-Coat Protection

PALFINGER’s standard e-coat process ensures unmatched corrosion protection. All parts are cleaned in 4 baths, pre-treated with phosphate coating, then fully immersed in high-performance PPG paint. A direct current bonds the coating to steel, sealing every surface for lasting durability.

alt text
Handheld Remote

Control liftgate functions with ease using our handheld remote—designed for durability, precision, and convenience. Whether you're loading or unloading, enjoy smooth, responsive operation right at your fingertips. Built for tough environments and reliable performance.

Optional Features

98" Wide Platform

Equip your 102" body or trailer with a 98" wide platform for added strength and versatility.

Wireless Remote

Wireless remote controls offer fast, reliable liftgate operation with enhanced safety and flexibility. Operators can manage lift functions, improving workflow —perfect for busy delivery environments and efficient fleet performance.

Swing Door Kit

Upgrade your cantilever liftgate with a swing door kit—engineered for a smooth transition when the liftgate is installed behind swing doors.  This kit improves access and durability while keeping your cargo safe and your workflow efficient.

Full Door Seal Kit

Protect your cargo with a full door seal kit—designed to keep out dust, moisture, and debris while improving thermal efficiency. Ideal for liftgates and commercial vehicles, this upgrade ensures a tighter seal, longer-lasting performance, and safer deliveries in any condition.

Reinforced Platform

Strengthen your cantilever liftgate with a reinforced platform—built for heavy-duty performance, enhanced safety, and long-term durability. Ideal for demanding delivery and logistics operations. A reinforced platform ensures reliable cargo handling and boosts fleet efficiency where it matters most.

Custom Made Platforms

Enhance your liftgate with a custom made platform—built to match your exact specs for better safety, efficiency, and cargo handling. Whether for delivery, logistics, or specialized fleets, a custom platform gives you the edge in performance and reliability. Tailor your solution to fit your business.

Platform-Mounted Foot Controls

PALFINGER’s platform-mounted foot controls offer hands-free convenience and safer operation. Designed for efficiency, they allow quick access to liftgate functions while keeping operators focused and secure—ideal for fast-paced loading environments and improved workflow.

Aluminum Platforms

Boost load capacity and durability with aluminum platforms—lightweight, corrosion-resistant, and built to perform. Ideal for delivery fleets and commercial vehicles.

Flip-Up Door

Upgrade your fleet with a liftgate featuring a flip-up door—engineered for fast access, secure cargo handling, and rugged reliability. Ideal for delivery, logistics, and commercial use. Discover how a flip-up door on your cantilever liftgate can streamline operations and boost productivity.

Cart Stops

Secure cargo and prevent roll-off with heavy-duty cart stops—designed for liftgate-equipped service trucks. Built to withstand tough jobsite conditions, they offer reliable load control during loading and unloading. Easy to use, durable, and essential for safe, efficient operations.
