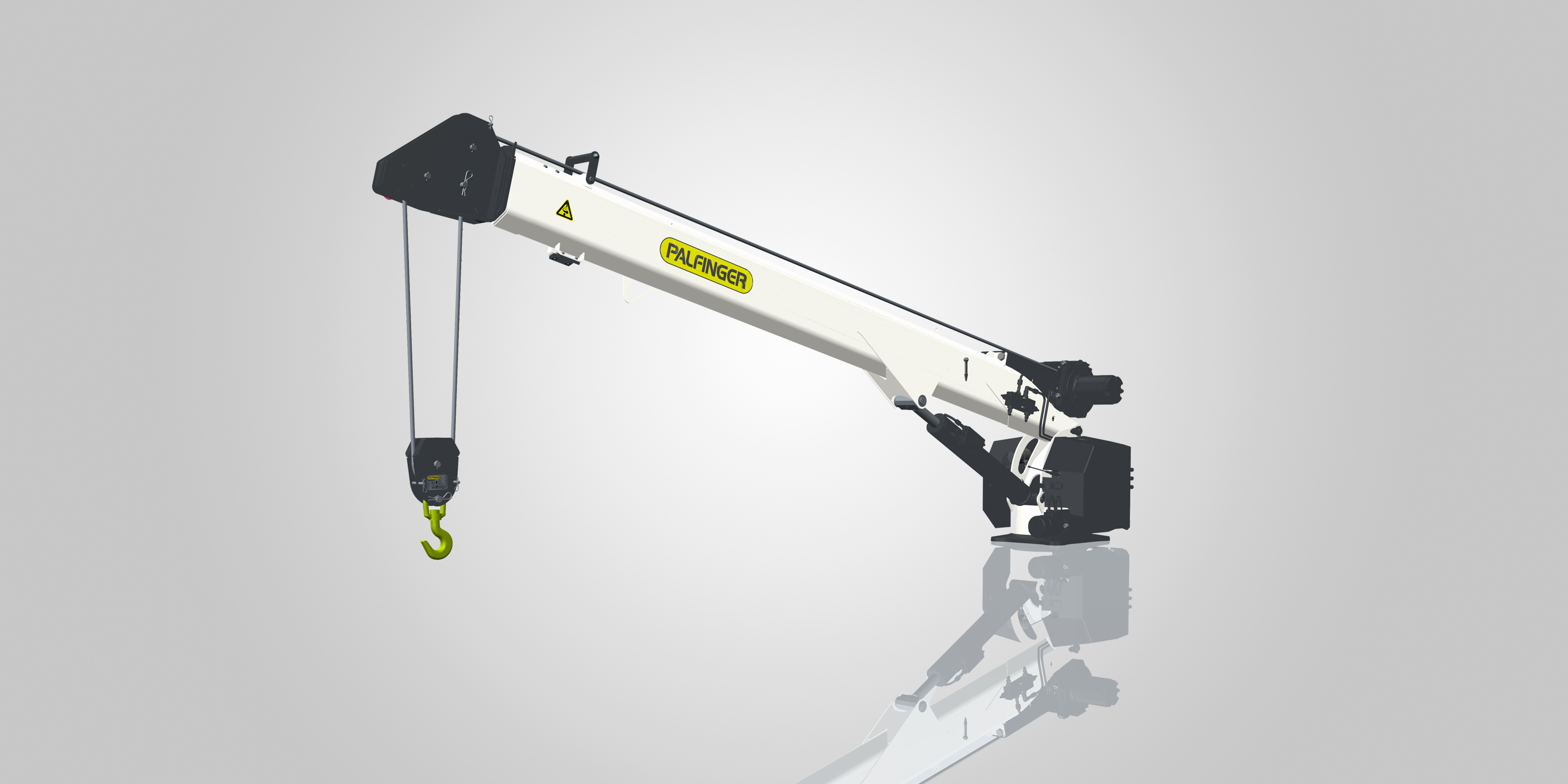

Electric | Hydraulic
PSC 4025
Electric | Hydraulic
Service Cranes
Key Specs
Imperial
Metric
- Capacity
- 1,814 kg 4,000 lbs
- Outreach
- 7.6 m 25 FT
- Crane Weight
- Up to 458 kg Up to 1010 lbs.
For lower duty cycles, PALFINGER Electric | Hydraulic Service Cranes deliver unmatched lifting power, longest reach, and the best weight-to-lift ratio. Customize with overload warning, wrap limiting, and boom tip hooks. PSC 4025 available in Electric | Hydraulic or Hydraulic configurations.
Equipment & Accessories
Technical Specifications
Technical data U.S. units
|
Rated lifting moment |
Capacity |
Max. lifting moment |
Winch speed |
Standard weight |
Boom extension |
Chassis Specification |
Power outreach |
|
|---|---|---|---|---|---|---|---|---|
| Electric | 18,500 ft_lbs | 4,000 lbs | 20,585 ft_lbs | 19 ft./min | 1,010 lbs | 2 Hydraulics | Class 3 | 25 ft. |
| Hydraulic | 18,500 ft_lbs | 4,000 lbs | 20,585 ft_lbs | 40 ft./min | 995 lbs | 2 Hydraulics | Class 3 | 25 ft. |
Technical data metric
|
Capacity |
Standard weight |
Winch speed |
Boom extension |
Chassis Specification |
Power outreach |
Max. lifting moment |
Rated lifting moment |
|
|---|---|---|---|---|---|---|---|---|
| Electric | 1,814 kg | 458 kg | 5.8 m/min | 2 Hydraulics | Class 3 | 7.6 m | 2.9 mt | 2.6 mt |
| Hydraulic | 1,814 kg | 451 kg | 12.2 m/min | 2 Hydraulics | Class 3 | 7.6 m | 2.9 mt | 2.6 mt |
Planetary Winch
A planetary winch offers unmatched speed and durability for heavy-duty lifting. Engineered for smooth, efficient performance and long-lasting reliability, it ensures maximum productivity and safety—making it the go-to solution for demanding service crane applications.
Horse Head
A low-profile design for maximum clearance and efficiency. Optional boom tip hooks and integrated lights enhance versatility, while the absence of A2B components eliminates interference—delivering smooth, reliable operation for service crane applications.
Intelligent Winch Console (IWC)
A two-block damage prevention system is integrated into the winch mounting platform for enhanced safety and efficiency. This design eliminates the need for a boom tip apparatus and a cord reel, reducing complexity and interference. Fully compliant with ASME B30.5 standards for reliable operation.
Load Block Stowing Bracket
Brackets and pads are engineered to prevent the load block from contacting the boom when stowed. This smart design enhances safety, protects equipment, and ensures smooth operation—ideal for service crane applications requiring reliability and durability.
Hexagonal Booms
Ultra-low-maintenance boom sections feature high tensile strength and a self-centering, single-weld design for superior durability. Powered by internal extension cylinders, this advanced construction ensures smooth and reliable performance, as well as a long service life, in demanding crane applications.
Cylinders
Internal extension cylinders deliver 16 feet of outreach with a manual tip section for added flexibility. All cylinders feature E-coating for corrosion resistance and a 5-stage marine-grade seal system, ensuring durability, smooth performance, and long service life in demanding crane applications.
Control System
Features a standard proportional wireless remote control with integrated E-stop button, warning horn, and manual valve activation for added safety and flexibility. Cranes operate on a 12V DC power supply, delivering reliable performance and precise control for demanding service applications.
Proportional Control
Single-function proportional control of all hydraulic functions is standard through the control valve. This design ensures smooth, precise operation and reliable performance for service crane applications, delivering efficiency and ease of use in demanding work environments.
Optional Features
Acoustic 90% Load Warning
An audible warning alerts operators at 90% load capacity, giving time to adjust before reaching the maximum limit. This proactive safety feature boosts awareness, prevents overload, and ensures smooth, reliable crane operation on demanding jobs.
3rd Wrap Limiting System
The integrated system prevents the wire rope from spooling off, ensuring at least three wraps remain on the drum for maximum safety and reliability. This advanced design exceeds ASME B30.5 standards, reducing risk and improving performance in demanding crane operations.
Boom Tip Hooks
PALFINGER-exclusive boom tip hooks offer 1.5-ton lifting capacity for maximum versatility. Available on one or both sides of the boom tip, with a horsehead featuring a threaded weldment for secure mounting—delivering strength and flexibility for demanding crane applications.
Outriggers
Support every lifting application with versatile outrigger options—manual or hydraulic. Designed for stability and safety, these solutions provide reliable performance and adaptability for service crane operations in demanding work environments.
Boom Tip Lighting
A retractable cord reel powers dual boom tip work lights that swing freely as the boom raises and lowers, illuminating your work area for maximum visibility and safety. This smart design enhances productivity and precision in demanding service crane applications.
Boom Rest
Protect your crane's finish with PALFINGER's non-marring boom rest. Designed for durability and support, it securely holds the boom while preventing scratches and paint damage—keeping your equipment looking professional and performing at its best on every job.
