Hydraulic

PSC 10829

Hydraulic

Key Specs

Imperial

Metric

Capacity: 4,900 kg 10,800 lbs

Outreach: 8.9 m 29.3 FT

Crane Weight: 1092 kg 2407 lbs.

View all specifications

PALFINGER hydraulic cranes tackle heavy-duty jobs in mining, construction, and more with 29'4" reach, an impressive weight-to-lift ratio, and multi-function proportional control. High-speed winch with cable protection comes standard, along with options such as boom tip hooks, ELS, and personnel baskets.

Previous Model #: PSC 6229

Open Diagrams

Find Sales Partner

Diagrams

PSC 6229

View

Diagrams

PSC 6229

View

The Ultimate Defense Against Corrosion

Boost your mechanics truck’s durability with PALFINGER’s E-Coat Corrosion Protection. Our advanced 12-step electrocoat dip process cleans, primes, and coats every inch of metal for full coverage and automotive-grade rust defense—built to withstand the toughest jobs and environments.

Lighter. Longer. Stronger.

PALFINGER service cranes outperform the competition—up to 30% lighter for more payload, 30% longer for maximum reach, and 20% stronger for superior lifting power. Standard boom lengths of 16’, 25’, and 29’ reduce setup time and improve access for tough lifts. Advanced safety systems, including our exclusive winch damage prevention feature, make lifting safer and more efficient than ever.

Equipment & Accessories

Protective Case + Belt Loop

Keep your remote protected and accessible with a rugged nylon case featuring a clear cover and a convenient belt loop. Designed to withstand harsh weather, it ensures durability and hands-free ease for service crane operators on the job.

*Only with push-button remote

Silicone Remote Cover

Protect your service crane remote with a flexible silicone cover that blocks dust, dirt, and grime—keeping your controls clean and your focus on the job, not maintenance.

*Only with push-button remote

Remote Storage Bracket

Securely mount your service crane remote with a metal bracket and a strong magnet. Store it in the cab or crane compartment for safe and organized transport every time.

*Only with push-button remote

Pistol Grip Remote

The PALFINGER Pistol Grip remote offers a rugged, weatherproof design and single-handed control of all crane functions. Attach it to any metal surface for secure storage on your truck—keeping it safe, accessible, and ready for use without the risk of losing it.

Personnel Basket

Innovative compact aerial lift for service cranes. Quick-connect setup, 37' reach, collapsible storage box, and lightweight design—perfect for Class 4 trucks with 5,000 lb cranes.

Push-Button Remote Control

Operate your service crane effortlessly with a push-button remote. Designed for precision and convenience, this control system ensures smooth, reliable lifting and positioning in demanding work environments. Boost efficiency and safety with easy, one-touch operation.

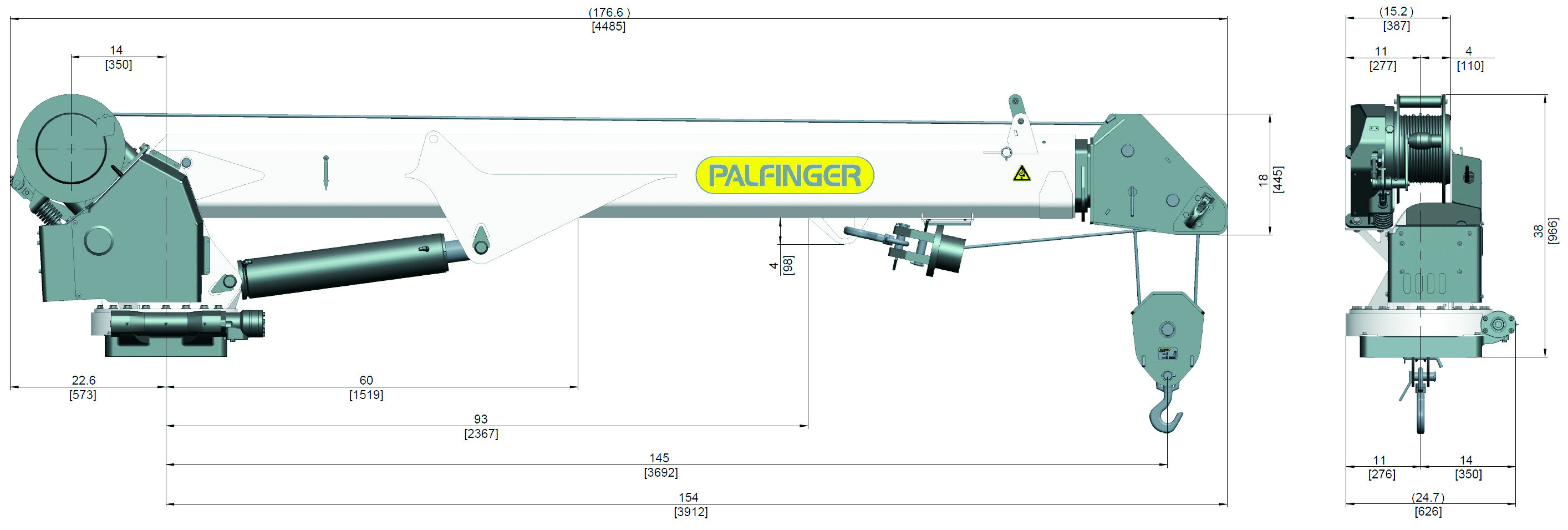

Technical Specifications

PSC 10829 Brochure

Service Truck Solution Range

Technical data U.S. units

	Rated lifting moment (ft.lbs)	Capacity (lbs)	Max. lifting moment (ft.lbs)	Winch speed (ft./min)	Standard weight (lbs)	Boom extension	Chassis Specification	Power outreach
Hydraulic	62,000 ft_lbs	10,800 lbs	68,900 ft_lbs	60 ft./min	2,407 lbs	2 Hydraulics	Class 6	29 ft.

Technical data metric

	Capacity (kg)	Standard weight (kg)	Winch speed (m/min)	Boom extension	Chassis Specification	Power outreach	Max. lifting moment	Rated lifting moment
Hydraulic	4,900 kg	1,092 kg	18.2 m/min	2 Hydraulics	Class 6	8.9 m	9.5 mt	8.6 mt

Discover Standard Features

Planetary Winch

A planetary winch offers unmatched speed and durability for heavy-duty lifting. Engineered for smooth, efficient performance and long-lasting reliability, it ensures maximum productivity and safety—making it the go-to solution for demanding service crane applications.

Horse Head

A low-profile design for maximum clearance and efficiency. Optional boom tip hooks and integrated lights enhance versatility, while the absence of A2B components eliminates interference—delivering smooth, reliable operation for service crane applications.

Load Block Stowing Bracket

Brackets and pads are engineered to prevent the load block from contacting the boom when stowed. This smart design enhances safety, protects equipment, and ensures smooth operation—ideal for service crane applications requiring reliability and durability.

Hexagonal Booms

Ultra-low-maintenance boom sections feature high tensile strength and a self-centering, single-weld design for superior durability. Powered by internal extension cylinders, this advanced construction ensures smooth and reliable performance, as well as a long service life, in demanding crane applications.

Cylinders

Internal extension cylinders deliver 16 feet of outreach with a manual tip section for added flexibility. All cylinders feature E-coating for corrosion resistance and a 5-stage marine-grade seal system, ensuring durability, smooth performance, and long service life in demanding crane applications.

Control System

Features a standard proportional wireless remote control with integrated E-stop button, warning horn, and manual valve activation for added safety and flexibility. Cranes operate on a 12V DC power supply, delivering reliable performance and precise control for demanding service applications.

3rd Wrap Limiting System

The integrated system prevents the wire rope from spooling off, ensuring at least three wraps remain on the drum for maximum safety and reliability. This advanced design exceeds ASME B30.5 standards, reducing risk and improving performance in demanding crane operations.

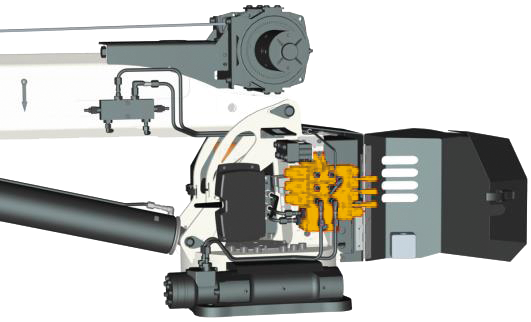

Proportional Control

Experience multi-functional proportional control for all hydraulic functions—standard through the control valve. This advanced design ensures smooth, precise operation and reliable performance for service crane applications, delivering efficiency, accuracy, and ease of use in tough work environments.

Optional Features

Boom Tip Hooks

PALFINGER-exclusive boom tip hooks offer 1.5-ton lifting capacity for maximum versatility. Available on one or both sides of the boom tip, with a horsehead featuring a threaded weldment for secure mounting—delivering strength and flexibility for demanding crane applications.

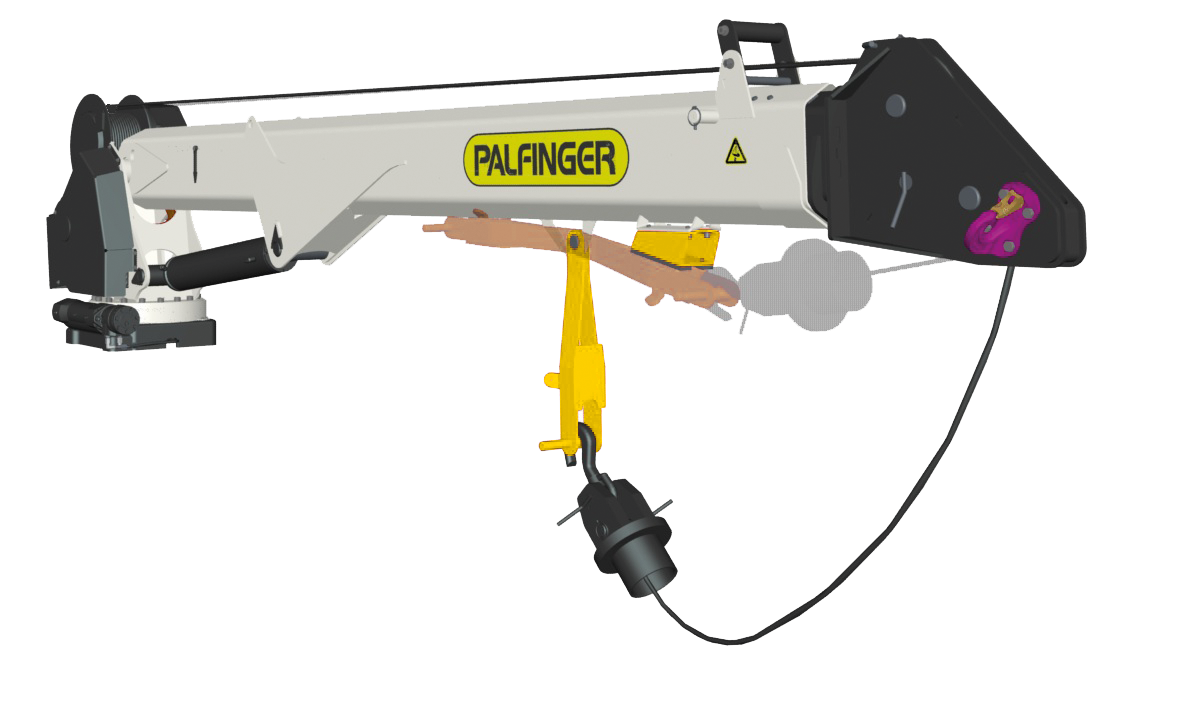

ELS System

PALFINGER's innovative solution lowers the hooking point for the load block, making lifts safer and more efficient. The winch easily raises the load block into its stowed position, streamlining setup and reducing downtime—perfect for demanding job sites where speed and reliability matter.

Boom Tip Lighting

A retractable cord reel powers dual boom tip work lights that swing freely as the boom raises and lowers, illuminating your work area for maximum visibility and safety. This smart design enhances productivity and precision in demanding service crane applications.

Boom Rest

Protect your crane's finish with PALFINGER's non-marring boom rest. Designed for durability and support, it securely holds the boom while preventing scratches and paint damage—keeping your equipment looking professional and performing at its best on every job.

Outriggers

Support every lifting application with versatile outrigger options—manual or hydraulic. Designed for stability and safety, these solutions provide reliable performance and adaptability for service crane operations in demanding work environments.
