Basic
PW 38001-EL
Material Handling Crane
Key Specs
Imperial
Metric
- Max. Lift Moment
- 24.1 mt 174364 ft lbs.
- Max. Lift Capacity
- 4,000 kg 8,820 lbs
- Max. Outreach
- 21.4 m 70.3 ft

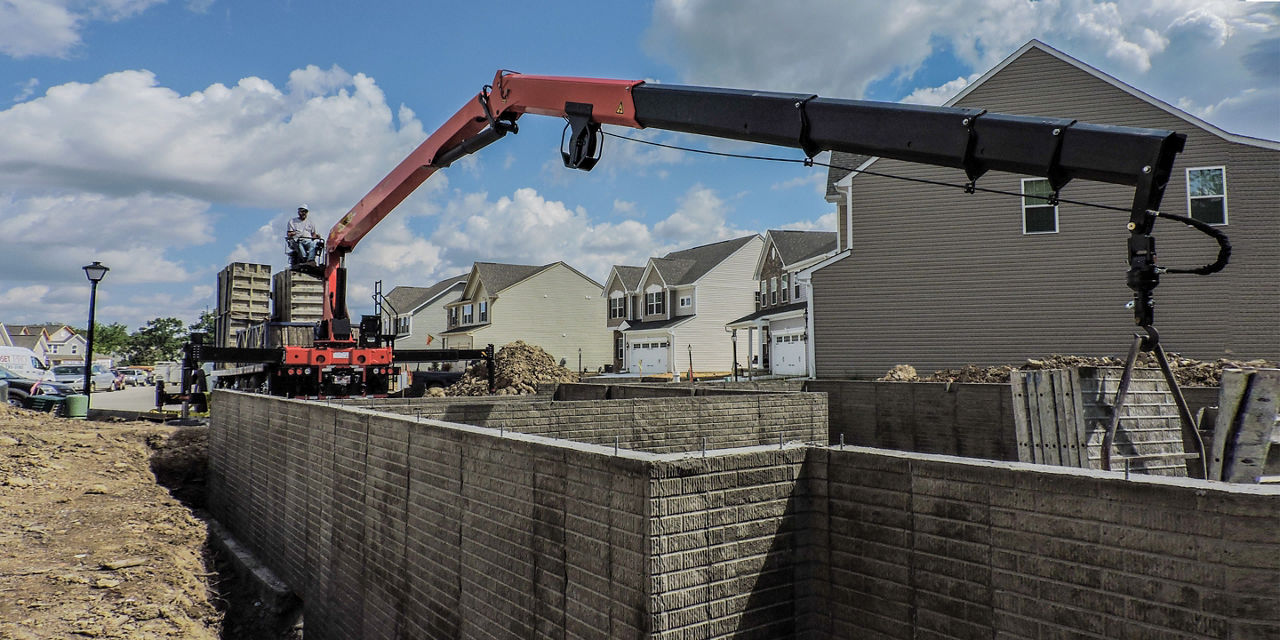

The PW 38001-EL features a four-section boom with 70 ft outreach and 30.4 mt lifting capacity for specialized long-distance lifts. Built for easy service, these cranes deliver superior reach, strength, and cost savings—ideal for foundation forming and material handling.
Technical Specifications
Technical data U.S. Units
|
Crane Width (inch) |
Max. Lifting Capacity (lbs) |
Operating Pressure (psi) |
Max Hydraulic Outreach (ft) |
Crane Height (inch) |
Installation width (inch) |
Max. Lifting Moment |
Pump Capacity |
Slewing Torque |
Stabilizer spread |
Rotation |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| EL | 98.91 inch | 8,820 lbs | 4,640 psi | 70.3 ft | 110 inch | 37.01 inch | 174,360 ft. lbs | 26.4-31.7 US gal. min | 51,330 ft. lbs. | 24’ 3” | 470 degrees |
Technical data metric
|
Crane Height (mm) |
Installation width (mm) |
Max Hydraulic Outreach (m) |
Max. Lifting Capacity (kg) |
Operating Pressure (bar) |
Crane Width (mm) |
Max. Lifting Moment |
Pump Capacity |
Rotation |
Slewing Torque |
Stabilizer spread |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| EL | 2,794 mm | 940 mm | 21.4 m | 4,001 kg | 320 bar | 2,512 mm | 24.1 mt | 22-26.4 gal. min | 470 degrees | 7.8 mt | 7.3 m |
Finite Element Technology
High-tech crane design starts with Finite Element Technology Analysis (FEA). Every load-bearing component is precisely calculated, optimized, and engineered for strength while reducing weight—delivering superior lifting performance and efficiency for material handling.
Low Maintenance Extension System
Lead the way in service-friendly crane design with our low-maintenance extension system, which utilizes a sealed, wear-resistant design featuring optimized sliding elements and corrosion-protected components. This minimizes lubrication requirements and reduces service intervals, ensuring maximum uptime and operational reliability.
PALTRONIC 50 & 150
PALTRONIC is the advanced electronic control system that monitors and manages crane operations for peak performance. Designed for reliability and operator ease, it delivers superior functionality and safety for material handling applications with real-time diagnostics, overload protection, intelligent function management, geometry control, and LCD display.
Power Link Plus
Our advanced linkage system connects the knuckle boom and main boom to boost lifting power in critical positions while maintaining constant speed. This design ensures maximum performance and efficiency for demanding material handling applications.
Stabilizer Warning Lights
Standard LED warning lights on stabilizer cylinders ensure maximum visibility and safety. Bright orange LEDs alert crane operators, pedestrians, and passing traffic—enhancing awareness and reducing risk during material handling operations.
Turntable Slewing System
Experience superior slewing performance with our turntable slewing system. Dual hydraulic drive motors deliver smooth, powerful crane rotation—outperforming traditional rack-and-pinion for precision and reliability in material handling.
Extra Hydraulic Boom Extensions
Configurations ranging from 3-section to 4-section systems are engineered for high structural integrity, allowing increased outreach and lifting versatility.
Return Oil Utilization
Leverages hydraulic regeneration by redirecting return oil from the extension cylinders back into the pressure circuit, significantly increasing boom extension speed while reducing energy loss and improving overall system efficiency.
Optional Features
Transport Position Switches
Factory-mounted transport switches enhance safety by preventing the crane operator from driving without properly stowing the boom, outriggers, and stabilizers. This smart feature ensures secure transport and protects your equipment and worksite.
Active Oscillation Suppression System (AOS)
Patented technology keeps loads steady by eliminating bounce after abrupt stops. This reduces shock loading on the boom, protecting the crane, vehicle, and operator for safer, smoother material handling.
US Patent #6,328,173; other patents apply
Radio Remote Control
Radio remote-controlled cranes deliver precision and convenience with an advanced control station. Integrated display, hydraulic test ports, and easy-access panels simplify service and maintenance—boosting efficiency for material handling and heavy-lift applications.
