Knuckle Boom

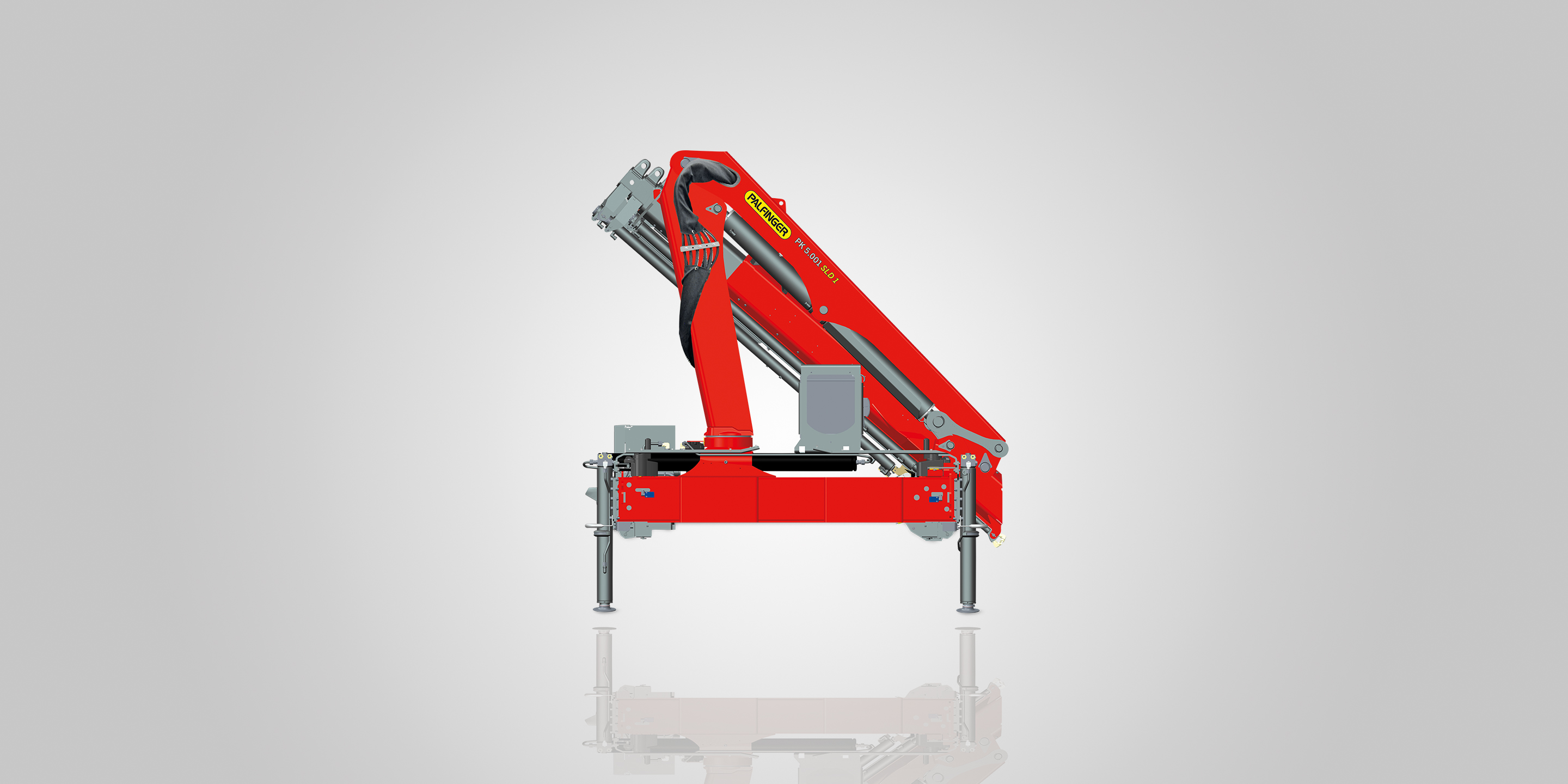

PK 5.001 SLD 3
Knuckle Boom Crane
Key Specs
Imperial
Metric
- Max Lifting Moment
- 4.6 mt 33,281 ft_lbs
- Max Lifting Capacity
- 3,300 kg 7300 lb
- Max Hydraulic Outreach
- 11.1 m 36' 5''
The SLD range combines trusted technology with durable design to deliver robust, value-driven performance. The PK 5.001 SLD 3 offers fast work cycles for efficient handling in tight spaces. The Single Link system enhances crane geometry and hook power for controlled movement, ideal for accurate material placement under low roofs.
Technical data U.S. Units
- Max. lifting moment
- 33,281 ft_lbs
- Max. lifting capacity
- 7300 lb
- Max. hydraulic outreach
- 36' 5''
- Max. manual outreach
- 42'
- Slewing angle
- 400°
- Slewing torque
- 4,350 ft_lbs
- Stabilizer spread (std)
- 14' 3"
- Fitting space required (std)
- 2' 2''
- Width folded
- 6' 11''
- Max. operating pressure
- 4,785 psi
- Pump capacity
- 4.0 - 6.6 gpm
- Dead weight (std)
- 1,530 lbs
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Technical Data Metric
- Max. lifting moment
- 4.6 mt
- Max. lifting capacity
- 3,300 kg
- Max. hydraulic outreach
- 11.1 m
- Max. manual outreach
- 12.7 m
- Slewing angle
- 400°
- Slewing torque
- 0.6 mt
- Stabilizer spread (std)
- 2.9 m
- Fitting space required (std)
- 0.66 m
- Width folded
- 2.1 m
- Max. operating pressure
- 330 bar
- Pump capacity
- 15 - 25 l/min
- Dead weight (std)
- 695 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting Capacities U.S. Units
|
Crane Weight (lbs) |
Lifting moment (ft_lbs) |
Pressure (psi) |
Crane Height (inch) |
Crane Width (inch) |
Installation Width (inch) |
Outreach |
Pump capacity (gpm) |
Slewing angle (°) |
Slewing torque (ft_lbs) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 985 lbs | 33,281 ft_lbs | 4,786 psi | 64.96 inch | 82.68 inch | 25.98 inch | 17' 5" | 4.0 - 6.6 | 400 | 4350 |
| A | 1,091 lbs | 31,834 ft_lbs | 4,786 psi | 64.96 inch | 82.68 inch | 25.98 inch | 23' 7" | 4.0 - 6.6 | 400 | 4350 |
| B | 1,190 lbs | 31,111 ft_lbs | 4,786 psi | 64.96 inch | 82.68 inch | 25.98 inch | 42' | 4.0 - 6.6 | 400 | 4350 |
| BV-1 | ||||||||||
| BV-2 | ||||||||||
| C | 1,279 lbs | 29,664 ft_lbs | 4,786 psi | 64.96 inch | 83.27 inch | 25.98 inch | 42' | 4.0 - 6.6 | 400 | 4350 |
| CV-1 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting Capacities Metric
|
Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Installation Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 1,830 mm | 695 kg | 2,100 mm | 660 mm | 4.6 mt | 5.3 m | 33 Mpa | 15-25 | 400 | 0.6 |
| A | 1,830 mm | 765 kg | 2,100 mm | 660 mm | 4.4 mt | 7.2 m | 33 Mpa | 15-25 | 400 | 0.6 |
| B | 1,845 mm | 830 kg | 2,100 mm | 660 mm | 4.3 mt | 9.2 m | 33 Mpa | 15-25 | 400 | 0.6 |
| BV-1 | ||||||||||
| BV-2 | ||||||||||
| C | 1,885 mm | 890 kg | 2,115 mm | 660 mm | 4.1 mt | 11.1 m | 33 Mpa | 15-25 | 400 | 0.6 |
| CV-1 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
PALTRONIC – Smart Crane Control
PALTRONIC control electronics continuously monitor crane load, position, and stability in real time. Sensors send data to the system, which automatically activates safety, assistance, and performance functions when needed. This results in smoother movements, overload protection, improved stability, and easier operation—allowing the operator to focus fully on safe, precise load handling.
Optional Features
Radio Remote Control – Full Control
Radio remote control system operates the crane safely and efficiently from a distance. Operator commands are transmitted wirelessly delivering precise hydraulic movements. This enables clear visibility of the load, one-person operation, and allows work outside danger zones. Adjustable controls, speed settings, and built-in safety shutoffs improve comfort, accuracy, and overall job site safety.
HPSC – Smart Stability, More Reach
High Performance Stability Control (HPSC) continuously calculates crane stability based on the real position of the stabilizers. The system automatically adjusts the permitted working range for each setup situation, maximizing the lifting capacity even when space is limited. This improves safety, increases usable reach, and gives the operator clear, reliable guidance during crane operation.
