Knuckle Boom

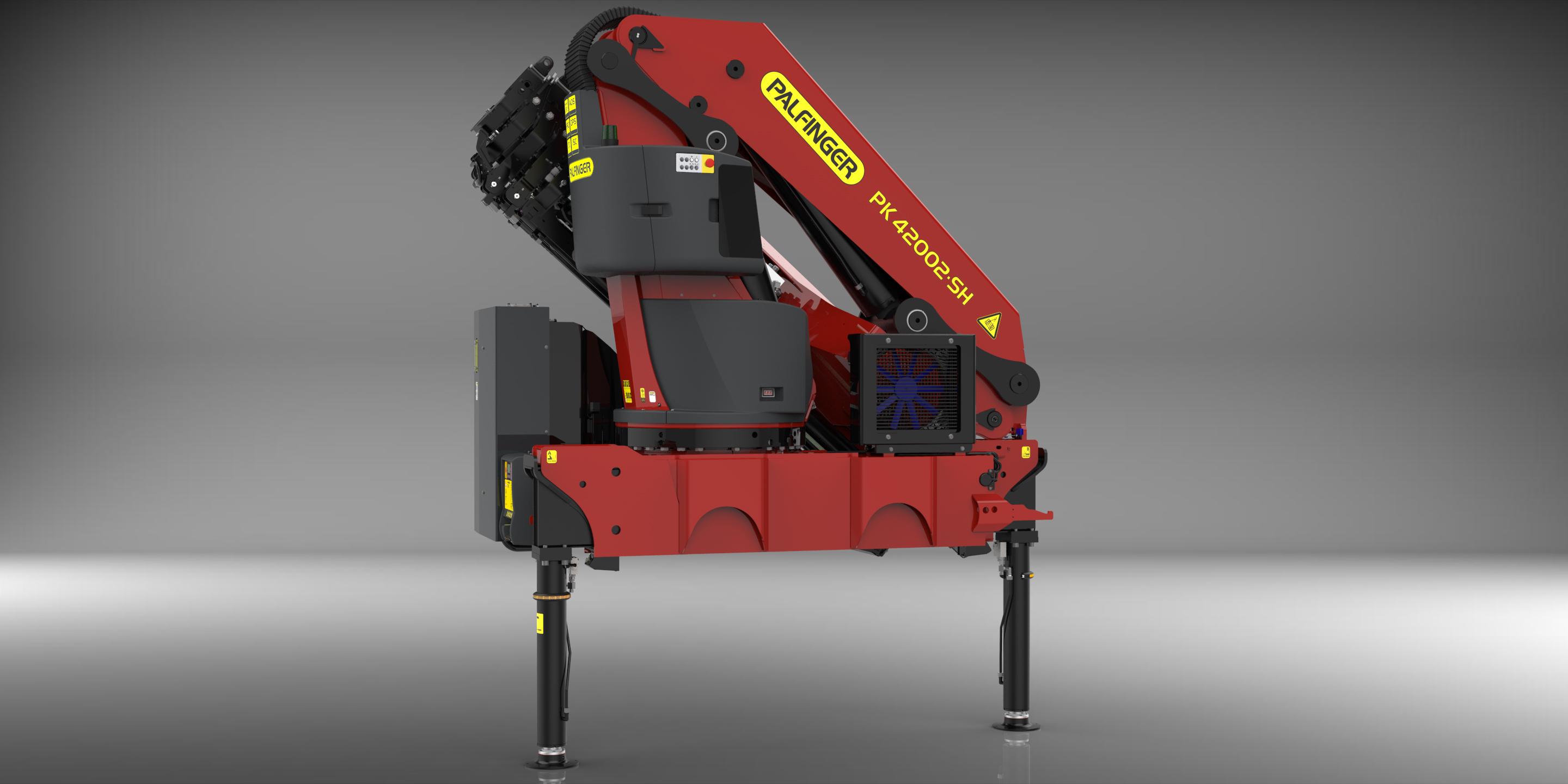

PK 42002 SH High Performance
PK 42002 SH High Performance
Knuckle Boom Crane
Key Specs
Imperial
Metric
- Max Lifting Moment
- 41.1 mt 297,270 ft_lbs
- Max Lifting Capacity
- 15,000 kg 32848 lbs
- Max Hydraulic Outreach
- 21 m 68'11"
- Power Link Plus delivers extreme versatility and enables crane work even under difficult conditions
- High value retention thanks to KTL coating technology
- Increased comfort and safety due to Soft Stop
- Maximum utilization of the working range due to HPSC
- More lifting power due to S-HPLS
- More efficient and faster due to continuous slewing
Diagrams
Diagrams
Technical Specifications
Technical data U.S. Units
- Max. lifting moment
- 297,270 ft_lbs
- Max. lifting capacity
- 32848 lbs
- Max. hydraulic outreach
- 68'11"
- Max. manual outreach
- 82'8"
- Max. outreach (with fly jib)
- 102'4"
- Slewing angle
- ∞
- Slewing torque with 2 gears
- 36,210 ft_lbs
- Stabilizer spread (std)
- 291.34 in
- Fitting space required (std)
- 51.97 in
- Width folded
- 98.84 in
- Max. operating pressure
- 5,293 psi
- Pump capacity
- 23.8 - 31.7 gpm
- Dead weight (std)
- 8,488 lbs
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Technical Data Metric
- Max. lifting moment
- 41.1 mt
- Max. lifting capacity
- 15,000 kg
- Max. hydraulic outreach
- 21 m
- Max. manual outreach
- 25.2 m
- Slewing angle
- ∞
- Slewing torque with 1 gear
- 3.8 mt
- Slewing torque with 2 gears
- 5 mt
- Stabilizer spread (std)
- 7.4 m
- Width folded
- 2.51 m
- Max. operating pressure
- 365 bar
- Pump capacity
- 90 - 120 l/min
- Dead weight (std)
- 3,851 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting Capacities U.S. Units
|
Crane Weight (lbs) |
Lifting moment (ft_lbs) |
Pressure (psi) |
Crane Height (inch) |
Crane Width (inch) |
Installation Width (inch) |
Outreach |
Pump capacity (gpm) |
Slewing angle (°) |
Slewing torque (ft_lbs) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| A | 8,490 lbs | 295,148.4 ft_lbs | 5,293 psi | 95.7 inch | 98.8 inch | 52 inch | 25'3" | 23.8-31.7 | ∞ | 27510 / 36210 |
| B | 9,034.5 lbs | 285,603.8 ft_lbs | 5,293 psi | 95.7 inch | 98.8 inch | 52 inch | 30'10" | 23.8-31.7 | ∞ | 27510 / 36210 |
| C | 9,585.7 lbs | 279,730.2 ft_lbs | 5,293 psi | 95.7 inch | 98.8 inch | 52 inch | 38'9" | 23.8-31.7 | ∞ | 27510 / 36210 |
| C PJ100 C | ||||||||||
| C PJ100 D | ||||||||||
| D | 10,247.1 lbs | 275,325 ft_lbs | 5,293 psi | 95.7 inch | 98.8 mm | 52 inch | 46'3" | 23.8-31.7 | ∞ | 36210 |
| D PJ100 C | ||||||||||
| D PJ100 D | ||||||||||
| D PJ125 C | ||||||||||
| D PJ125 E | ||||||||||
| E | 10,714.5 lbs | 270,919.8 ft_lbs | 5,293 psi | 95.7 inch | 98.8 inch | 52 inch | 53'10" | 23.8-31.7 | ∞ | 36210 |
| E PJ080 B | ||||||||||
| E PJ080 C | ||||||||||
| F | 11,122.3 lbs | 267,248.8 ft_lbs | 5,293 psi | 95.7 inch | 98.8 inch | 56.5 inch | 61'4" | 23.8-31.7 | ∞ | 36210 |
| F PJ060 A | ||||||||||
| F PJ060 B | ||||||||||
| G | 11,492.7 lbs | 262,843.6 ft_lbs | 5,293 psi | 95.7 inch | 98.8 inch | 57.3 inch | 68'11" | 23.8-31.7 | ∞ | 36210 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting Capacities Metric
|
Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Installation Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| A | 2,430 mm | 3,851 kg | 2,510 mm | 1,320 mm | 40.2 mt | 7.7 m | 35 Mpa | 90-120 | ∞ | 3.8 / 5.0 |
| B | 2,430 mm | 4,098 kg | 2,510 mm | 1,320 mm | 38.9 mt | 9.7 m | 35 Mpa | 90-120 | ∞ | 3.8 / 5.0 |
| C | 2,430 mm | 4,348 kg | 2,510 mm | 1,320 mm | 38.1 mt | 11.8 m | 35 Mpa | 90-120 | ∞ | 3.8 / 5.0 |
| C PJ100 C | 5,251 kg | 2,550 mm | 13.9 mt | 21.8 m | 35 Mpa | 90-120 | ∞ | 38 / 50 | ||
| C PJ100 D | 5,329 kg | 2,550 mm | 12 mt | 23.6 m | 35 Mpa | 90-120 | ∞ | 38 / 50 | ||
| D | 2,430 mm | 4,648 kg | 2,510 mm | 1,320 mm | 37.5 mt | 14.1 m | 35 Mpa | 90-120 | ∞ | 5.0 |
| D PJ100 C | 5,531 kg | 2,550 mm | 13.9 mt | 24 m | 35 Mpa | 90-120 | ∞ | 5 | ||
| D PJ100 D | 5,609 kg | 2,550 mm | 12 mt | 25.8 m | 35 Mpa | 90-120 | ∞ | 5 | ||
| D PJ125 C | 5,703 kg | 2,550 mm | 15.1 mt | 23.2 m | 35 Mpa | 90-120 | ∞ | 5 | ||
| D PJ125 E | 5,915 kg | 2,550 mm | 10.6 mt | 26.9 m | 35 Mpa | 90-120 | ∞ | 5 | ||
| E | 2,430 mm | 4,860 kg | 2,510 mm | 1,320 mm | 36.9 mt | 16.4 m | 35 Mpa | 90-120 | ∞ | 5.0 |
| E PJ080 B | 5,557 kg | 2,550 mm | 11.6 mt | 24.4 m | 35 Mpa | 90-120 | ∞ | 5 | ||
| E PJ080 C | 5,650 kg | 2,550 mm | 9.6 mt | 26.3 m | 35 Mpa | 90-120 | ∞ | 5 | ||
| F | 2,430 mm | 5,045 kg | 2,510 mm | 1,435 mm | 36.4 mt | 18.7 m | 35 Mpa | 90-120 | ∞ | 5.0 |
| F PJ060 A | 5,466 kg | 2,550 mm | 10.1 mt | 25.3 m | 35 Mpa | 90-120 | ∞ | 5 | ||
| F PJ060 B | 5,530 kg | 2,550 mm | 8.4 mt | 27.2 m | 35 Mpa | 90-120 | ∞ | 5 | ||
| G | 2,430 mm | 5,213 kg | 2,510 mm | 1,455 mm | 35.8 mt | 21 m | 35 Mpa | 90-120 | ∞ | 5.0 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Long-Lasting Coating for Maximum Protection
Advanced coating technology protects components against corrosion, wear, and harsh weather conditions. Multi-stage surface treatment and durable, eco-friendly coatings create a tough, elastic finish with high impact and UV resistance. This extends service life, maintains a high-quality appearance, and preserves resale value while reducing environmental impact and long-term maintenance effort.
HPSC – Smart Stability, More Reach
High Performance Stability Control (HPSC) continuously calculates crane stability based on the real position of the stabilizers. The system automatically adjusts the permitted working range for each setup situation, maximizing the lifting capacity even when space is limited. This improves safety, increases usable reach, and gives the operator clear, reliable guidance during crane operation.
High Speed Extension – Faster Cycles
High Speed Extension increases boom extension and retraction speed by up to 30% by reusing return oil within the hydraulic system. Faster movements reduce load cycle times and improve overall productivity. The crane completes more work in less time without compromising control or precision.
Low-Maintenance Extension System
Low-maintenance extension system eliminates the need for regular greasing by using self-lubricating synthetic sliding elements and corrosion-resistant coating. This keeps the boom clean, reduces service effort, and prevents lubricant contamination of loads or work areas. Smoother extension movements, lower maintenance costs, and longer service life improve overall efficiency and resale value.
POWER LINK PLUS – Maximum Flexibility
Power Link Plus reverse linkage system allowis the knuckle boom to tilt upward by up to 15° beyond horizontal. This increased flexibility supports safe and efficient lifting in confined spaces and around obstacles. At the same time, the crane folds compactly on the truck within legal height limits, delivering smooth movements, high precision, and reliable performance in demanding applications.
Radio Remote Control – Full Control
Radio remote control system operates the crane safely and efficiently from a distance. Operator commands are transmitted wirelessly delivering precise hydraulic movements. This enables clear visibility of the load, one-person operation, and allows work outside danger zones. Adjustable controls, speed settings, and built-in safety shutoffs improve comfort, accuracy, and overall job site safety.
PALTRONIC – Smart Crane Control
PALTRONIC control electronics continuously monitor crane load, position, and stability in real time. Sensors send data to the system, which automatically activates safety, assistance, and performance functions when needed. This results in smoother movements, overload protection, improved stability, and easier operation—allowing the operator to focus fully on safe, precise load handling.
Optional Features
AOS – Steady Loads, Safer Lifting
Active Oscillation Suppression (AOS) reduces boom vibrations and load swing during and after crane movements. Active oscillation countering brings the boom to a fast and controlled stop. This improves precision, protects the load and surroundings, and allows faster operation with greater confidence. Reduced stress on the crane structure also extends service life and improves long-term value.
Folding Assistant
Folding Assist guides the crane automatically to the correct slewing position for folding. This eliminates manual searching for the right position, reduces setup time, and prevents damage caused by incorrect folding. The result is faster stowage, less operator effort, and safer crane handling after each job.
Fly Jib – Extended Reach and Flexibility
Fly jib extends the crane’s working range for lifting at greater heights and distances. Additional reach enables access over obstacles, improved positioning in tight spaces, and more flexibility on complex job sites. Precise control and stable performance support efficient handling of loads that would otherwise be out of reach, expanding the crane’s usable applications.
Soft Stop – Smooth, Controlled Motion
Soft Stop gently slows crane movements before mechanical end positions are reached. This prevents sudden stops, reduces load swing, and protects the crane structure, load, and vehicle. Smoother motion improves precision, increases operator confidence, and allows faster, more accurate work while reducing wear and stress on key components during daily operation.
